7 SERIES FPGAS
VIRTEX-7 FPGA VC707 EVALUATION KIT
FU LL-FEATU R E D,
H IG H EST-PE R FOR MANCE
FPGA DESIG N PLATFOR M
VIRTEX-7 FPGA VC707 EVALUATION KIT:
HIGHLY FLEXIBLE BASE PLATFORM FOR SIMPLIFYING
TECHNOLOGY EVALUATIONS AND ACCELERATING DESIGNS
Design Challenges
•
Consumer expectations and higher traffic
levels are driving insatiable bandwidth
demands
•
Power and performance are becoming the
primary concerns for most designs
•
ASIC/ASSP designs are increasingly
complex (multi-chip barriers)
•
Engineers are being pushed to do more
(innovation, differentiation) with less (time,
budget, and resources)
The Xilinx
®
Virtex
®
-7 FPGA VC707 Evaluation Kit gives designers an easy starting
point for evaluating and leveraging devices that deliver breakthrough performance,
capacity, and power efficiency. Out of the box, this platform speeds time to market
for the full-range of Virtex-7 FPGA-based applications including advanced systems
for wired and wireless communications, aerospace and defense, medical, and
broadcasting markets. The highly flexible kit combines fully integrated hardware,
software, and IP with pre-verified reference designs that maximize productivity and
let designers immediately focus on their unique project requirements.
Fast Access to Virtex-7 Capacity FPGA and Performance
As a base level Targeted Design Platform, this kit provides a flexible environment for
designs that need to implement a DDR3 memory interface, 10Gigabit Ethernet, PCI
Express
®
, Analog Mixed Signal (AMS) capabilities, and other high-speed serial
connectivity. Based on the Virtex-7 VX485T-2 FPGA, the kit is the optimal choice
for advanced systems that need the highest performance and highest bandwidth
connectivity. It speeds the development of designs that can leverage the full breadth
of the Virtex-7 product families, all of which offer maximum power efficiency—
requiring 50% less power than previous generation FPGAs.
Xilinx Solutions
•
Virtex-7 FPGA family and
28nm leadership: new benchmarks
for performance (logic density, I/O
bandwidth, and signal processing)
and 50% power savings
•
Faster start up, with integrated silicon,
software, and IP and complete
documentation
•
Rapid evaluations with base reference
design and other pre-verified examples that
exercise device and board features
•
Convenient, easy-to-use GUI displays
combined results from different
implementations
Boosted Productivity and Shorter Time to Innovation
The combination of the Xilinx ISE
®
Design Suite Logic software and a base
reference design simplifies access to the Virtex-7 features and built-in board
capabilities. The source code can be scaled, to adjust the design for each target
application. The easy-to-use base reference design interface presents evaluation
results in a convenient, intuitive manner, and shortens the learning curve for a smooth
migration to the 7 series. A variety of additional designs and demonstrations are
included to save time and accelerate development for a broad range of Virtex-7
FPGA-based applications.
7 SERIES FPGAS
VIRTEX-7 FPGA VC707 EVALUATION KIT

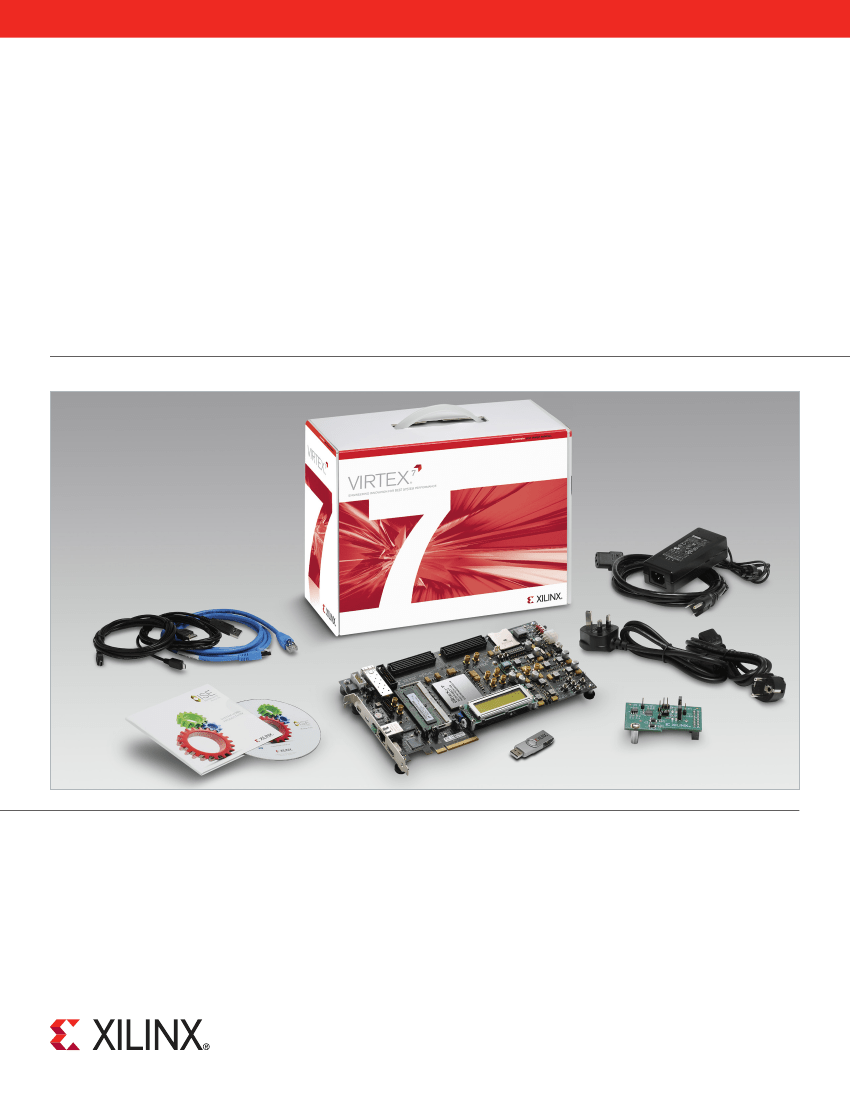

What’s Inside the VC707 Evaluation Kit
•
VC707 evaluation board with the Vintex-7 XC7VX485T-
2FFG1761CES FPGA
•
Full-seat ISE Design Suite Logic Edition, device-locked
for the Virtex-7 XC7VX485T-2FFG1761CES FPGA
•
Reference and example designs and demonstrations*
•
Board design files*
•
Documentation*, including a step-by-step
Getting Started Guide
•
USB cables, Ethernet cable, and universal power supply
Reference Designs and Demonstrations*
•
Base Reference Design (scalable) and Demonstration
•
PCI Express x8 Gen2 Design
•
DDR3 Memory Interface Design
•
Gigabit Ethernet Design
•
10Gigabit Ethernet Design
•
BIST Board Diagnostic Design (built-in self test, with
status GUI)
•
IBERT XCVR Test Design
*Designs, demonstrations, and documentation are delivered on a USB
flash drive.
VI RTE X-7 F PGA VC707 EVALUATI O N K IT
Take the NEXT STEP
For more information, support, documents, and reference designs, or to purchase, please visit:
www.xilinx.com/vc707
