165-200005-27 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> socket> 165-200005-27

165-200005-27: DescriptionIC Socket, SOJ32, 32 Contact(s), 1.27mm Term Pitch, 0.3inch Row Spacing; CategoryThe connector socket; File Size168KB，2 Pages; ManufacturerThomas & Betts Corporation; Websitehttp://www.tnb.com/

Download Datasheet Parametric Compare View All

165-200005-27 Overview

IC Socket, SOJ32, 32 Contact(s), 1.27mm Term Pitch, 0.3inch Row Spacing

165-200005-27 Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	STANDARD: UL 94V-0
body width	0.546 inch
subject depth	0.177 inch
body length	1.116 inch
Contact to complete cooperation	SN-PB
Contact completed and terminated	TIN OVER NICKEL
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	SOJ32
Dielectric withstand voltage	600VDC V
Shell material	POLYPHENYLENE SULFIDE
Insulation resistance	10000000000 Ω
Manufacturer's serial number	165
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Number of contacts	32
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact row spacing	0.3 mm
Terminal pitch	1.27 mm
Base Number Matches	1

Preview

Download Datasheet

View All

SOJ Socket

165-200005-03

165-200097-01

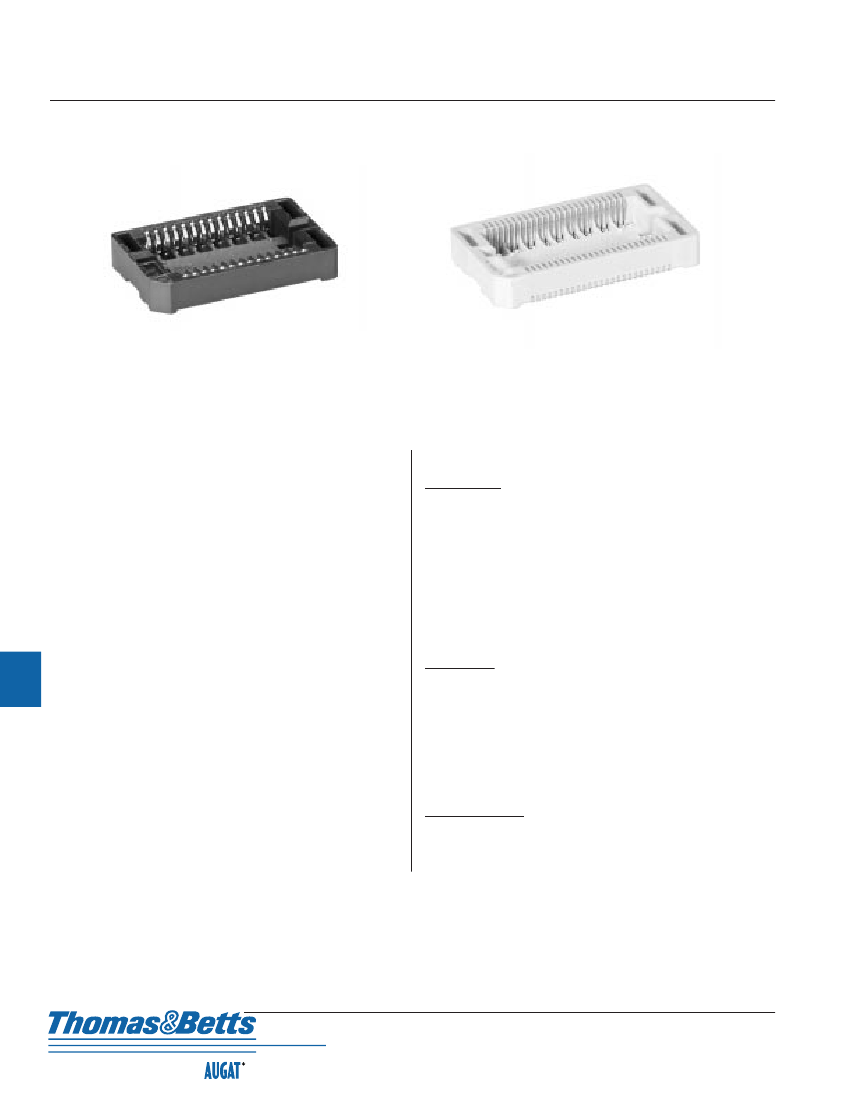

FEATURES:

Augat's new SOJ Socket provides the user an easy means of socketing their

SOJ devices. These full featured devices are available in a variety of sizes.

• Sizes range from 24 to 42 positions

• .400" (10,16) and .300" (7,62) centerlines

• High normal force contact insure long term reliability

• High temperature plastic

• Tube and tape & reel packaging

• High normal force for excellent IC retention and contact reliability

• Open body allows inspection of solder joints

• High temperature insulator body is compatible with vapor phase and

infared reflow processing

PERFORMANCE SPECIFICATIONS:

MECHANICAL

Vibration ........................ Passed MIL-STD-1344, Method 2005.1,

Condition II, 10 G's

Shock .............................. Passed MIL-STD-1344, Method 2004.1,

Condition A, 50 G's

Durability ...................... 25 Cycles minimum

Normal Force ................ 150 Grams (5.29 oz.) per line minimum

Mating Force .................. 340 Grams (12.0 oz.) per line maximum

Unmating Force ............ 21 Grams (0.8 oz.) per line minimum

Solderability .................. Passed MIL-STD-202, Method 208

Contact Retention

in Plastic .................... 454 Grams (16 oz.) per line minimum

ELECTRICAL

Contact Resistance ........ 20 Milliohms max. per MIL-STD-1344,

Method 3002

Contact Rating .............. 1 Amp

Capacitance .................... 1 pF max. @ 1 kHz, MIL-STD-202, Method 305

(contact to contact)

Insulation Resistance .... 10,000 Megohms minimum @ 500 VDC per

MIL-STD-1344, Method 3003.1

Dielectric Withstanding

Voltage ...................... 600 VDC per MIL-STD-1344, Method 3001.1

ENVIRONMENTAL

Humidity ........................ Passed MIL-STD-1344, Method 1002.2, Type II

Operation Temperature .. -55°C to +105°C

Resistance to

Solder Heat ................ Infared reflow 230°C, duration 15 seconds

MATERIAL SPECIFICATIONS:

Contact .......................... Phosphor bronze

Insulator ........................ PPS UL rated 94V-0

Plating ............................ Tin/lead

Quality & Innovation From The

Product Group

I10

Thomas & Betts

1555 Lynnfield Road

Memphis, TN 38119

(901) 682-8221 FAX (901) 537-8805

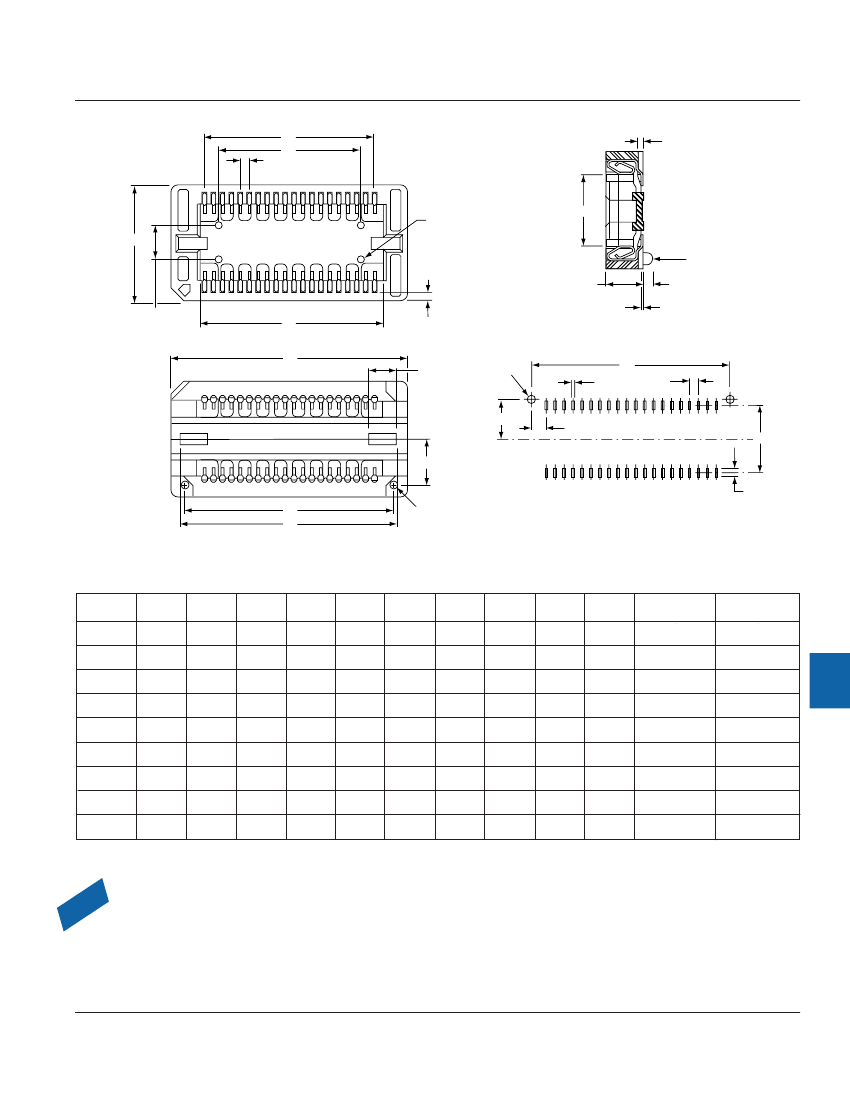

165-200005-27 Related Products

	165-200005-27	165-200097-01	165-200005-21	165-200005-26
Description	IC Socket, SOJ32, 32 Contact(s), 1.27mm Term Pitch, 0.3inch Row Spacing	IC Socket, SOJ50, 50 Contact(s)	IC Socket, SOJ40, 40 Contact(s), 1.27mm Term Pitch, 0.4inch Row Spacing	IC Socket, SOJ26, 26 Contact(s), 1.27mm Term Pitch, 0.3inch Row Spacing
Reach Compliance Code	unknow	unknow	unknow	unknow
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0	STANDARD: UL 94V-0
subject depth	0.177 inch	0.177 inch	0.177 inch	0.177 inch
Contact to complete cooperation	SN-PB	SN-PB	SN-PB	NOT SPECIFIED
Contact material	P-CUSN	P-CUSN	P-CUSN	NOT SPECIFIED
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
current rating	1 A	1 A	1 A	1 A
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	SOJ32	SOJ50	SOJ40	SOJ26
Dielectric withstand voltage	600VDC V	600VDC V	600VDC V	600VDC V
Shell material	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω
Manufacturer's serial number	165	165	165	165
Plug contact pitch	0.05 inch	0.031 inch	0.05 inch	0.05 inch
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Number of contacts	32	50	40	26
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Base Number Matches	1	1	1	1
body width	0.546 inch	-	0.646 inch	0.546 inch
body length	1.116 inch	-	1.315 inch	1.016 inch
Contact completed and terminated	TIN OVER NICKEL	TIN OVER NICKEL	TIN OVER NICKEL	-
PCB contact row spacing	0.3 mm	-	0.4 mm	0.3 mm
Terminal pitch	1.27 mm	-	1.27 mm	1.27 mm
