Part No: DPD090050-P5P-SZ
Description: linear power supply
Date: 2/27/2006
Unit: mm
Page No: 1 of 7
Specifications
Output voltage
Primary rated input
Primary exciting current
Secondary rated voltage & current
Temperature rise of primary winding (full load)
Insulation resistance
HI-POT test
9 V dc at 500 mA
120 V ac 60 Hz 10 W
70 mA rms max.
no load voltage (max.)
14 V max.
full load volatge (500 mA)
9 V ±5%
70°C max. using resistance method
>= 100 M Ohm at 500 V dc
from input to output for 1 min.
1240 V ac at 2 mA
from input to output for 1 sec.
1600 V ac at 2 mA
from primary to seconardy winding for 1 sec.
1600 V ac at 2 mA
from primary winding to core for 1 sec.
1600 V ac at 2 mA
from secondary winding to core for 1 sec.
750 V ac at 2 mA
UL/cUL
yes
Ambient temp
40°C ±2°C
Humidity
90-95% 96 hours at Full Load
Rated voltage
8 hours at full load
Case
black
Cord
black
Plug top
black
Safety standard
RoHS compliant
Test conditions
Color
Phone: 800.275.4899
Fax: 503.372.1266
www.cui.com
9615 SW Allen Blvd Suite 103
Beaverton, OR 97005
Part No: DPD090050-P5P-SZ
Description: linear power supply
Date: 2/27/2006
Unit: mm
Page No: 2 of 7

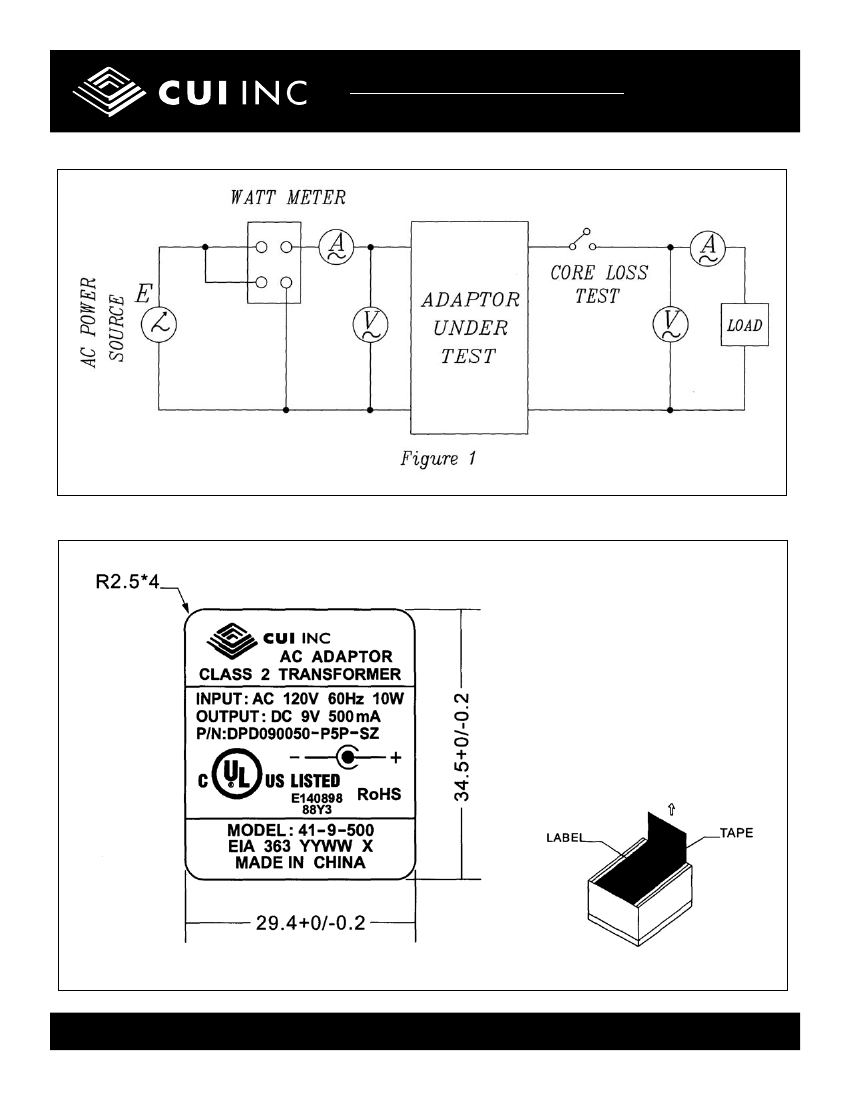

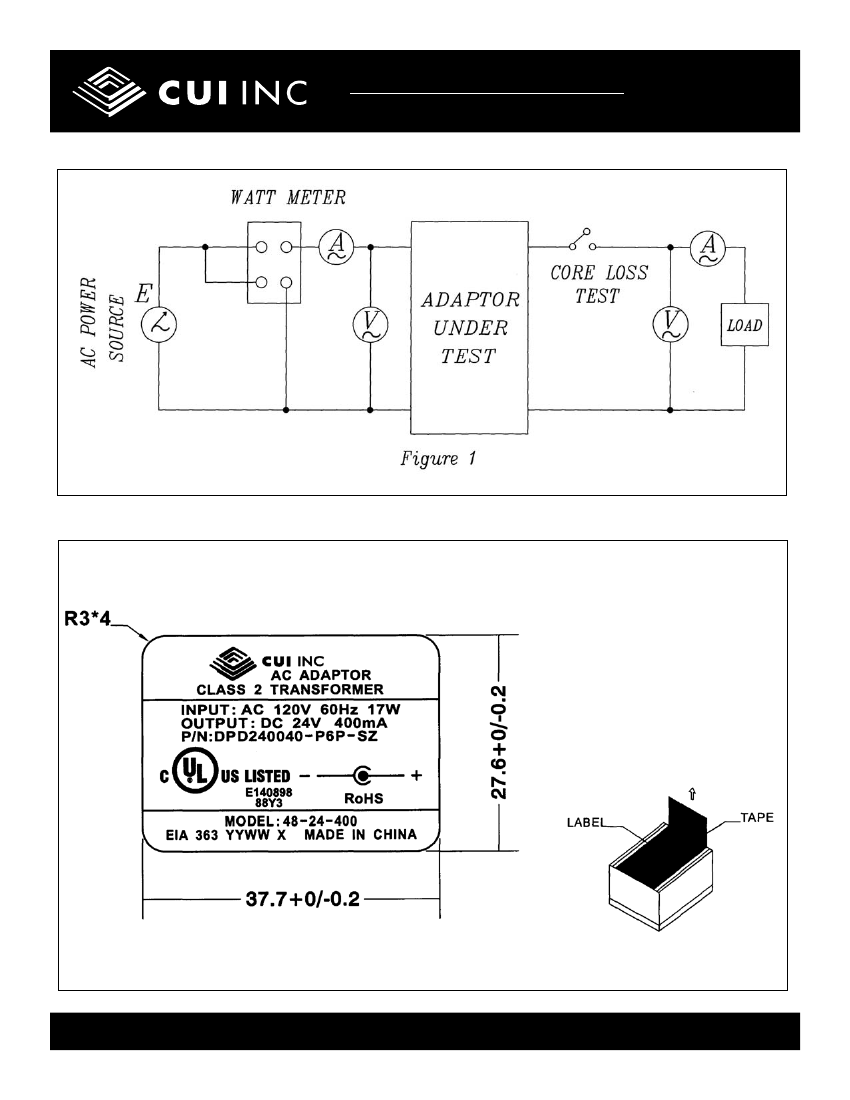

Test Diagram
Label
Adhesive tape: 3m #44 tape 18 width
Thickness: 0.2mm
Material: PVC polyester
Color: black on silver base
Remarks: YYWW S
YY=production year
WW=production week
S=production location
Phone: 800.275.4899
Fax: 503.372.1266
www.cui.com
9615 SW Allen Blvd Suite 103
Beaverton, OR 97005
Part No: DPD090050-P5P-SZ
Description: linear power supply
Date: 2/27/2006
Unit: mm
Page No: 3 of 7

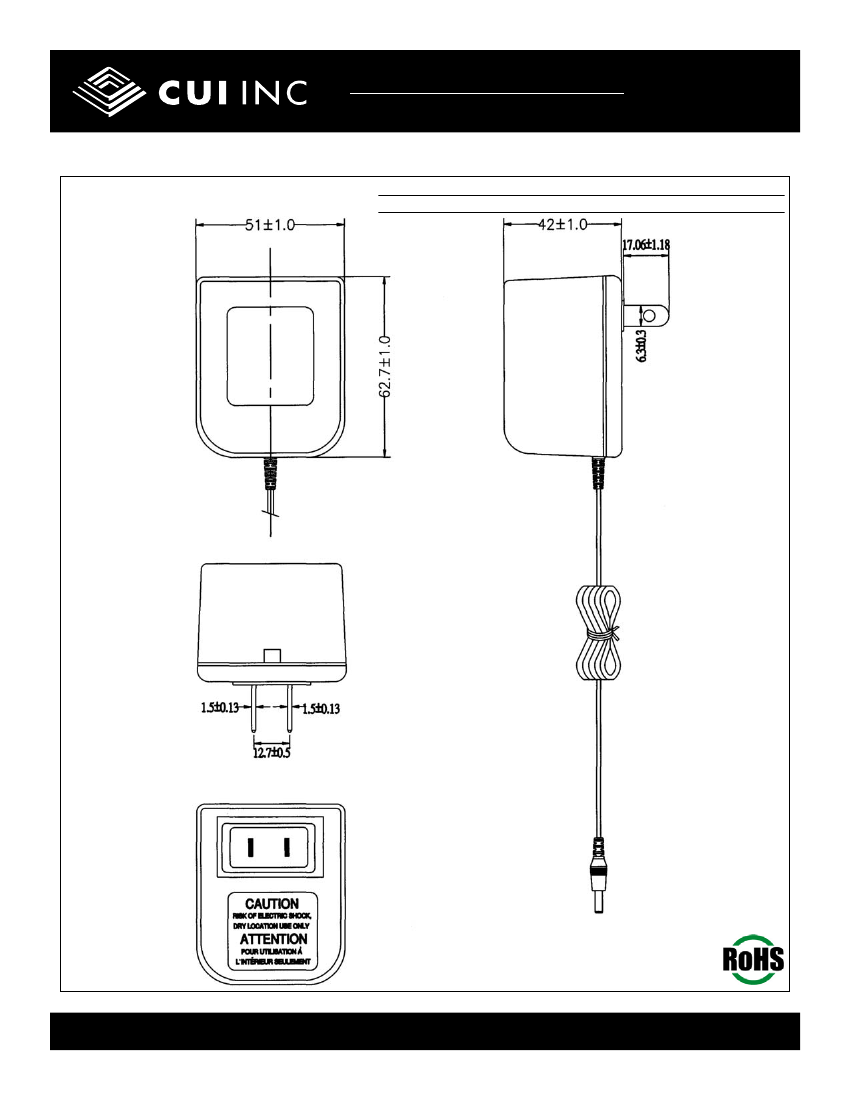

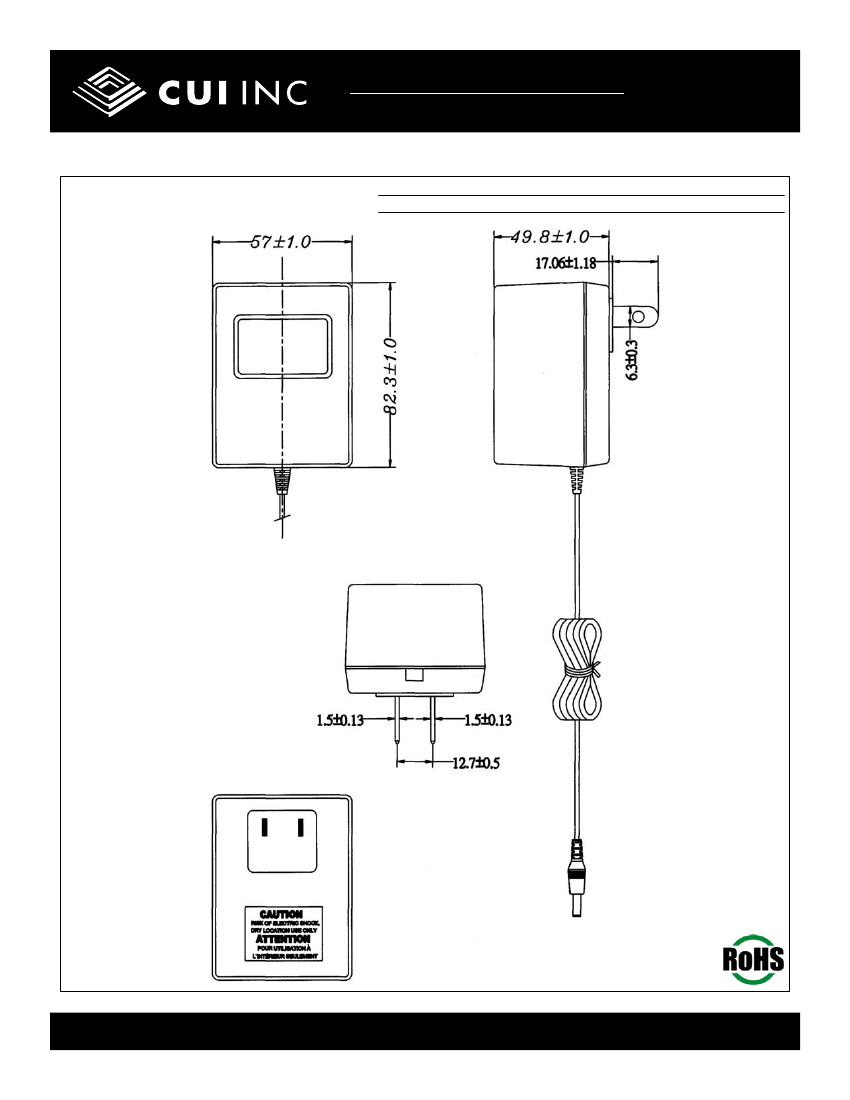

Mechanical Drawing
Tolerance: ±1
Weight
256 g
Phone: 800.275.4899
Fax: 503.372.1266
www.cui.com
9615 SW Allen Blvd Suite 103
Beaverton, OR 97005
Part No: DPD090050-P5P-SZ
Description: linear power supply
Date: 2/27/2006
Unit: mm
Page No: 4 of 7

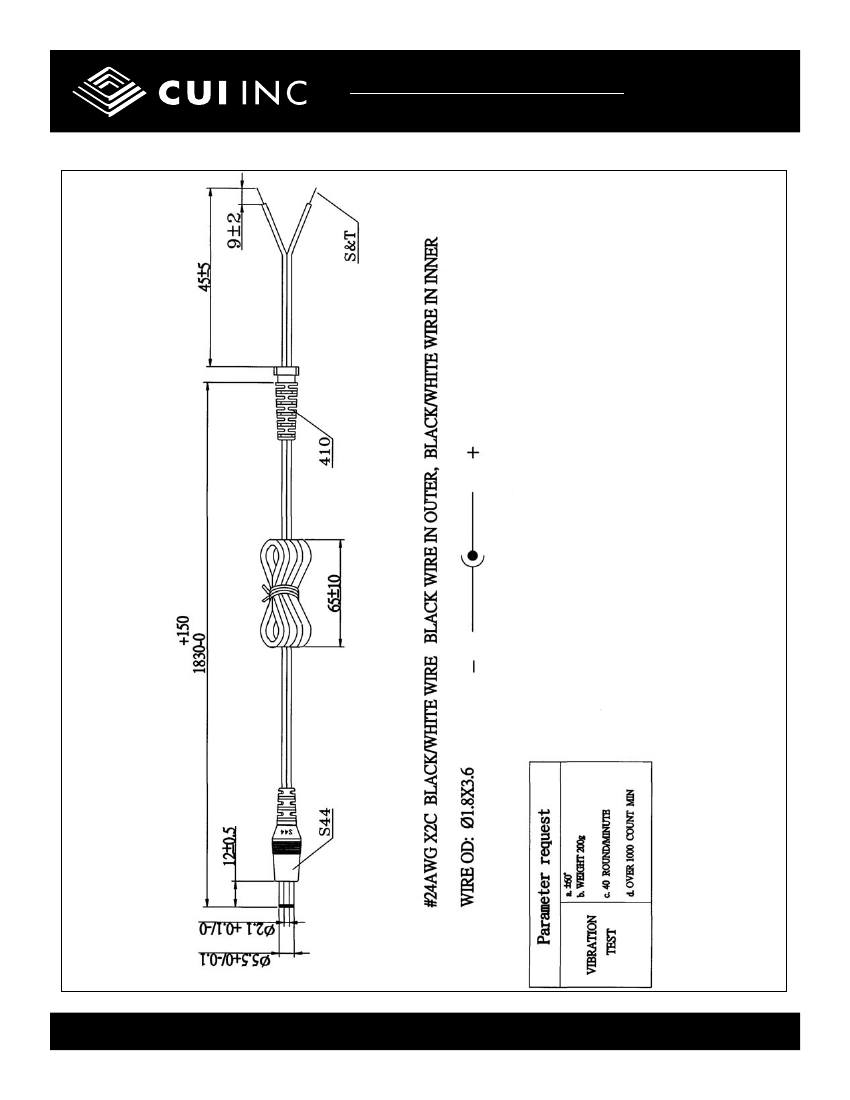

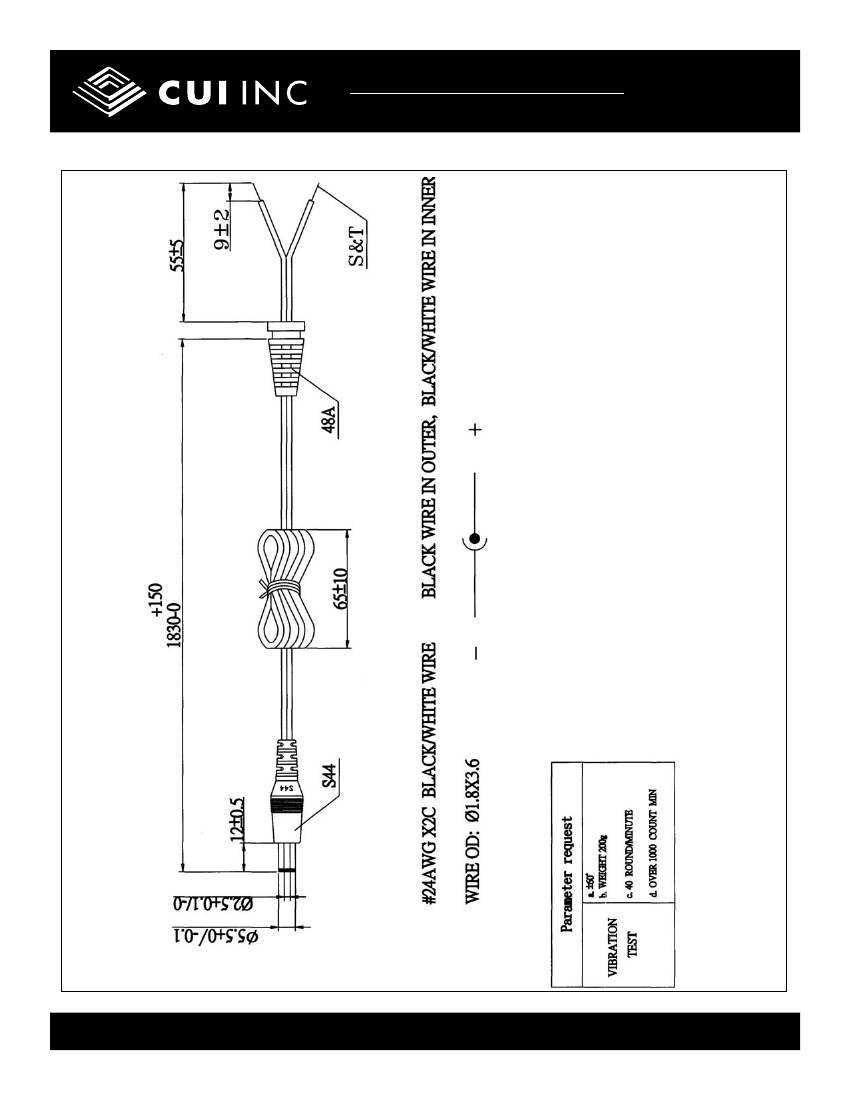

Cord
Phone: 800.275.4899
Fax: 503.372.1266
www.cui.com
9615 SW Allen Blvd Suite 103
Beaverton, OR 97005
Part No: DPD090050-P5P-SZ
Description: linear power supply
Date: 2/27/2006
Unit: mm
Page No: 5 of 7

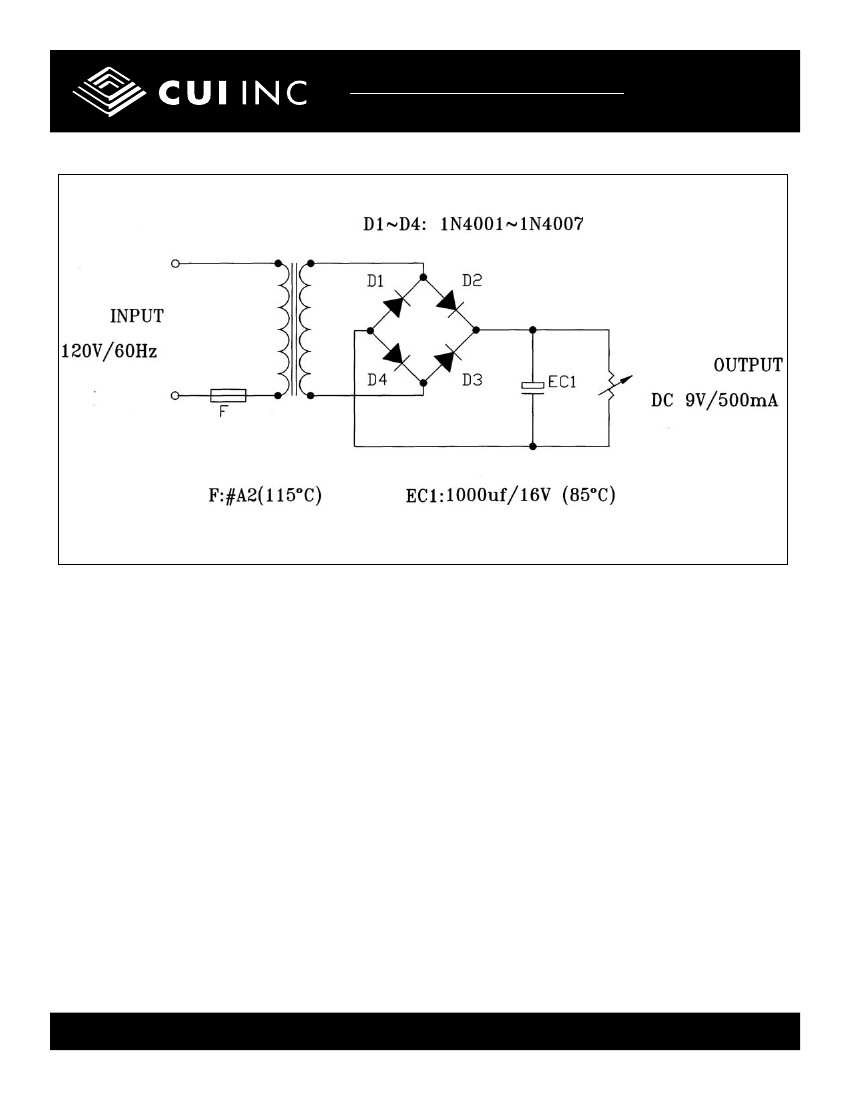

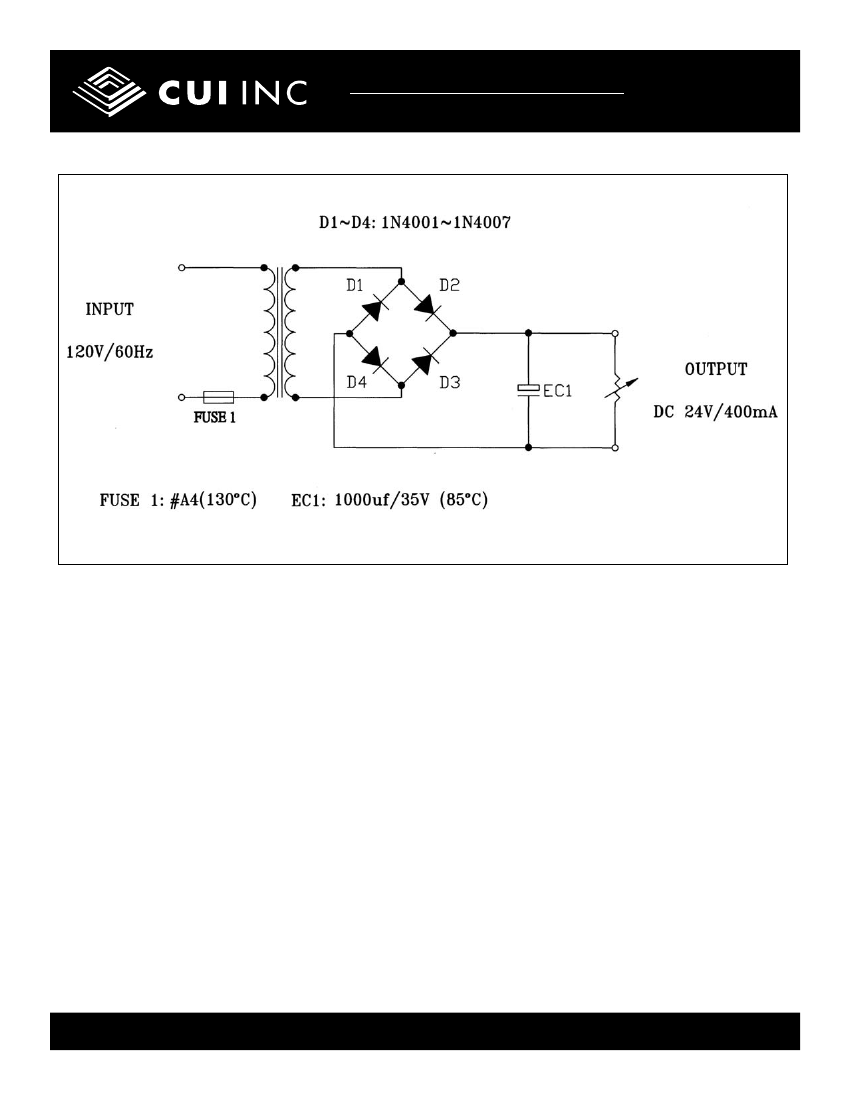

Circuit Diagrams
Phone: 800.275.4899
Fax: 503.372.1266
www.cui.com
9615 SW Allen Blvd Suite 103
Beaverton, OR 97005
