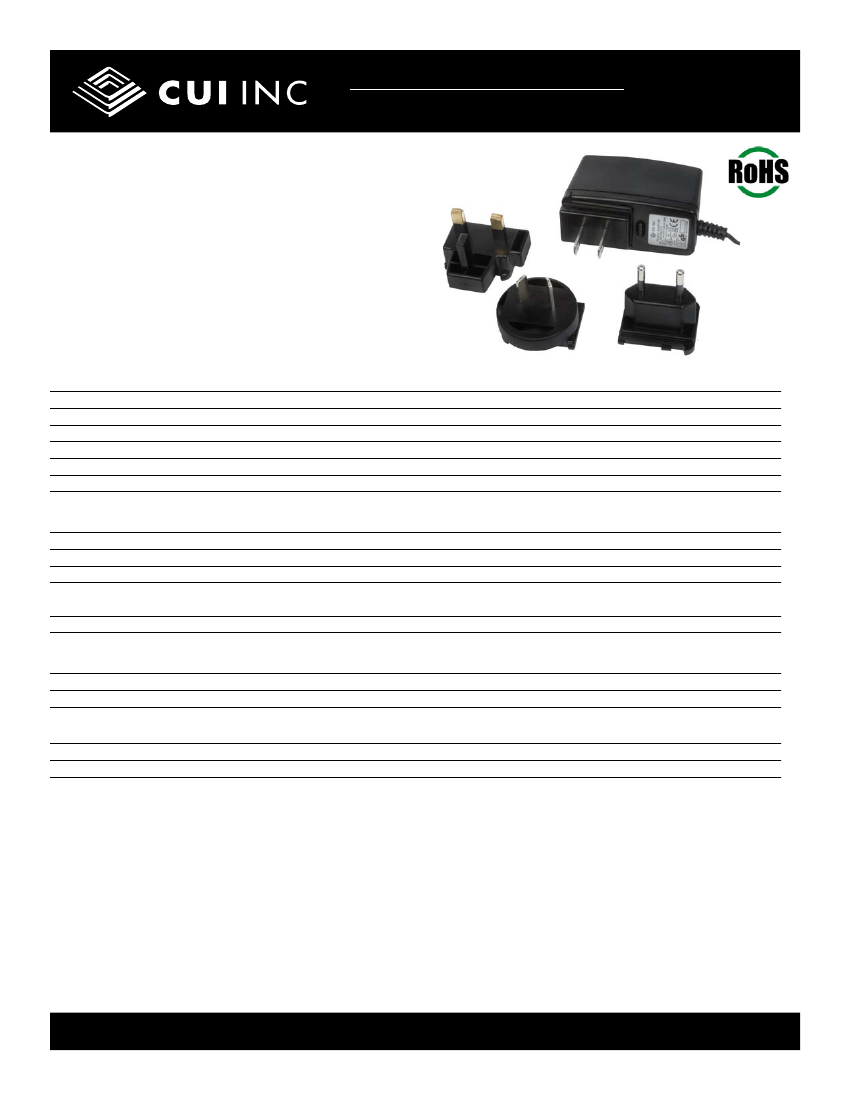

Part No: DMS240040-P5-IC
Description: switching power supply
w/ interchangeable input blades
Date: 9/25/2006
Unit: mm
Page No: 1 of 3
Input
Rated input voltage
Input voltage range
Rated frequency
Frequency range
Rated input current
Inrush current
100 V- 240 V ac
90 V to 264 V ac
50-60 Hz
47-63 Hz
400 mA RMS max.
30A max (at 260 V ac input, full load)
Output
Output voltage
Output min. current
Short circuit protection
Ripple voltage
Efficiency
24 Vdc at 0.4 A
0A
output shut down and auto restart
240 mV (p-p) (with a 0.1 µF ceramic capacitor and a 10 µF
electrolytic capacitor to output at 20 MHz bandwidth)
75% typ. (at 100 V ac/50 Hz or 240 V ac/50 Hz input, full load)
Safety and EMI
Safety approvals
RoHS compliant
UL/cUL, CE, TUV/GS
yes
Environmental
Storage temperature
Operating temperature
-20°C ~ +85° C
0°C ~ +40° C
Phone: 800.275.4899
Fax: 503.612.2381
www.cui.com
20050 SW 112th Ave.
Tualatin, OR 97062

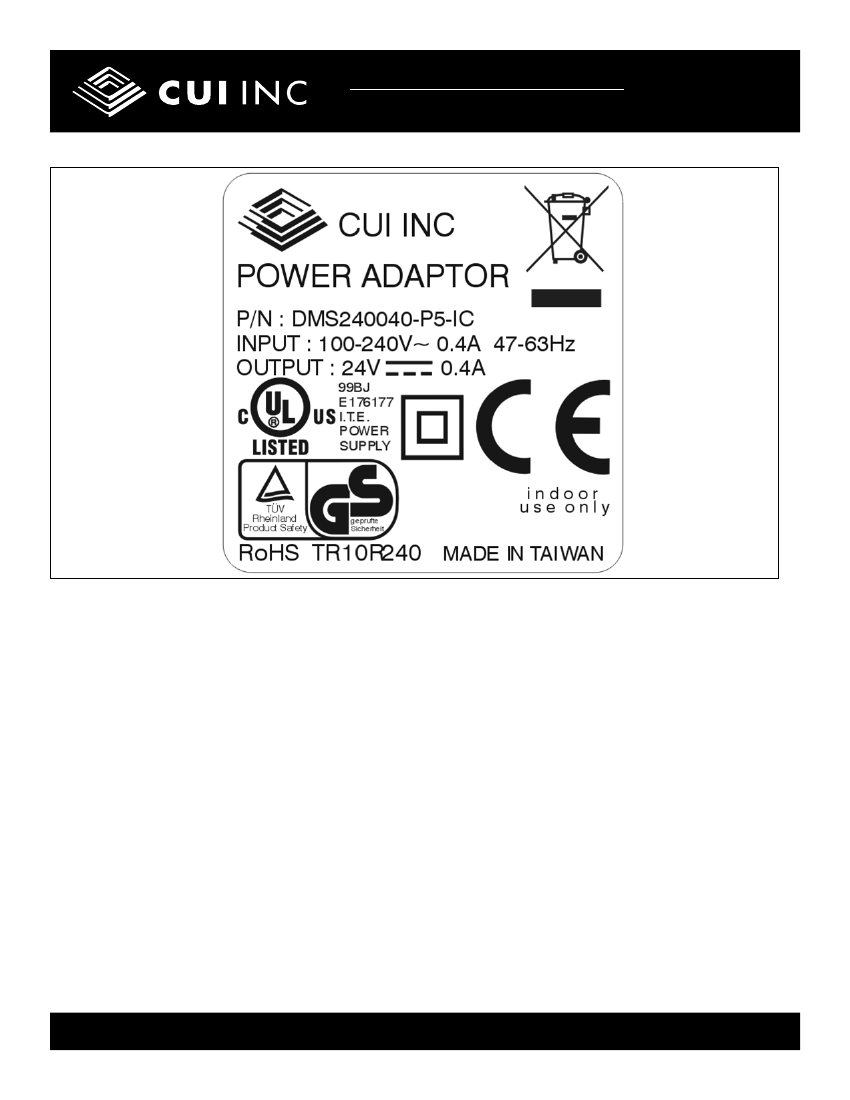

Part No: DMS240040-P5-IC
Description: switching power supply
w/ interchangeable input blades
Date: 9/25/2006
Unit: mm
Page No: 3 of 3

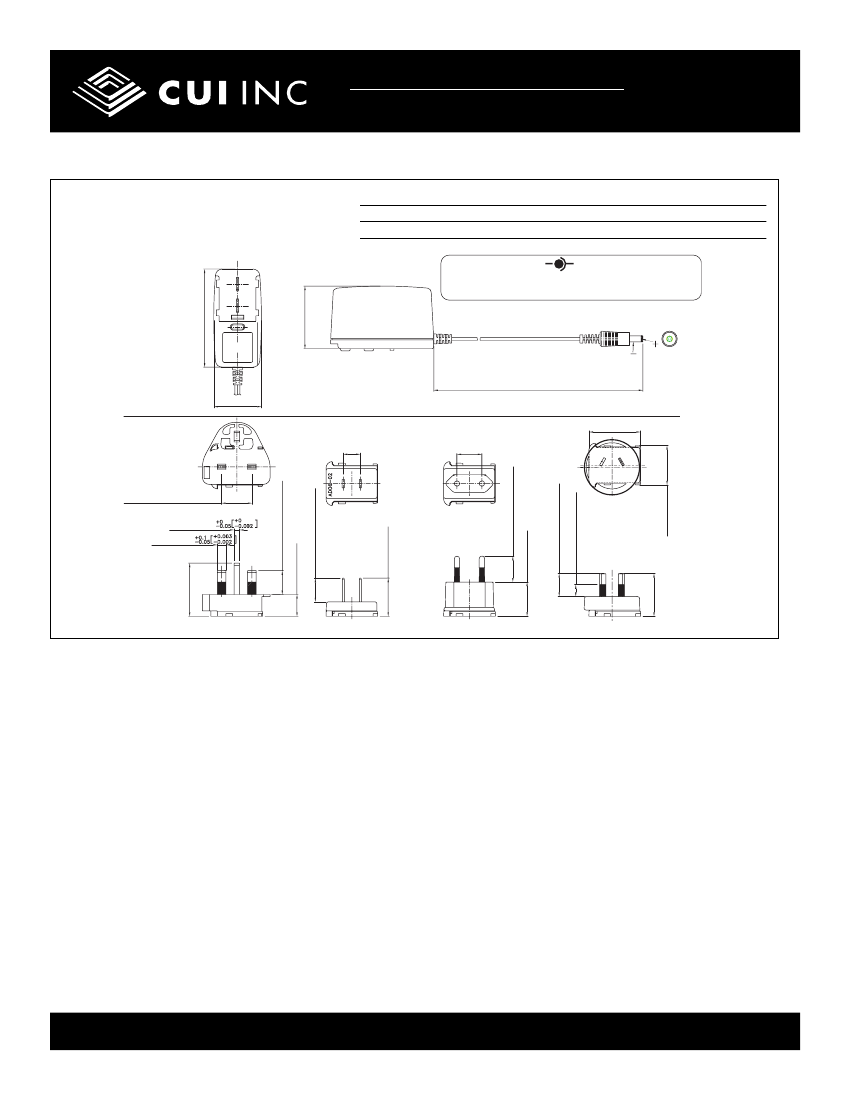

Mechanical Drawing
Input plug
Case size
interchangeable input blade
72 L x 46 W x 35 H mm
V-
DC Plug Type:
V+
DC Plug Type: Straight (ø5.5 / ø2.1) L9.5mm
72.00[2.8 3]
46. 00 [1.81]
20AWG / 18
00mm
1800[ 70.87 ]±50[1.97]
35.00[1.3 8]
37.95[1.4 9]
12. 50 [0 .49 ]±0.05[0 .002]
18.3 0 [0. 72]±0.05[0.00 2]
19. 00 [ 0.7 5]±0.5 [0.02]
17. 50 [0 .6 9]±0.5[0. 02]
17.4 0 [0 .69 ]±0.7[0.03 ]
16. 99 [0 .6 7]±0.3[0. 01]
8.7 0 [0 .34] ±0.5[0.0 2]
22.20 [ 0.8 7] ±0.13[0.005]
4.0 0 [0. 16]
6.3 0 [0 .25]
28. 00 [1.10]
39. 00 [1.54]
16.0 0 [0 .63]
25.1 0 [0 .99]
Phone: 800.275.4899
Fax: 503.612.2381
www.cui.com
20050 SW 112th Ave.
31. 48 [1.24]
Tualatin, OR 97062
28. 93 [1.14]
