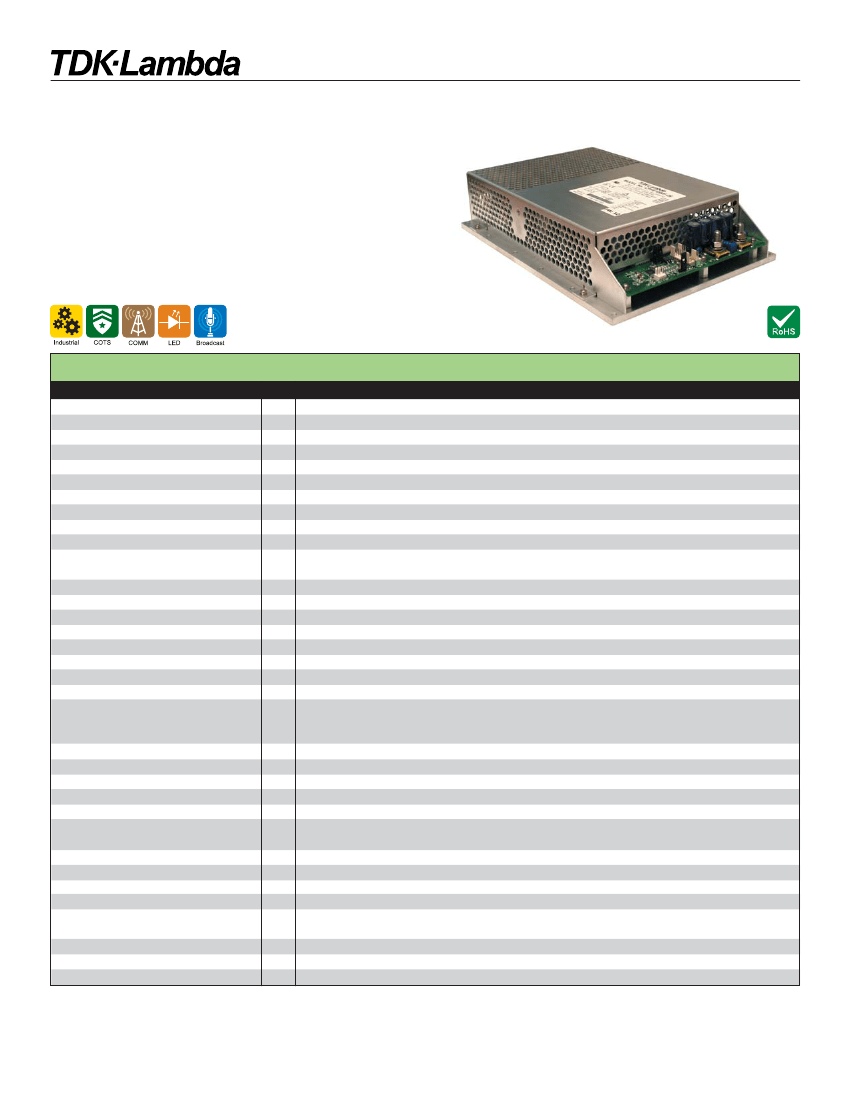

CPFE1000F Series

720 to 1000W Conduction Cooled Power Supplies

Features



Base plate cooled, no fan required



High efﬁciency



Protective coating



MIL STD 461/462D CE102 EMC



C Interface



Wide range AC Input

Key Market Segments & Applications

Speciﬁcations

Model

AC Input

Input Current

(1)

Inrush Current (115 / 230VAC)

Power Factor

Efﬁciency (typical)

Output Voltage Setpoint Accuracy

Line Regulation

Load Regulation

Ripple and Noise (20MHz BW)

Over Current Protection

Over Voltage Protection

Parallel Operation

Power On Signal (ENA)

Auxiliary Supply

Remote On/Off (Opto isolated)

Temperature Coefﬁcient

Overtemperature

Hold Up Time (230VAC)

Leakage Current (@230VAC,50Hz)

Remote Sense

I²C Interface

90 to 265VAC, 47-63Hz (up to 440Hz) (3)

13.6 / 6.6 (Model dependant)

20 / 40 peak

Meets EN61000-3-2

79 to 86% (Model dependant)

±2% at 50% load

12V: 48mV, 28V: 56mV, 48V: 96mV

1% (2% below 0°C)

105 - 140% (Automatic recovery)

125 - 145% (Automatic recovery)

Yes (Single wire)

Open collector (10mA sink current). Low (on) when output is present

10 - 14V, 20mA

High = On

<0.02%/°C

Shuts down between 90 - 115°C (Auto recovery)

25ms

< 1.5mA

Yes, compensates up to 500mV cable drop

Provides manufacturing location, date, serial number, part number,

unit revision, output voltage & current read back, base plate temperature,

remote on/off, IOG, DC good and over temperature warning

Operating Temperature (Base plate)

12V: -40 to +85°C, 28V & 48V: -40 to +70 / 85°C (See reverse side for derating)(2)

Storage Temperature

°C

-40 to +100°C

Humidity

- Operating: 20 - 90%RH, Non operating 10 - 95%RH (Pcb assembly protective coated)

Cooling

Conduction cooled through 6mm base plate

Withstand Voltage

Input to Output 4242VDC, Input to Ground 2121VDC, Output to ground 500VDC

Vibration (non operating)

MIL-STD-810F, Method 514.5, Figure 514.5C US (Category IV)

and Figure 514.5C-15 (Category X)

Shock

MIL-STD-810E, Method 516.5, Proc. I, IV, VI

Safety Agency Approvals

UL60950-1, CSA 22.2 No 60950-1, EN60950-1 (Ed 2), CE Mark

Line Dip

Complies with SEMI F47 (200VAC line only)

Conducted & Radiated EMI

EN55022/EN55011 Class B, MIL STD 461/462D CE102

Immunity

IEC61000-4-2 (Contact Level 2, Air discharge Lvl 3), -3 (Lvl 3), -4(Lvl 3), -5 (Lvl 4),

-6 (Lvl 3), -8 (Lvl 4), -11 (Class 3 ), -12 (Lvl 3), -14 (Class 3)

Weight (Typ)

2,400

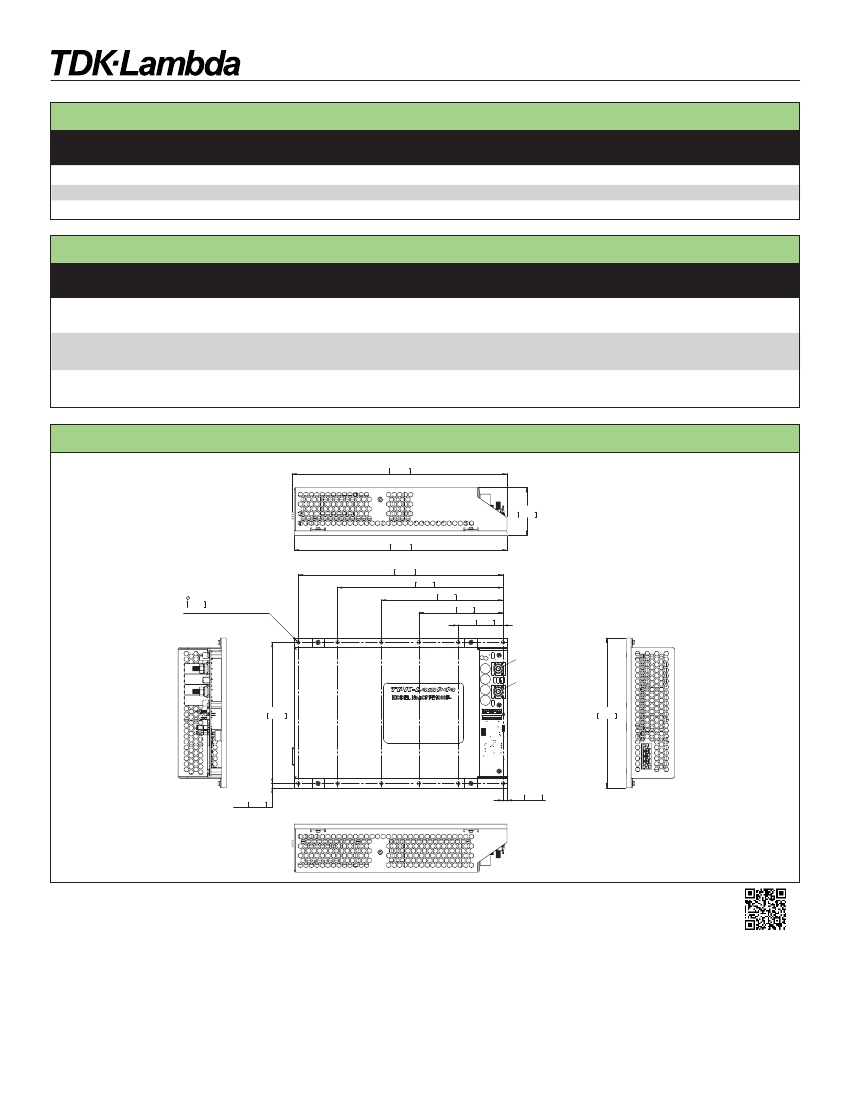

Size (L x W x H)

270 x 190 x 61mm

Warranty

yrs

2 years

°C

(1) 100/200VAC

(2) CPFE1000F-28, -48: -40 to +70°C below 170VAC input voltage

(3) Reduced PFC above 63Hz. Contact technical support for 440Hz operation.

1-800-526-2324 • www.us.tdk-lambda.com/lp/

Disclaimer: us.tdk-lambda.com/lp/legal.htm
