S1SD-06-28-T-07.00-L1 datasheet, PDF

Datasheet> All Categories > Wire/cable> Cable package> Flat cable/IDC data line> S1SD-06-28-T-07.00-L1

S1SD-06-28-T-07.00-L1: DescriptionFlat data cable/IDC data cable 1.00 mm Double Row Discrete Wire Cable Assembly, Socket; CategoryWire/cable Cable package Flat cable/IDC data line; File Size225KB，2 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

S1SD-06-28-T-07.00-L1 Overview

Flat data cable/IDC data cable 1.00 mm Double Row Discrete Wire Cable Assembly, Socket

S1SD-06-28-T-07.00-L1 Parametric

Parameter Name	Attribute value
Maker	SAMTEC
Product Category	Flat data cable/IDC data cable
Shipping restrictions	Mouser does not currently sell this product.
product	Discrete Wire Cable Assemblies
Encapsulation	Bulk
series	S1SD
Factory packaging quantity	1

Preview

Download Datasheet

View All

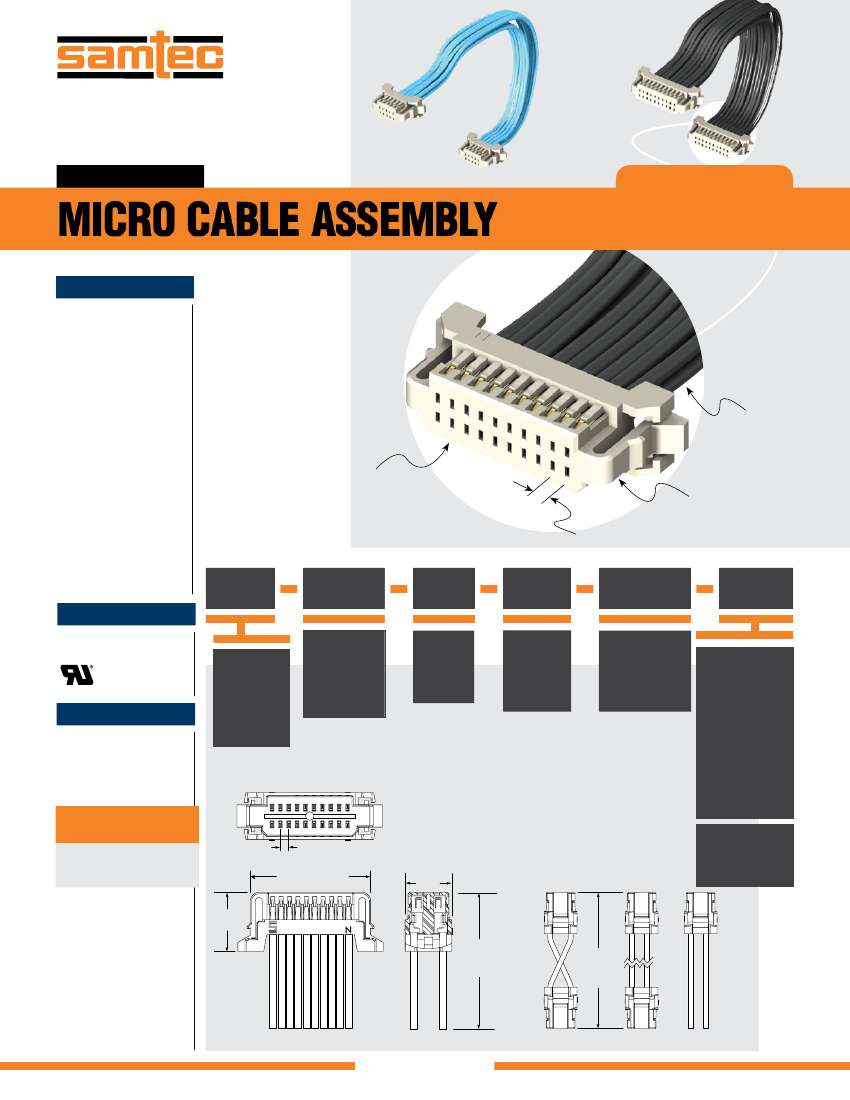

F-219 (Rev 07JUN19)

S1SD–10–28–GF–03.00–L1

(1.00 mm) .03937"

S1SDT–05–28–GF–03.00–L1

S1SD, S1SDT SERIES

MICRO CABLE ASSEMBLY

SPECIFICATIONS

For complete specifications

see www.samtec.com?S1SD

or www.samtec.com?S1SDT

Insulator Material:

Natural Nylon

Contact Material:

Phosphor Bronze

Plating:

Au over 50 µ" (1.27 µm) Ni

Operating Temp Range

(S1SD(T)/T1M):

-10 °C to +85 °C (PVC)

-40 °C to +125 °C (Teflon

cable with -GF plated contact)

Current Rating (28 AWG):

2.3 A per pin

(2 pins powered)

Voltage Rating:

250 VAC/353 VDC

Wire:

28 or 30 AWG

RoHS Compliant:

Yes

*DuPont

™

Teflon

is a

registered trademark of the

E.I. du Pont de Nemours

and Company or its affiliates.

Mates with:

T1M

28 AWG

or 30 AWG

Choice of single or

double ended

(1.00 mm)

.0394" pitch

Plastic

latch

TYPE

STRIP

POSITIONS

PER ROW

WIRE

GAUGE

PLATING

OPTION

ASSEMBLED

LENGTH

WIRING

OPTION

RECOGNITIONS

For complete scope of

recognitions see

www.samtec.com/quality

FILE NO. E111594

= Double Row

PVC Cable

S1SD

COMPONENTS

• For body, see

www.samtec.com?ISD1

• For contacts, see

www.samtec.com?CC09R

www.samtec.com?CC09M

= Double Row

*Teflon

Cable

S1SDT

(Standard sizes)

–02,

–03 –04,

–05, –10,

–15, –20

= 28 AWG

–28

–30

= 30 AWG

= 3 µ"

(0.07 µm)

Gold on

contact

and tail

–GF

–“XX.XX”

= Assembled

Length in

Inches

(45.72 mm)

01.80" min.

Double Ended

Assemblies

= Pin 1 to Pin 1

–L1

–L2

–L3

–L4

= Pin 1 to Pin 2

= Pin 1 to Pin N

ALSO AVAILABLE

(MOQ REQUIRED)

• Other sizes

• Color coded cable

(*Teflon

not available)

(1.00) .03937

No. of positions x

(1.00) .03937 + (0.35) .013

(7.00)

.276

Assembly

Length

±(3.18)

.125

Assembly

Length

±(3.18)

.125

(5.55)

.219

= Pin 1 to Pin N-1

Single Ended

Assembly

= Latching

–L

Notes:

Teflon® cable is intended for

crimp only. Contact Samtec for

solderable cable applications.

Some lengths, styles and

options are non-standard,

non-returnable.

–L3

–L1

–L

Due to technical progress, all designs, specifications and components are subject to change without notice.

All parts within this catalog are built to Samtec’s specifications.

Customer specific requirements must be approved by Samtec and identified in a Samtec customer-specific drawing to apply.

WWW.SAMTEC.COM

Mouser Electronics

Authorized Distributor

Click to View Pricing, Inventory, Delivery & Lifecycle Information:

Samtec

S1SD-03-28-T-03.00-L S1SD-06-28-GF-03.00-L1 S1SD-10-28-GF-24.00-L3 S1SD-05-30-GF-03.75-L S1SD-10-

28C-T-15.00-L S1SD-10-30-GF-20.00-L1 S1SD-10-30-GF-06.00-L1 S1SD-04-30-GF-10.00-L1 S1SD-05-28-GF-

11.81-L S1SD-10-30-GF-06.00-L S1SD-05-30-GF-10.00-L1 S1SD-08-28-GF-03.50-L3 S1SD-03-30-GF-06.00-L3

S1SD-05-28-GF-02.00-L1 S1SD-02-30-GF-09.00-L S1SD-04-28-T-36.00-L S1SD-04-30-GF-12.00-L S1SD-05-28-GF-

08.00-L S1SD-05-28-GF-12.00-L1 S1SD-05-30-GF-04.00-L1 S1SD-05-30-GF-06.00-L1 S1SD-05-30-GF-08.00-L

S1SD-06-28-T-07.00-L1 S1SD-06-30-GF-03.00-L1 S1SD-07-28C-GF-12.00-L S1SD-10-28C-GF-24.00-L1 S1SD-10-

28-GF-04.50-L3 S1SD-10-28-GF-04.70-L1 S1SD-10-28-GF-05.00-L S1SD-10-28-GF-05.00-L1 S1SD-10-28-GF-

19.69-L1 S1SD-10-28-T-12.00-L2 S1SD-10-28-T-36.00-L1 S1SD-10-30-T-12.00-L S1SD-02-30-GF-12.00-L S1SD-

03-28-T-06.00-L1 S1SD-03-28-T-10.00-L1 S1SD-04-28-GF-07.87-L1 S1SD-05-28-GF-04.00-L1 S1SD-05-28-T-02.75-

L1 S1SD-05-30-T-04.00-L S1SD-07-28-GF-12.00-L S1SD-10-28-GF-03.00-L S1SD-10-28-GF-03.00-L1 S1SD-10-28-

GF-03.90-L1 S1SD-10-28-GF-06.50-L3 S1SD-10-28-GF-08.00-L1 S1SD-10-28-T-04.00-L1 S1SD-10-30-GF-04.00-L1

S1SD-10-30-GF-05.00-L1 S1SD-10-30-GF-08.00-L1 S1SD-10-28-GF-05.00-L3 S1SD-10-28-GF-13.00-L1 S1SD-10-

28-GF-39.37-L3 S1SD-10-30-GF-02.00-L1 S1SD-04-28-GF-20.00-L1 S1SD-05-28-T-02.50-L1 S1SD-06-28C-GF-

05.00-L S1SD-06-28C-GF-12.00-L S1SD-08-28C-GF-04.00-L S1SD-08-28-GF-12.00-L S1SD-08-30-GF-12.00-L1

S1SD-10-28-GF-03.50-L1 S1SD-10-28-GF-03.94-L1 S1SD-10-28-GF-10.00-L S1SD-10-28-T-03.00-L1 S1SD-10-30-

GF-08.00-L S1SD-03-28-GF-05.90-L S1SD-04-28-GF-01.80-L1 S1SD-04-28-GF-03.00-L1 S1SD-04-28-T-05.00-L3

S1SD-03-28-GF-20.00-L1 S1SD-04-28-GF-02.00-L S1SD-04-30-GF-05.00-L1 S1SD-05-28-GF-08.00-L1 S1SD-10-

28C-GF-12.00-L S1SD-10-28-GF-36.00-L1 S1SD-10-28-T-12.00-L S1SD-10-30-T-03.00-L S1SD-02-28-GF-05.00-L1

S1SD-02-28-GF-01.80-L S1SD-03-30-GF-08.00-L S1SD-04-28-GF-03.25-L1 S1SD-04-28-GF-05.00-L1 S1SD-05-28-

GF-02.00-L S1SD-05-28-GF-18.00-L1 S1SD-05-28-T-12.00-L S1SD-05-30-GF-03.93-L1 S1SD-05-30-GF-20.00-L

S1SD-07-28-GF-10.00-L1 S1SD-10-28-GF-04.50-L1 S1SD-10-28-T-06.00-L S1SD-10-30-GF-03.00-L1 S1SD-02-28-

GF-06.00-L1 S1SD-02-28-GF-10.00-L1 S1SD-02-30-T-02.00-L1 S1SD-03-28-T-10.00-L S1SD-04-28-GF-08.00-L

S1SD-04-28-GF-12.00-L S1SD-05-28-GF-03.00-L
