Short Form Data Sheet
April 2012
8-Input, 14-Output, Dual DPLL Timing IC
with Sub-ps Output Jitter
General Description
The DS31400 is a flexible, high-performance timing IC
for diverse frequency conversion and frequency
synthesis applications. On each of its eight input clocks
and 14 output clocks, the device can accept or generate
nearly any frequency between 2kHz and 750MHz. The
device offers two independent DPLLs to serve two
independent clock-generation paths.
The input clocks are divided down, fractionally scaled as
needed, and continuously monitored for activity and
frequency accuracy. The best input clock is selected,
manually or automatically, as the reference clock for
each of the two flexible, high-performance digital PLLs.
Each DPLL locks to the selected reference and provides
programmable bandwidth, very high-resolution holdover
capability, and truly hitless switching between input
clocks. The digital PLLs are followed by a clock synthesis
subsystem that has seven fully programmable digital
frequency synthesis blocks, three high-speed low-jitter
APLLs, and 14 output clocks, each with its own 32-bit
divider and phase adjustment. The APLLs provide
fractional scaling and output jitter less than 1ps RMS.
For telecom systems, the device has all required features
and functions to serve as a central timing function or as a
line card timing IC. With a suitable oscillator the device
meets the requirements of Stratum 2, 3E, 3, 4E, and 4;
G.812 Types I to IV; G.813; and G.8262.
DS31400
Features
♦
Eight Input Clocks
♦
♦
♦
♦
♦
♦
♦
♦
♦
Two High-Performance DPLLs
♦
Hitless Reference Switching on Loss of Input
♦
Automatic or Manual Phase Build-Out
♦
Holdover on Loss of All Inputs
♦
Programmable Bandwidth, 0.5mHz to 400Hz
Seven Digital Frequency Synthesizers
♦
Each Can Slave to Either DPLL
♦
Produce Any 2kHz Multiple Up to 77.76MHz
♦
Per-DFS Clock Phase Adjust
Three Output APLLs
♦
Output Frequencies to 750MHz
♦
High Resolution Fractional Scaling for FEC and
♦
♦
Differential or CMOS/TTL Format
Any Frequency from 2kHz to 750MHz
Fractional Scaling for 64B/66B and FEC Scaling
(e.g., 64/66, 237/255, 238/255) or Any Other
Downscaling Requirement
Continuous Input Clock Quality Monitoring
Automatic or Manual Clock Selection
Three 2/4/8kHz Frame Sync Inputs
Applications
Frequency Conversion Applications in a Wide Variety of
Equipment Types
Telecom Line Cards or Timing Cards with Any Mix of
SONET/SDH, Synchronous Ethernet, and/or OTN
Ports in WAN Equipment Including MSPPs,
Ethernet Switches, Routers, DSLAMs, and Base
Stations
PART
DS31400GN
DS31400GN+
TEMP RANGE
-40°C to +85°C
-40°C to +85°C
PIN-PACKAGE
256 CSBGA
256 CSBGA
64B/66B (e.g., 255/237, 255/238, 66/64) or Any
Other Scaling Requirement
Less than 1ps RMS Output Jitter
Simultaneously Produce Three Low-Jitter Rates from
the Same Reference (e.g., 622.08MHz for SONET,
255/237 x 622.08MHz for OTU2, and 156.25MHz for
10GE)
Nearly Any Frequency from < 1Hz to 750MHz
Each Group Slaves to a DFS Clock, Any APLL
Clock, or Any Input Clock (Divided and Scaled)
Each Has a Differential Output (Three CML, Four
LVDS/LVPECL) and Separate CMOS/TTL
Output
32-Bit Frequency Divider Per Output
Two Sync Pulse Outputs: 8kHz and 2kHz
♦
14 Output Clocks in Seven Groups
♦
♦
♦
Ordering Information
♦
+Denotes
a lead(Pb)-free/RoHS-compliant package.
SPI is a trademark of Motorola, Inc.
♦
♦
General Features
♦
Suitable Line Card IC or Timing Card IC for
♦
♦
♦
♦
♦
Stratum 2/3E/3/4E/4, SMC, SEC/EEC, or SSU
Accepts and Produces Nearly Any Frequency
fom 1Hz to 750MHz
Internal Compensation for Local Oscillator Frequency Error
SPI™ Processor Interface
1.8V Operation with 3.3V I/O (5V Tolerant)
17mm x 17mm CSGBA Package
1
Short Form Data Sheet
DS31400
Application Example: Timing Card
activity and frequency
monitoring, select highest priority
valid input for each DPLL
create derived DS1 or E1/2048kHz
clock locked to selected clock
clock/data recovery,
equalizer, framer,
extract SSMs
Backplane
Timing Card (1 of 2)
DS31400
N
<0>
BITS
Rx
APLL and
divider
APLL,
divider and
fanout
BITS
Tx
DS1, E1 or
2048 kHz
from BITS/SSU
to BITS/SSU
TCXO or
OCXO
N
Monitor,
Divider,
Selector
DPLL1
DPLL2
processor
typically 19.44MHz,
25MHz or 8kHz,
point-to-point
or multidrop buses
<0>
N
Timing Card (2 of 2)
Identical to Timing Card 1
Stratum 2, 3E or 3:
jitter/wander filtering,
hitless switching,
phase adjust,
holdover
N
<1>
<1>
<1>
<1>
Line Card
Timing IC
(see Fig 2-2)
Line Card (1 of N)
from port SERDES
to port SERDES
selects best system
clock, best recovered line
clock. hitless switching,
frequency conversion,
jitter cleanup
<N>
<N>
<N>
<N>
Line Card (N of N)
Application Example: Line Card
clock monitoring and selection,
hitless switching, holdover, frequency
conversion, fractional scaling,
jitter attenuation
19.44MHz, 38.88MHz,
25MHz, etc.
DS31400
system timing
from master and slave
timing cards
line timing
to master and slave
timing cards
IC1
IC2
DPLL1 Path
n
OC1 to OC5
clocks to line card SERDES
SONET/SDH, 1GE, 10GE, OTN, FC, etc.
3 unrelated frequencies simultaneously at <1ps rms jitter
plus other frequencies at somewhat higher jitter
OC6
OC7
DPLL2 Path
n
IC3 to IC8
recovered line clocks from SERDES
SONET/SDH, 1GE, 10GE, OTN, FC etc.
frequencies can be unrelated to one another
8kHz, 19.44MHz,
38.88MHz, 25MHz, etc.
clock monitoring and selection,
undo fractional scaling,
frequency conversion
155.52M, 622.08M, 25M,
125M, 156.25M, etc. with or
without fractional scaling for
FEC, 64B/66B, etc.
MANY other rates possible,
including DS1, E1, DS3, E3,
10M and Nx19.44M.
2
Short Form Data Sheet
DS31400

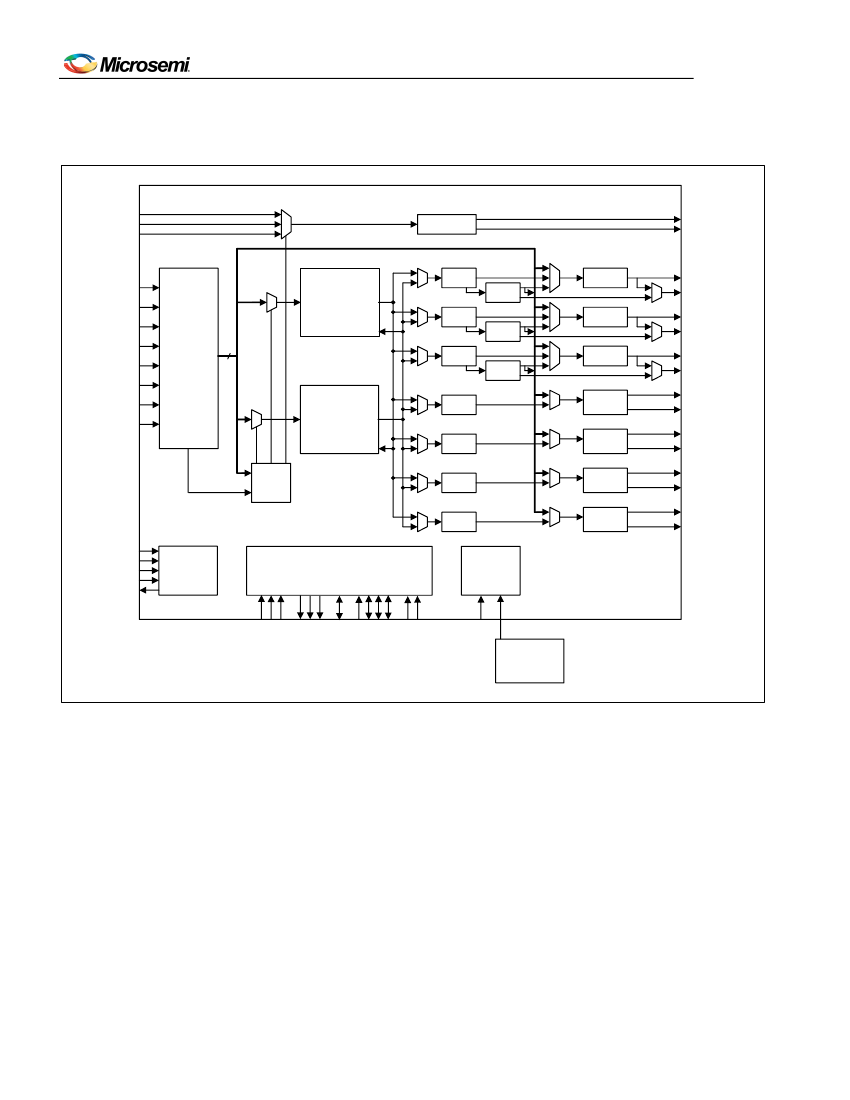

Block Diagram
DS31400
SYNC1
SYNC2
SYNC3
PLL Bypass
DFS Muxes
Filtering, Holdover,
Hitless Switching, PBO,
Frequency Conversion,
Manual Phase Adjust
Divider Muxes
Dif Muxes
OC1
OC1POS/NEG
OC2
OC2POS/NEG
OC3
OC3POS/NEG
OC4
OC4POS/NEG
OC5
OC5POS/NEG
OC6
OC6POS/NEG
OC7
OC7POS/NEG
MFSYNC
FSYNC
MFSYNC
DPLL1
IC1 POS/NEG
IC2 POS/NEG
IC3 POS/NEG
IC4 POS/NEG
IC5 POS/NEG
IC6 POS/NEG
IC7 POS/NEG
IC8 POS/NEG
Frequency Scaler,
Activity Monitor,
Freq. Monitor,
Optional Inversion
(per input clock)
DFS 1
DFS 2
DFS 3
APLL1
Error!
Divider 1
lowest jitter path
Input Clock
Block
8
Error!
R f
APLL2
APLL3
Divider 2
lowest jitter path
Divider 3
lowest jitter path
Error!
R f
identical to DPLL1
DPLL2
DFS 4
DFS 5
DFS 6
DFS 7
Divider 4
Divider 5
Divider 6
Divider 7
Error!
R f
status
Clock
Selector
JTRST
JTMS
JTCLK
JTDI
JTDO
JTAG
(SPI Serial)
and HW Control and Status Pins
Microprocessor Port
Master Clock
APLL
RST
TEST
SRCSW
GPIO[4:1]
INTREQ
SRFAIL
LOCK
CS
SCLK
SDI
SDO
OSCFREQ[2:0]
CPHA
CPOL
MCLKOSC
Local Oscillator
TCXO or OCXO
3
Short Form Data Sheet
DS31400
Detailed Features
Input Clock Features
•
•
•
•
•
•
•
•
•
Eight input clocks, differential or CMOS/TTL signal format
Input clocks can be any frequency from 2kHz up to 750MHz
Supported telecom frequencies include PDH, SDH, Synchronous Ethernet, OTU-1, OTU-2, OTU-3
Per-input fractional scaling (i.e., multiplying by N÷D where N is a 16-bit integer and D is a 32-bit integer
and N<D) to undo 64B/66B and FEC scaling (e.g., 64/66, 238/255, 237/255, 236/255)
Special mode allows locking to 1Hz input clocks
All inputs constantly monitored by programmable activity monitors and frequency monitors
Fast activity monitor can disqualify the selected reference after a few missing clock cycles
Frequency measurement and frequency monitor thresholds with 0.2ppm resolution
Three optional 2/4/8kHz frame-sync inputs
DPLL Features
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Very high-resolution DPLL architecture
Sophisticated state machine automatically transitions between free-run, locked, and holdover states
Revertive or nonrevertive reference selection algorithm
Programmable bandwidth from 0.5mHz to 400Hz
Separately configurable acquisition bandwidth and locked bandwidth
Programmable damping factor to balance lock time with peaking: 1.2, 2.5, 5, 10 or 20
Multiple phase detectors: phase/frequency and multicycle
Phase/frequency locking (±360° capture) or nearest-edge phase locking (±180° capture)
Multicycle phase detection and locking (up to
±8191UI)
improves jitter tolerance and lock time
Phase build-out in response to reference switching for true hitless switching
Less than 1 ns output clock phase transient during phase build-out
Output phase adjustment up to
±200ns
in 6ps steps with respect to selected input reference
High-resolution frequency and phase measurement
Holdover frequency averaging over 1 second, 5.8 minute and 93.2 minute intervals
Fast detection of input clock failure and transition to holdover mode
Low-jitter frame sync (8kHz) and multiframe sync (2kHz) aligned with output clocks
Digital Frequency Synthesizer Features
•
•
•
•
•
Seven independently programmable DFS blocks
Each DFS can slave to either of the DPLLs
Each DFS can synthesize any 2kHz multiple up to 77.76MHz
Per-DFS phase adjust (1/256UI steps)
Approximately 40ps RMS output jitter
Output APLL Features
•
•
•
•
Simultaneously produce three high-frequency, low-jitter, rates from the same reference clock, e.g.,
622.08MHz for SONET, 255/237 x 622.08MHz for OTU2, and156.25MHz for 10GE
Standard telecom output frequencies include 622.08MHz, 155.52MHz and 19.44MHz for SONET/SDH and
156.25MHz, 125MHz and 25MHz for Synchronous Ethernet
Very high-resolution fractional scaling (i.e., noninteger multiplication)
Less than 1ps RMS output jitter
4
Short Form Data Sheet
DS31400
Output Clock Features
•
•
•
•
•
•
•
•
•
•
•
•
Fourteen output clock signals in seven groups
Output clock groups OC1 – OC3 have a very high-speed differential output (current-mode logic,
≤750MHz)
and a separate CMOS/TTL output (≤125 MHz)
Output clock groups OC4 – OC7 have a high-speed differential output (LVDS/LVPECL,
≤312.5MHz)
and a
separate CMOS/TTL ouptut (
≤125 MHz)
Supported telecom frequencies include PDH, SDH, Synchronous Ethernet, OTU-1, OTU-2, OTU-3
Internal clock muxing allows each output group to slave to its associated DFS block, any of the APLLs, or
any input clock (after being divided and scaled)
Outputs sourced directly from APLLs have less than 1ps RMS output jitter
Outputs sourced directly from DFS blocks have approximately 40ps RMS output jitter
Optional 32-bit frequency divider per output
8kHz frame sync and 2kHz multiframe sync outputs have programmable polarity and pulse width and can
be disciplined by a 2kHz or 8kHz frame sync input
Per-output delay adjustment
Per-output enable/disable
All outputs disabled during reset
General Features
•
•
•
•
•
•
SPI serial microprocessor interface
Four general-purpose I/O pins
Register set can be write-protected
Operates from a 12.8MHz, 25.6MHz, 10.24MHz, 20.48MHz, 10MHz, 20MHz, 19.44MHz or 38.88MHz local
oscillator
On-chip watchdog circuit for the local oscillator
Internal compensation for local oscillator frequency error
5
