Series - Fundamental Quartz Crystal, 3.579545MHz Nom, HC/49US, 2 PIN
ABL2-3.579545MHZ-S-2W-TRAY Parametric
Parameter Name
Attribute value
Is it lead-free?
Lead free
Is it Rohs certified?
conform to
Objectid
1323127119
package instruction
HC/49US, 2 PIN
Reach Compliance Code
compliant
Country Of Origin
Mainland China
YTEOL
6.22
Other features
AT-CUT; TRAY
Ageing
5 PPM/YEAR
Crystal/Resonator Type
SERIES - FUNDAMENTAL
Drive level
100 µW
frequency stability
0.0025%
frequency tolerance
20 ppm
Installation features
THROUGH HOLE MOUNT
Nominal operating frequency
3.579545 MHz
Maximum operating temperature
70 °C
Minimum operating temperature
physical size
L11.5XB5.0XH2.5 (mm)/L0.453XB0.197XH0.098 (inch)
Series resistance
180 Ω
surface mount
NO
ABL2-3.579545MHZ-S-2W-TRAY Preview
HC/49US (AT49) MICROPROCESSOR CRYSTAL
ABL2 Series
Moisture Sensitivity Level (MSL) – This product is Hermetically Sealed
and not Moisture Sensitive - MSL = N/A: Not Applicable
Pb
RoHS/RoHS II
11.5 x 5.0 x 2.5 mm
| | | | | | | | | | | | | | |
FEATURES:
• Reduced height at 2.5mm
• High reliability & Low Cost
• Tight stability & extended temperature
• Proven resistance welded metal package
STANDARD SPECIFICATIONS:
Parameters
Frequency Range
Minimum
3.579545
3.579545
Operation mode
24.01
24.01
Operating Temperature
Storage Temperature
Frequency Tolerance
Frequency Stability over the Operating
Temperature
(
ref. to +25°C)
Equivalent series resistance
(R1)
Shunt capacitance
(C0)
Load capacitance
(CL)
Drive Level
Aging @
25°C per year
Insulation
Resistance
Drive Level Dependency
(DLD,
Minimum
7 points tested:
from
1µW to
500µW)
0
-55
-50
-50
APPLICATIONS:
• Home electronics
• Computers, modems, and communications
• Automotive and industrial
• High-precision TCXO and clock applications
• Microprocessors
Typical
Maximum
70
24.0
70.00
50.00
+70
+125
+50
+50
See table 1 below
7
18
100
500
±10
25% of
Max
ESR
Max
ESR in
Table 1
1000
±5
ºC
ºC
ppm
ppm
Ω
pF
pF
µW
ppm
MΩ
ppm
Ω
Ω
MHz
Fundamental
AT-
cut
(Standard)
3
rd
OT
AT-cut
(Standard)
Fundamental
AT-
cut or
BT-cut (See
options)
See options
See options
See options
Units
Notes
See options
@
100Vdc
±
15V
Δfrequency
(Max –
Min)
ΔESR
(Max – Min)
Max
ESR over DLD
range
Table 1
Frequency (MHz)
3.579 - 4.999 (Fund.)
5.000
-
5.999
(Fund.)
6.000 -
7.999
(Fund.)
8.000
-
8.999
(Fund.)
9.000
-
9.999
(Fund.)
10.000
-
15.999
(Fund.)
16.000
-
50.000
(Fund.)
24.01
-
31.999
(3rd
O/T)
32.000 -
70.00
(3rd
O/T)
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
ESR(Ω) max.
180
120
100
80
60
50
40
100
80
Revised: 01.08.13
30332
Esperanza, Rancho Santa
Margarita,
California 92688
tel 949-546-8000
|
fax
949-546-8001
|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
HC/49US (AT49) MICROPROCESSOR CRYSTAL
ABL2 Series
OPTIONS AND PART IDENTIFICATION:
Pb
RoHS/RoHS II
11.5 x 5.0 x 2.5 mm
| | | | | | | | | | | | | | |
ABL2 -
Frequency in MHz
Please specify the frequency
in xx.xxxxMHz.
e.g. 14.3181MHz
Load Capacitance (pF)
Please specify CL
(Minimum 10pF) in pF or
S for series
Custom ESR if other
than standard
R□
□:
Specify a value in
Ω
(e.g.: R40)
MHz-
-
-
-
-
-
Packaging
Blank: Bulk
T: Tape & Reel
TRAY: Tray
Value Added
I
Insulator Tab
L2
Middle 3rd lead
QXX
Trimmed leads
Q15
for 0.15" length
Oscillation Mode
F: Fund. AT>24MHz
FB: Fund. BT>24MHz
Operating Temp.
A: -10°C ~ +60°C
B: -20°C ~ +70°C
C: -30°C ~ +70°C
N: -30°C ~ +85°C
D: -40°C ~ +85°C
J*: -40°C ~ +105°C
K*: -40°C ~ +125°C
L*: -55°C ~ +125°C
Freq. Tolerance
H5: ± 5 ppm
1: ± 10 ppm
7: ± 15 ppm
2: ± 20 ppm
3: ± 25 ppm
4: ± 30 ppm
Freq. Stability
U**: ± 10 ppm
G: ± 15 ppm
X: ± 20 ppm
W: ± 25 ppm
Y: ± 30 ppm
H: ± 35 ppm
Q: ± 100 ppm
R: ± 150 ppm
NOTE:
* Frequency stability ±50ppm, ±100ppm, ±150ppm only. Contact ABRACON for tighter frequency stability.
** -10 to +60C only.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
Revised: 01.08.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
HC/49US (AT49) MICROPROCESSOR CRYSTAL
ABL2 Series

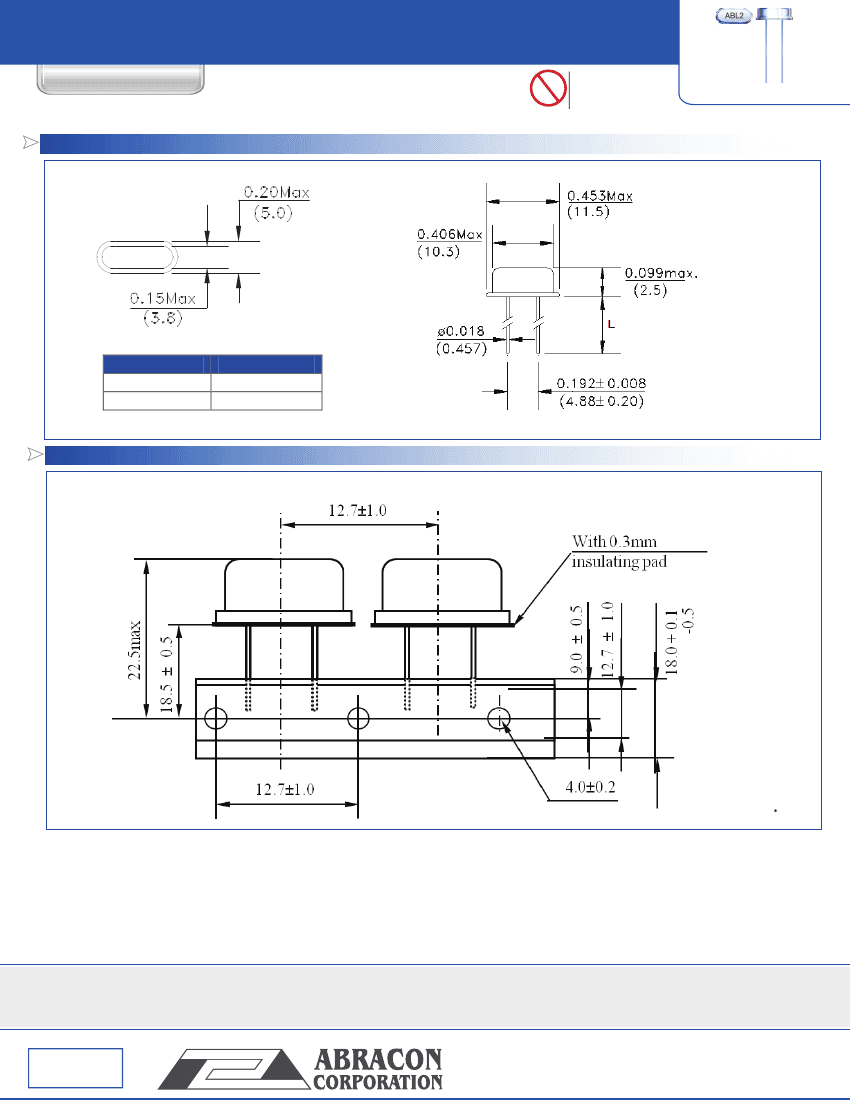

OUTLINE DIMENSIONS:
Pb
RoHS/RoHS II
11.5 x 5.0 x 2.5 mm
| | | | | | | | | | | | | | |
ABL2 SERIES HC49/US (AT49)
MICROPROCESSOR CRYSTAL
Date of Issue: Jan. 2
nd
, 2013
Page (8) of (10)
8.0
Packaging:
L
5.5mm Min
20.0 ± 0.5mm
Packaging
Bulk
Tape & Reel
11.5 x 5.0 x 2.5 mm
Abracon Drawing # 450715
Revision #: K
T= Tape and reel (1,000pcs/reel)
Dimensions: inch (mm)
TAPE & REEL:
T= Tape and reel (1,000pcs/reel)
Dimensions: mm
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO 9001 / QS 9000
ISO 9001:2008
CERTIFIED
Revised: 01.08.13
30332 Esperanza, Rancho Santa Margarita, California 92688
tel 949-546-8000
|
fax 949-546-8001
| www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
