ZWS50BAF24 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Power management> ZWS50BAF24

Preview

ZWS50BAF24: DescriptionAC/DC converter 24v 2.1A 50w; Categorysemiconductor Power management; File Size75KB，2 Pages; ManufacturerTDK Corporation; Websitehttp://www.tdk.com; Environmental Compliance

Download Datasheet View All

ZWS50BAF24 Overview

AC/DC converter 24v 2.1A 50w

Preview

Download Datasheet

View All

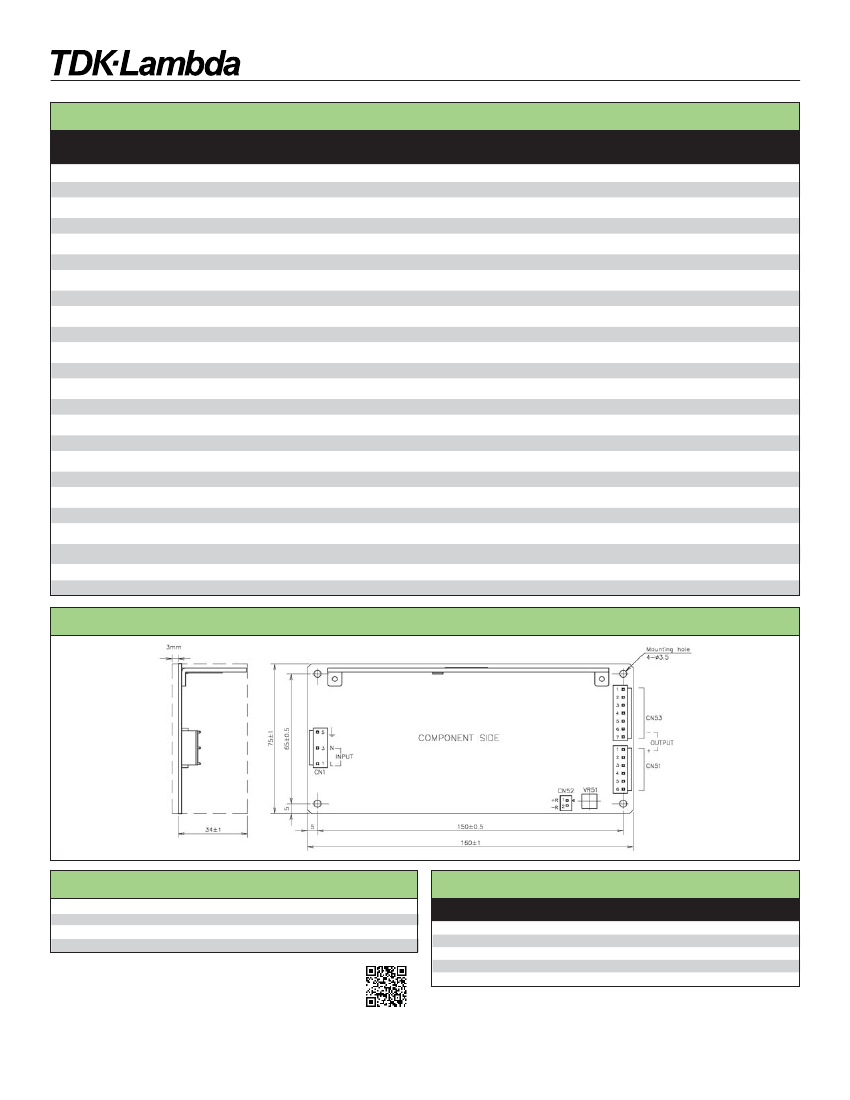

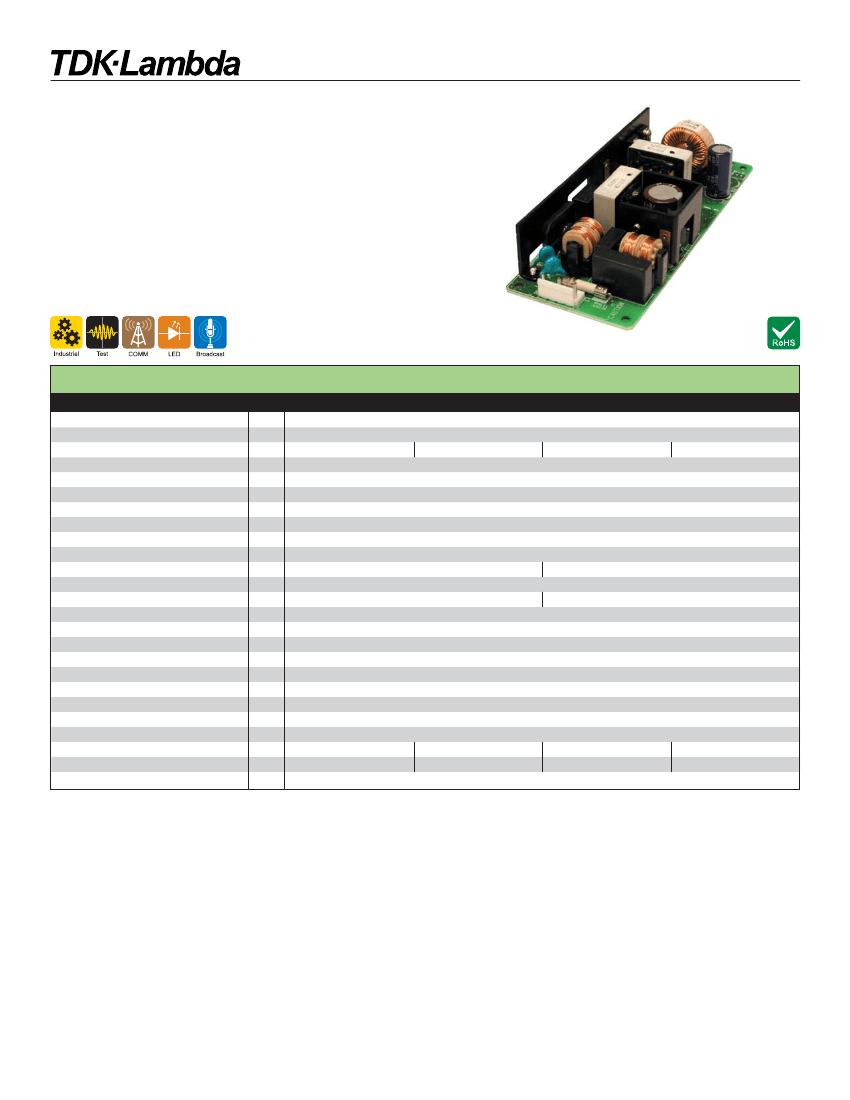

ZWS50-150BAF Series

Single Output, High Reliability AC-DC Power Supplies

Features



33W to 150W



Universal Input (85 - 265VAC)



Power factor Corrected



Convection Cooled



5 year warranty



Compact Design

Key Market Segments & Applications

Speciﬁcations

Model

AC Input Voltage range

DC Input Voltage range

Input Current (Typical)

Inrush Current

Power Factor (Active)

Maximum Ripple and Noise

Temperature Coefﬁcient

Overcurrent Protection (1)

Hold Up Time (Typ) at 100VAC

Leakage Current

Remote On / Off

Operating Temperature (Convection)

Operating Temperature (Forced Air)

Storage Temperature

Humidity (non condensing)

Withstand Voltage

Isolation Resistance

Vibration (non operating)

Shock

Safety Agency Certiﬁcations

Conducted & Radiated EMI

Immunity

Weight (Typ)

Size (W x H x D)

Warranty

°C

yrs

ZWS75BAF

ZWS100BAF

ZWS150BAF

85-265VAC (47-63Hz)

120 - 370VDC*

0.65 / 0.35

0.95 / 0.5

1.3 / 0.65

1.9 / 0.95

14 / 28 25°C ambient, cold start

Meets EN61000-3-2 (Typically 0.97/0.91)

3.3 & 5V: 120mV, 12 to 24V: 150mV, 48V: 200mV

<0.02%/°C

>105% of maximum output current

20ms

0.5mA max, 0.4mA typ at 230VAC

None

Optional

-10 to +70°C, derate linearly to 50% load from 50 to 70°C

N/A

-10 ~+70°C, derate linearly to 75% load from 60 ~70°C

-30 to +75°C

Operating: 30 - 90%RH, storage: 10 - 90%RH

I/P to Grnd 2kVAC (10mA), I/P to O/P 3kVAC (10mA), O/P to Grnd 500VAC (20mA) for 1 min.

>100M at 25C & 70%RH, Output to Ground 500VDC

10 - 55Hz (1 minute sweep), 19.6m/s

constant X, Y, Z 1 hour

< 196.1 m/s

UL60950-1, CSA60950-1, EN60950-1, EN50178 (OV II), CE Mark

EN55011/EN55022-B, FCC-B, VCCI-B

IEC61000-4-2 (lv 2,3), -3 (lv3), -4 (lv 3), -5 (lv 3,4), -6 (lv 3), -8 (lv 4), -11

165

230

290

390

1.97 x 1.02 x 5.2”

1.97 x 1.3 x 5.9”

2.44 x 1.3 x 6.1”

2.95 x 1.46 x 6.3”

Five Years

*Safety certiﬁed for AC input only

ZWS50BAF

Notes:

(1) Avoid prolonged operartion in overload

(2) 100 / 200VAC Input

(3) 60°C: 70% load

1-800-526-2324 • www.us.tdk-lambda.com/lp/

111

Disclaimer: us.tdk-lambda.com/lp/legal.htm
