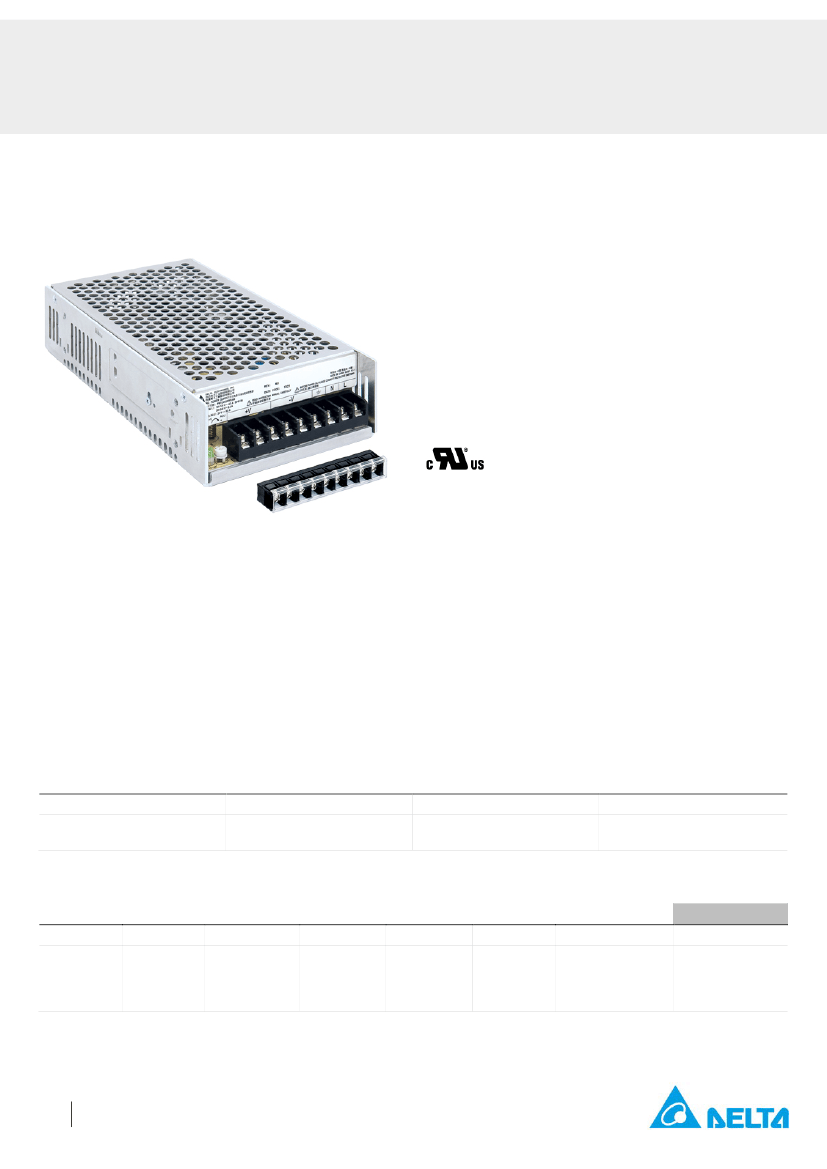

TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24V 200W 1 Phase / PMT-24V200W1A
□□
PMT
Highlights & Features
–
–
–
–
–
–
–
AC input voltage selectable by switch
Full Aluminium casing for light weight and corrosion resistant
handling
Convection cooling
Cold start -20°C at 100% load (200W)
Low leakage current < 0.25mA @ 240Vac
High MTBF > 700,000 hrs. as per Telcordia SR-332
Short Circuit / Overvoltage / Overcurrent / Over Temperature
Protections
Safety Standards
CB Certified for worldwide use
Model Number:
PMT-24V200W1A☐☐
Unit Weight:
0.63 kg
Dimensions (L x W x D):
215 x 115 x 50 mm
General Description
The new PMT series of panel mount power supplies is the latest offering from one of the world’s largest power supply manufacturers
and solution providers - Delta. The product offers a wide operating temperature range from -10°C to +60°C and can withstand shock
and vibration requirements (in accordance to IEC 60068-2-27 and IEC 60068-2-6 respectively). In addition to features like overvoltage
and overload protections, Delta’s PMT series of panel mount power supplies is unlike many other brands in the same price level. The
PMT series is designed for cost competitive markets without compromising the quality of the components and product specifications.
The series of products has an expected life time of 10 years. This versatile series has two different connector options (Terminal Block
and Front Face) and can also be converted into L Frame (PML) type of power supplies to satisfy different application needs.
Model Information
PMT Panel Mount Power Supply
Model Number
PMT-24V200W1A☐☐
Input Voltage Range
90-132Vac, 180-264Vac
(Selectable by Switch)
Output Voltage
24Vdc
Output Current
8.80A
Model Numbering
CC Code
PM
□
–
24V
200W
1
A
No PFC
□
□
Panel Mount Product Type Output Voltage Output Power Single Phase
T – Enclosed
L – L Frame*
Blank – Without
Connector Type
M – Terminal Block connector cover
A – With connector
N – Front Face*
cover
*Options
1
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (August 2013, Rev. 00)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24V 200W 1 Phase / PMT-24V200W1A
□□
Specifications
Input Ratings / Characteristics
Nominal Input Voltage
Input Voltage Range
Nominal Input Frequency
Input Frequency Range
Input Current
Efficiency at 100% Load
Max Inrush Current
Leakage Current
100-120Vac, 200-240Vac (Selectable by Switch)
90-132Vac, 180-264Vac (Selectable by Switch)
50-60Hz
47-63Hz
< 4.50A @ 115Vac, < 2.50A @ 230Vac
> 88.5% @ 230Vac
< 55A @ 230Vac
< 0.25mA @ 240Vac
Output Ratings / Characteristics
Nominal Output Voltage
Output Voltage Tolerance
Output Voltage Adjustment Range
Output Current
Output Power
Line Regulation
Load Regulation
PARD (20MHz)
Rise Time
Start-up Time
Hold-up Time
Dynamic Response (Overshoot & Undershoot O/P Voltage)
Start-up with Capacitive Loads
24Vdc
± 1% (initial set point tolerance from factory)
21.6-26.4Vdc
8.80A
211.2W
± 0.5% typ. (@ 100-132Vac & 200-264Vac)
± 0.5% typ. (@ 100-132Vac & 200-264Vac )
< 150mVpp
30ms typ. @ 115Vac, 20ms typ. @ 230Vac (100% load)
1000ms typ. @ 115Vac & 230Vac (100% load
)
20ms typ. @ 115Vac, 24ms typ. @ 230Vac
± 5% @ 0-100% load
8,000µF Max
Mechanical
Case Chassis
Case Cover
Dimensions (L x W x D)
Unit Weight
Indicator
Cooling System
Terminal
Wire
PM☐-24V200W1AM☐
PM☐-24V200W1AN☐
Aluminium
Aluminium
215 x 115 x 50 mm
0.63 kg
Green LED (DC OK)
Convection
M3.5 x 9 Pins (Rated 300V/15A)
M3.5 x 9 Pins (Rated 300V/20A)
AWG 22-12
2
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (August 2013, Rev. 00)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24V 200W 1 Phase / PMT-24V200W1A
□□
Environment
Surrounding Air Temperature
Power De-rating
Operating Humidity
Operating Altitude
Shock Test (Non-Operating)
Vibration (Non-Operating)
Pollution Degree
Operating
Storage
-10°C to +60°C (Cold start at -20°C)
-25°C to +85°C
> 40°C de-rate power by 2.5% / °C
< 100Vac de-rate power by 3% / 1V
10-95% RH (Non-Condensing)
5,000 Meters
IEC 60068-2-27, Half Sine: 50G for a duration of 11ms,
3 times for each 3 directions
IEC 60068-2-6, Random: 5Hz to 500Hz @ 2.09Grms,
20 min per axis for all X, Y, Z direction
2
Protections
Overvoltage
Overload / Overcurrent
Over Temperature
Short Circuit
Protection Against Shock
*PE: Primary Earth
27.6-32.4V, Hicc-up Mode, Non-Latching
(Auto-Recovery)
105-150%, Hicc-up Mode, Non-Latching
(Auto-Recovery)
Hicc-up Mode, Non-Latching
(Auto-Recovery when the fault is removed)
Hicc-up Mode, Non-Latching
(Auto-Recovery when the fault is removed)
Class I with PE* connection
Reliability Data
MTBF
Expected Cap Life Time
> 700,000 hrs. as per Telcordia SR-332
I/P: 100Vac, O/P: 100% load, Ta: 35°C
10 years (115Vac & 230Vac, 50% load @ 40°C)
Safety Standards / Directives
Electrical Safety
Material and Parts
Galvanic Isolation
Input to Output
Input to Ground
Output to Ground
UL/cUL recognized to UL 60950-1 and CSA C22.2 No.
60950-1, CB scheme to IEC 60950-1
RoHS Directive 2011/65/EU Compliant
3.0KVac
1.5KVac
0.5KVac
3
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (August 2013, Rev. 00)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24V 200W 1 Phase / PMT-24V200W1A
□□
EMC
EMC / Emissions*
Immunity to*
Electrostatic Discharge
IEC 61000-4-2
CISPR 22, EN 55022, FCC Title 47: Class A
(With Delta EMI filter P/N: 10DKAW5)
EN 55024
Level 4 Criteria A
1)
Air Discharge: 15kV
Contact Discharge: 8kV
Level 2 Criteria A
1)
80MHz-1GHz, 3V/M with 1kHz tone / 80% modulation
Level 3 Criteria A
1)
2kV
Level 3 Criteria A
1)
Common Mode
2)
: 2kV
Differential Mode
3)
: 1kV
Level 3 Criteria A
1)
150kHz-80MHz, 3Vrms
Criteria A
1)
10A/Meter
100% dip; 1 cycle (20ms); Self Recoverable
Level 3 Criteria A
1)
Common Mode
2)
: 2kV
3)
Differential Mode : 1kV
Radiated Field
Electrical Fast Transient / Burst
Surge
IEC 61000-4-3
IEC 61000-4-4
IEC 61000-4-5
Conducted
Power Frequency Magnetic Fields
Voltage Dips
Low Energy Pulse Test (Ring Wave)
IEC 61000-4-6
IEC 61000-4-8
IEC 61000-4-11
IEC61000-4-12
*Fulfills tested conditions
1) Criteria A: Normal performance within the specification limits
2) Asymmetrical: Common mode (Line to earth)
3) Symmetrical: Differential mode (Line to line)

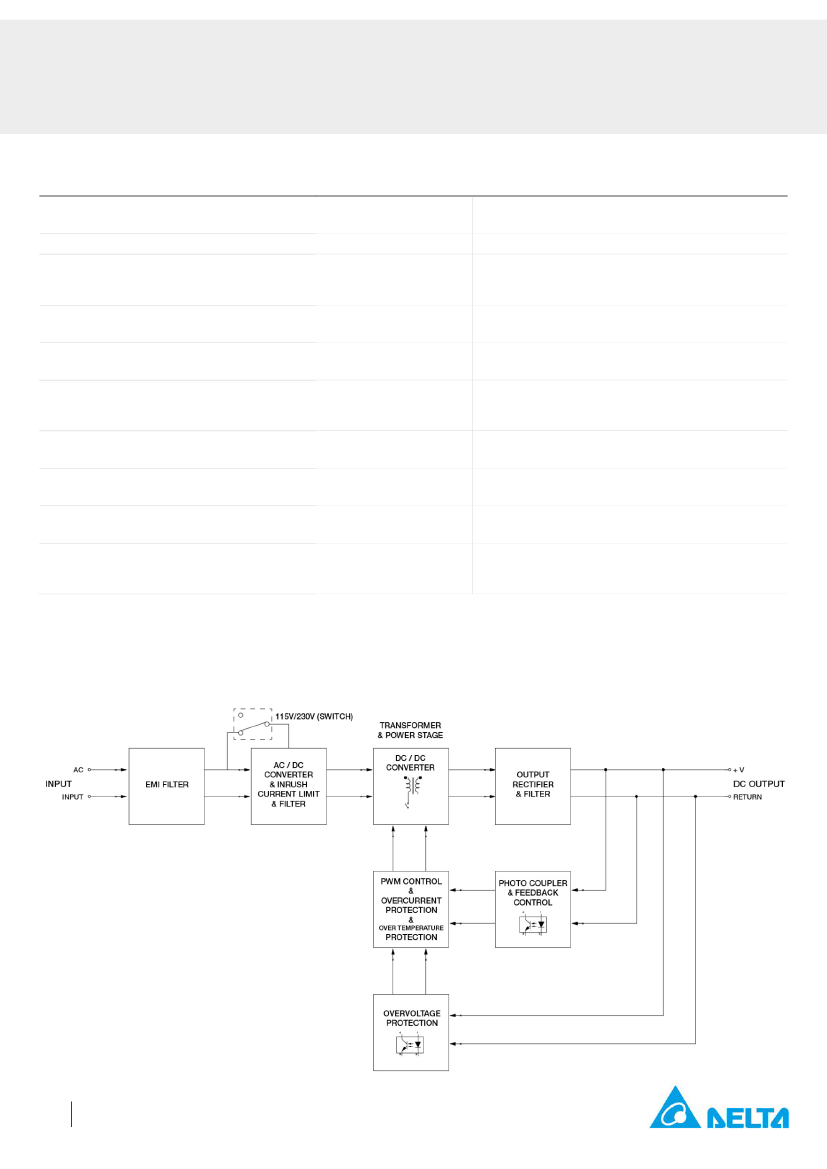

Block Diagram
4
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (August 2013, Rev. 00)
TECHNICAL DATASHEET
PMT Panel Mount Power Supply
24V 200W 1 Phase / PMT-24V200W1A
□□
Device Description
PMT-24V200W1AM☐:
Terminal Block
PMT-24V200W1AN☐:
Front Face
1)
2)
3)
4)
Input & Output terminal block connector
DC voltage adjustment potentiometer
DC OK control LED (Green)
AC selectable switch

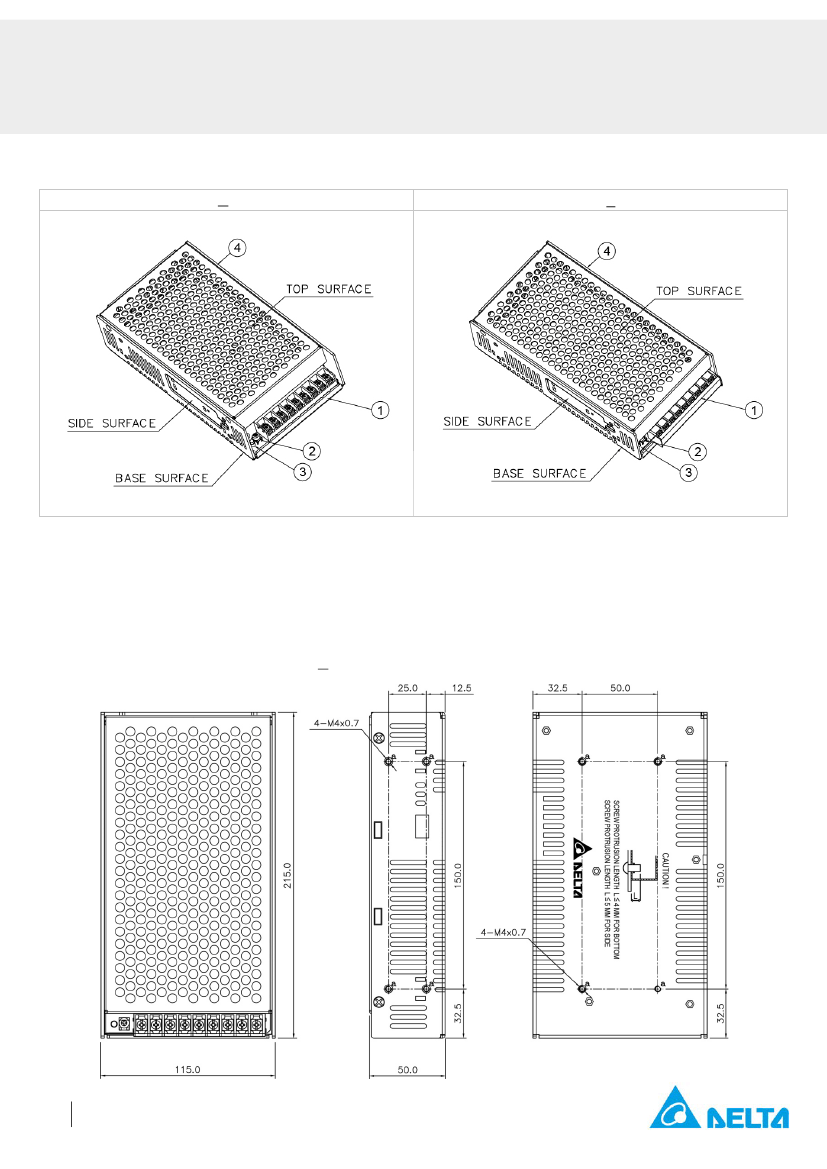

Dimensions
L x W x D:
215 x 115 x 50 mm (PMT-24V200W1AM: Terminal Block with Case Cover)
5
All parameters are specified at 25°C ambient unless otherwise noted.
www.DeltaPSU.com (August 2013, Rev. 00)
