220VXG470MEFCMN25X30 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 220VXG470MEFCMN25X30

220VXG470MEFCMN25X30: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 220V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, CAN; CategoryPassive components capacitor; File Size83KB，2 Pages; Manufacturerrubycon; Websitehttp://www.rubycon.co.jp/cn/

Download Datasheet Parametric View All

220VXG470MEFCMN25X30 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 220V, 20% +Tol, 20% -Tol, 470uF, Through Hole Mount, CAN

220VXG470MEFCMN25X30 Parametric

Parameter Name	Attribute value
Objectid	2083438884
package instruction	,
Reach Compliance Code	unknown
Country Of Origin	Japan
ECCN code	EAR99
YTEOL	7.5
capacitance	470 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)
JESD-609 code	e3
leakage current	0.96468 mA
Manufacturer's serial number	VXG
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-25 °C
Package shape	CYLINDRICAL PACKAGE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	220 V
ripple current	1470 mA
surface mount	NO
Delta tangent	0.2
Terminal surface	TIN
Terminal shape	SNAP-IN

Preview

Download Datasheet

View All

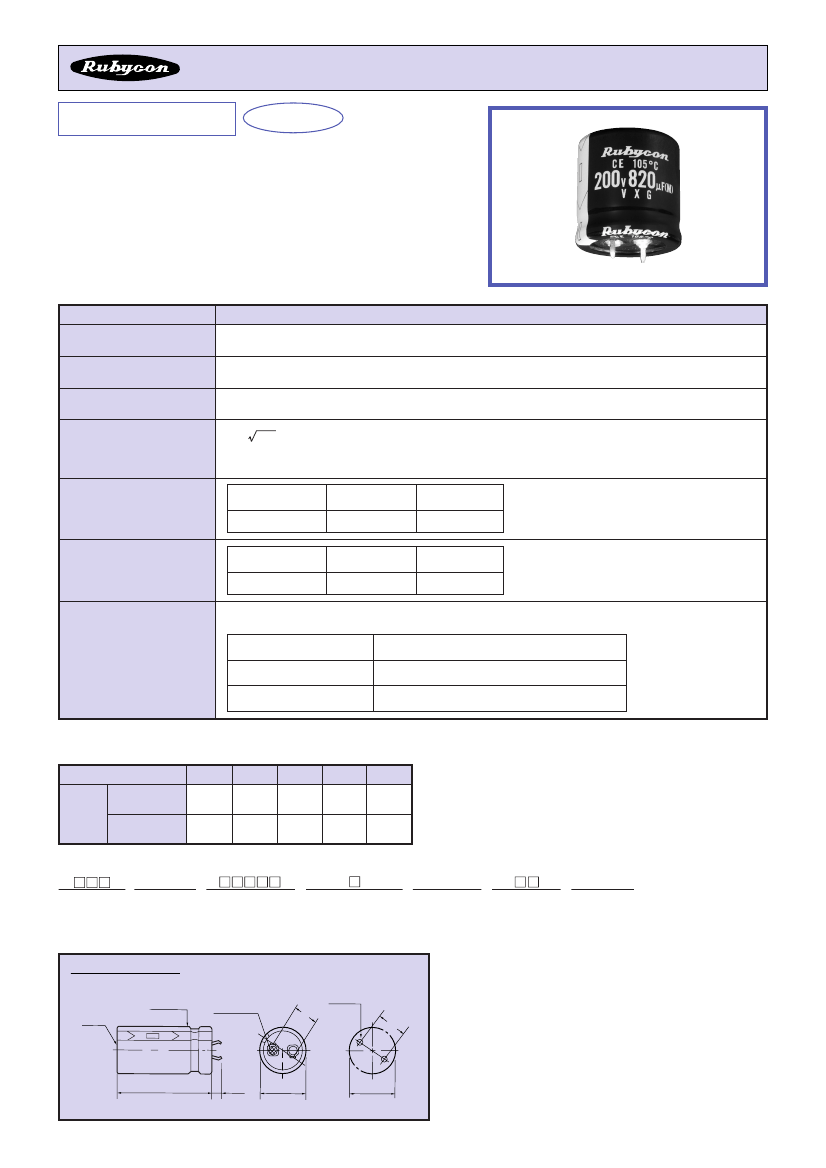

LARGE CAN TYPE ALUMINUM ELECTROLYTIC CAPACITORS

VXG

SERIES

NEW

105°C 5000 hours Miniaturized, Snap-in Terminal Type

♦FEATURES

•

Load Life : 105°C 5000 hours.

•

Smaller size with higher ripple current endurance than VXP series.

♦SPECIFICATIONS

Items

Category Temperature

Range

Rated Voltage Range

Capacitance Tolerance

Leakage Current(MAX)

I=3 CV

Characteristics

-25~+105°C

200~400V.DC

±20%(20°C,120Hz)

(After 5 minutes application of rated voltage)

V=Rated Voltage(V)

400~450WV

0.20

I=Leakage Current(µA)

Dissipation

Factor(MAX)

Rated Voltage(V)

tanδ

Rated Voltage(V)

C=Rated Capacitance(µF)

(20°C,120Hz)

200~250WV

0.20

Impedance Ratio(MAX)

Z(-25°C)/Z(20°C)

200~250WV

400~450WV

(120Hz)

After applying rated voltage with rated ripple current for 5000hrs at 105°C, the capacitors shall

meet the following requirements.

Endurance

Capacitance Change

Dissipation Factor

Leakage Current

Within

±20%

of the initial value.

Not more than 200% of the specified value.

Not more than the specified value.

♦MULTIPLIER

FOR RIPPLE CURRENT

Frequency coefficient

Frequency

(Hz)

Coefficient

0.80

120

1.00

500

1.20

1.30

1.25

10k<

1.50

1.40

200~250WV

400~450WV

♦PART

NUMBER

VXG

Rated Voltage

Series

Rated Capacitance

Capacitance Tolerance

EFC

Option

Terminal Code

DxL

Case Size

♦DIMENSIONS

SN [4(3.5)mm] terminal type

(mm)

SLEEVE

VENT

NEGATIVE

±0.1

0.5

*For

φ35,

3.5±0.5

φD±1

MOUNTING HOLES
