Part Number

Search

8647690000

Description
timer btmF-Z cntrl IN btm TC
CategoryMechanical and electronic products    relay
File Size72KB,3 Pages
ManufacturerWeidmuller
Websitehttp://www.weidmuller.com/
Download Datasheet Parametric View All

8647690000 Overview

timer btmF-Z cntrl IN btm TC

8647690000 Parametric

Parameter NameAttribute value
MakerWeidmuller
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time10 weeks
body width17.5 mm
body height73 mm
Body length or diameter80 mm
Maximum coil current (DC)0.027 A
Coil power1300 mW
Coil resistance1777.78 Ω
Maximum coil voltage (AC)230 V
Maximum coil voltage (DC)48 V
Coil/Input Power TypeDC
Contact (AC) maximum rated R load5A@250VAC
Maximum contact current (AC)5 A
Maximum contact voltage (AC)250 V
Contact/Output Power TypeAC
Electrical life100000 Cycle(s)
Manufacturer's serial number8647690000
Installation featuresDIN-RAIL MOUNT
Maximum operating temperature55 °C
Minimum operating temperature-10 °C
physical size80mm X 17.5mm X 73mm
GuidelineCSA; EN; IEC; UL
Relay actionMOMENTARY
Relay typeMULTI-DELAY RELAY
sealIP30
surface mountNO
Base Number Matches1

Data sheet...
BT series
TIMER BTMF-Z
Weidmüller Interface GmbH & Co. KG
Klingenbergstraße 16
D-32758 Detmold
Germany
Fon: +49 5231 14-0
Fax: +49 5231 14-292083
www.weidmueller.com


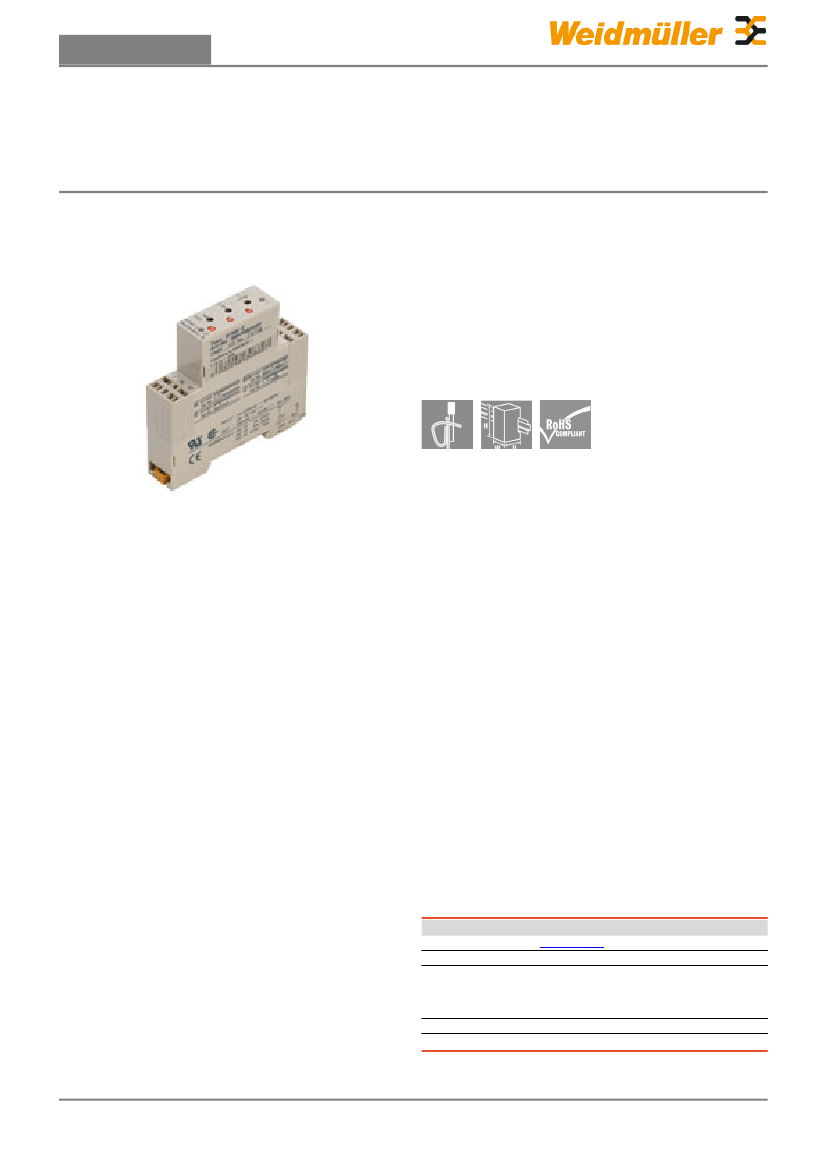

The BTMF timing relay has 5 different timing functions.
These are set via a rotary switch on the front. The delay
and pulse times are selectable between 0.1sec. and 1
hour.
The timing relay is built into an Insta enclosure just 17.5
mm wide.
On the output side there is a relay contact with a
switching capacity of 250 V/ 5 A.
General ordering data

Order No.
Type
Version
GTIN (EAN)
Qty.

8647690000
TIMER BTMF-Z
BT series, Timing relay, No. of contacts: 1, CO
contact, AgNi 90/10, Rated control voltage:
24...230 V AC, 24...48 V DC, Continuous current:
5 A, Tension clamp connection
4032248308897
10 pc(s).
Creation date March 11, 2013 4:09:45 PM CET


Catalogue status 20.12.2012 / We reserve the right to make technical changes.
1
