KTPS24-0925DT 2P Overview

desktop 9V 2.5A 24w cec 2pin

Preview

Download Datasheet

View All

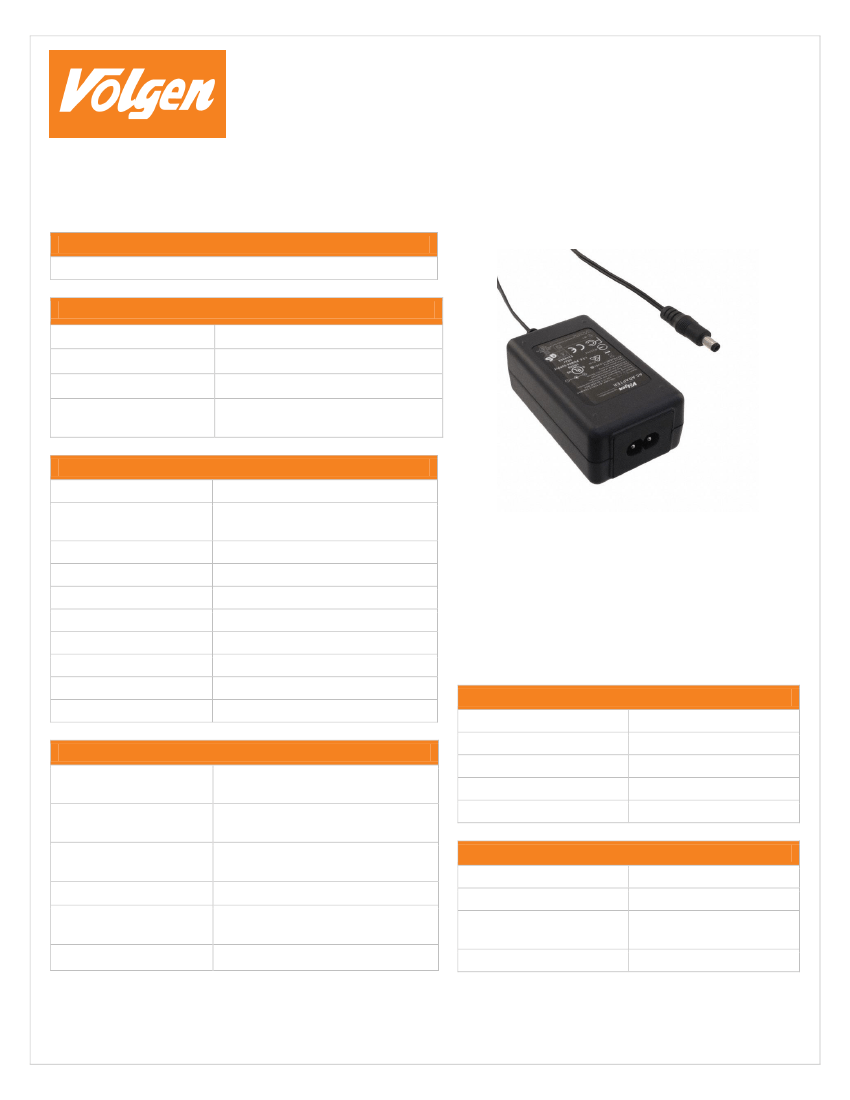

KTPS24 Series

24 Watt

Universal Input, Desktop Adapter

INPUT SPECIFICATIONS

All specifications are typical at nominal input, full load.

INPUT SPECIFICATIONS

Input Voltage

Input Frequency

Input Current

Protection

AC 100 – 240VAC

50 – 60Hz

0.58A Max

Internal Primary Current Fuse

Inrush Limiting

OUTPUT SPECIFICATIONS

Output Voltage

Efficiency

Protection

See Chart

CEC Level V, ErP Stage 2,

GEMS

Short Circuit Protection

Over Current Protection

Over Voltage Protection

Ripple

Hold-Up Time

Transient Response

Load Regulation

Leakage Current

1 - 2 % Vp-p (max)

10 mS (min)

0.5mS for 50% Load Change(typ)

± 5% (typ)

0.25mA @ 2 pin

FEATURES



UNIVERSAL INPUT (AC100-240V)

CEC LEVEL V

OVER VOLTAGE PROTECTION

OVER CURRENT PROTECTION

SHORT CIRCUIT PROTECTION

ROHS COMPLIANT

NRCAN VERSION AVAILABLE

ENVIRONMENTAL SPECIFICATIONS

Operating Temperature

Storage Temperature

Cooling.

Operating Humidity

Storage Humidity

0°C~+40°C

-20°C ~ +80°C

Convection

20 – 80% Rh

10 – 90% Rh

GENERAL SPECIFICATIONS

MTBF(Calculated)

Dielectric Withstanding

Voltage

EMI

Conduction & Radiation

Harmonic Current

EMS Immunity

Safety Approvals

300,000 Calculated hours at 25°C

by Telcordia SR-332

3,000 VAC Primary – Secondary

Compliance to EN55022 Class B

Compliance to EN61000-3-2,3

Compliance to EN61000-4-

2,3,4,5,6,8,11

UL/cUL/CE/CB/GS/PSE/FCC

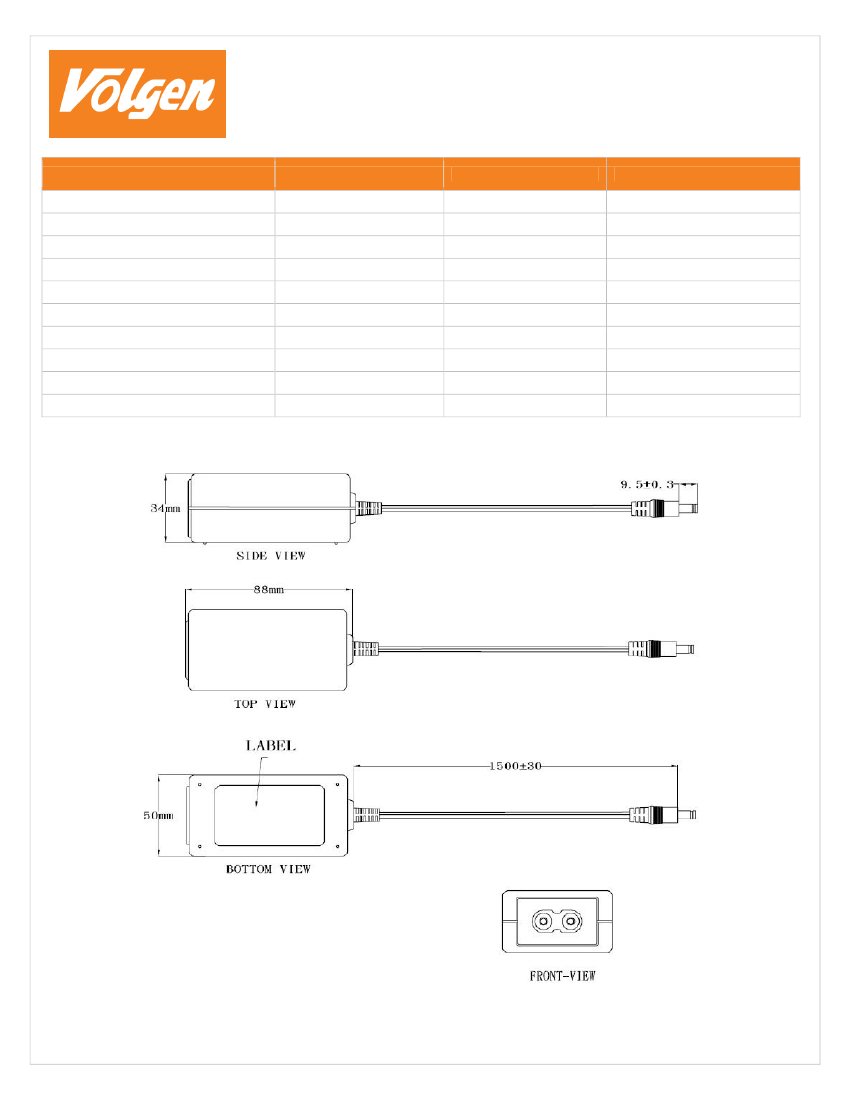

MECHANICAL SPECIFICATIONS

Case Dimension

Input Configuration

DC Cord

Output Connector

L88 x W50 x H34(mm)

IEC320-C8

18AWG

(Optional 20 & 22 AWG)

5.5 x 2.1 x 9.5 mm C+

Kaga Electronics (USA) Inc. 2480 N. First St., Suite #100, San Jose, CA 95131

Phone: (408) 570-0955 | Fax: (408) 570-0186 | Toll Free: (888) 2-VOLGEN (888-286-5436)

www.volgen.com
