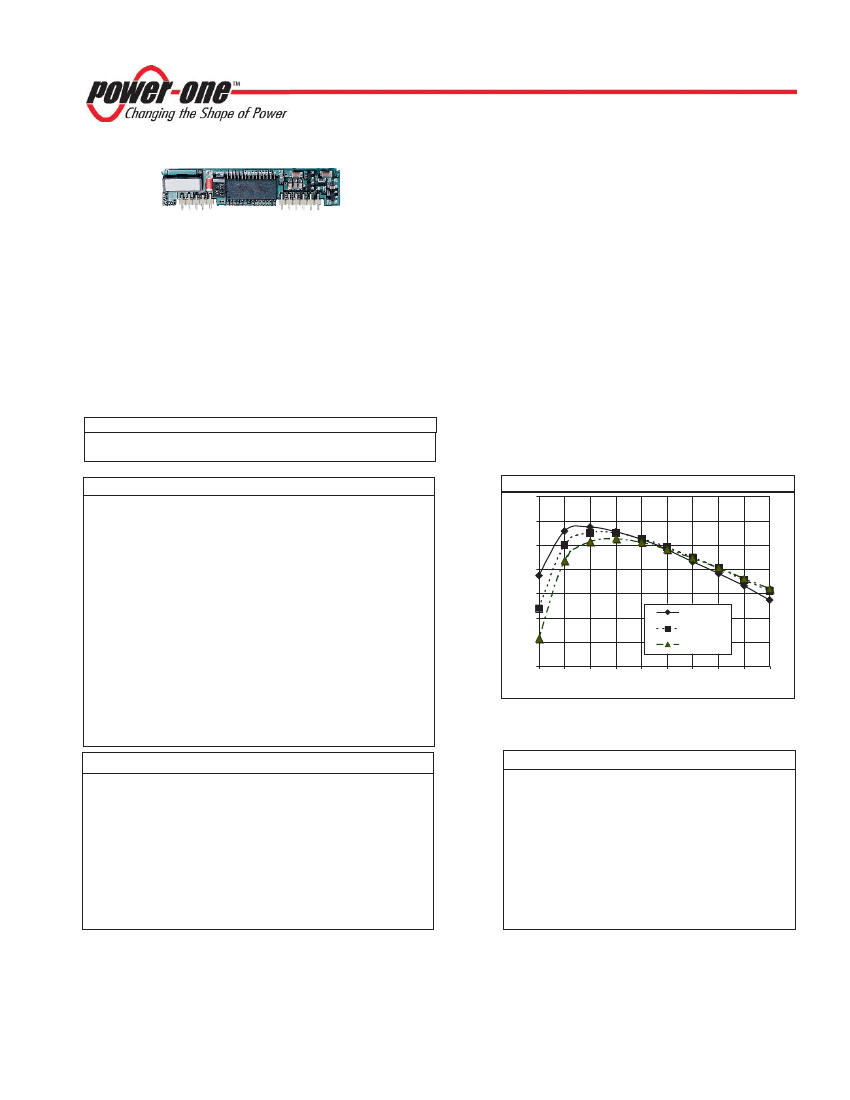

SIP/SIE500 DC-DC Series Data Sheet
Non-Isolated, 20 Watts
Features
•
•
•
•
•
•
•
•
Description
SIP/SIE non-isolated step-down DC-DC converters deliver high efficiency and excellent transient response in an
industry-standard SIP package. The SIP/SIE Series has output voltages ranging from 1.2 to 3.3V and up to 6 amps of
output current. The SIE model has power OK and remote sense pins for added flexibility and improved point-of-load
regulation. The SIP/SIE Series is available for vertical or horizontal mounting. The SIP/SIE Series uses 100% surface-
mount construction for maximum reliability and features over seven million hours MTBF.
Technical Specifications
Input
Voltage Range
5 VDC Nominal
Output
90
Non-Isolated
High Efficiency Topology
Excellent Transient Response
Sense and Power OK (SIE Model Only)
Surface-Mount Construction
Voltage Trim
Vertical or Horizontal Mounting
Water Washable
4.5 - 5.5 VDC
Efficiency vs. Load
±1%
1% V
out
50 mV Pk-Pk
0.25 V
Foldback
120% to 180%
Continuous
78
76
10
20
30
40
50
60
70
80
90
100
EFFICIENCY %
Setpoint Accuracy
Line Regulation V
in
Min. - V
in
Max., I
out
Rated
Load Regulation I
out
Min.- I
out
Max., V
in
Nom.
Ripple and Noise, DC - 20 MHz
Remote Sense Headroom
Current Limit Protection Type
Current Limit Threshold Range, % of I
out
Rated
Short Circuit Protection Type
Power Good Signal (SIE model only);
Asserts “High” When V
out
is Between the Following Thresholds:
Lower Sense Threshold, % Vsetpoint
Upper Sense Threshold, % Vsetpoint
Power Good Signal Reference
V
out
Ramp Up Rate, Minimum
General
Remote Shutdown
Switching Frequency
Temperature Coefficient
Ambient Operating Temperature
Minimum Required Airflow
Storage Range
Humidity Max., Non-Condensing
Vibration, 3 Axes, 5 Min Each
MTBF
†
(Bellcore TR-NWT-000332)
Safety
Weight (approx.)
88
86
84
82
80
SIP502.5
EFF. (4.5v)
EFF. (5v)
EFF. (5.5v)
1% V
out
-16% to -10%
+10% to +16%
Common Ground
0.5V/ms
LOAD %
Notes
Negative Logic
330 kHz
0.03%/°C
0 to +55°C
200 LFM
-25 to +120°C
95%
5 g, 10 - 55 Hz
7.1 x 106 hrs
UL, cUL, TUV
0.25 oz
† MTBF predictions may vary slightly from model to model.
Specifications typically at 25°C, normal line, and full load, unless otherwise
stated.
Soldering Conditions: I/O pins, 260°C, ten seconds; fully compatible with
commercial wave-soldering equipment.
Safety: Agency approvals may vary from model to model. Please consult
factory for specific model information.
Units are water-washable and fully compatible with commercial spray or
immersion post wave-solder washing equipment.
NUCLEAR AND MEDICAL APPLICATIONS - Power-One products are not authorized for use as critical components in life support systems,
equipment used in hazardous environments, or nuclear control systems without the express written consent of the respective divisional president
of Power-One, Inc.
TECHNICAL REVISIONS - The appearance of products, including safety agency certifications pictured on labels, may change depending on the
date manufactured. Specifications are subject to change without notice.
REV. MAY 07, 2004
Page 1 of 2
SIP/SIE500 DC-DC Series Data Sheet
Non-Isolated, 20 Watts
Model Selection
MODEL
INPUT VOLTAGE
(VOLTS)
INPUT VOLTAGE
RANGE (VOLTS)
MAXIMUM INPUT
CURRENT (AMPS)*
OUTPUT
VOLTAGE (VOLTS)
RATED OUTPUT
CURRENT (AMPS)
TYPICAL
EFFICIENCY**
SIP501.2LT
SIP501.5LT
SIP501.8LT
SIP502.1LT
SIP502.5LT
SIP503.3LT
SIE501.2LT
SIE501.5LT
SIE501.8LT
SIE502.1LT
SIE502.5LT
SIE503.3LT
NOTES:
5
5
5
5
5
5
5
5
5
5
5
5
4.5 - 5.5
4.5 - 5.5
4.5 - 5.5
4.5 - 5.5
4.5 - 5.5
4.5 - 5.5
4.5 - 5.5
4.5 - 5.5
4.5 - 5.5
4.5 - 5.5
4.5 - 5.5
4.5 - 5.5
2.3
2.7
3.1
3.5
4.0
5.1
2.3
2.7
3.1
3.5
4.0
5.1
1.2
1.5
1.8
2.1
2.5
3.3
1.2
1.5
1.8
2.1
2.5
3.3
6
6
6
6
6
6
6
6
6
6
6
6
70%
75%
77%
81%
83%
87%
70%
75%
77%
84%
83%
87%
* Maximum input current at minimum input voltage, maximum rated output power.
** At nominal Vin, rated output.
Model numbers highlighted in yellow or shaded are not recommended for new designs.
For right-angle pins, add suffix R to model number.

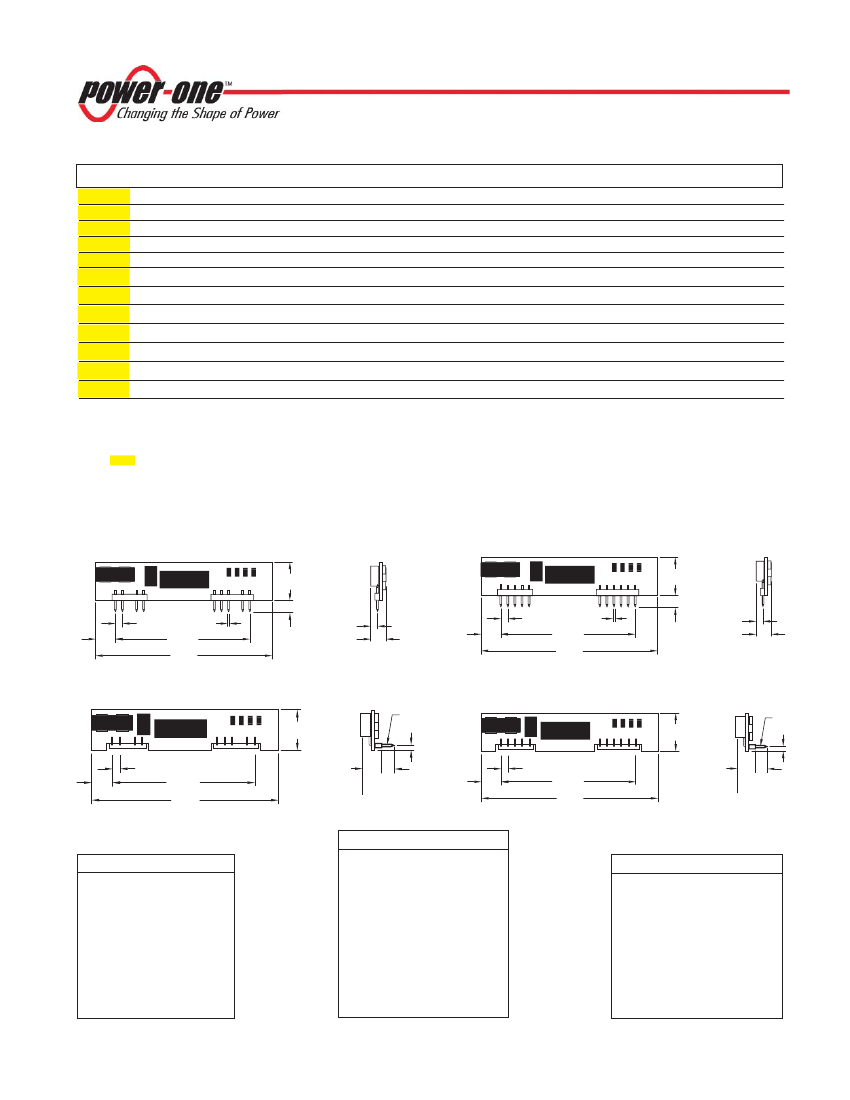

Mechanical Drawing
0.55"
(14.0mm)
1 2 3 4 5
6 7 8 9 10 11
1 2 3 4 5
6 7 8 9 10 11
0.55"
(14.0mm)
0.13" (3.3mm)
0.11"
(2.80mm)
0.25"
(6.40mm)
0.10" TYP.
(2.54mm)
0.28"
(7.10mm)
0.025" SQ.
(0.64mm)
1.90"
(48.26mm)
2.50"
(63.5mm)
0.11"
(2.80mm)
0.25"
(6.40mm)
0.13" (3.30mm)
0.100" TYP. 0.025" SQ.
(0.64mm)
(2.54mm)
1.90"
(48.26mm)
2.50"
(63.5mm)
0.28"
(7.10mm)
SIP MODEL
0.55"
(14.0mm)
1 2 3 4 5
6 7 8 9 10 11
SIE MODEL
0.025" SQ.
(0.64mm)
0.09"
(2.30mm)
0.55"
(14.0mm)
1 2 3 4 5
6 7 8 9 10 11
0.025" SQ.
(0.64mm)
0.09"
(2.30mm)
0.28"
(7.10mm)
0.100" TYP.
(2.5mm)
1.90"
(48.3mm)
2.50"
(63.5mm)
0.13"
(3.3mm)
0.27"
(6.90mm)
0.28"
(7.10mm)
0.100" TYP.
(2.5mm)
1.90"
(48.3mm)
2.50"
(63.5mm)
0.13"
(3.3mm)
0.27"
(6.90mm)
Pin
Thermal Impedance
Natural Convection
100 LFM
200 LFM
300 LFM
400 LFM
24.4 °C/W
18.3 °C/W
15.0 °C/W
11.1 °C/W
7.9 °C/W
1
2
3
4
5
6
7
8
9
10
11
Function
+Vout
+Vout
Sense (SIE)
+Vout
Ground
Ground
+Vin
+Vin
PWR OK (SIE)
Trim
Enable
Inches:
.XX ± 0.020
.XXX ± 0.010
Pin:
± 0.002
Tolerances
(Millimeters)
.X ± 0.5
.XX ± 0.25
± 0.05
Note:
Thermal impedance data is dependent on
many environmental factors. The exact
thermal performance should be validated
for specific application.
(Dimensions as listed unless otherwise
specified.)
REV. MAY 07, 2004
Page 2 of 2
