ICS854057AGLFT: DescriptionLow Skew Clock Driver, 854057 Series, 1 True Output(s), 0 Inverted Output(s), PDSO20, 4.40 X 6.50 MM, 0.925 MM HEIGHT, ROHS COMPLIANT, MO-153, TSSOP-20; Categorylogic logic; File Size242KB，13 Pages; ManufacturerIDT (Integrated Device Technology); Environmental Compliance

Download Datasheet Parametric Compare View All

ICS854057AGLFT Overview

Low Skew Clock Driver, 854057 Series, 1 True Output(s), 0 Inverted Output(s), PDSO20, 4.40 X 6.50 MM, 0.925 MM HEIGHT, ROHS COMPLIANT, MO-153, TSSOP-20

ICS854057AGLFT Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	IDT (Integrated Device Technology)
Parts packaging code	TSSOP
package instruction	4.40 X 6.50 MM, 0.925 MM HEIGHT, ROHS COMPLIANT, MO-153, TSSOP-20
Contacts	20
Reach Compliance Code	unknown
series	854057
Input adjustment	DIFFERENTIAL MUX
JESD-30 code	R-PDSO-G20
JESD-609 code	e3
length	6.5 mm
Logic integrated circuit type	LOW SKEW CLOCK DRIVER
Humidity sensitivity level	1
Number of functions	1
Number of inverted outputs
Number of terminals	20
Actual output times	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	TSSOP
Encapsulate equivalent code	TSSOP20,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Celsius)	260
power supply	2.5 V
Prop。Delay @ Nom-Sup	0.8 ns
propagation delay (tpd)	0.8 ns
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	2.625 V
Minimum supply voltage (Vsup)	2.375 V
Nominal supply voltage (Vsup)	2.5 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	Matte Tin (Sn) - annealed
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	4.4 mm
Base Number Matches	1

Preview

Download Datasheet

View All

Integrated

Circuit

Systems, Inc.

ICS854057

4:1

2:1 LVDS C

LOCK

ULTIPLEXER

WITH

NTERNAL

NPUT

ERMINATION

EATURES

•

High speed differential multiplexer. The device can be

configured as either a 4:1 or 2:1 multiplexer

•

Single LVDS output

•

4 selectable PCLK, nPCLK inputs with internal termination

•

PCLK, nPCLK pairs can accept the following differential

input levels: LVPECL, LVDS, CML, SSTL

•

Output frequency: >2GHz

•

Part-to-part skew: 200ps (maximum)

•

Propagation delay: 800ps (maximum)

•

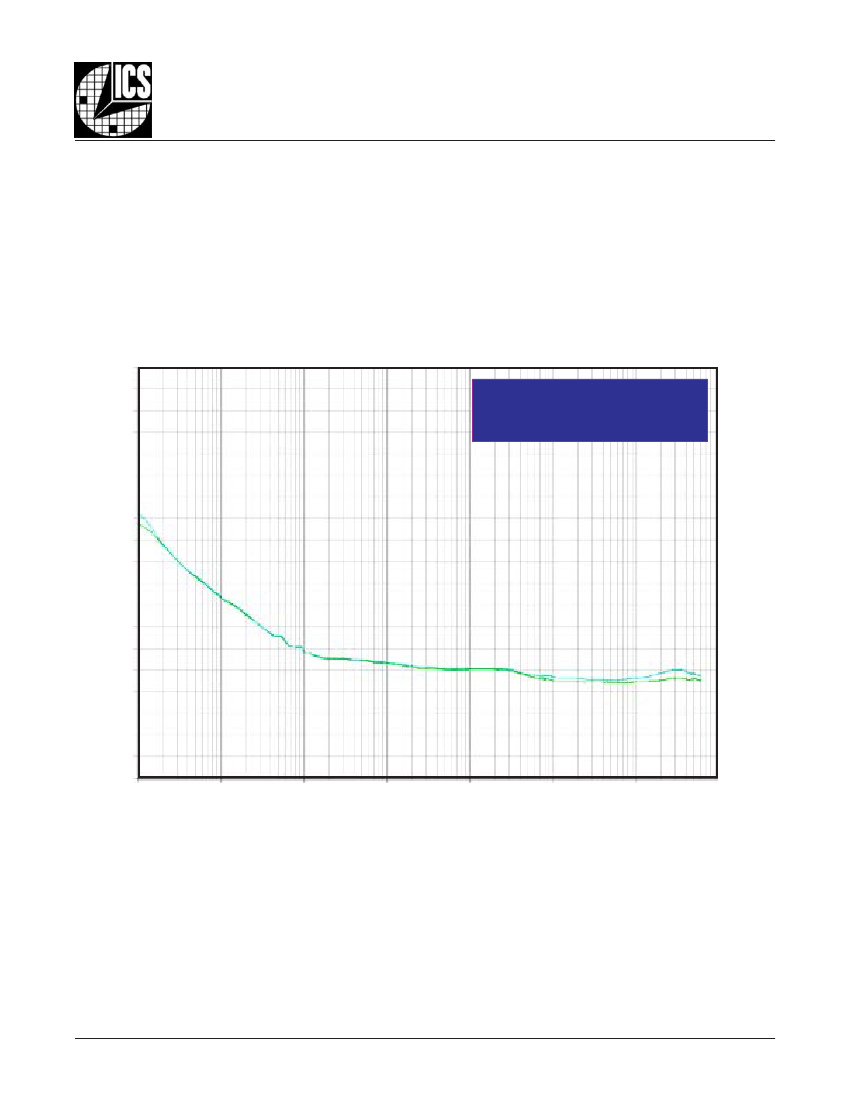

Additive phase jitter, RMS: 66fs (typical)

•

2.5V operating supply

•

-40°C to 85°C ambient operating temperature

•

Available in both, Standard and RoHS/Lead-Free compliant

packages

ENERAL

ESCRIPTION

The ICS854057 is a 4:1 or 2:1 LVDS Clock Mul-

tiplexer which can operate up to 2GHz and is a

HiPerClockS™

member of the HiPerClockS™ family of High Per-

formance Clock Solutions from ICS. The PCLK,

nPCLK pairs can accept most standard differen-

tial input levels. Internal termination is provided on each dif-

ferential input pair. The ICS854057 operates using a 2.5V sup-

ply voltage. The fully differential architecture and low propa-

gation delay make it ideal for use in high speed multiplexing

applications. The select pins have internal pulldown resistors.

Leaving one input unconnected (pulled to logic low by the in-

ternal resistor) will transform the device into a 2:1 multiplexer.

The SEL1 pin is the most significant bit and the binary num-

ber applied to the select pins will select the same numbered

data input (i.e., 00 selects PCLK0, nPCLK0).

ICS

LOCK

IAGRAM

VT0

PCLK0

nPCLK0

VT1

PCLK1

nPCLK1

VT2

PCLK2

nPCLK2

VT3

PCLK3

nPCLK3

SEL1

Pulldown

SEL0

Pulldown

SSIGNMENT

PCLK0

VT0

nPCLK0

SEL1

SEL0

PCLK1

VT1

nPCLK1

GND

PCLK3

VT3

nPCLK3

PCLK2

VT2

nPCLK2

GND

ICS854057

20-Lead TSSOP

4.40mm x 6.50mm x 0.925mm body package

G Package

Top View

854057AG

www.icst.com/products/hiperclocks.html

REV. A OCTOBER 29, 2008
