2.5 x 2.0mm SMD Crystal
•
Tolerances down to 10 PPM
•
Stabilities down to 10 PPM
(former FX252BS)
C2BS
DATASHEET
•

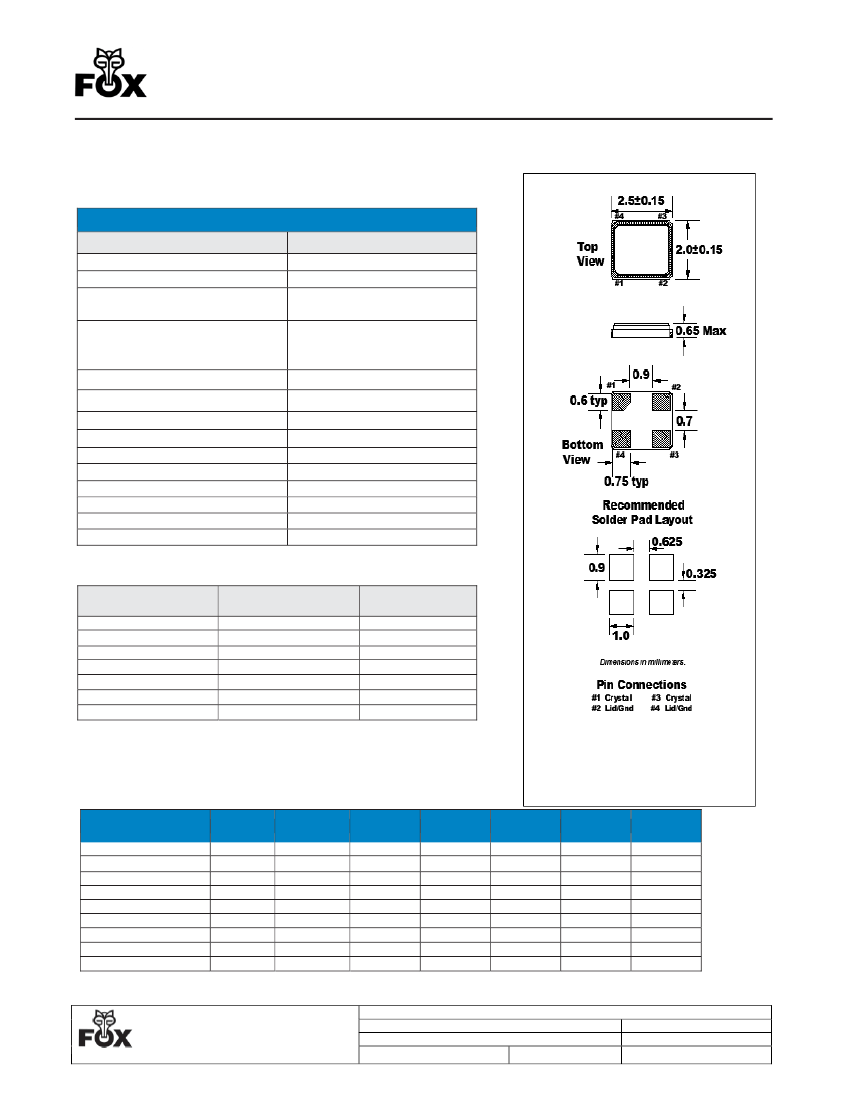

C2BS STANDARD SPECIFICATIONS
PARAMETERS
MAX
(unless otherwise noted)
Frequency Range
12.000 ~ 80.000 MHz
Frequency Tolerance @ 25ºC
(See options on page 2)
Frequency Stability, ref @ 25ºC
Over Operating Temp Range (See options below)
Temperature Range
Operating (T
OPR
)
(See options below)
Storage (T
STG
)
-55ºC ~ +125ºC
3 pF
Shunt Capacitance (C
o
)
Load Capacitance (C
L
)
(See options on page 2)
Drive Level
100 µW
Aging per year
±5 PPM
Reflow Soldering Temperature
260ºC x 10 Seconds x 2
Moisture Sensitivity Level (MSL) 1
Termination Finish
Au over Ni
Seal Method
Seam
Lead (Pb) Free
Yes
RoHS / REACH Compliant
Yes
Frequency Range
(MHz)
12.000 ~ 13.999999
14.000 ~ 15.999999
16.000 ~ 19.999999
20.000 ~ 23.999999
24.000 ~ 24.999999
25.000 ~ 44.999999
45.000 ~ 80.000
Operating
Mode
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Fundamental
Max ESR
Ω
200
150
90
70
60
50
40
Note: Dimensional drawing is for reference to
critical specifications defined by size
measurements. Certain non-critical visual
attributes, such as side castellations, etc. may
vary.
±30 PPM
O
O
O
O
O
O
X
X
X
±50 PPM
O
O
O
O
O
O
O
O
O
±100 PPM
N/A
N/A
N/A
N/A
N/A
N/A
O
O
O
•Available Operating Temperatures and Stabilities*
Operating Temperature
±10 PPM
±15 PPM
±20 PPM
±25 PPM
O
O
O
O
0°C to +70ºC
O
O
O
O
-10°C to +60ºC
O
O
O
O
-10°C to +70ºC
O
O
O
O
-20°C to +70ºC
X
O
O
O
-30°C to +85ºC
X
O
O
O
-40°C to +85ºC
X
X
X
X
-40°C to +105ºC
X
X
X
X
-40°C to +125ºC
X
X
X
X
-55°C to +125ºC
Key: O=Available, X=Not Available N/A=Not applicable *Does not imply a stocked part.
© Copyright 2019 Fox Electronics. All rights reserved
Title / Description:
C2BS STANDARD SPECIFICATIONS
Drawing Number:
100934
Size:
A
Part Number:
Cage:
61429
Draftsperson:
BEC
Approved:
MAJ
Revision Date:
06/3/2019
2.5 x 2.0mm SMD Crystal

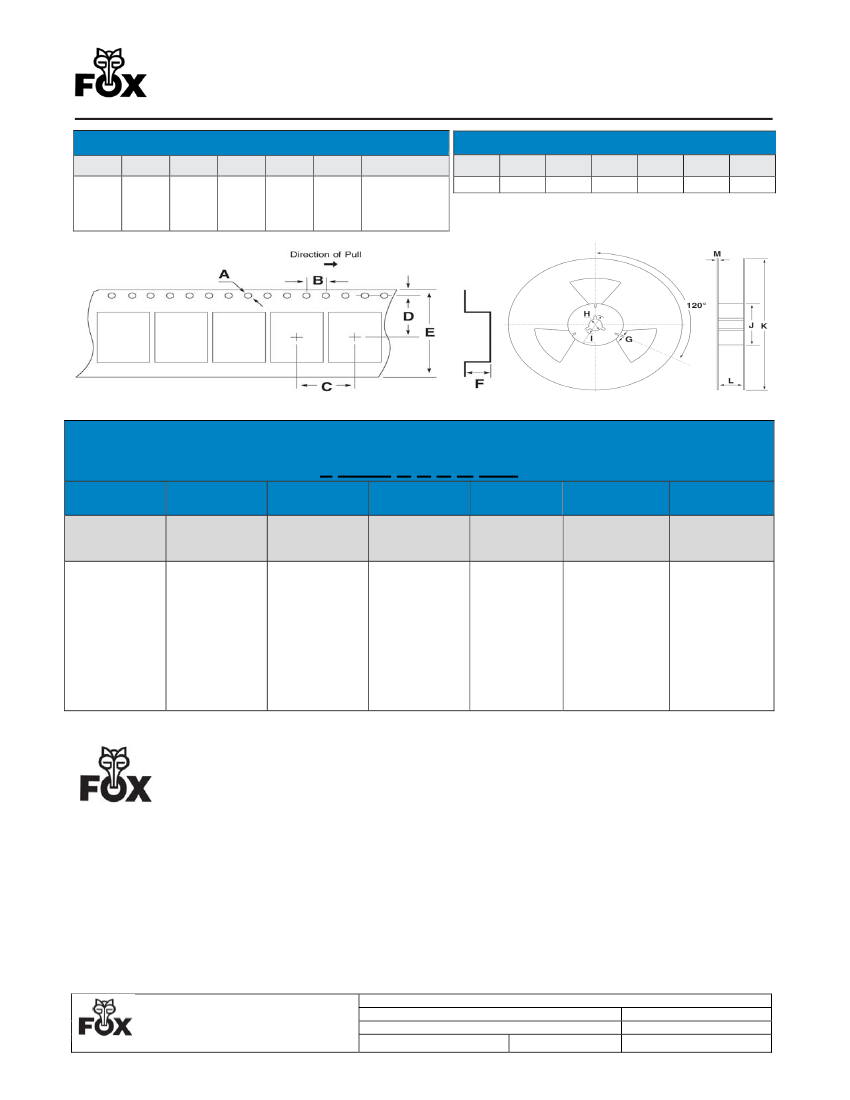

• TAPE SPECIFICATIONS
(millimeters)
A
1.55
B
4.0
C
4.0
D
3.5
E
8.0
F
0.65
Reel QTY
(former FX252BS)
C2BS
L
9.0
M
2.0
DATASHEET
• REEL SPECIFICATIONS
(millimeters)
-T3 = 3,000
-T2 = 2,000
-T1 = 1,000
G
2.0
H
I
J
60
K
180
Available Options & Part Identification for Ceramic SMD Crystal C2BS
1
F C2BS C C D M 24.0
F
FOX
C2BS
Model
Number
C
Tolerance
B = ±50 PPM
C = ±30 PPM
D = ±25 PPM
E = ±20 PPM
F = ±15 PPM
H = ±10 PPM
C
Stability
A = ±100 PPM
B = ±50 PPM
C = ±30 PPM
D = ±25 PPM
E = ±20 PPM
F = ±15 PPM
H = ±10 PPM
D
Load
Capacitance
2
D = 8pF
W = 9pF
E = 10pF
G = 12pF
L = 18pF
M = 20pF
M
Operating
Temperature
C = 0 to +70ºC
D = -10 to +60ºC
E = -10 to +70ºC
F = -20 to +70ºC
K = -30 to +85ºC
M =-40 to +85ºC
P = -40 to +105ºC
I = -40 to +125ºC
T = -55 to +125ºC
24.0
Frequency
(MHz)
1
Not
2
all frequency, tolerance, stability, load, and operating temperature combinations may be available.
Listed load capacitances represent the most commonly used. Other load capacitances are available. Contact Fox Technical Support for assistance
