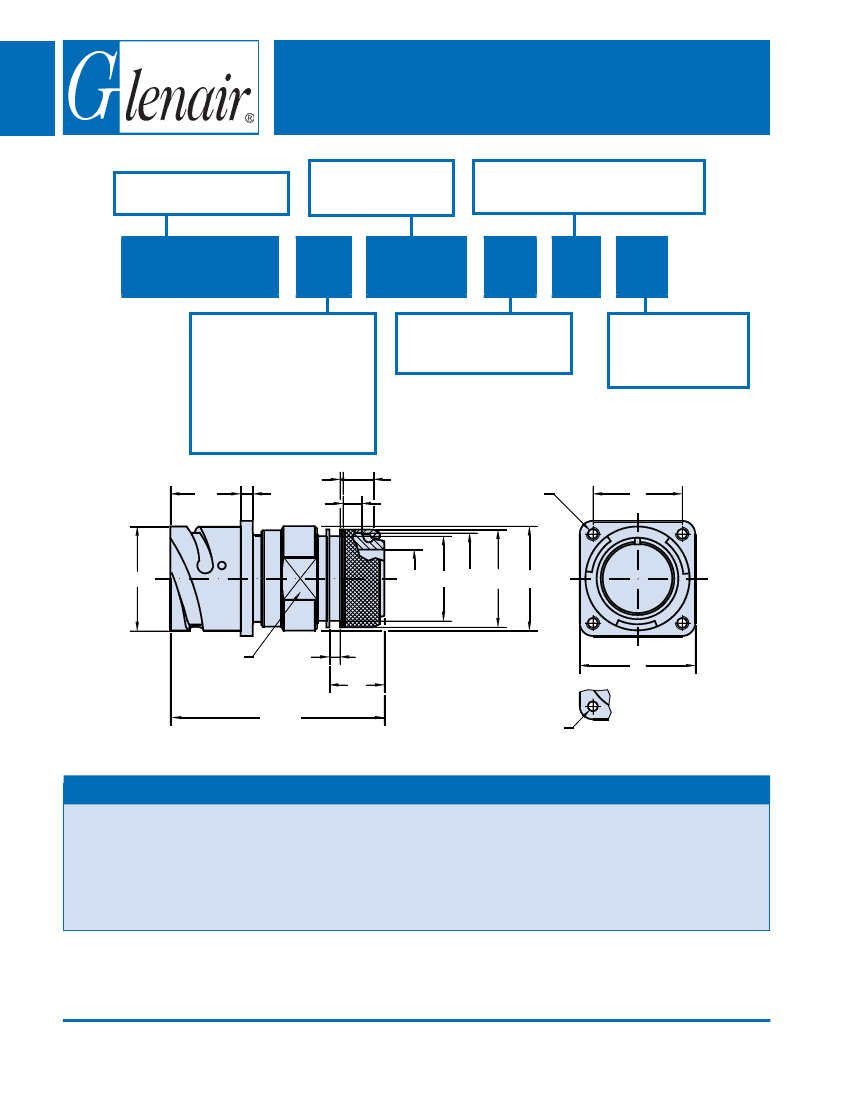

VG95234 N1 and VG95234 N2
Wall Mount Receptacle
with EMI/RFI Backshell and Heat Shrink Boot Lip,
Sealing Grommet and Grounding Fingers
Contact
Arrangement
1
- Standard AWG Contacts
(Omit for Metric)
VG95234
Connectors
Basic Part Number
VG95234
N1
32-6
S
1
N
Alternate Insert
Positions
N-X-Y
Rear Mount
Receptacle with EMI
Backshell/Shrink
Boot Adapter and...
N1
- Threaded Holes
N2
- Thru-Holes
1
L2
L3
L5
P
- Pin contacts
S
- Socket contacts
L6
D2
E
ØA
D4
D6 D5
D7
D3
K
3.5
±0.2
L7
L4
VG95234 N2
L1
D2
APPLICATION NOTES
1.
2.
Rear wall mount receptacle with EMI backshell and shrink boot 4.
adapter.
Standard crimp contact material consists of copper alloy with
silver plating. Please see pages 16-17 for additional contact
information.
Insert arrangements IAW VG95234. Please see pages 10-15.
5.
6.
Standard insert is synthetic rubber, oil and low temperature
resistant (-55°C to +125°C) IAW MIL-R-3065.
Stainless steel and marine bronze shells are available in Series
ITS products. Please consult factory.
All dimensions are metric unless otherwise noted.
3.
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
42
with EMI/RFI Backshell and Heat Shrink Boot Lip,
Sealing Grommet and Grounding Fingers
DIMENSIONS
Shell
Size
10 SL
14 S
16 S
16
18
20
22
24
28
32
36
ØA
+0
-0.15
18.2
24.6
27.4
27.4
30.8
34.2
37.4
40.9
46.7
53.4
59.6
D2
N1
M4
M4
M4
M4
M4
M4
M4
M4
M5
M5
M5
N2
H13
3.2
3.2
3.2
3.2
3.2
3.2
3.2
3.7
3.7
4.3
4.3
E
±0.1
18.2
23.0
24.6
24.6
27.0
29.4
31.8
35.9
39.7
44.5
49.2
L1
Max
55
58
70
70
70
70
70
70
70
75
85
L2
+0.4
-0
18.2
18.2
18.2
21.5
23.05
23.05
23.05
23.05
24.05
24.05
24.05
L3
±0.2
2.8
3.2
3.2
3.2
4.0
4.0
4.0
4.0
4.0
4.0
4.0
L4
±0.3
25.4
30.0
32.5
32.5
35.0
38.0
41.0
44.5
50.8
57.0
63.5
Weight
gr.
Max
45
55
65
75
85
95
105
120
150
190
220
Please refer to VG95234M for dimensions D3, D4, D5, D6, D7, K, L5, L6 and L7.
MATERIALS
SHELLS
Aluminum Alloy
IAW QQ-A-591 Shells
INSERTS (Temperature Range)
High Insulation Synthetic Rubber
-55°C/+125°C
STANDARD FINISH
(For QQ-A-591 Aluminum Shells)
Requirements
Thermal Shock
Salt Spray After
Thermal Shock
Electrical Conductivity
Abrasion Resistance
Cadmium with Olive
Drab Passivation
IAW QQ-P-416
-55°C + 125°C
500 hour
Very Good
Very Good
CRIMP CONTACTS
Copper Alloy with Silver Plating Over Nickel
© 2008 Glenair, Inc.
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
43
