GSX-9/331BF20.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> GSX-9/331BF20.0MHZ

GSX-9/331BF20.0MHZ: DescriptionParallel - Fundamental Quartz Crystal, 20MHz Nom, CERAMIC PACKAGE-4; CategoryPassive components Crystal/resonator; File Size45KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

GSX-9/331BF20.0MHZ Overview

Parallel - Fundamental Quartz Crystal, 20MHz Nom, CERAMIC PACKAGE-4

GSX-9/331BF20.0MHZ Parametric

Parameter Name	Attribute value
Objectid	1078056868
package instruction	CERAMIC PACKAGE-4
Reach Compliance Code	unknown
Other features	TAPE AND REEL
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.003%
frequency tolerance	30 ppm
JESD-609 code	e4
load capacitance	12 pF
Manufacturer's serial number	GSX-9
Installation features	SURFACE MOUNT
Nominal operating frequency	20 MHz
Maximum operating temperature	60 °C
Minimum operating temperature	-10 °C
physical size	L11.6XB5.5XH2.2 (mm)/L0.457XB0.217XH0.087 (inch)
Series resistance	50 Ω
surface mount	YES
Terminal surface	GOLD

Preview

Download Datasheet

View All

OBSOLETE - DO NOT USE

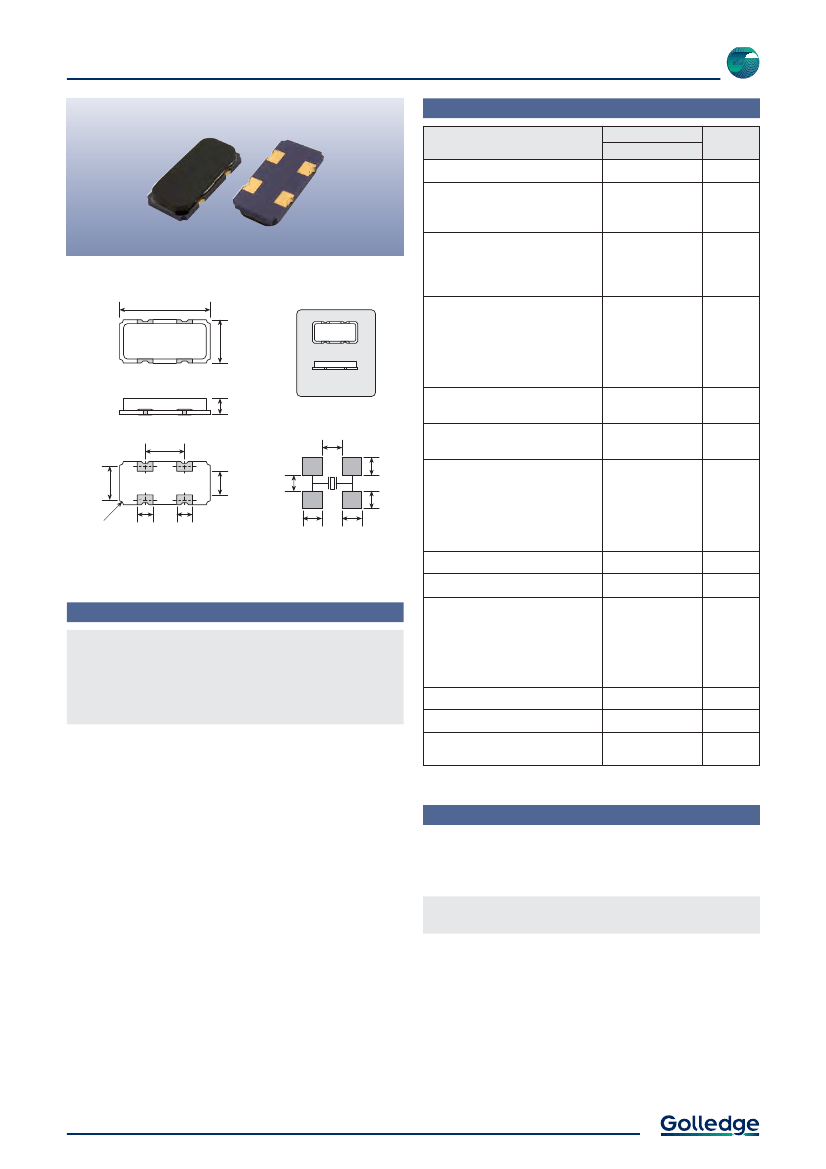

SM Crystal

Specifications

GSX-9

Product

GSX-9

Option

Codes

Parameters

Frequency range:

3.50 ~ 25.0MHz

Calibration tolerance:

±30ppm

±50ppm

Other values (±30ppm ~ ±100ppm)

±30ppm

±50ppm

±100ppm

Other values (±30ppm ~ ±100ppm)

specify

Temperature stability:

11.60

(max)

5.50

(max)

ACTUAL SIZE

2.20

(max)

Operating temperature range:

-10 to +60°C

-20 to +70°C

-30 to +80°C

-40 to +85°C

Other values

Operable temperature range:

-45 to +85°C

Storage temperature range:

-55 to +125°C

Circuit condition:

12pF

16pF

18pF

20pF

30pF

Other values

Fundamental

7pF max

SOLDER PAD LAYOUT

5.08

2.50

2.10

2.00

2.30

2.68

2.30

3.80

R0.50

2.00

2.40

TOP VIEW

specify

Oscillation mode:

Scale 2:1

Static capacitance (C

Features

2.2mm max height

Pad compatible with CP12A

Ceramic package with gold plated terminals

Equivalent series resistance (max):

200 (3.5 ~ 3.9MHz)

150 (4.0 ~ 5.9MHz)

100 (6.0 ~ 9.9MHz)

80 (10.0 ~ 13.9MHz)

50 (14.0 ~ 25.0MHz)

Ageing:

Drive level:

±5ppm max first year

0.1mW typ

Soldering condition:

240°C, 10 sec x2 max

Standard.

Optional - Please specify required code(s) when ordering

Ordering Information

Product name + option codes + frequency

eg:

GSX-9/551DF 20.0MHz

50/50/10/16-F (standard)

eg:

GSX-9/351FF 16.0MHz

30/50/10/20-F

Option code X (eg GSX-9/X) denotes a custom specification.

Available on T&R - 1k or 2k pcs per reel.

WARNING

- EOL Q2 2010: Do not use for new designs.

Tel:

+44 1460 256 100

13 May 2010

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
