M80-5000000MA-05-PM2-00-000 datasheet, PDF

M80-5000000MA-05-PM2-00-000: DescriptionBoard Connector, 5 Contact(s), Male, Straight, Solder Terminal, M2x0.4, Black Insulator; CategoryThe connector The connector; File Size382KB，4 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

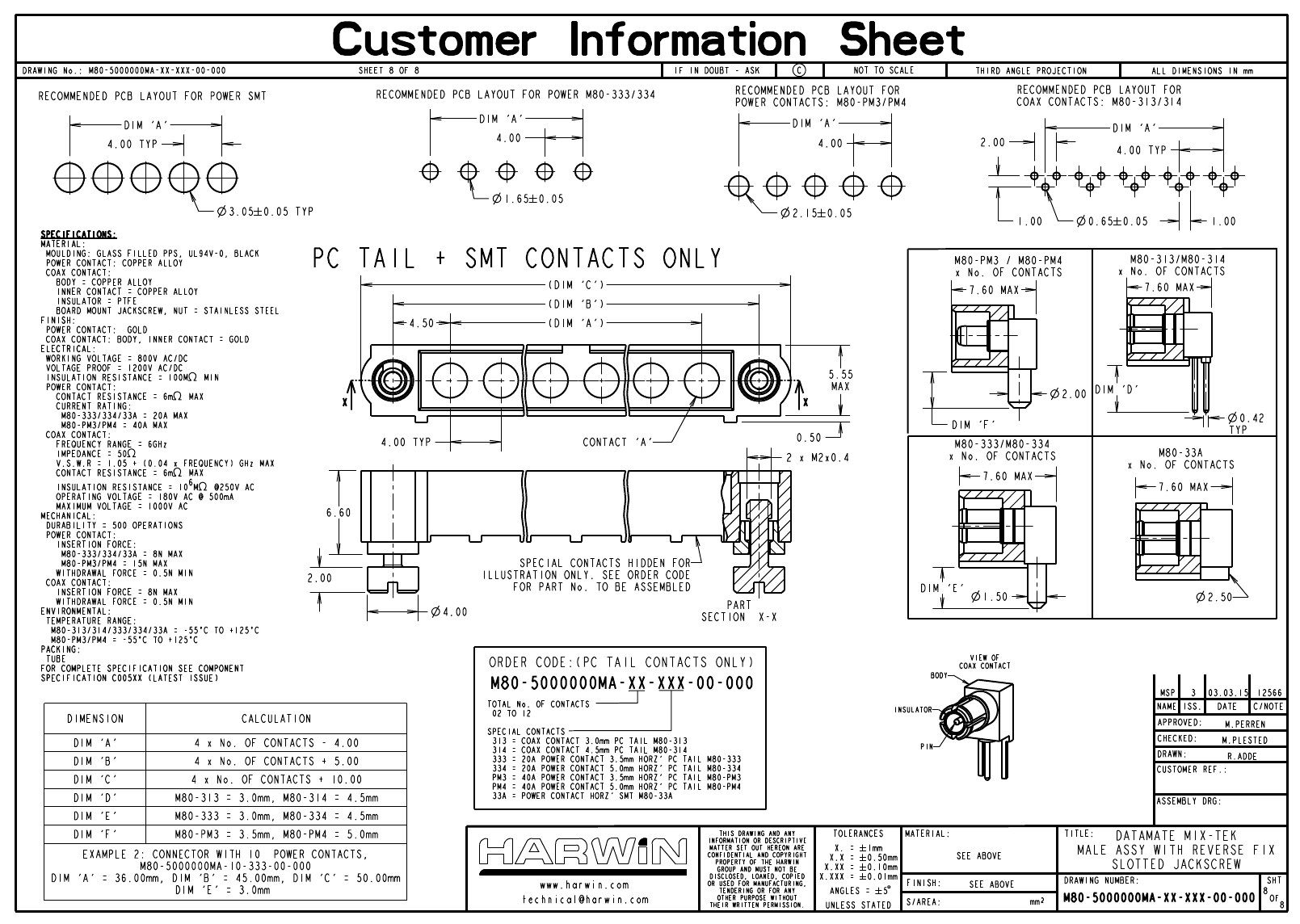

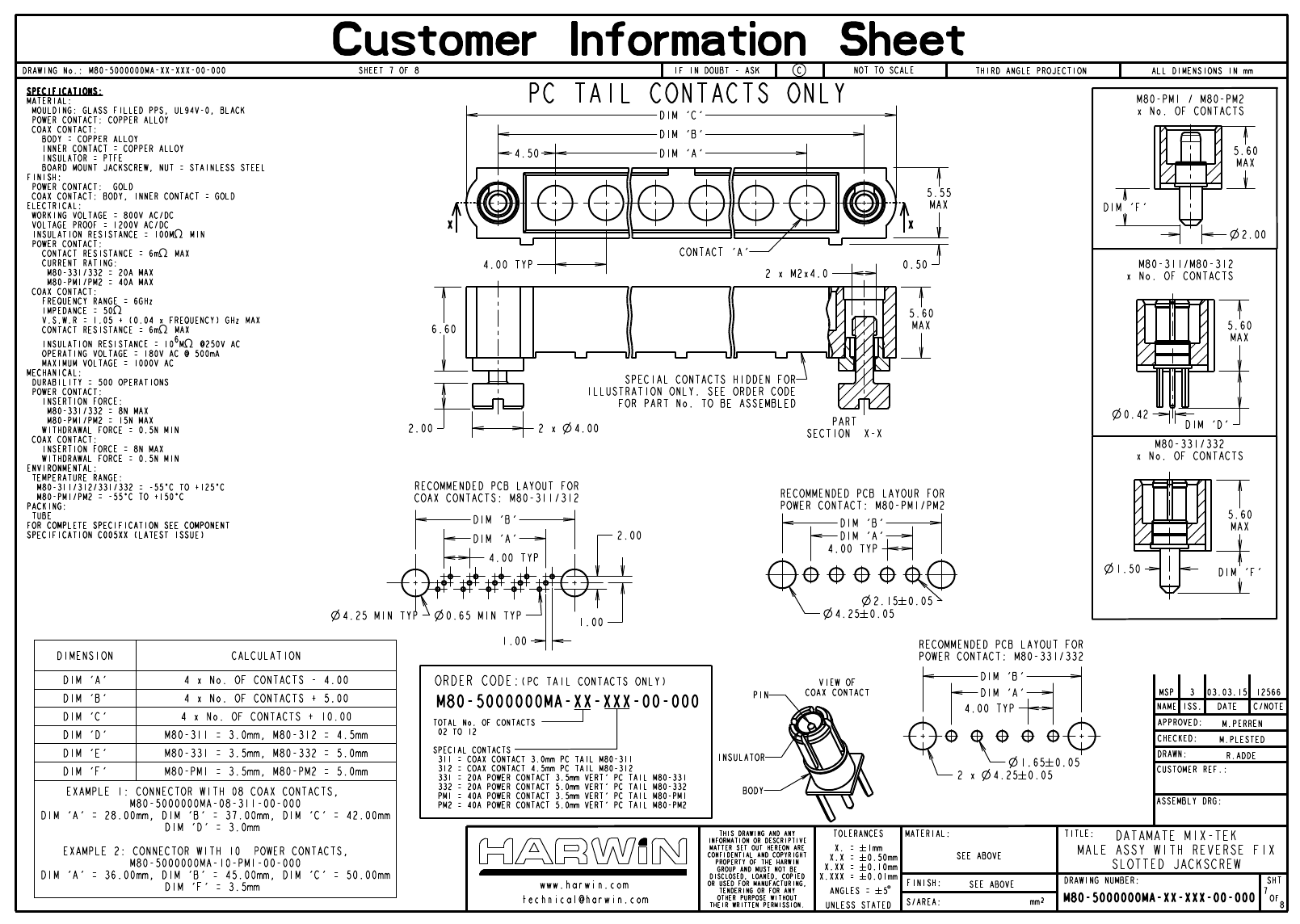

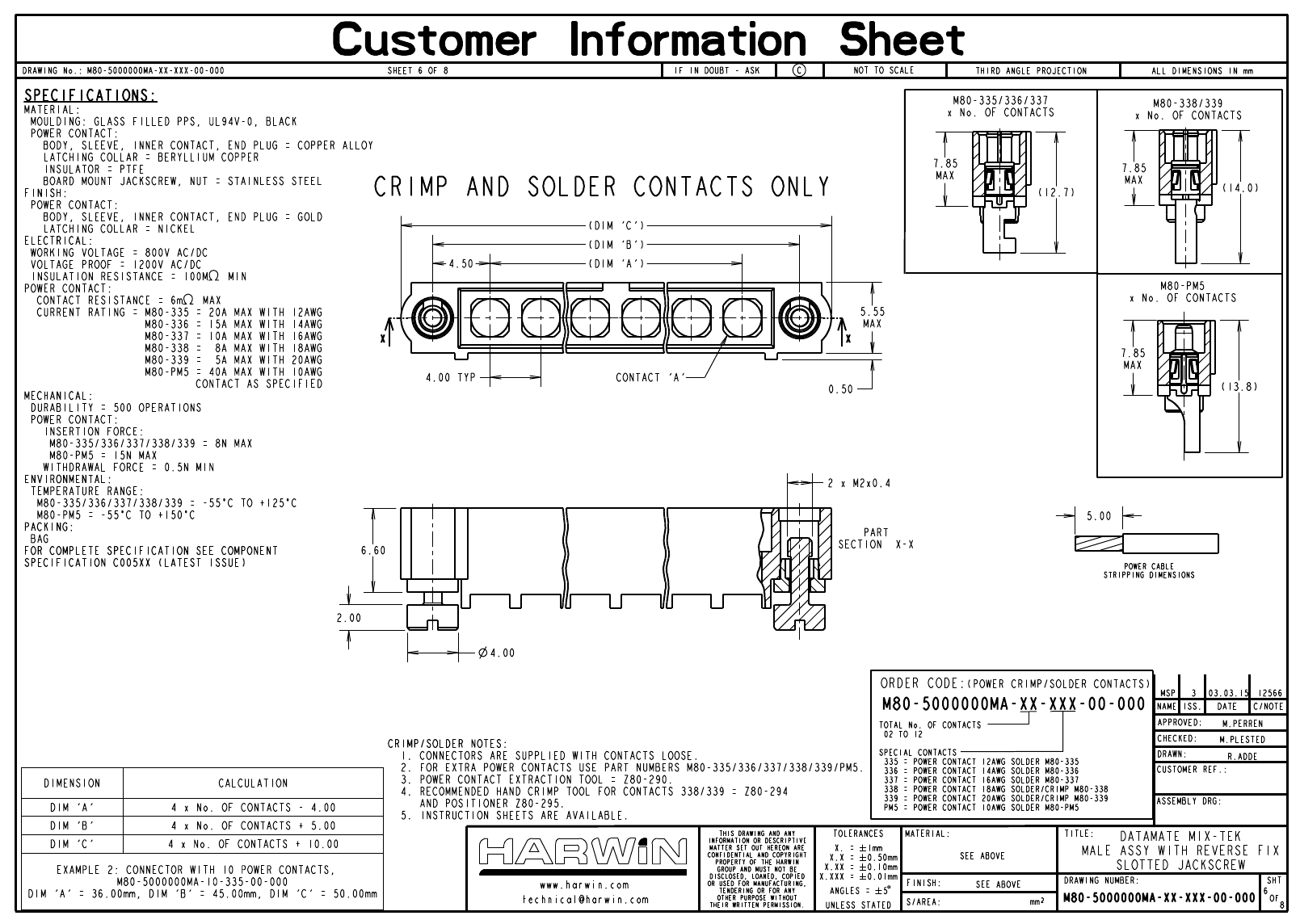

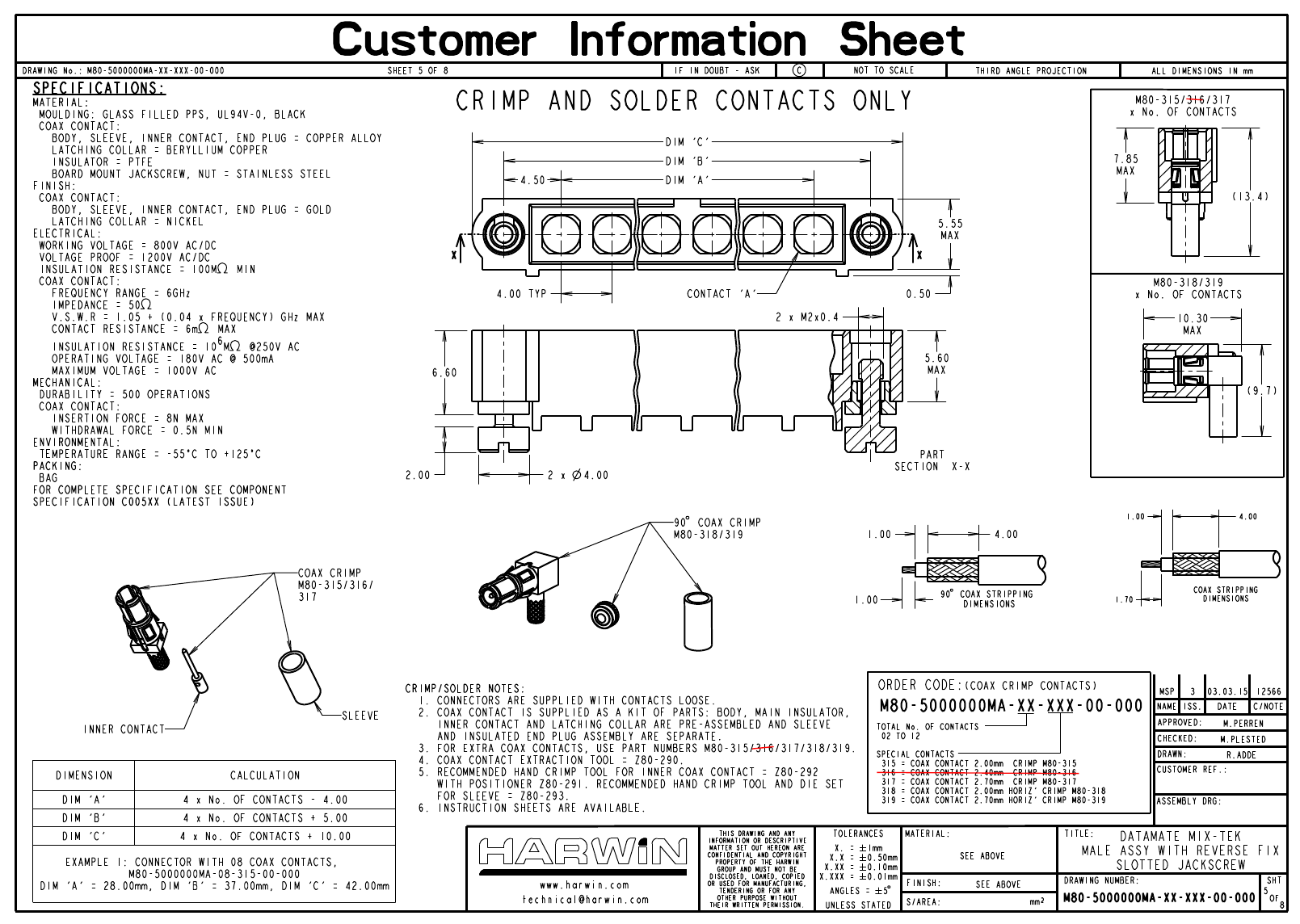

M80-5000000MA-05-PM2-00-000 Overview

Board Connector, 5 Contact(s), Male, Straight, Solder Terminal, M2x0.4, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	314587000
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.238 inch
subject depth	0.22 inch
body length	1.181 inch
Connector type	BOARD CONNECTOR
Contact arrangement	S0P5
Contact to complete cooperation	AU
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	COPPER ALLOY
Contact resistance	6 mΩ
Contact style	HYBRID
Durability	500 Cycles
maximum insertion force	15.1232 N
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
Mixed contacts	YES
Installation option 1	M2X0.4
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.196 inch
Termination type	SOLDER
Total number of contacts	5
Evacuation force-minimum value	.5004 N
