Crimp
XA
CONNECTOR
Radial Tape
High box type
2.5mm
(.098") pitch
Disconnectable Crimp style connectors
Features ––––––––––––––––––––––––

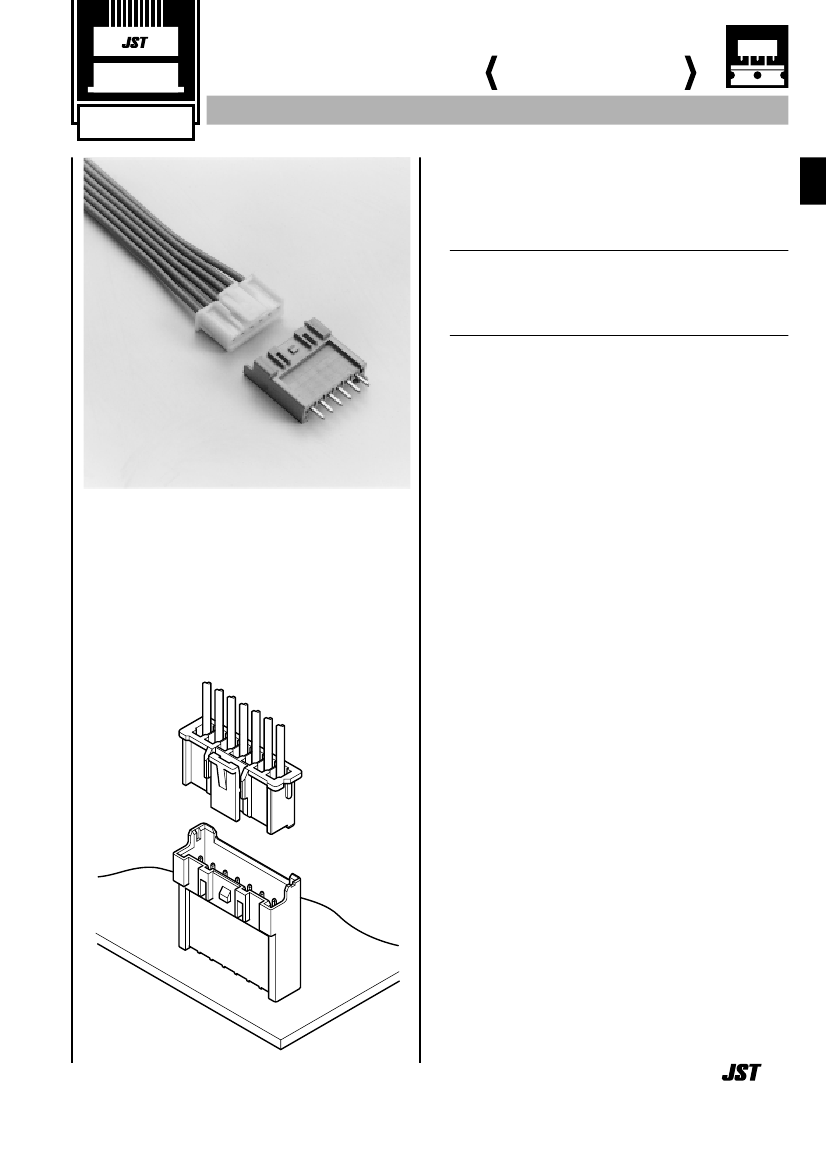

• Header for 2.5mm (.098") pitch XA connector for
use specifically with resin coated ("potted") PC
boards
This header is tall and fully shrouded so as to prevent the resin
used to coat the PC board from coming into contact with the
mating pins.
• Interchangeability
Designed to accept XA mating receptacles.
Header for 2.5mm (.098") pitch XA
connector for use specifically with resin
coated ("potted") PC boards
Specifications –––––––––––––––––––
• Current rating: 3A AC, DC (AWG#22)
• Voltage rating: 250V AC, DC
• Temperature range: -25˚C to +85˚C
(including temperature rise in applying
electrical current)
• Contact resistance: Initial value/10m Ω max.
After environmental testing/20m Ω max.
• Insulation resistance:
1,000M Ω min.
• Withstanding voltage: 1,000V AC/minute
• Applicable wire: AWG #28 to #22
• Applicable PC board thickness: 1.6mm (.063")
* Contact JST for details.
H
JS
T
Standards ––––––––––––––––––––––
0
1
2
Recognized E60389
Certified LR20812
R9851220
77
XA
CONNECTOR High box type
Contact –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
1.9(.075)
Model No.
SXA-001T-P0.6
6.5(.256)
3.1(.122)
1.6(.063)
1.3
(.051)
mm
2
Applicable wire
Q'ty / reel
AWG#
Insulation O.D.mm(in.)
28 to 22
1.2 to 1.9(.047 to .075)
8,000
0.08 to 0.33
Material and Finish
Phosphor bronze, tin-plated
Housing –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
<Standard type>
B
2.5
2.4
(.098) (.094)
6.9(.272)
2.3(.091)
Circuits
2
3
4
9.5(.374)
Model No.
Retainer
Standard
mountable
type
type
XAP-02V-1
XAP-03V-1
XAP-04V-1
XAP-05V-1
XAP-06V-1
XAP-07V-1
XAP-08V-1
XAP-09V-1
XAP-10V-1
XAP-11V-1
XAP-12V-1
XAP-13V-1
XAP-14V-1
XAP-15V-1
XARP-02V
XARP-03V
XARP-04V
XARP-05V
XARP-06V
XARP-07V
XARP-08V
XARP-09V
XARP-10V
XARP-11V
XARP-12V
XARP-13V
XARP-14V
XARP-15V
Dimensions mm(in.)
A
2.5( .098)
5.0( .197)
B
7.3( .287)
9.8( .386)
Q'ty / bag
Retainer
Standard mountable
type
type
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
500
500
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
7.5( .295) 12.3( .484)
10.0( .394) 14.8( .583)
12.5( .492) 17.3( .681)
15.0( .591) 19.8( .780)
17.5( .689) 22.3( .878)
20.0( .787) 24.8( .976)
22.5( .886) 27.3(1.705)
25.0( .984) 29.8(1.173)
27.5(1.083) 32.3(1.272)
30.0(1.181) 34.8(1.370)
32.5(1.280) 37.3(1.469)
35.0(1.378) 39.8(1.567)
5
6
7
8
9
A
Circuit No.1
5.8(.228)
10
11
12
13
14
15
<Retainer mountable type>
B
2.5
2.4
(.098) (.094)
0.6
(.024)
7.4(.291)
Material
10.5(.413)
Nylon 66, UL94V-0, natural (white)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
5.8(.228)
A
Circuit No.1
ex.
XAP-02V-1-o o-
(blank)…natural (white)
K…black R…red E…blue M…green Y…yellow
Retainer –––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2
3
4
5
6
2.5(.098)
Model No.
XMS-02V
XMS-03V
XMS-04V
XMS-05V
XMS-06V
XMS-07V
XMS-08V
XMS-09V
XMS-10V
XMS-11V
XMS-12V
XMS-13V
XMS-14V
XMS-15V
Material
A
2.5( .098)
5.0( .197)
7.5( .295)
10.0( .394)
12.5( .492)
15.0( .591)
17.5( .689)
20.0( .787)
22.5( .886)
25.0( .984)
27.5(1.083)
30.0(1.181)
32.5(1.280)
35.0(1.378)
Q'ty / bag
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
1,000
A
7
8
9
10
2.5
(.098)
0.95
(.037)
11
12
13
14
15
7.8(.307)
Glass-filled nylon 66, UL94V-0, natural (ivory)
78
XA
Without a boss
B
6.4(.252)
CONNECTOR High box type
Shrouded header –––––––––––––––––––––––––––––––––––––––––––––––––––––––––
Circuits
2
3
4
17.0(.669)
5
6
7
8
9
10
11
12
13
14
15
0.6(.024)
A
2.5(.098)
With a boss
B
6.4(.252)
Model No.
Without a boss
With a boss
BH02B-XASK
BH02B-XASK-BN
BH03B-XASK
BH03B-XASK-BN
BH04B-XASK
BH04B-XASK-BN
BH05B-XASK
BH05B-XASK-BN
BH06B-XASK
BH06B-XASK-BN
BH07B-XASK
BH07B-XASK-BN
BH08B-XASK
BH08B-XASK-BN
BH09B-XASK
BH09B-XASK-BN
BH10B-XASK
BH10B-XASK-BN
BH11B-XASK
BH11B-XASK-BN
BH12B-XASK
BH12B-XASK-BN
BH13B-XASK
BH13B-XASK-BN
BH14B-XASK
BH14B-XASK-BN
BH15B-XASK
BH15B-XASK-BN
Dimensions mm(in.)
A
B
2.5( .098)
5.0( .197)
7.5( .295)
10.0( .394)
Q'ty / box
400
400
300
300
200
200
200
150
150
100
100
100
100
100
7.5( .295) 12.5( .492)
10.0( .394) 15.0( .591)
12.5( .492) 17.5( .689)
15.0( .591) 20.0( .787)
17.5( .689) 22.5( .886)
20.0( .787) 25.0( .984)
22.5( .886) 27.5(1.083)
25.0( .984) 30.0(1.181)
27.5(1.083) 32.5(1.280)
30.0(1.181) 35.0(1.378)
32.5(1.280) 37.5(1.476)
35.0(1.378) 40.0(1.575)
3.3
(.130)
17.0(.669)
Material and Finish
Post: Copper alloy, copper-undercoated, tin/lead plated
Wafer: Glass-filled nyron 66, UL94V-0, natural (ivory)
1.5(.059)
0.6(.024)
2.5(.098)
A
1.0(.039)dia.
3.3
(.130)
<For reference>
As the color identification,
the following alphabet shall be put in the underlined part.
For availability, delivery and minimum order quantity, contact JST.
ex.
BH02B-XASK-BN-
S…natural (ivory)
K…black R…red M…green Y…yellow
Shrouded header on radial-tape –––––––––––––––––––––––––––––––––––––––––––––
Without a boss
2.5
(.098)
B
A
2.5(.098)
Circuits
6.4(.252)
2
3
4
5
6
7
8
3.3
(.130)
Model No.
Without a boss
With a boss
BH02B-XASS-T
BH02B-XASS-BN-T
BH03B-XASS-T
BH03B-XASS-BN-T
BH04B-XASS-T
BH04B-XASS-BN-T
BH05B-XASS-T
BH05B-XASS-BN-T
BH06B-XASS-T
BH06B-XASS-BN-T
BH07B-XASS-T
BH07B-XASS-BN-T
BH08B-XASS-T
BH08B-XASS-BN-T
Material and Finish
Dimensions mm(in.)
A
B
2.5(.098)
5.0(.197)
7.5(.295)
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
7.5(.295)
10.0(.394)
12.5(.492)
15.0(.591)
17.5(.689)
20.0(.787)
22.5(.886)
Q'ty / box
1,000
1,000
500
500
500
500
500
0.6(.024)
0.7(.028)dia.
3.2(.126)
17.0(.669)
Post: Copper alloy, copper-undercoated, tin/lead plated
Wafer: Glass-filled nyron 66, UL94V-0, natural (ivory)
Taping post: Copper alloy, copper-undercoated, tin/lead plated
With a boss
2.5
(.098)
B
A
2.5(.098)
6.4(.252)
3.3
(.130)
0.6(.024)
0.7(.028)dia.
1.0(.039)dia.
1.5(.059)
3.2(.126)
17.0(.669)
79
XA
CONNECTOR High box type

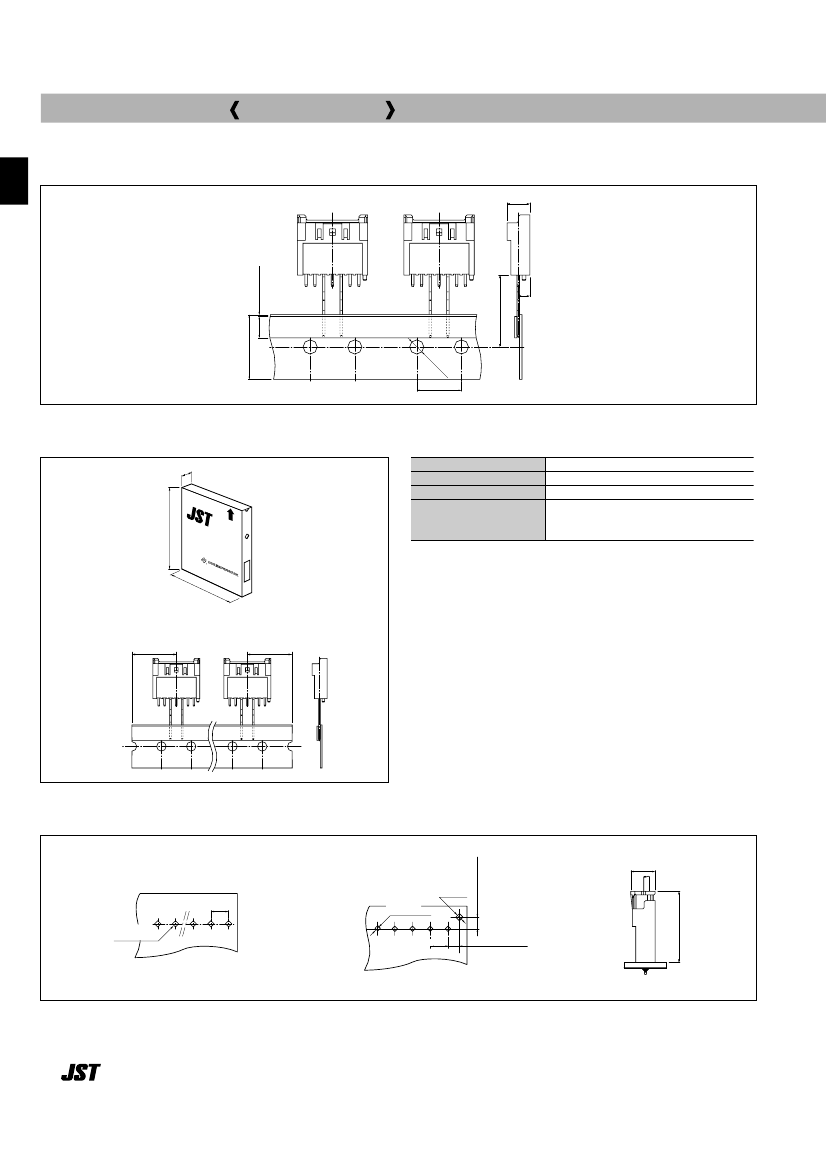

Taping specifications ––––––––––––––––––––––––––––––––––––––––––––––––––––––
6.4(.252)
18.0(.709)
6.0(.236) 1.0(.039)max.
12.7(.500)
Packaging specifications –––––––––––––––––––––––––––––––––––––––––––––––––––
D
Package type
Distance between folds
Box size
Distance between the end of the
tape and the first connector’s
center line (either end)
Flat pack (zigzag folded)
24 indexing holes per fold (304.8mm/12")
(316X53X330mm)12.4"(W)X2.1"(D)X13.0"(H)
19.05mm(.750")
TERMIN
H
ALS &
CONN
ECTOR
S
R
Products of different packaging specifications sre also available.
Contact JST for details.
W
Distance between the end of the first
connector's center line (either end)
Tail tape
Lead tape
PC board layout
(viewed from component side)
and Assembly layout ––––––––––––––––––
Without a boss
With a boss
1.6±0.05(.063±.002)
6.9(.272)
1.2
(.047
+0.1
0
+0.04
0
)dia.
0
0.9
+0.1
0.04
(.035
+
0
)dia.
2.5±0.05
(.098±.002)
1.6±0.05(.063±.002)
Note:
1. Tolerances are non-Cumulative: ±0.05mm( ±.002") for all centers.
2. Hole dimensions differ according to the kind of PC board and piercing method.
2.
The dimensions above should serve as a guide line. Contact JST for details.
80
19.5(.768)
2.5±0.05
(.098±.002)
0.9
+0.1
0
0.04
(.035
+
0
)dia.
20.0(.787)
3.2(.126)
4.0
(.1
57
)d
ia.
XA
Crimp applicator MKS-L
with safety cover
without safety cover
APLMK SXA/M001-06
APLNC SXA/M001-06
CONNECTOR High box type
Applicator for the semi-automatic press AP-K2N –––––––––––––––––––––––––––––––
Contact
SXA-001T-P0.6
Compact crimp applicator MKS-LS
with safety cover
without safety cover
–
–
Strip-crimp applicator MKS-SC
with safety cover
APLSC SXA/M001-06
81
