NISSEI-ARCOTRONICS
Bulk
Taped
RSB
MKT Series
METALLIZED POLYESTER FILM CAPACITOR
HIGH PERFORMANCE – PULSE APPLICATIONS
STACKED VERSION
Typical applications:
blocking, coupling, decoupling for a
signal from DC to high frequency, pulse, logic and timing
circuit, lamp capacitor for Electronic Compact Lamps.
B
2.5
0.5
Ø d
±
0.05
All dimensions are in mm.
> 3.5
0.5 to 0.6
SERIES CODE:
RSB
p = 5 mm
PART NUMBERING SYSTEM
1
2
3
4
5
6
7
GENERAL TECHNICAL DATA
RS B
1.
2.
3.
4.
5.
6.
[ ]
Series code
Capacitance value in pico farads. First 2
digits are significant and 3
rd
digit indicates
number of zeros.
Capacitance tolerance
J = 5%
K = 10%
M = 20%
D.C. voltage
Packaging code*
B = bulk; A = ammo
Lead length (mm) – (Applies to bulk
packaging only. Omit for standard lead
length 4-6mm.)
L = 16-18
T = 3.5-4.0
V = 2.7-3.3
polyester film (polyethylene terephthalate).
aluminum layer deposited by evaporation
under vacuum
Winding:
non-inductive type
Leads:
tinned wire
Protection:
plastic case, epoxy resin filled. Box material
is solvent resistant and flame retardant
according to UL94 V0
Marking:
Manufacturer’s logo, capacitance, tolerance,
D.C. voltage
Climatic category:
55/125/56 IEC 60068-1
Operating temperature range:
-55 to +125°C
Related documents:
IEC 60384-2; CECC 30400
Detail specifications:
DIN 44122
Dielectric:
Plates:
Winding scheme
7.
*
Internal code
Tape and ammo is preferred method of packaging.
Tape and reel is available upon request.
single sided metallized
polyester film
NISSEI-ARCOTRONICS
RSB
MKT Series
METALLIZED POLYESTER FILM CAPACITOR
HIGH PERFORMANCE – PULSE APPLICATIONS
STACKED VERSION
p = 5mm
SERIES CODE:
RSB
Rated
Cap.
0.10µF
0.15µF
0.22µF
0.33µF
0.47µF
0.68µF
1.0µF
1.5µF
Rated
Cap.
4700ρF
6800ρF
0.010µF
0.015µF
0.022µF
0.033µF
0.047µF
0.068µF
0.10µF
0.15µF
0.22µF
0.33µF
Rated
Cap.
63Vdc/40Vac
B
H
2.5 6.5
2.5 6.5
2.5 6.5
3.5 7.5
3.5 7.5
4.5 9.5
5.0 10.0
6.0 11.0
L
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
P
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Max
dv/dt
(V/µs)
250
250
250
250
250
250
250
250
Max
dv/dt
(V/µs)
300
300
300
300
300
300
300
300
300
300
300
300
Max
dv/dt
(V/µs)
400
400
400
400
400
400
400
400
400
400
400
400
400
400
Max K
0
(V /µs)
31.5 E3
31.5 E3
31.5 E3
31.5 E3
31.5 E3
31.5 E3
31.5 E3
31.5 E3
Max K
0
(V /µs)
60 E3
60 E3
60 E3
60 E3
60 E3
60 E3
60 E3
60 E3
60 E3
60 E3
60 E3
60 E3
Max K
0
2
2
Part Number
RSB104-63--
RSB154-63--
RSB224-63--
RSB334-63--
RSB474-63--
RSB684-63--
RSB105-63--
RSB155-63--
Part Number
RSB472-100--
RSB682-100--
RSB103-100--
RSB153-100--
RSB223-100--
RSB333-100--
RSB473-100--
RSB683-100--
RSB104-100--
RSB154-100--
RSB224-100--
RSB334-100--
Part Number
RSB102-250--
RSB152-250--
RSB222-250--
RSB332-250--
RSB472-250--
RSB682-250--
RSB103-250--
RSB153-250--
RSB223-250--
RSB333-250--
RSB473-250--
RSB683-250--
RSB104-250--
RSB154-250--
Rated
Cap.
1000ρF
1500ρF
2200ρF
3300ρF
4700ρF
6800ρF
0.010µF
0.015µF
0.022µF
0.033µF
0.047µF
Rated
Cap.
1000ρF
1500ρF
2200ρF
3300ρF
4700ρF
6800ρF
0.010µF
0.015µF
Rated
Cap.
400Vdc/200Vac
B
H
2.5 6.5
2.5 6.5
2.5 6.5
2.5 6.5
2.5 6.5
3.5 7.5
3.5 7.5
3.5 7.5
4.5 9.5
5.0 10.0
6.0 11.0
L
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
P
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
100Vdc/63Vac
B
H
2.5 6.5
2.5 6.5
2.5 6.5
2.5 6.5
2.5 6.5
2.5 6.5
2.5 6.5
2.5 6.5
3.5 7.5
4.5 9.5
5.0 10.0
6.0 11.0
L
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
P
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
Max
dv/dt
(V/µs)
600
600
600
600
600
600
600
600
600
600
600
Max
dv/dt
(V/µs)
700
700
700
700
700
700
700
700
Max
dv/dt
(V/µs)
800
800
800
800
800
800
800
Max K
0
(V /µs)
48 E4
48 E4
48 E4
48 E4
48 E4
48 E4
48 E4
48 E4
48 E4
48 E4
48 E4
Max K
0
(V /µs)
70 E4
70 E4
70 E4
70 E4
70 E4
70 E4
70 E4
70 E4
Max K
0
2
2
2
Part Number
RSB102-400--
RSB152-400--
RSB222-400--
RSB332-400--
RSB472-400--
RSB682-400--
RSB103-400--
RSB153-400--
RSB223-400--
RSB333-400--
RSB473-400--
Part Number
RSB102-500--
RSB152-500--
RSB222-500--
RSB332-500--
RSB472-500--
RSB682-500--
RSB103-500--
RSB153-500--
Part Number
RSB102-630--
RSB152-630--
RSB222-630--
RSB332-630--
RSB472-630--
RSB682-630--
RSB103-630--
500Vdc/220Vac*
B
H
2.5 6.5
2.5 6.5
3.5 7.5
3.5 7.5
3.5 7.5
4.5 9.5
5.0 10.0
6.0 11.0
L
7.2
7.2
7.2
7.2
7.2
7.2
7.2
7.2
P
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
250Vdc/160Vac
630Vdc/220Vac*
2
B
H
L
P
(V /µs)
2.5 6.5
7.2 5.0
20 E4
1000ρF
2.5 6.5
7.2 5.0
20 E4
1500ρF
2.5 6.5
7.2 5.0
20 E4
2200ρF
2.5 6.5
7.2 5.0
20 E4
3300ρF
2.5 6.5
7.2 5.0
20 E4
4700ρF
2.5 6.5
7.2 5.0
20 E4
6800ρF
7.2 5.0
20 E4
0.010µF 2.5 6.5
7.2 5.0
20 E4
0.015µF 2.5 6.5
7.2 5.0
20 E4
0.022µF 3.5 7.5
7.2 5.0
20 E4
0.033µF 3.5 7.5
7.2 5.0
20 E4
0.047µF 4.5 9.5
7.2 5.0
20 E4
0.068µF 4.5 9.5
5.0 10.0 7.2 5.0
20 E4
0.10µF
6.0 11.0 7.2 5.0
20 E4
0.15µF
Tolerance: K (±10%); M (±20%)
Packaging code: A (ammo); B (bulk)
Lead Length (mm): L (16-18); T (3.5-4.0); V (2.7-3.3)
Omit for standard (4-6)
B
H
L
P
(V /µs)
2.5 6.5
7.2 5.0
100 E4
1000ρF
3.5 7.5
7.2 5.0
100 E4
1500ρF
3.5 7.5
7.2 5.0
100 E4
2200ρF
4.5 9.5
7.2 5.0
100 E4
3300ρF
4.5 9.5
7.2 5.0
100 E4
4700ρF
5.0 10.0 7.2 5.0
100 E4
6800ρF
100 E4
0.010µF 6.0 11.0 7.2 5.0
Tolerance: K (±10%); M (±20%)
Packaging code: A (ammo); B (bulk)
Lead Length (mm): L (16-18); T (3.5-4.0); V (2.7-3.3)
Omit for standard (4-6)
*
Not suitable for across-the-line applications.
Please refer to Interference Suppression
Capacitors.
All dimensions are in mm.
Note 1: If the working voltage (V) is lower than the rated voltage (V
R
), the capacitor may work at higher dv/dt. In this case
the maximum value allowed is obtained multiplying the above value (see table dv/dt) with the ratio V
R
/V. The
pulse characteristic K
0
depends on the voltage waveform and in any case it cannot exceed the value given in the
above table.
Note 2: The rated voltages from 250Vdc to 630Vdc are for pulse applications (i.e. lamp capacitors).
NISSEI-ARCOTRONICS
RSB
MKT Series
METALLIZED POLYESTER FILM CAPACITOR
HIGH PERFORMANCE – PULSE APPLICATIONS
STACKED VERSION
p = 5mm
SERIES CODE:
RSB
ELECTRICAL CHARACTERISTICS
63Vdc - 100Vdc - 250Vdc
400Vdc - 500Vdc - 630Vdc
+85°C
Rated temperature (T
R
):
Voltage derating vs. temperature:
for temperatures between +85°C and +125°C a decreasing factor of
1.25% per
°C
on the rated voltage V
R
has to be applied.
Capacitance range:
1000ρF to 1.5µF
Capacitance values:
E6 series (IEC 60063 Norm)
Capacitance tolerances
(measured at 1 kHz):
±5%
(J) only for 63Vdc and 100Vdc;
±10%
(K);
±20%
(M)
Total self-inductance
(L):
≈7nH
Max 1nH per 1 mm lead and capacitor length
Dissipation factor (DF):
tgδ×10 at +25°C
±
5°C
KHz
C
≤
0.1µF
1
≤
80
10
≤
120
100
≤
250
Insulation resistance:
Test conditions
Temperature:
Voltage charge time:
Voltage charge:
Performance
For V
R
≤
100Vdc
≥
15000MΩ
≥
5000 s
for
for
C
≤
0.33µF
C > 0.33µF and
≤1µF
C > 1µF
-4
TEST METHOD AND PERFORMANCE
Damp heat, steady state:
Test conditions
Temperature:
Relative humidity (RH):
Test duration:
Performance
Capacitance change (∆C/C):
DF change (∆tgδ):
Insulation resistance:
Endurance:
Test conditions
Temperature:
Test duration:
Voltage applied:
Performance
Capacitance change (∆C/C):
DF change (∆tgδ):
+40°C
±
2°C
93%
±
2%
56 days
≤
5%
≤
50×10 at 1kHz
-4
Rated voltage (V
R
):
≥
50% of initial limit
C > 0.1µF
≤
80
≤
120
+125°C
±
2°C
2000 h
1.25×Vc
≤
5%
≤
20×10 at
01kHz
for C > 1µF
-4
≤
30×10 at 10kHz for C
≤
1µF
-4
+25°C
±
5°C
1 min
50Vdc for V
R
< 100Vdc
100Vdc for V
R
≥
100Vdc
Insulation resistance:
Resistance to soldering heat:
Test conditions
Solder bath temperature:
Dipping time (with heat screen):
Performance
Capacitance change (∆C/C):
DF change (∆tgδ):
Insulation resistance:
≥
50% of initial limit
+260°C
±
5°C
10 s
±
1 s
≤
2%
≥
1000 s
for
For V
R
> 100Vdc
≤
30×10 at 10kHz for C
≤
1µF
-4
-4
≥
30000MΩ
Test voltage between terminations:
1.6×V
R
applied for 2 s at +25°C
±
5°C
Electrical characteristics for use as lamp capacitors in lighting
applications (ignition voltage, time and frequency).
Ignition time
Ignition
Ignition
V
R
(*)
frequency (*)
voltage (*)
(s)
(Vdc)
(kHz)
(V
p-p
)
250
400
0.3
65
400
900
0.3
65
500
1100
0.3
65
630
1400
0.3
65
(*) If voltage, time or frequency exceeds these values, please
contact us for more information before using the capacitors.
V
p-p max
≤
20×10 at
01kHz
for C>1
µF
≥
initial limit
Long term stability
(after two years):
Storage
standard environmental conditions (see general information).
Performance
Capacitance change (∆C/C):
≤
3% for C≤0.1µF
≤
2% for C>0.1µF
RELIABILITY
Reference MIL HDB 217
Application conditions:
Temperature:
Voltage:
Failure rate:
-9
+40°C
±
2°C
0.5×V
R
≤
1 FIT
300/370V
p-p
Steady state
(1 FIT = 1×10 failures/components×h)
Failure criteria:
(according to DIN 44122)
Short or open circuit
Capacitance change (∆C/C):
> 10%
DF change (∆tgδ):
Insulation resistance:
> 2×initial limit
< 0.005×initial limit
NISSEI-ARCOTRONICS
RSB
MKT Series
METALLIZED POLYESTER FILM CAPACITOR
HIGH PERFORMANCE – PULSE APPLICATIONS
STACKED VERSION
p = 5mm
SERIES CODE:

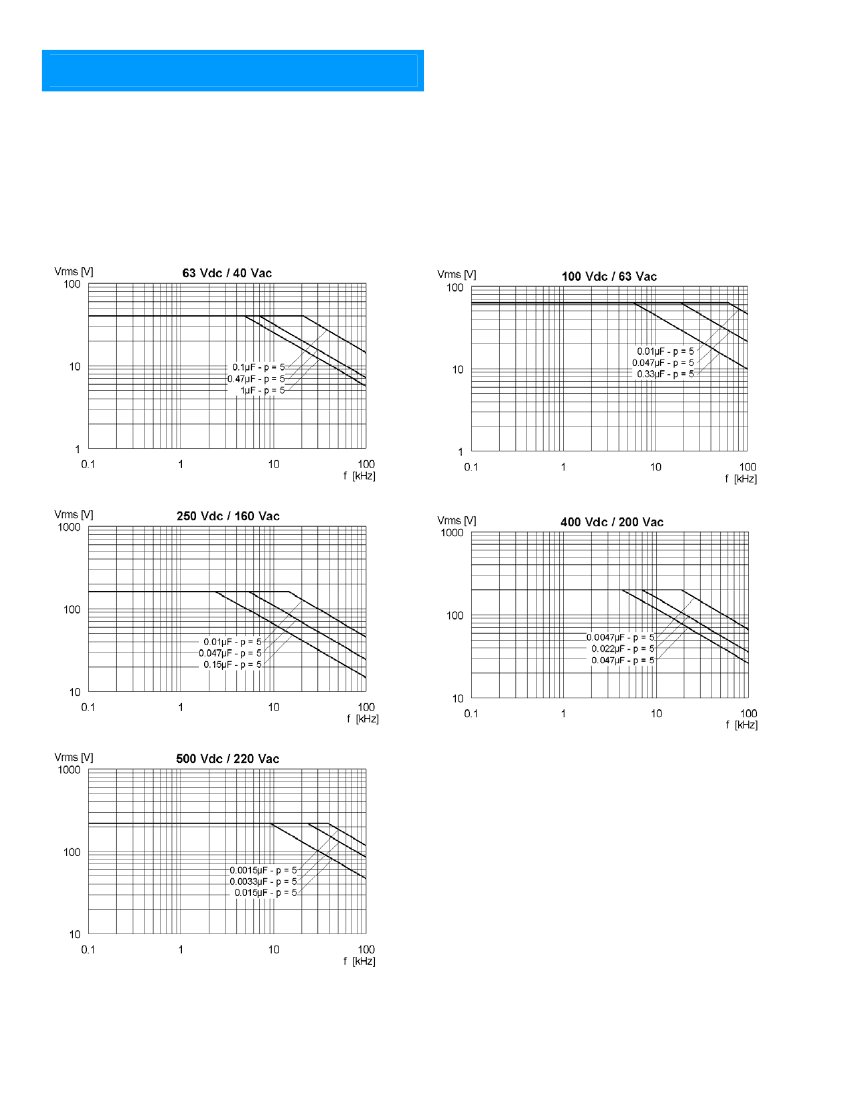

RSB
MAX. VOLTAGE (Vrms) VERSUS FREQUENCY (sinusoidal waveform /
T
h
≤
40°C)
Note:
p (pitch) in mm
京公网安备 11010802033920号
EEWORLD
