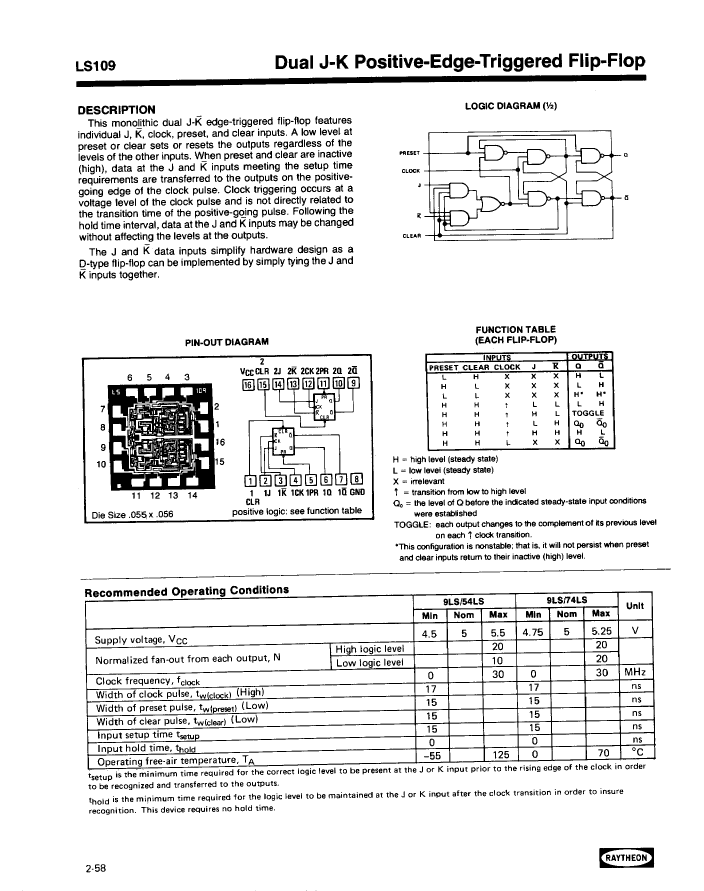

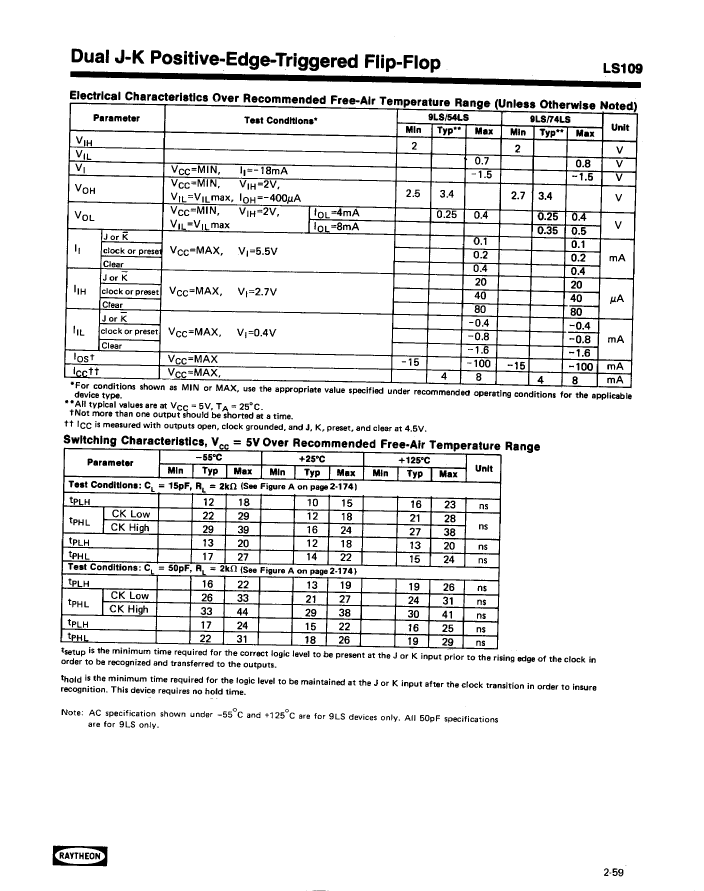

54LS109W datasheet, PDF - EEWORLD Datasheet

54LS109W: DescriptionJ-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDFP16,; Categorylogic logic; File Size144KB，2 Pages; ManufacturerRaytheon Company; Websitehttps://www.raytheon.com/

Download Datasheet Parametric View All

54LS109W Overview

J-K Flip-Flop, 2-Func, Positive Edge Triggered, TTL, CDFP16,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	100744962
package instruction	DFP, FL16,.3
Reach Compliance Code	unknown
JESD-30 code	R-XDFP-F16
JESD-609 code	e0
Logic integrated circuit type	J-K FLIP-FLOP
Number of functions	2
Number of terminals	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package body material	CERAMIC
encapsulated code	DFP
Encapsulate equivalent code	FL16,.3
Package shape	RECTANGULAR
Package form	FLATPACK
power supply	5 V
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	FLAT
Terminal pitch	1.27 mm
Terminal location	DUAL
Trigger type	POSITIVE EDGE
