L53SGD5V datasheet, PDF - EEWORLD Datasheet

L53SGD5V: DescriptionT-1 3/4 SINGLE COLOR LED, SUPER BRIGHT GREEN, 5 mm; CategoryLED optoelectronic/LED photoelectric; File Size79KB，3 Pages; ManufacturerKingbright; Websitehttp://www.us.kingbright.com; Environmental Compliance

Download Datasheet Parametric View All

L53SGD5V Overview

T-1 3/4 SINGLE COLOR LED, SUPER BRIGHT GREEN, 5 mm

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Kingbright
Reach Compliance Code	unknown
Other features	HIGH RELIABILITY
color	SUPER BRIGHT GREEN
color@wavelength	Green
Configuration	SINGLE
Maximum forward current	0.025 A
Maximum forward voltage	6.5 V
Lens type	DIFFUSED GREEN
Nominal luminous intensity	20.0 mcd
Installation features	RADIAL MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	8.6 mm
method of packing	BULK
peak wavelength	565 nm
Maximum reverse voltage	5 V
shape	ROUND
size	5 mm
surface mount	NO
T code	T-1 3/4
Terminal surface	NOT SPECIFIED
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

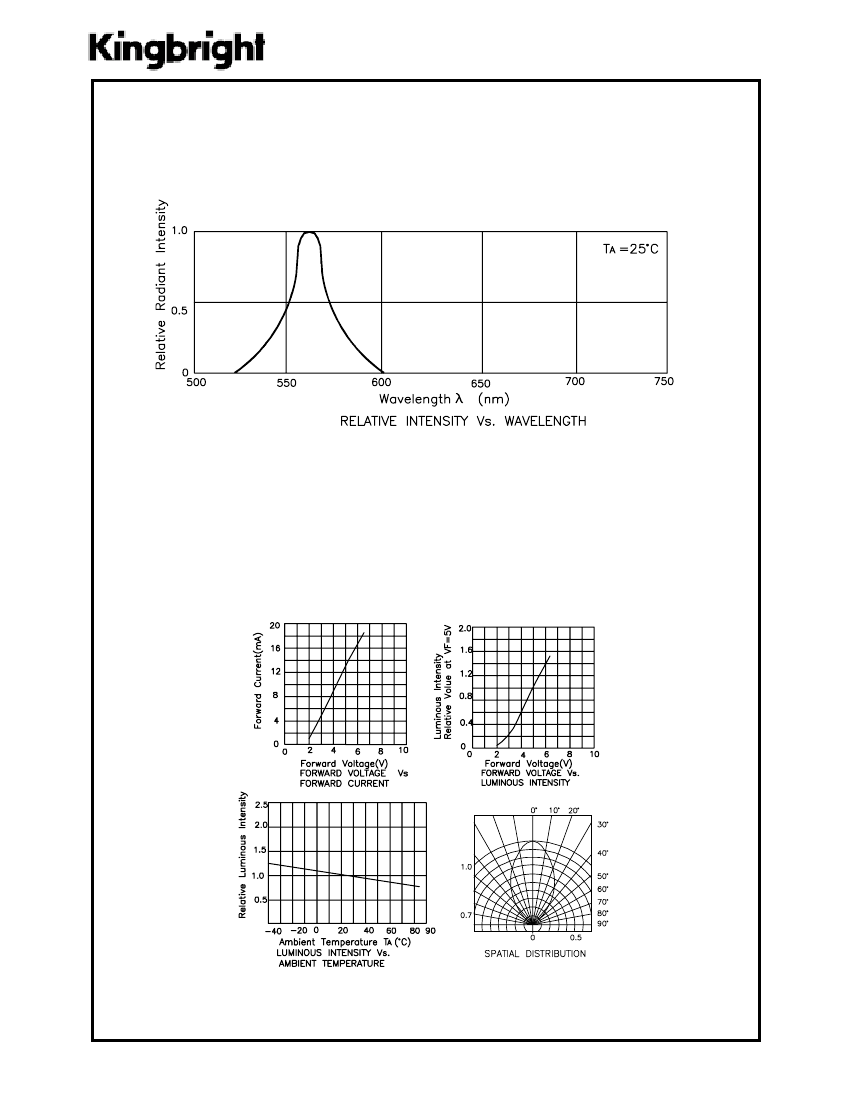

T-1 3/4 (5mm) SOLID STATE LAMP

L53SGD5V SUPER BRIGHT GREEN

Features

HIGH INTENSITY.

LOW POWER CONSUMPTION.

POPULAR T-1 3/4 DIAMETER PACKAGE.

GENERAL PURPOSE LEADS.

RELIABLE AND RUGGED.

LONG LIFE - SOLID STATE RELIABILITY.

AVAILABLE ON TAPE AND REEL.

5V INTERNAL RESISTOR.

Description

The Super Bright Green source color devices are made

with Gallium Phosphide Green Light Emitting Diode.

Package Dimensions

Notes:

1. All dimensions are in millimeters (inches).

2. Tolerance is

±0.25(0.01")

unless otherwise noted.

3. Lead spacing is measured where the lead emerge package.

4. Specifications are subjected to change without notice.

SPEC NO: DSAA1805

REV NO: V.1

DATE: JUN/11/2001

PAGE: 1 OF 3
