REVISION AY
DO NOT
SCALE FROM
THIS PRINT
NOTES:
TCSD-XX-X-XX.XX-01-X-XXX-XXX
OPTIONS #2
SEE OPTIONS BELOW
OPTIONS #1
SEE OPTIONS BELOW
PLATING OPTION
-F: FLASH SELECTIVE GOLD, MATTE TIN TAIL
-L: LIGHT SELECTIVE GOLD, MATTE TIN TAIL
(LEAVE BLANK FOR STANDARD -S:
SELECTIVE PLATING)
LEAD STYLE
No OF POSITIONS
1. HIDDEN LINES ARE USED TO SHOW POLARIZATION
03, 04, 05, 07, 08, 10, 12,
WHEN USING -N OPTION.
13, 15, 17, 20, 22, 25
2.
C
REPRESENTS A CRITICAL DIMENSION.
NOTE: OTHER POSITIONS
3. AS OF REV 'C' ON TCB-50 CABLE ASSEMBLIES WILL BE LEAD FREE.
AVAILABLE AS ASO. TOOL
4. ALL ASSEMBLIES TO BE 100% ELECTRICALLY TESTED FOR SHORTS AND OPENS.
IS CAPABLE OF POSITIONS 2-25
5. ALL ASSEMBLIES TO BE 100% HI-POT TESTED AT 800V.
6. STRAIN RELIEF TO WITHSTAND 5LB STRAIGHT PULL.
7. WHEN CUTTING CABLE TO LENGTH, CONDUCTORS MAY NOT EXTEND PAST THE CABLE INSULATION.
END ASSEMBLY
8. REFERENCE TCSD-XX-XX-X-X-XXX PRINT FOR CONNECTOR ASSEMBLY AND ITS REQUIREMENTS.
9. WHEN CUTTING CABLE TO LENGTH, CONDUCTORS SHOULD NOT EXTEND PAST THE
-S: SINGLE
CABLE INSULATION, EXTENDING LESS THAN 25% OF CABLE THICKNESS ON CONSECUTIVE
-D: DOUBLE
AND LESS THAN 50% OF THE CABLE THICKNESS ON NON-CONSECUTIVE STRANDS IS
CONSIDERED A PROCESS INDICATOR.

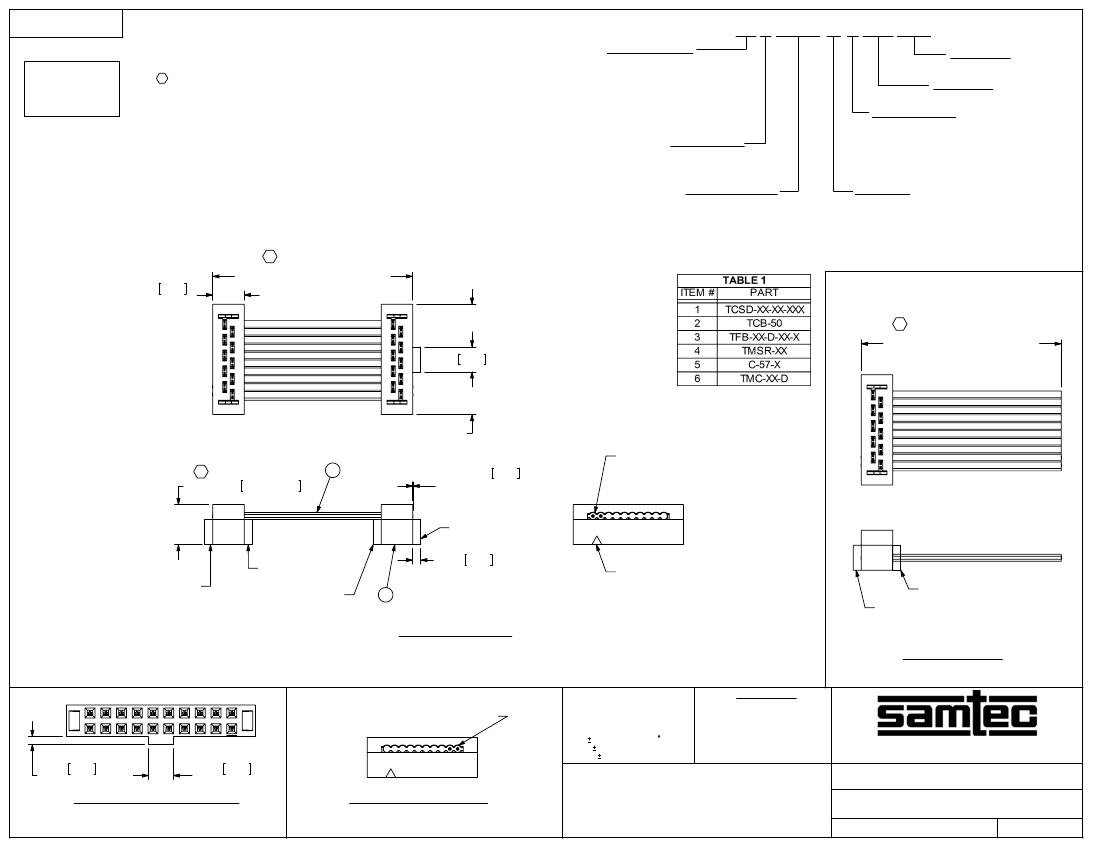

ASSEMBLY LENGTH
10. FOR LENGTHS LESS THAN 12.5" TOLERANCE SHALL BE +/-.125,
ALL OTHER LENGTHS SHALL BE +/-1%.
-D"XX", -R, -M & -O OPTION: 2.00[50.8] MINIMUM
ALL OTHER OPTION: 1.00[25.4] MINIMUM
C
XX.XX[XX INCHES x 25.4] ±1%
(SEE NOTE 7 & 10)
.158 4.00
REF
.125 3.18 REF
C
XX.XX[XX INCHES x 25.4] ±1%
(SEE NOTE 7 & 10)
(No OF POS x .07874[2.0000]) + .15748[4.0000] REF
C
.200±.010 5.08±0.254
2
.010 0.25 MAX
CABLE OVERHANG (TYP)
(SEE NOTE 7)
-N OPTION
-N OPTION
-RN1 OPTION
-RN2 OPTION
1
.040 1.02 REF
COLORED WIRE TO SIDE
OF FIRST POS INDICATOR
* COLORED WIRE MAY BE
BLACK, BLUE, OR RED.
FIRST POSITION INDICATOR
-N OPTION
-RN OPTION
-D: (DOUBLE END)
(SAME AS -D UNLESS OTHERWISE STATED)
02
COLORED WIRE TO OPPOSITE
SIDE OF FIRST POS INDICATOR
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
-S (SINGLE END)
01
.040 1.02
REF
.125 3.18
REF
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
(USE TCSD-XX-XX-N)
(AVAILABLE ON POS 04 THRU 25)
(NOT AVAILABLE WITH -RN1 OR -RN2 OPTIONS)
-N: NOTCH POLARIZATION
(NOT AVAILABLE WITH -RN1 OR -RN2 OPTIONS)
F:\DWG\MISC\MKTG\TCSD-XX-X-XX.XX-01-X-XXX-XXX-MKT.SLDDRW
-RW: REVERSE WIRING
SHEET SCALE: 2:1
MATERIAL:
DO NOT SCALE DRAWING
INSULATOR: BLACK PBT
CONTACT: HEAT TREATED BeCu
STRAIN RELIEF: BLACK PBT
WIRE: 28 AWG, 7/36, TINNED, COPPER WITH PVC INSULATOR
PLATING:
-L: .000015 GOLD ON CONTACT AREA, TIN ON REMAINDER
-F: .000003 GOLD ON CONTACT AREA, TIN ON REMAINDER
(STANDARD PLATING IS .000030 GOLD ON CONTACT AREA, TIN ON REMAINDER)
2MM DOUBLE ROW FEMALE IDC ASSEMBLY
BY:
B RAY
TCSD-XX-X-XX.XX-01-X-XXX-XXX
11/20/2007
SHEET
1
OF
3
REVISION AY
01
03
02
02
01
03
01
01
01
02
01
01
02
01
COLORED WIRE TO SIDE
OF FIRST POS INDICATOR
* COLORED WIRE MAY BE
BLACK, BLUE, OR RED.
COLORED WIRE TO SIDE
OF FIRST POS INDICATOR
* COLORED WIRE MAY BE
BLACK, BLUE, OR RED.
XX .125[3.18]
(MIN 2 ")
-P"XX": POLARIZED MATING
NOTE: THE SAME POSITION WILL BE
POLARIZED ON BOTH ENDS (USE PK-07-N)
XX±.125 [3.18]
(MIN 2")
OUTSIDE SOCKET REVERSED WHEN DAISY CHAINED
(NOT AVAILABLE WITH -R OR -M)
(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)
MIDDLE SOCKET REVERSED
WHEN DAISY CHAINED
(NOT AVAILABLE WITH -R OR -O)
(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)
-O: OUTSIDE REVERSED
-M: MIDDLE REVERSED

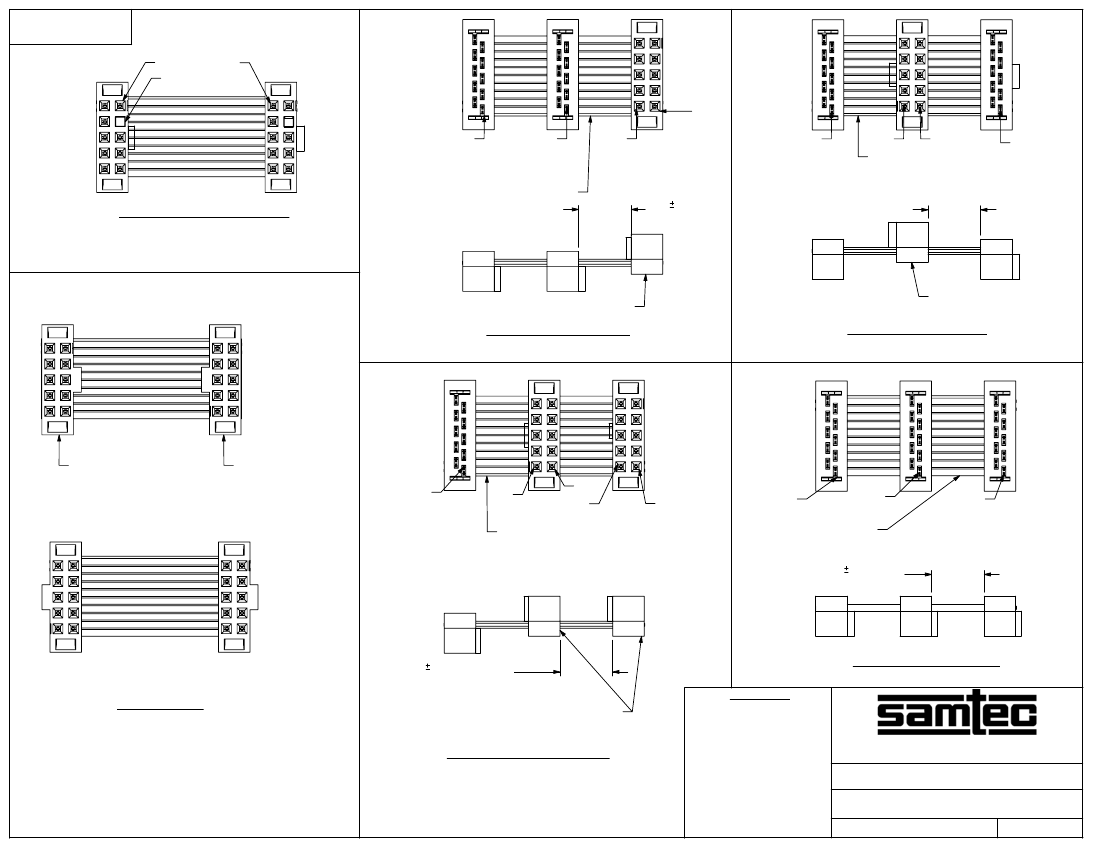

FIRST CONNECTOR
TCSD-05-D-XX-01-RN2 SHOWN
SECOND CONNECTOR
01
01
02
01
02
01
01
COLORED WIRE TO SIDE
OF FIRST POS INDICATOR
* COLORED WIRE MAY BE
BLACK, BLUE, OR RED.
XX .125[3.18]
(MIN 2")
01
COLORED WIRE TO SIDE
OF FIRST POS INDICATOR
* COLORED WIRE MAY BE
BLACK, BLUE, OR RED.
TCSD-05-D-XX-01-RN1 SHOWN
.XX .125[3.18][6.70]
(MIN 2")
BOTH SOCKETS REVERSED WHEN DAISY CHAINED
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
(2" MIN LENGTH, 1" INCREMENTS ONLY)
*
PROPRIETARY NOTE
*
-D"XX": DAISY CHAINED
(REVERSE POLARIZATION NOTCH)
-RN1 OR -RN2
NOTE:
-RN1 = REVERSE NOTCH ON 1ST CONNECTOR ONLY
AVAILABLE FOR POSITIONS 4 OR GREATER
(NOT AVAILABLE WITH -R OR -RW OPTIONS)
-RN2 = REVERSE NOTCH ON 2ND CONNECTOR ONLY
(NOT AVAILABLE WITH -R OR -RW OPTIONS)
(-RNX NOT AVAILABLE WITH -N & -D"XX" OPTIONS)
(NOT AVAILABLE WITH -O, -M, -RN1 OR -RN2 OPTION)
(MINIMUM 2.00[50.8], 1.00[25.4] INCREMENTS)
-R: REVERSE CONNECTOR
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
SHEET SCALE: 2:1
2MM DOUBLE ROW FEMALE IDC ASSEMBLY
11/20/2007
SHEET
2
OF
3
F:\DWG\MISC\MKTG\TCSD-XX-X-XX.XX-01-X-XXX-XXX-MKT.SLDDRW
BY:
B RAY
TCSD-XX-X-XX.XX-01-X-XXX-XXX
REVISION AY
6
XX

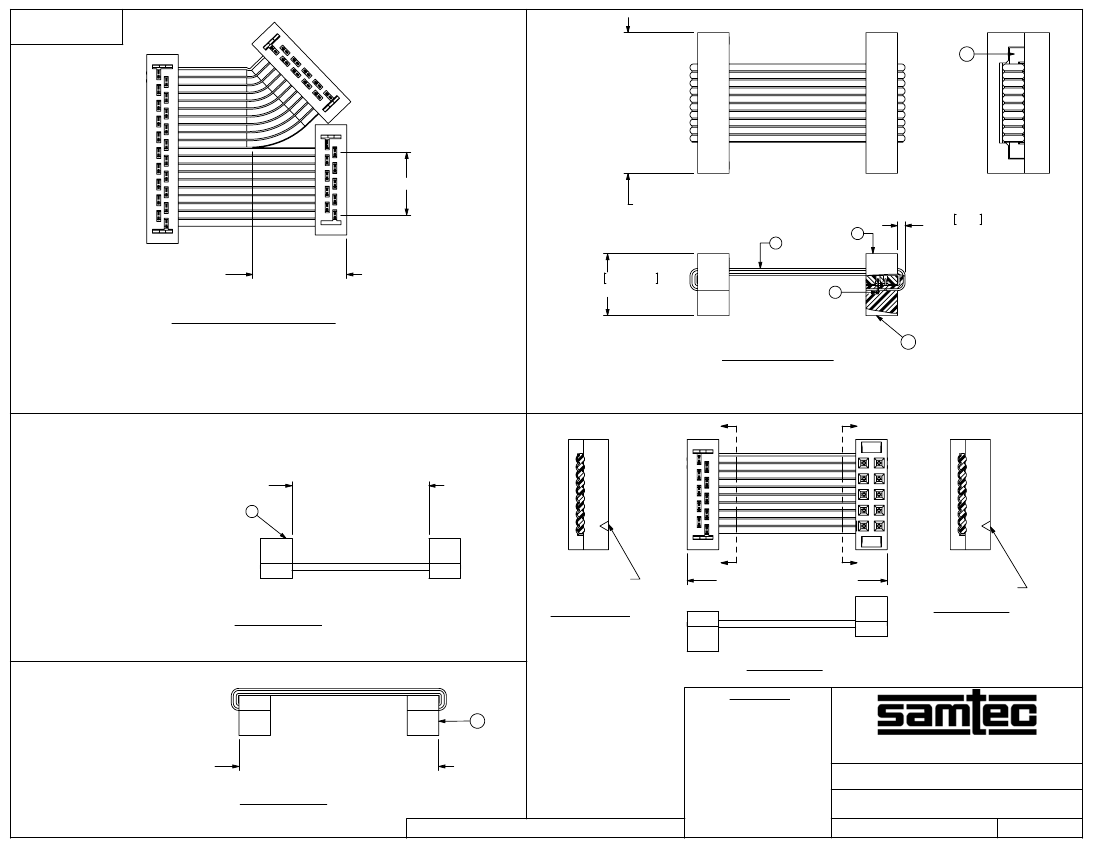

(No. OF POS.) x .07874[2.0000] + .31000[7.8740] REF
2
5.000[127.00] MAX
2.000[50.80] MIN
.310±.010 7.87±0.25
(MEASURED AT BOTH ENDS)
4
.039 1.00
REF
5
(TCSD-10-D-XX.XX-01-X-B05 SHOWN)
"XX" = NO. OF CONDUCTORS BROKEN OUT FROM THE FIRST POSITION.
AN EVEN NUMBER POSITION BREAKOUT MUST BE SELECTED FOR A DOUBLE ENDED ASSEMBLY
AND THE BREAKOUT ENDS MUST BE EQUAL TO THE FULL POSITION CONNECTOR.
-B"XX": BREAKOUT OPTION
(NOT AVAILABLE WITH -O, -M, -R, -D"XX" OR -B"XX")
(SAME AS -D, UNLESS OTHERWISE STATED)
(SOLD IN ASSEMBLIES ONLY)
(MUST USE HEAT BEND/STRAIN RELIEF TOOL ON POSITIONS 20-25)
"A"
"B"
-SR: STRAIN RELIEF
3
(XX.XX[XX INCHES x 25.4]+.5[19.1]) ±.125[3.175]
3
FIRST POSITION
INDICATOR
"A"
"B"
XX.XX[XX INCHES x 25.4] x 2
+.250[6.35] ±1%
FIRST POSITION
INDICATOR
SECTION "B"-"B"
IN-PROCESS 1
(-SR ONLY)
SECTION "A"-"A"
(SINGLE END ONLY)
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
IN-PROCESS
*
*
PROPRIETARY NOTE
3
(XX.XX[XX INCHES x 25.4] ±.125[3.175]
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
IN-PROCESS 2
(-SR ONLY)
F:\DWG\MISC\MKTG\TCSD-XX-X-XX.XX-01-X-XXX-XXX-MKT.SLDDRW
2MM DOUBLE ROW FEMALE IDC ASSEMBLY
SHEET SCALE: 2:1
TCSD-XX-X-XX.XX-01-X-XXX-XXX
BY:
B RAY
11/20/2007
SHEET
3
OF
3
