C-2040-10-U datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Wireless rf/communication> Radio frequency and microwave> C-2040-10-U

Preview

C-2040-10-U: DescriptionDirectional Coupler, 2000MHz Min, 4000MHz Max, 0.3dB Insertion Loss-Max,; CategoryWireless rf/communication Radio frequency and microwave; File Size264KB，2 Pages; ManufacturerRLC Electronics Inc

Download Datasheet Parametric View All

C-2040-10-U Overview

Directional Coupler, 2000MHz Min, 4000MHz Max, 0.3dB Insertion Loss-Max,

C-2040-10-U Parametric

Parameter Name	Attribute value
Maker	RLC Electronics Inc
Reach Compliance Code	unknown
Other features	SMA-F, I/P POWER-MAX(PEAK)=5000WATT
Characteristic impedance	50 Ω
structure	COAXIAL
Maximum input power (CW)	46.99 dBm
Maximum insertion loss	0.3 dB
Maximum operating frequency	4000 MHz
Minimum operating frequency	2000 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DIRECTIONAL COUPLER
Maximum voltage standing wave ratio	1.25
Base Number Matches	1

Preview

Download Datasheet

View All

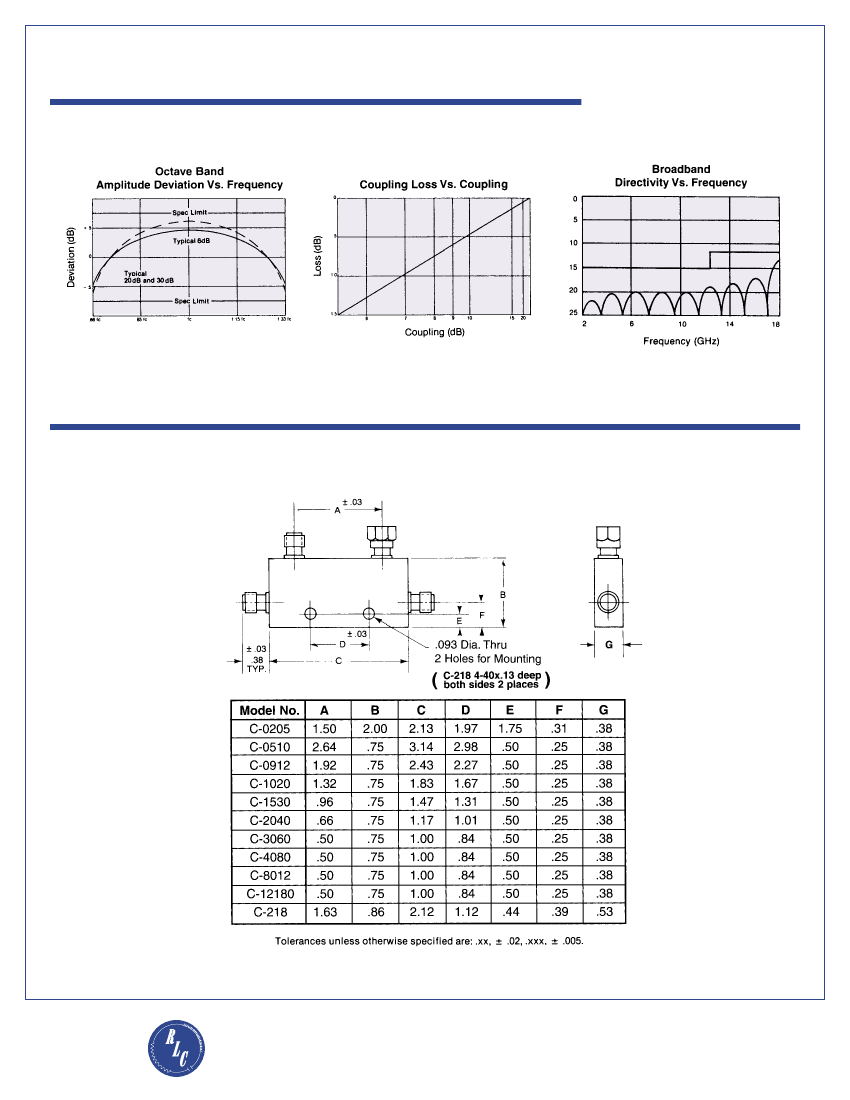

Octave and Broadband

Directional Couplers

RLC Electronics' Broadband Directional Coupler provide the

ultimate in flat coupling and high directivity over the 2 to 18 GHz

band. These miniaturized units are ideal where stringent wide

band specifications must be maintained.

Specifications

C

-1-2-3

Model

Number

C-0205-

C-0510-

C-0912-

C-1020-

C-1530-

C-2040-

C-3060-

C-4080-

C-8012-

C-12180-

C-218-6**

C-218-10**

C-218-16**

Frequency

Range (GHz)

0.25-0.50

0.50-1.00

0.96-1.235

1.00-2.00

1.50-3.00

2.00-4.00

3.00-6.00

4.00-8.00

8.00-12.40

12.40-18.00

Directivity

Min (dB)

25

20

18

16

15

VSWR

(Max)

1.15

1.10

1.15

1.20

1.25

1.35

1.45

1.50

Frequency

Deviation (dB)

±0.75

±0.25

±0.75

±1.00

Loss

Max. (dB)*

0.20

0.15

0.25

0.30

0.35

0.40

0.60

0.90

0.65

2.00-18.00

15 < 12.4

12 > 12.4

1.50

±1.00

Coupling(Nominal):

6±0.5dB

10±0.5dB, 20±1.0dB, 30±1.0dB

Power:

50 watts ave: C-218; 20 watts average.

5KW peak: C-218; 3 KW peak

Impedance:

50 Ohms

Connector Type:

SMA female

Temperature:

-55 C to +85 C

Environment:

MIL-E-5400, Class 1A

note:

* Does not include coupling loss

**Coupling referenced to output port.

To designate coupler desired use:

(1) 0205, 0510, etc for model number

(2) Coupling value in dB

(3) "T" for built in 2 watt termination, U for

no termination.

Example: C-2040-6-T a 6 dB coupler, 2 to 4 GHz frequency band, with internal termination

RLC ELECTRONICS, INC.

83 Radio Circle, Mount Kisco, New York 10549 • Telephone: 914-241-1334 • Fax: 914-241-1753

e-mail: sales@rlcelectronics.com • www.rlcelectronics.com

109
