P4055
Description
Pressure Transducer

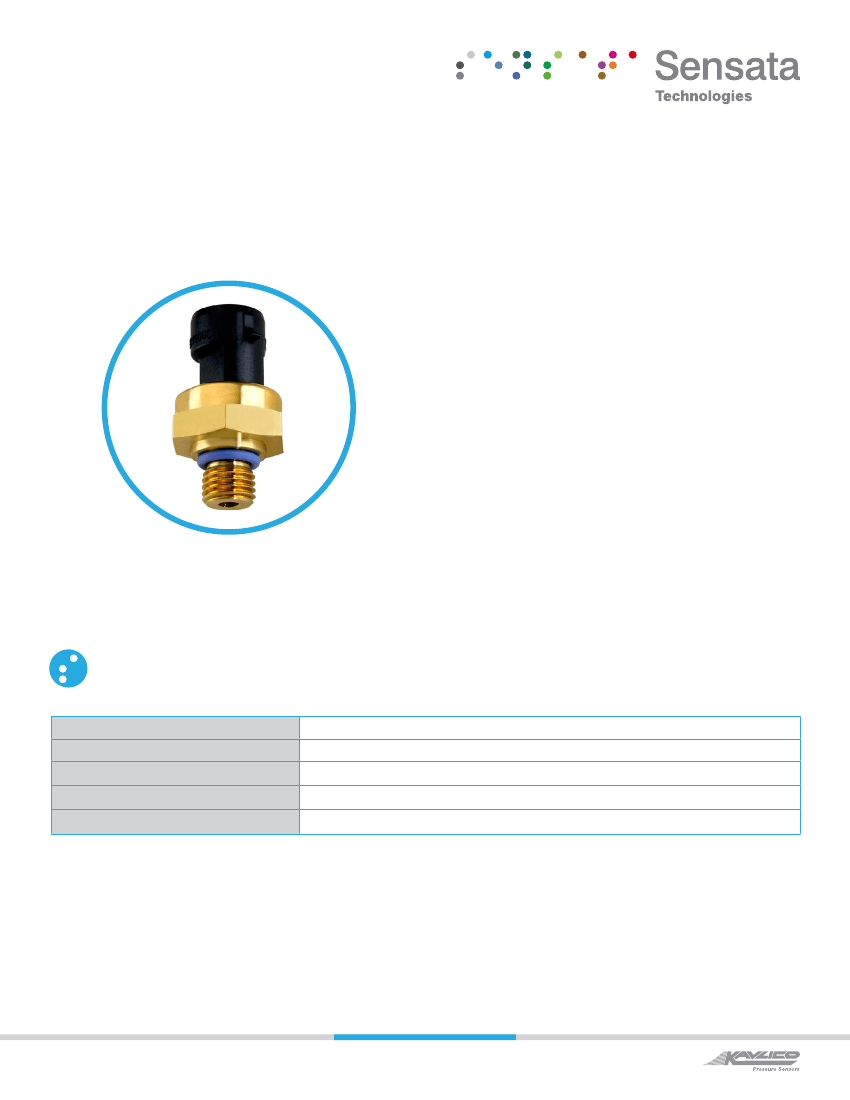

The P4055 Pressure Transducer incorporate a back-side PRT configuration that is compatible with many types of liquid and gaseous media. This flexible
product family can be supplied with a built in Metri-Pack 150 electrical connector. The small sensor size is ideal for high volume applications. Pressure
ranges may be customized for OEM applications. The P4055 is specified with pressure ranges measured in PSI.
Features
• Small Size
• Absolute, Gage or Sealed Gage Pressure References
• Packard Metri-Pack 150 Electrical Connector Standard
• 0.5 to 4.5 Vdc Output
• High Vibration Tolerance
• Superior EMI/RFI Performance
• Available with NPT, G1/4, M10, & M12 Pressure Ports
• Temperature Compensated
• RoHS Compliant
Applications
• Pumps & Compressors
• Process Controls
• Filter Restriction
• Oil and Fuel Pressures
• Water Management
• Level Measurement
• Test & Monitoring Equipment
MAIN FEATURES
Pressure Ranges
Electrical Connection
Pressure Connection
Housing Material
Output Signal
0 to 3 up to 0 to 300 PSI
Packard Electric Metri-Pack 150 Series
1/4-18 NPT (external), 1/8-27 NPT (external) - for more options see how to order
Brass
0.5 - 4.5 VDC
Page 1
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
TECHNICAL SPECIFICATIONS
Pressure Ranges
From 0 to ...
Proof Pressure
Burst Pressure
PSI
PSI
PSI
3
6
9
5
10
15
15
30
45
30
60
90
50
10
150
75
150
225
100
200
300
150
300
450
200
300
400
300
450
600
Physical
Operating Life Cycle
Vibration Resistance
Shock Resistance
Drop Test
Weight
Ingress Protection
Media Temperature
Environmental Temperature
Storage Temperature
Media
min. 1 million full pressure cycles over the full range
10 G’s peak to peak sinusoidal, from 20 to 2000 Hz
75 G’s ½ sine wave
1m onto concrete surface
≤
50 grams
IP67
-40°C to + 125°C
-40°C to + 125°C
-40°C to + 125°C
All class II fluids and gases compatible with brass and fluorosilicone
Performance
Total Error Band
1
+/-2% of span (-20
≤
T
≤
100° C) +/-3% of span (T < -20° C,T < 100° C)
1. Including accuracy, calibration, temperature, non-linearity, hysteresis, non-repeatability, error
Electrical
Output Signal
Operating Supply Signal
Power Consumption
Overvoltage Protection
Short-circuit Proofness
Insulation Voltage
Reverse Polarity Protection
Impedance
Response Time
2. for min. 3 intervals at 5 minutes each
3. for min. 10 seconds on assigned pins
0.5…4.5 VDC ratiometric
5 VDC ± 5%
≤
25 mW
16 VDC
Yes
2
500 VDC
Yes
3
Min load 25 kΩ
≤
10 ms max. to 63% of full scale pressure with step change on input
Page 2
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
DIMENSIONS

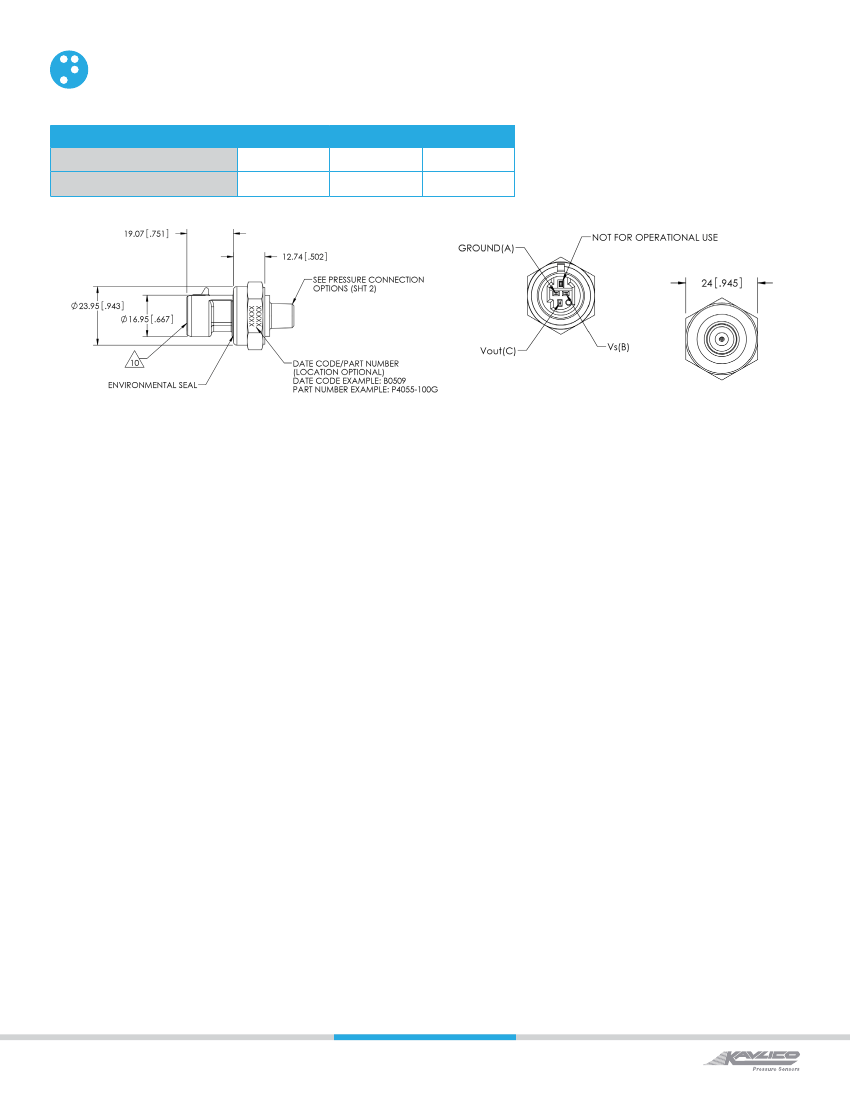

Dimensions in mm [Inch]
Packard (metri-pack 150) Pin Call Outs
Output
0.5-4.5 VDC ratiometric
Pin 1
GND
Pin 2
Vsup
Pin 3
Vout
Page 3
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
ORDERING OPTIONS
Example: P4055-15A-E1A
P4055 Pressure Sensor, 0 – 15 PSI Absolute, Fluorosolicone, Internal Seal, 1/4
18 NPT, Pressure Connection with Packard, Metri-Pack 150 Built-in Connector
Family
P4055
P4055
15
A
E
1
A
Pressure Ranges (PSI)
3:
5:
10:
15:
30:
50:
75:
100:
150:
200:
300:
0 - 3 PSI
0 - 5 PSI
0 - 10 PSI
0 - 15 PSI
0 - 30 PSI
0 - 50 PSI
0 - 75 PSI
0 - 100 PSI
0 - 150 PSI
0 - 200 PSI
0 - 300 PSI
Reference
A:
Absolute
G:
Gauge
S:
Sealed Gauge
Internal Seal Material
E:
Fluorosilicone
Pressure Connection (Port)
1:
1/4-18 NPT
2:
M12 X 1.5-6g PER ISO 6149
3:
M10 X 1-6g PER ISO 6149
4:
1/8-27 NPTF
5:
STUD END PER DIN 3852-A-G1/4 (sealing by washer, not supplied)
6:
M14 X 1.5-6g PER ISO 6149
7:
STUD END PER DIN 3852-C-R1/4 (1/4-19 BSPT)
8:
7/16-20UNF-2A
9:
M16 X 1.5-6g
10:
STUD END PER DIN 3852-C-R1/8 (1/8-28 BSPT)
Built-in Connector
A:
Metripack 150 with mating connector 12” leads
C:
Metripack 150 without mating connector
Page 4
Copyright © 2018 Sensata Technologies, Inc.
www.sensata.com
AGENCY APPROVALS & CERTIFICATIONS
2002/95/EC RoHS Directive
Pressure equipment directive 97/23/EC
EMC directive 2004/108/EEC, EN 61 326 Emission (Group 1, Class B) and Immunity (industrial locations),
EMI, ESD protected
Page 5
Revised 2/7/18
