Shielded Power Inductors – LPS5015
• Very low DCR; excellent current handling
• 5.0 × 5.0 mm footprint; less than 1.5 mm tall
Designer’s Kit C350
contains 3 each of all values
Core material
Ferrite
Core and winding loss
See www.coilcraft.com/coreloss
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant matte tin over nickel over silver.
Other terminations available at additional cost.
Weight
102 – 107 mg
Ambient temperature
–40°C to +85°C with
Irms
current, +85°C to
+125°C with derated current
Storage temperature
Component: –40°C to +125°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.3 mm thick, 8 mm pocket spacing, 1.57 mm pocket depth
Recommended pick and place nozzle
OD: 5 mm; ID:
≤
2.5 mm
PCB washing
Tested with pure water or alcohol only. For other solvents,
see
Doc787_PCB_Washing.pdf.
Part number
1
Isat
(A)
DCR SRF
Inductance
2
max
3
typ
4
10% 20% 30%
±20% (µH) (Ohms) (MHz) drop drop drop
5
Irms
(A)
6
20°C 40°C
rise rise
1.90
1.70
1.50
1.40
1.30
1.20
1.10
0.90
0.85
0.80
0.75
0.73
0.70
0.60
0.50
0.45
0.40
0.35
0.30
0.27
0.25
0.22
0.17
0.16
0.14
0.13
0.10
0.090
0.085
0.065
2.65
2.35
2.15
2.00
1.80
1.62
1.45
1.25
1.05
0.95
0.84
0.84
0.83
0.82
0.70
0.57
0.52
0.47
0.42
0.37
0.33
0.29
0.22
0.21
0.190
0.175
0.150
0.140
0.130
0.090
1. Please specify
termination
and
packaging
codes:
LPS5015-335MRC
Termination: R
= RoHS compliant matte tin over nickel
over silver.
Special order, added cost:
Q
= RoHS tin-silver-copper (95.5/4/0.5)
or
P
= non-RoHS tin-lead (63/37).
Packaging: C
= 7″ machine-ready reel. EIA-481
embossed plastic tape 1000 parts
per full reel).
B
= Less than full reel. In tape, but not
machine ready. To have a leader and
trailer added ($25 charge), use code
letter C instead.
D
= 13″ machine-ready reel. EIA-481
embossed plastic tape. Factory order
only, not stocked (3500 parts per full
reel).
2. Inductance tested at 100 kHz, 0.1 Vrms using an Agi-
lent/HP 4192A.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 8753ES or equivalent.
5. DC current that causes the specified inductance drop
from its value without current.
6. Current that causes the specified temperature rise from
25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components”
before soldering.
LPS5015-102MR_
LPS5015-132MR_
LPS5015-182MR_
LPS5015-222MR_
LPS5015-332MR_
LPS5015-472MR_
LPS5015-562MR_
LPS5015-682MR_
LPS5015-822MR_
LPS5015-103MR_
LPS5015-123MR_
LPS5015-153MR_
LPS5015-183MR_
LPS5015-223MR_
LPS5015-333MR_
LPS5015-473MR_
LPS5015-563MR_
LPS5015-683MR_
LPS5015-104MR_
LPS5015-124MR_
LPS5015-154MR_
LPS5015-224MR_
LPS5015-334MR_
LPS5015-474MR_
LPS5015-564MR_
LPS5015-684MR_
LPS5015-105MR_
LPS5015-155MR_
LPS5015-185MR_
LPS5015-225MR_
1.0
1.3
1.8
2.2
3.3
4.7
5.6
6.8
8.2
10
12
15
18
22
33
47
56
68
100
120
150
220
330
470
560
680
1000
1500
1800
2200
0.050
0.065
0.075
0.090
0.125
0.150
0.175
0.225
0.280
0.300
0.350
0.360
0.550
0.675
0.750
1.00
1.13
1.45
1.95
2.50
3.40
4.50
7.40
7.50
8.50
10.6
15.0
25.0
28.0
36.0
183
150
128
116
88
73
67
57
49
44
40
38
35
31
24
18
17
15
12
10
9.3
7.3
5.7
4.9
4.3
4.0
3.2
2.5
2.2
2.1
3.6
2.5
2.6
2.4
1.9
1.6
1.6
1.3
1.3
1.2
1.0
0.80
0.75
0.70
0.55
0.46
0.40
0.33
0.30
0.25
0.23
0.20
0.15
0.12
0.10
0.10
0.080
0.080
0.078
0.072
3.8
2.6
2.8
2.6
2.0
1.7
1.6
1.4
1.3
1.3
1.1
0.84
0.77
0.73
0.59
0.48
0.43
0.38
0.33
0.28
0.25
0.21
0.17
0.12
0.11
0.11
0.090
0.086
0.083
0.078
3.9
2.8
2.9
2.7
2.0
1.8
1.6
1.5
1.4
1.3
1.2
0.86
0.80
0.75
0.60
0.49
0.45
0.39
0.34
0.30
0.26
0.22
0.18
0.13
0.12
0.11
0.093
0.088
0.086
0.080
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 585-1
Revised 08/01/13
© Coilcraft Inc. 2014
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
Document 585-2
Shielded Power Inductors – LPS5015 Series

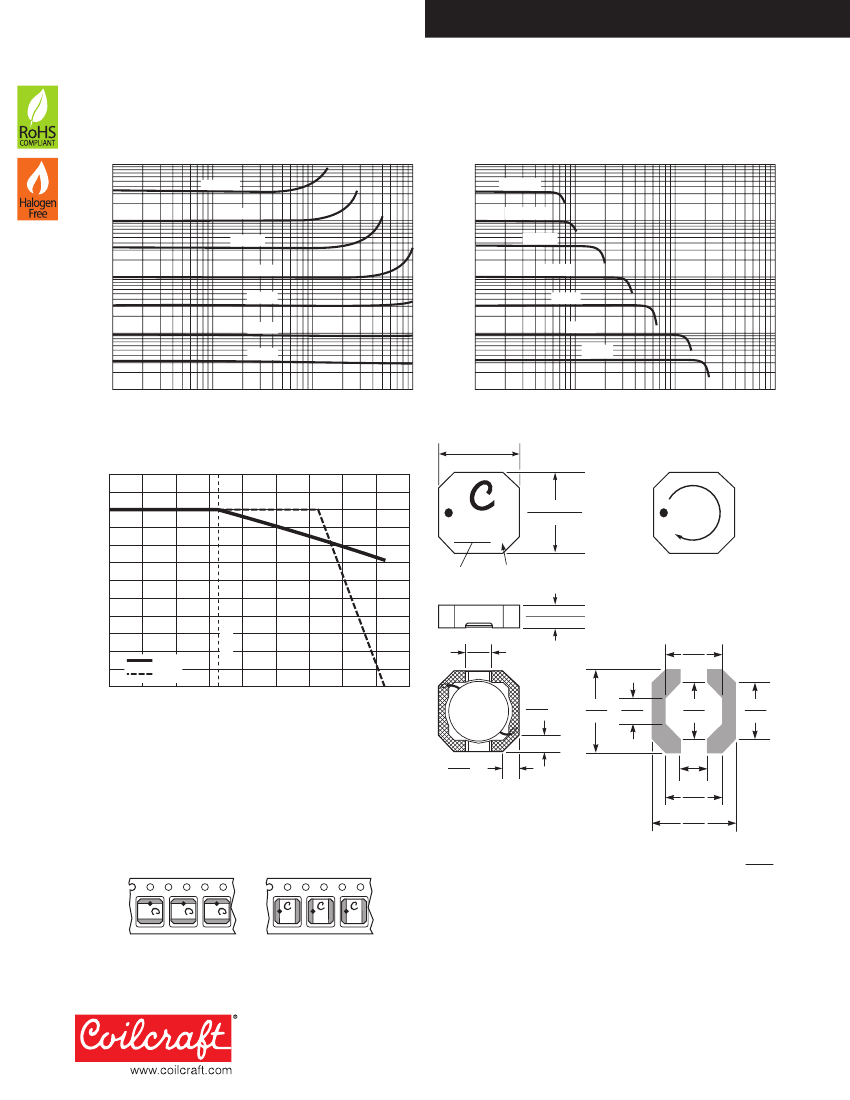

Typical L vs Frequency
10000
3300 µH
1000 µH
330 µH
100 µH
33 µH
10 µH
3.3 µH
Typical L vs Current
10000
3300 µH
1000 µH
330 µH
100 µH
33 µH
1000
1000
Inductance (µH)
100
Inductance (µH)
100
10
10
10 µH
3.3 µH
1
0.01
0.1
Frequency (MHz)
1
10
1
0.01
0.1
Current (A)
1
10
Typical Current Derating
120
110
0.189 ±0.003
*
4,80 ±0,076
Percent of rated current
100
90
80
70
60
50
40
XXX X
Dash
number
Internal
code
0.189 ±0.003
*
4,80 ±0,076
Winding
direction
0.0551 ±0.004
*
1,4 ±0,1
25°C
30
20
10
0
Isat
Irms
-40
-20
0
20
Recommended
Land Pattern
0.134
3,40
0.060
1,50
40
60
80
100
120 140
Ambient temperature (°C)
0.039 typ
1,00
0.197
5,00
0.0665
1,689
0.134
3,40
0.134
3,40
0.039 typ
1,00
0.060
1,52
0.134
3,40
0.197
5,00
Packaging
1000/7″ reel; 3500/13″ reel Plastic tape: 12 mm wide,
0.3 mm thick, 8 mm pocket spacing, 1.57 mm pocket depth
NOTE NEW PART ORIENTATION
Parts are rotated 90
°
in the
packaging tape compared to previous versions of this product.
NEW
OLD
of
including
*
Dimensions are Forthe case notoverall
the termination.
maximum
dimensions including the termination, add
0.005 in / 0,13 mm.
For optional tin-lead and tin-silver-copper
terminations, dimensions are for the
mounted part. Dimensions before mounting
can be an additional 0.005 inch / 0,13 mm).
Dimensions are in
inches
mm
123
123
123
123
123
123
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 585-2
Revised 08/01/13
© Coilcraft Inc. 2014
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check web site for latest information.
