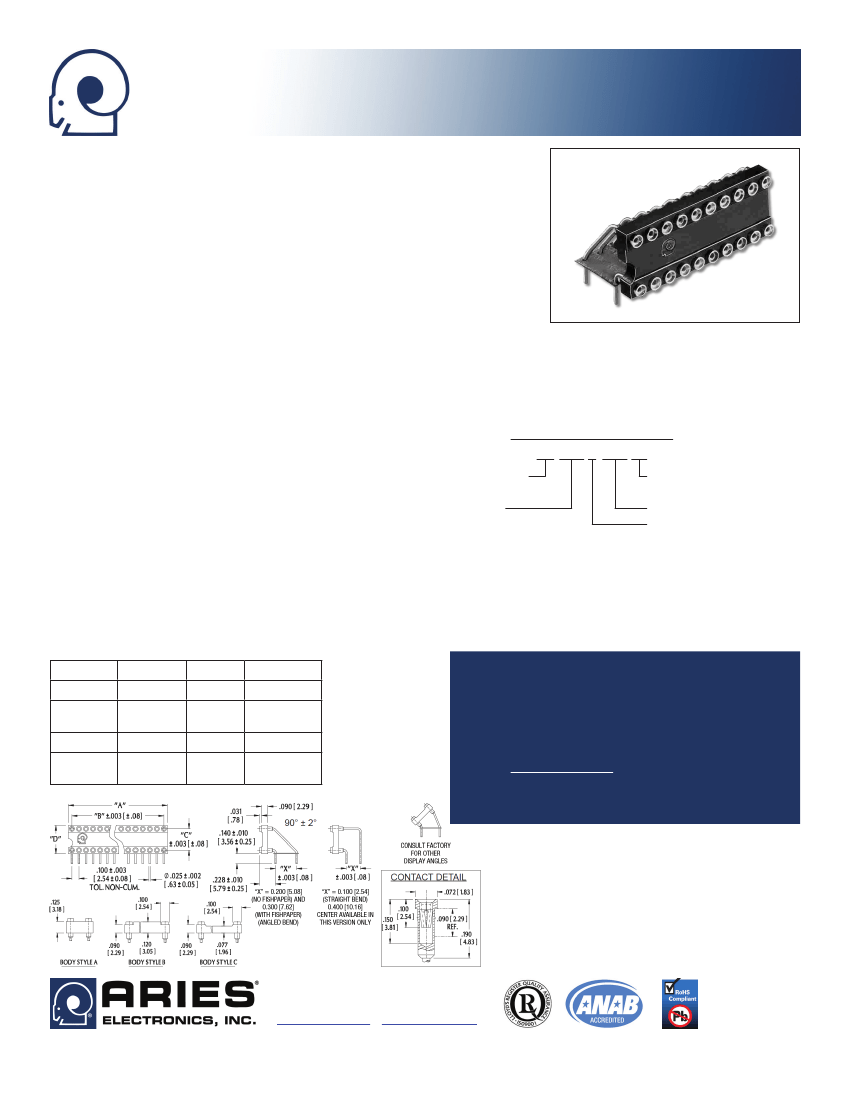

Series 800 Vertisocket
™
Horizontal Mounting w/Collet Contacts
FEATURES
• Aries offers a full line of Vertisocket™ for DIP packaging of LEDs, incandescent
lamps, DIP switches, test points, etc. The variations of mounting positions provide
exceptional design freedom.
• Accepts standard LEDs and incandescent displays as well as 0.500 [21.70] and
0.600 [15.24] high large displays.
GENERAL SPECIFICATIONS
• STANDARD BODY MATERIAL: black UL 94V-0 glass-filled 4/6 Nylon
• SPACER: Fish paper (sockets with “X” 0.300 [7.62] only)
• PIN BODY: Brass 360 1/2-hard per UNS C36000 ASTM B16/B16M-05
• PIN BODY PLATING: either 200µ [5.07µ] min. 93/7 Sn/Pb per ASTM B545 or
CUSTOMIZATION:
In addition to the standard products shown
200µ [5.07µ] Sn per ASTM B545 Type 1 over 100µ [2.54µ] min. Ni per SAE
on this page, Aries specializes in custom design and production.
AMS-QQ-N-290B
Special materials, platings, sizes, and configurations can be
furnished, depending on the quantity.
NOTE:
Aries reserves the
• 4-FINGER COLLET CONTACT: BeCu per UNS C17200 ASTM B194-08
right to change product general specifications without notice.
• CONTACT PLATING: 30µ [0.76µ] min. Au per MIL-G-45204 over 50µ [1.27µ]
min. Ni per SAE AMS-QQ-N-290B
• ACCEPTS LEADS: 0.015-0.025 [0.38-0.64] dia., 0.110-
ORDERING INFORMATION
0.150 [2.79-3.81] long
XX-X82 X-90C TL
• CONTACT CURRENT RATING: 3 amps
Optional Plating
• OPERATING TEMPERATURE: -67°F to 221°F [-55°C to
Pin Count & Spacing
see Table Dim.“C”
TL = Sn/Pb Pin Body
105°C]
Display Angle
• INSERTION FORCE: 180g/pin, based on 0.018 [0.46]
Device Footprint
282: “C” = 0.200 [5.08]
PCB Footprint
dia. test lead
82: “C” = 0.300 [7.62]
0: “X” = 0.100 [2.54]
• WITHDRAWAL FORCE: 90g/pin, based on 0.018 [0.46]
482: “C” = 0.400 [10.16]
2: “X” = 0.200 [5.08]
dia. test lead
3: “X” = 0.300 [7.62]
• NORMAL FORCE: 140g/pin, based on 0.018 [0.46] dia. 682: “C” = 0.600 [15.24]
test lead
MOUNTING CONSIDERATIONS
• SUGGESTED PCB HOLE SIZE: 0.035 ±0.002 [0.89 ±0.05] dia.
Centers “C”
0.200 [5.08]
0.300 [7.62]
0.400 [10.16]
0.600 [15.24]
Dim. “D”
0.300 [7.62]
0.400 [10.16]
0.500 [12.70]
0.700 [17.78]
Body Style
A
C
B
C
C
B
Available Sizes
6 thru 10
6 thru 20
22 thru 40
6 thru 22
6 thru 40
42 thru 48
ALL DIMENSIONS: INCHES [MILLIMETERS]
ALL TOLERANCES: ±0.005 [0.13] UNLESS OTHERWISE SPECIFIED
“A” # PINS PER ROW x 0.100 [2.54]
“B” (# PINS PER ROW -1) x 0.100 [2.54]
CONSULT
DATA SHEET 13004
FOR VERTICAL MOUNTING VERTI-
SOCKETS
™
CONSULT FACTORY FOR OTHER SIZES AND CONFIGURATIONS
Bristol, PA 19007-6810 USA
TEL (215) 781-9956 • FAX (215) 781-9845
WWW.ARIESELEC.COM • INFO@ARIESELEC.COM
PRINTOUTS OF THIS DOCUMENT MAY BE OUT OF DATE AND SHOULD BE CONSIDERED UNCONTROLLED
13005
Rev. AA
