182-10-950-00-001100 datasheet, PDF

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> socket> 182-10-950-00-001100

Preview

182-10-950-00-001100: DescriptionIC Socket, DIP50, 50 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size239KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

182-10-950-00-001100 Overview

IC Socket, DIP50, 50 Contact(s), ROHS COMPLIANT

182-10-950-00-001100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	SOCKET HEADER
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP50
JESD-609 code	e4
Number of contacts	50
Base Number Matches	1

Preview

Download Datasheet

View All

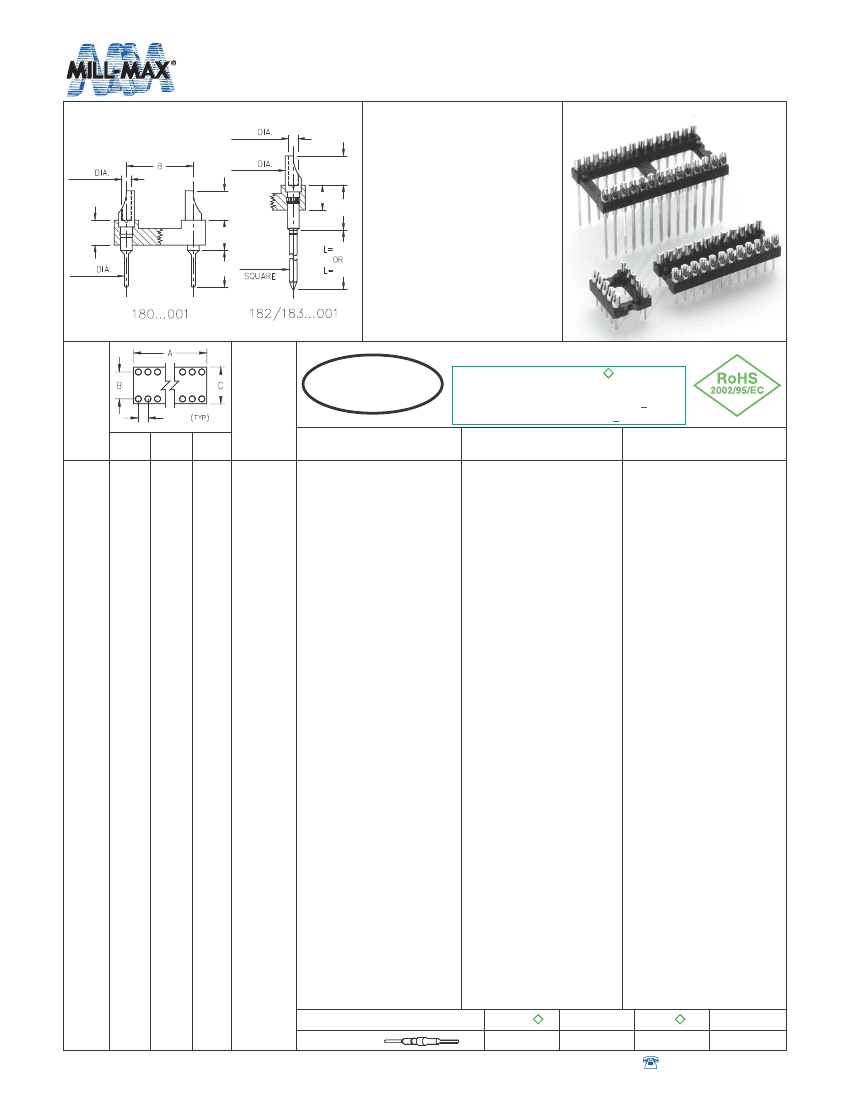

DUAL-IN-LINE SOLDER CUP HEADERS

Solder Tail and Wrapost

Open Frame

1,02

1,83

2,79

3,2

4,9

●

Series 180, 182, 183

0,99

3,2

2,79

0,51

3,18

Series 180, 182, 183 DIL

Headers are equipped

with solder cups for

wiring applications.

Terminations are

pluggable 0,51 diameter

solder tails (M-M# 8000),

see page 174 for details;

or 2 & 3-level wraposts,

(M-M# 8301) see page

184 for details.

9,4

4,22

0,64

12,95

Total number

of pins

Or dering Inf ormation

Quantity

per tube

XX=Plating Code

See Below

Solder Tail

2,54

For RoHS compliance, select



plating code.

For the gold option (XX=10) also change part

number from 18X-XX-XXX-00-001000

to 18X-10-XXX-00-001100

A

12,6

5,0

7,6

10,1

12,6

17,7

20,3

22,8

25,3

27,8

30,4

35,5

25,4

27,8

30,4

35,5

40,6

30,5

35,5

40,6

45,7

50,8

53,3

60,9

63,5

66,0

B

5,08

7,62

10,16

15,24

C

7,6

10,1

12,7

17,7

41

102

67

50

40

28

25

22

20

18

16

14

20

18

16

14

12

16

14

12

11

10

9

8

7

8

7

6

10

4

6

8

10

14

16

18

20

22

24

28

20

22

24

28

32

24

28

32

36

40

42

48

50

52

50

52

64

180- XX-210-00-001000

2 Level Wrapost

L = 9,4

182-XX-210-00-001000

3 Level Wrapost

L = 12,95

183-XX-210-00-001000

183-XX-304-00-001000

183-XX-306-00-001000

183-XX-308-00-001000

183-XX-310-00-001000

183-XX-314-00-001000

183-XX-316-00-001000

183-XX-318-00-001000

183-XX-320-00-001000

183-XX-322-00-001000

183-XX-324-00-001000

183-XX-328-00-001000

183-XX-420-00-001000

183-XX-422-00-001000

183-XX-424-00-001000

183-XX-428-00-001000

183-XX-432-00-001000

183-XX-624-00-001000

183-XX-628-00-001000

183-XX-632-00-001000

183-XX-636-00-001000

183-XX-640-00-001000

183-XX-642-00-001000

183-XX-648-00-001000

183-XX-650-00-001000

183-XX-652-00-001000

183-XX-950-00-001000

183-XX-952-00-001000

183-XX-964-00-001000

40



5,08µm Sn

1 80- XX-304-00-001000 182-XX-304-00-001000

1 80- XX-306-00-001000 182-XX-306-00-001000

180- XX-308-00-001000 182-XX-308-00-001000

180- XX-310-00-001000 182-XX-310-00-001000

180-XX-314-00-001000 182-XX-314-00-001000

180-XX-316-00-001000 182-XX-316-00-001000

180-XX-318-00-001000 182-XX-318-00-001000

180-XX-320-00-001000 182-XX-320-00-001000

180-XX-322-00-001000 182-XX-322-00-001000

180-XX-324-00-001000 182-XX-324-00-001000

180-XX-328-00-001000 182-XX-328-00-001000

180- XX-420-00-001000

180- XX-422-00-001000

180- XX-424-00-001000

180-XX-428-00-001000

180-XX-432-00-001000

180-XX-624-00-001000

180-XX-628-00-001000

180-XX-632-00-001000

180-XX-636-00-001000

180-XX-640-00-001000

180-XX-642-00-001000

180-XX-648-00-001000

180-XX-650-00-001000

180-XX-652-00-001000

180-XX-950-00-001000

180-XX-952-00-001000

180-XX-964-00-001000

182-XX-420-00-001000

182-XX-422-00-001000

182-XX-424-00-001000

182-XX-428-00-001000

182-XX-432-00-001000

182-XX-624-00-001000

182-XX-628-00-001000

182-XX-632-00-001000

182-XX-636-00-001000

182-XX-640-00-001000

182-XX-642-00-001000

182-XX-648-00-001000

182-XX-650-00-001000

182-XX-652-00-001000

182-XX-950-00-001000

182-XX-952-00-001000

182-XX-964-00-001000

10



0,25µm Au

90

5,08µm Sn/Pb

63,5 22,86 25,3

66,0 22,86 25,3

81,2 22,86 25,3

SPECIFY PLATING CODE XX=

Pin Plating

w w w. m i l l - m a x . c o m

40



516-922-6000
