123-13-642-41-001100 datasheet, PDF

Datasheet> All Categories > The connector> socket> 123-13-642-41-001100

123-13-642-41-001100: DescriptionIC Socket, DIP42, 42 Contact(s), ROHS COMPLIANT; CategoryThe connector socket; File Size186KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric View All

123-13-642-41-001100 Overview

IC Socket, DIP42, 42 Contact(s), ROHS COMPLIANT

123-13-642-41-001100 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT
Reach Compliance Code	compli
ECCN code	EAR99
Other features	DIP SOCKET
Contact to complete cooperation	GOLD (30) OVER NICKEL (100)
Contact completed and terminated	Gold (Au) - with Nickel (Ni) barrie
Contact material	NOT SPECIFIED
Device slot type	IC SOCKET
Type of equipment used	DIP42
JESD-609 code	e4
Number of contacts	42
Base Number Matches	1

Preview

Download Datasheet

View All

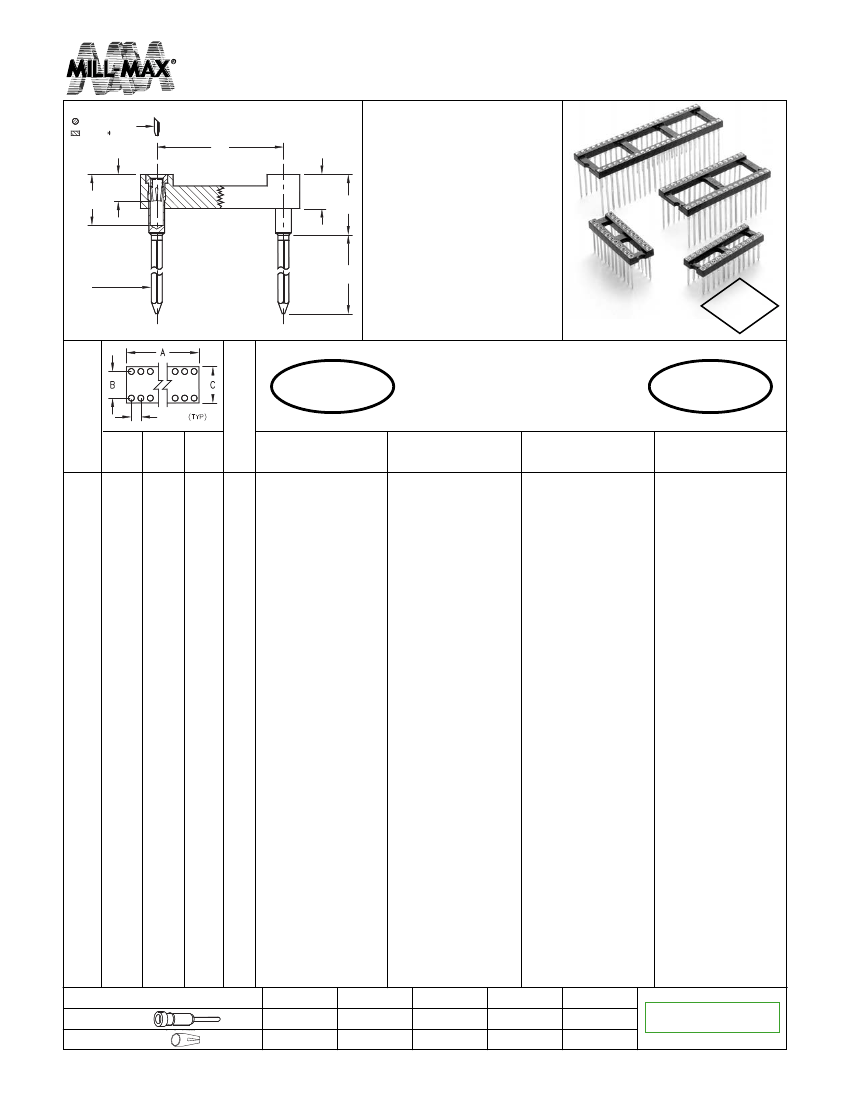

DUAL-IN-LINE SOCKETS

1 thru 4 Level Wrapost

Open Frame

0,38-.064

0,25 0,46

Series 121, 122, 123, 124

•

Solderless wrapost terminals

are firmly locked in the

insulator body to withstand

torque of a wrapping tool.

2,79

4,9

2,36

4,11

•

Hi-Rel, 4-finger BeCu #30

contact is rated at 3 amps.

See page 218 for details.

•

Series 121, 122, 123 and 124

use MM #0040, #0086, #0088

and #0089 pins. See page 166

for details.

•

Insulators are high temperature

thermoplastic.

0,64

SQUARE

2002/95/EC

RoHS

Total number

of pins

Quantity

per tube

For Electrical,

Mechanical & Enviromental

Data, See pg. 4

Ordering Information

2 Level Wrapost

L = 9,4

3 Level Wrapost

L = 12,95

XX=Plating Code

See Below

2,54

12,6

5,0

7,6

10,1

12,6

17,7

20,3

22,8

25,3

27,8

30,4

35,5

25,4

27,8

30,4

35,5

40,6

30,4

35,5

40,6

45,7

50,8

53,3

60,9

63,5

66,0

63,5

66,0

81,2

5,08

7,62

10,16

15,24

22,86

7,6

10,1

12,7

17,7

25,3

102

1 Level Wrapost

L = 6,6

4 Level Wrapost

L = 16,0

121-XX-210-41-001000 122-XX-210-41-001000 123-XX-210-41-001000 124-XX-210-41-002000

43 or 93 Plating Code ONLY

121-XX-304-41-001000

121-XX-306-41-001000

121-XX-308-41-001000

121-XX-310-41-001000

121-XX-314-41-001000

121-XX-316-41-001000

121-XX-318-41-001000

121-XX-320-41-001000

121-XX-322-41-001000

121-XX-324-41-001000

121-XX-328-41-001000

121-XX-420-41-001000

121-XX-422-41-001000

121-XX-424-41-001000

121-XX-428-41-001000

121-XX-432-41-001000

121-XX-624-41-001000

121-XX-628-41-001000

121-XX-632-41-001000

121-XX-636-41-001000

121-XX-640-41-001000

121-XX-642-41-001000

121-XX-648-41-001000

121-XX-650-41-001000

121-XX-652-41-001000

122-XX-304-41-001000

122-XX-306-41-001000

122-XX-308-41-001000

122-XX-310-41-001000

122-XX-314-41-001000

122-XX-316-41-001000

122-XX-318-41-001000

122-XX-320-41-001000

122-XX-322-41-001000

122-XX-324-41-001000

122-XX-328-41-001000

122-XX-420-41-001000

122-XX-422-41-001000

122-XX-424-41-001000

122-XX-428-41-001000

122-XX-432-41-001000

122-XX-624-41-001000

122-XX-628-41-001000

122-XX-632-41-001000

122-XX-636-41-001000

122-XX-640-41-001000

122-XX-642-41-001000

122-XX-648-41-001000

122-XX-650-41-001000

122-XX-652-41-001000

123-XX-304-41-001000

123-XX-306-41-001000

123-XX-308-41-001000

123-XX-310-41-001000

123-XX-314-41-001000

123-XX-316-41-001000

123-XX-318-41-001000

123-XX-320-41-001000

123-XX-322-41-001000

123-XX-324-41-001000

123-XX-328-41-001000

123-XX-420-41-001000

123-XX-422-41-001000

123-XX-424-41-001000

123-XX-428-41-001000

123-XX-432-41-001000

123-XX-624-41-001000

123-XX-628-41-001000

123-XX-632-41-001000

123-XX-636-41-001000

123-XX-640-41-001000

123-XX-642-41-001000

123-XX-648-41-001000

123-XX-650-41-001000

123-XX-652-41-001000

124-XX-304-41-002000

124-XX-306-41-002000

124-XX-308-41-002000

124-XX-310-41-002000

124-XX-314-41-002000

124-XX-316-41-002000

124-XX-318-41-002000

124-XX-320-41-002000

124-XX-322-41-002000

124-XX-324-41-002000

124-XX-328-41-002000

43 or 93 Plating Code ONLY

124-XX-420-41-002000

124-XX-422-41-002000

124-XX-424-41-002000

124-XX-428-41-002000

124-XX-432-41-002000

43 or 93 Plating Code ONLY

124-XX-624-41-002000

124-XX-628-41-002000

124-XX-632-41-002000

124-XX-636-41-002000

124-XX-640-41-002000

124-XX-642-41-002000

124-XX-648-41-002000

124-XX-650-41-002000

124-XX-652-41-002000

43 or 93 Plating Code ONLY

121-XX-950-41-001000 122-XX-950-41-001000 123-XX-950-41-001000 124-XX-950-41-002000

121-XX-952-41-001000 122-XX-952-41-001000 123-XX-952-41-001000 124-XX-952-41-002000

121-XX-964-41-001000 122-XX-964-41-001000 123-XX-964-41-001000 124-XX-964-41-002000



0,25μm Au

0,76μm Au

200μm Sn/Pb

SPECIFY PLATING CODE XX=



5,08μm Sn

0,76μm Au

For RoHS compliance

select



plating code.

Sleeve (Pin)

Contact (Clip)

0,76μ Au

w w w. m i l l - m a x . c o m



516-922-6000
