FREQ2CX-1CSM410000100C datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FREQ2CX-1CSM410000100C

FREQ2CX-1CSM410000100C: DescriptionQUARTZ CRYSTAL RESONATOR, 50 MHz - 250 MHz, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-2; CategoryPassive components Crystal/resonator; File Size476KB，2 Pages; ManufacturerIQD Frequency Products; Environmental Compliance

Download Datasheet Parametric View All

FREQ2CX-1CSM410000100C Overview

QUARTZ CRYSTAL RESONATOR, 50 MHz - 250 MHz, ROHS COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-2

FREQ2CX-1CSM410000100C Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1085750433
package instruction	ROHS COMPLIANT, HERMETIC SEALED, CERAMIC PACKAGE-2
Reach Compliance Code	compliant
Other features	AT-CUT CRYSTAL; TAPE AND REEL; TRAY
Ageing	5 PPM/FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	200 µW
frequency stability	0.01%
frequency tolerance	10000 ppm
load capacitance	10 pF
Installation features	SURFACE MOUNT
Maximum operating frequency	250 MHz
Minimum operating frequency	50 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L8.0XB3.56XH1.83 (mm)/L0.315XB0.14XH0.072 (inch)
surface mount	YES

Preview

Download Datasheet

View All

CX-1-SM

(8MHz to 250MHz)

ISSUE 7; 1 NovEMbEr 2008 – roHS 2002/95/EC

Description

outline (mm)

▪

QUARTZ

CRYSTALS

Statek’s CX-1-SM crystals are high quality chemically etched

resonators manufactured with a photo lithographic process

Hermetically sealed ceramic package with a glass or ceramic

lid

8.0

▪

Terminations

SM1 - gold plated (lead free)

– roHS 2002/95/EC

SM3 - nickel solder dipped

SM4 - solder plated (lead free)

– roHS 2002/95/EC

SM5 - solder dipped (lead free)

– roHS 2002/95/EC

Vapor phase, infrared or silver epoxy

2.66

3.56

Holder Style

*Package height:-

Glass lid Ceramic lid

SM1 1.65

1.78

SM2 1.70

1.83

SM3 1.78

1.90

SM4 1.70

1.83

SM5 1.78

1.90

Solder pad layout

1.52

SM2 - nickel solder plated

1.14

1.78

6.86

Methods of Attachment

General Specifications

Load Capacitance (CL): 20pF < 50MHz, 10pF >50MHz

Other values available upon request

Static Capacitance (C0): 2.0pF to 3.5pF

Drive Level: 500µW max for F<50MHz

200µW max for F>50MHz

∆

f/f

(ppm)

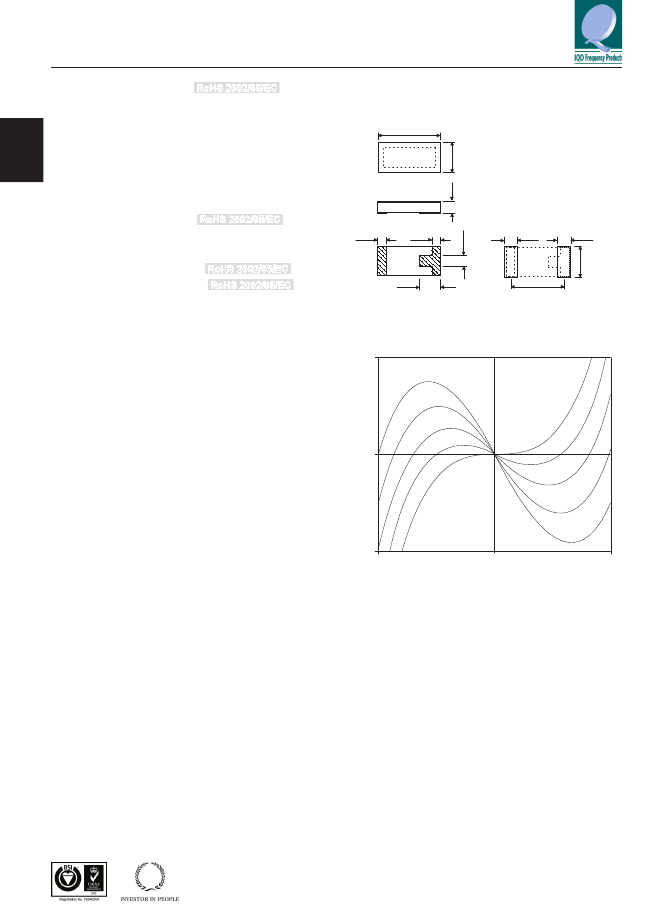

Frequency Temperature Curve

+25

Ageing: ±5ppm maximum first year

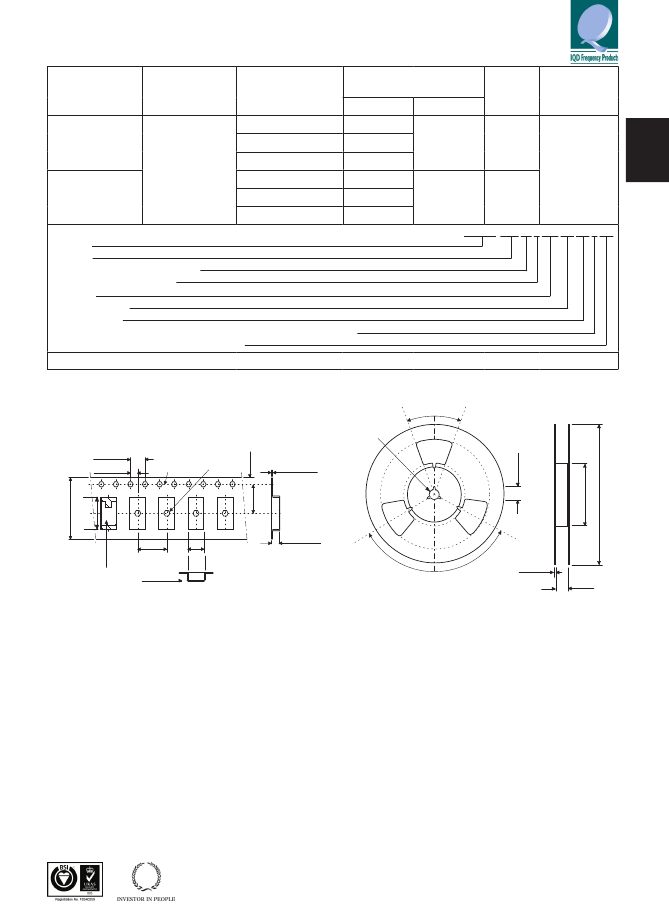

Tray pack or tape and reel

±100ppm, ±1000ppm, ±10000ppm

*Tighter tolerances available on request

–10 to 70°C

–40 to 85°C

–55 to 125°C

Shock: 30000g, 0.3ms

sine

Vibration: 20g rms, 10 to 2000Hz random

Frequency

Frequency + Model + Terminations + Frequency Tolerance @

25°C + Operating Temperature Range + Circuit Condition

= I

Packaging

Standard Frequency Tolerances*

operating Temperature ranges

–25

–50

–20

+25

Temperature (°C)

+70

4.06

+100

Storage Temperature range

Environmental Specification

Marking Includes

Minimum order Information required

IQD Frequency Products Ltd, Station Road, Crewkerne, Somerset TA18 8AR, United Kingdom

Tel: +44 (1460) 270200; Fax: +44 (1460) 72578;

Email: info@iqdfrequencyproducts.com Web: www.iqdfrequencyproducts.com
