Characteristics and Types of CERALOCK
®
MHz Band Chip CERALOCK
®
(CSACW/CSTCC/
CSTCR/CSTCE/CSTCW Series)
The MHz band Chip CERALOCK
®
has a wide frequency
range and small footprint to meet further down sizing
and high-density mounting requirements.
The table shows the dimensions and two terminals
standard land patterns of the CERALOCK
®
CSACW
series.
The second table shows the dimensions and three
terminals standard land patterns of CSTCC/CSTCR/
CSTCE/CSTCW series chip resonator (built-in load
capacitance type). And the carrier tape dimensions of
CSTCR series are shown on the next page.
!Part
Numbering
(Ex.)

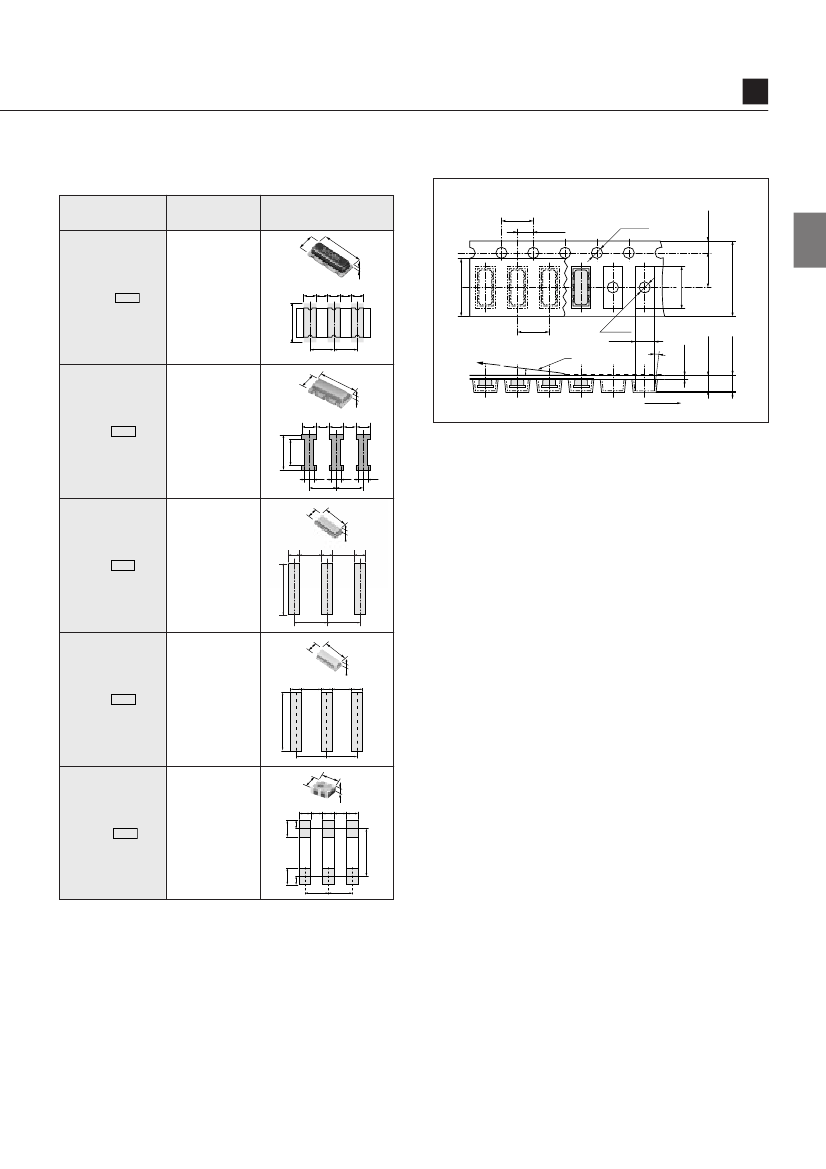

!Dimensions
and Standard Land Pattern of Chip
CERALOCK
®
(CSACW Series)
Part Number
Frequency (MHz)
Dimensions
Standard Land Pattern (in mm)
2.
0
1
2.5
1.0
∗1
0.5
0.5
CSACW
X
20.01–70.00
0.8
0.3
0.8
0.3
2.0
∗1
Thickness varies with frequency.
CS
q
T
w
CR
e
4M00
r
G
t
5
y
3
u
i
-R0
o
qProduct
ID
wFrequency/No
capacitance built-in
A : No Capacitance Built-in, T : Built-in Capacitance
eStructure/Size
CC/CR/CE : Cap Chip Type, CW : Monolithic Chip Type
rNominal
Center Frequency
tType
G : Thickness Shear Vibration,
V : Thickness Longitudinal Vibration,
X : Thickness Longitudinal Vibration (3rd overtone)
yFrequency
Tolerance
1 : ±0.1%, 2 : ±0.2%, 3 : ±0.3%, 5 : ±0.5%, Z : Others
uLoad
Capacitance Value
(In case of CSACW, value is for external capacitance of
standard circuit)
1 : 5pF or 6pF, 2 : 10pF, 3 : 15pF, 5 : 33pF or 39pF,
6 : 47pF
iIndividual
Specification
With standard products, "i individual Specification" is
omitted, and "o Package Specification Code" is carried up.
oPackaging
–B0 : Bulk,
–R0 : Plastic Taping
φ180mm
Reel Package
8
2.0±0.2
!Note
Please read rating and
!CAUTION
(for storage, operating, rating, soldering, mounting and handling) in this PDF catalog to prevent smoking and/or burning, etc.
This catalog has only typical specifications. Therefore, you are requested to approve our product specifications or to transact the approval sheet for product specificaions before ordering.
P17E14.pdf 04.8.24
Characteristics and Types of CERALOCK
®
1
!Dimensions
and Standard Land Pattern of Chip
CERALOCK
®
(CSTCC/CSTCR/CSTCE/CSTCW Series)
Part Number
Dimensions
Frequency (MHz)
Standard Land Pattern (in mm)
0
3.
!Dimensions
of Carrier Tape for Chip CERALOCK
®
CSTCR Series
4.0±0.1
2.0±0.05
W0.1
ø1.5
Y0
1.75±0.1
7.2
12.0±0.2
∗1
1
(3) (2) (1)
CSTCC
G
2.00–3.99
3.8~4.4
1.2 1.2 1.4 1.2 1.2
4.0±0.1
2.5
2.
0
3˚ max.
2.5
4.5
1.2
Direction of Feed
0.3±0.05
The cover film peel strength force 0.1 to 0.7N
The cover film peel speed 300mm/min.
Cover Film
10˚
1.25±0.05
(1.85 max.)
(in mm)
W0.1
ø1.5
Y0
2.2±0.1
0.8 0.7 0.8 0.7 0.8
CSTCR
G
*2
4.00–7.99
2.6
1.6
0.4
1.5
3
1.
0.4
1.5
0.4
3.2
0.8
0.4 0.8 0.4 0.8
0.4
CSTCE
G
*2
8.00–12.50
1.90 ~ 2.10
1.2
3
1.
1.2
3.2
1.0
0.3 0.65 0.3 0.65 0.3
CSTCE
V
*2
12.51–20.00
1.6
0.95
0.95
2.
0
2.5
∗1
0.5 0.5 0.5 0.5 0.5
CSTCW
X
*2
20.01–70.00
0.8
0.3
1.0
0.8
0.3
1.0
1.0
∗1
Thickness varies with frequency
∗2
Conformal coating or washing of the components is not acceptable
because they are not hermetically sealed.
2.00±0.2
4.7±0.1
(9.5)
5.5±0.05
1.6
9
PCB Design
