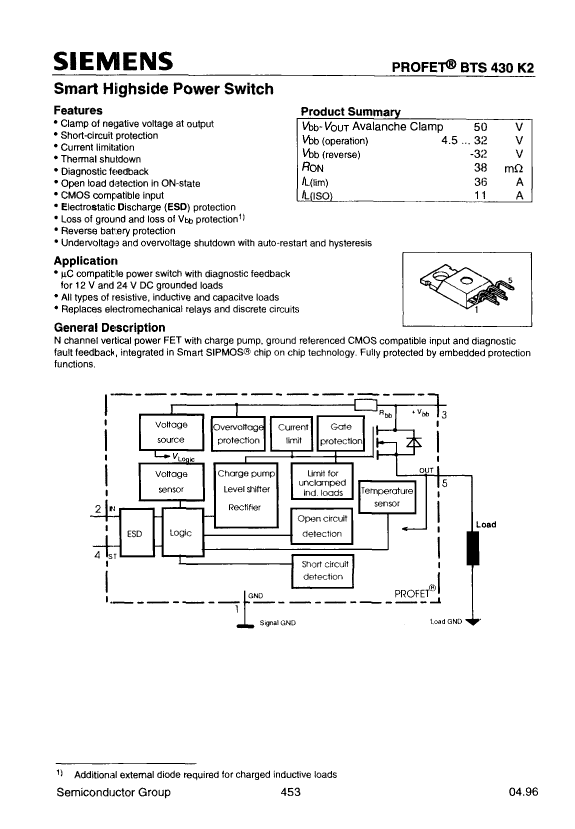

Preview

BTS430K2E3043: DescriptionBuffer/Inverter Based Peripheral Driver, 36A, MOS, PSFM5; CategoryAnalog mixed-signal IC Drivers and interfaces; File Size266KB，13 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

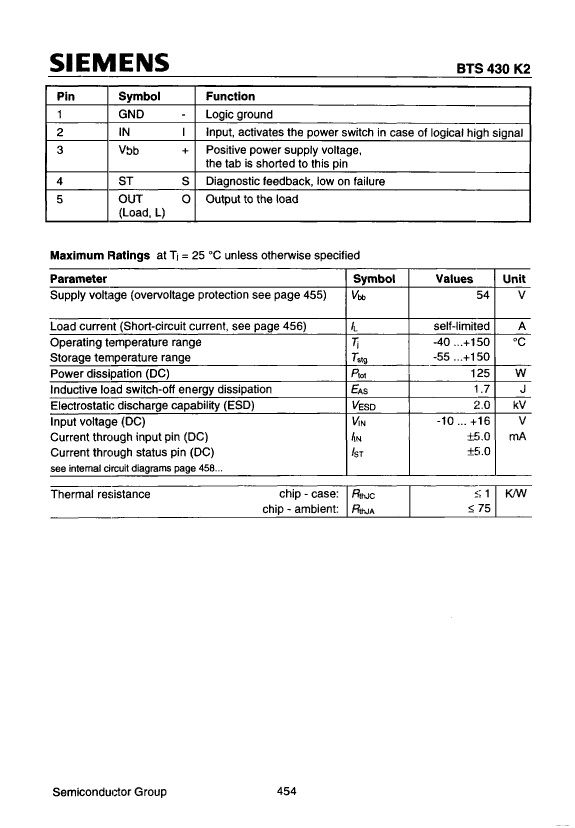

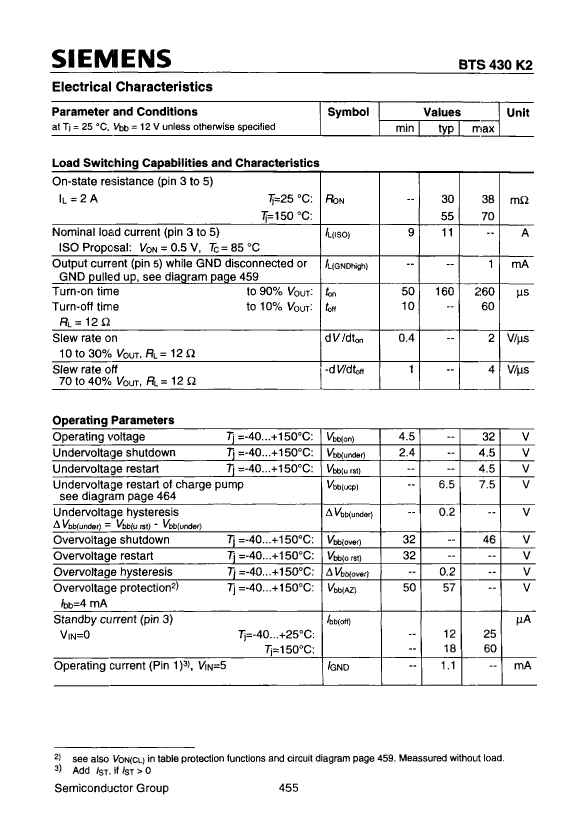

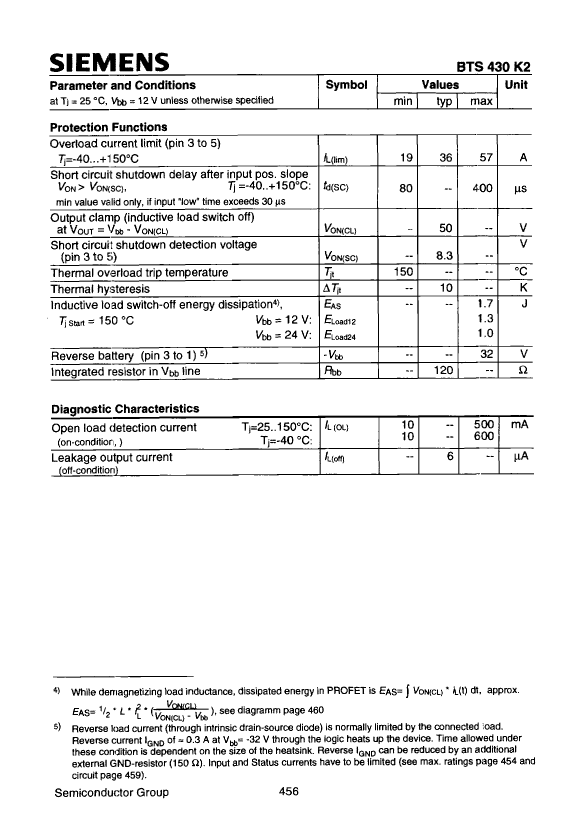

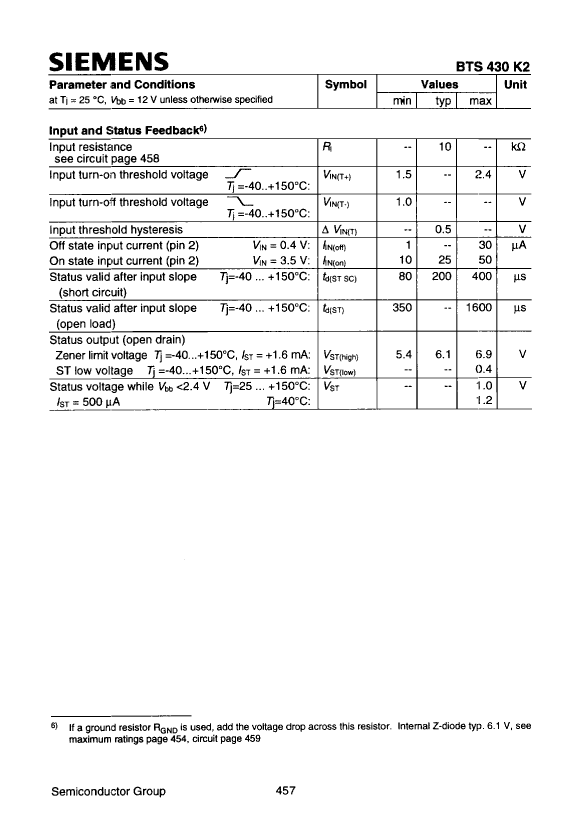

BTS430K2E3043 Overview

Buffer/Inverter Based Peripheral Driver, 36A, MOS, PSFM5

BTS430K2E3043 Parametric

Parameter Name	Attribute value
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Input properties	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSFM-T5
Number of functions	1
Number of terminals	5
Output characteristics	OPEN-SOURCE
Output current flow direction	SOURCE
Nominal output peak current	36 A
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum supply voltage	32 V
Minimum supply voltage	4.5 V
Nominal supply voltage	12 V
surface mount	NO
technology	MOS
Terminal form	THROUGH-HOLE
Terminal location	SINGLE
Disconnect time	60 µs
connection time	260 µs
Base Number Matches	1

Preview

Download Datasheet

View All

BTS430K2E3043 Related Products

	BTS430K2E3043	BTS67060S6200-A3	BTS67060S6200-A4	BTS67060S6200-A2	BTS430K2E-3043	BTS430K2E3122A	BTS430K2E-3122A
Description	Buffer/Inverter Based Peripheral Driver, 36A, MOS, PSFM5	Buffer/Inverter Based Peripheral Driver, 36A, MOS, PSFM5	Buffer/Inverter Based Peripheral Driver, 36A, MOS, PSSO5	Buffer/Inverter Based Peripheral Driver, 36A, MOS, PSFM5	36A BUF OR INV BASED PRPHL DRVR, PSFM5	Buffer/Inverter Based Peripheral Driver, 36A, MOS, PSSO5	36 A BUF OR INV BASED PRPHL DRVR, PSSO5
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Built-in protection	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE	OVER CURRENT; OVER VOLTAGE; THERMAL; UNDER VOLTAGE
Input properties	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER	SCHMITT TRIGGER
Interface integrated circuit type	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER	BUFFER OR INVERTER BASED PERIPHERAL DRIVER
JESD-30 code	R-PSFM-T5	R-PSFM-T5	R-PSSO-G5	R-PSFM-T5	R-PSFM-T5	R-PSSO-G5	R-PSSO-G5
Number of functions	1	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5	5
Output characteristics	OPEN-SOURCE	OPEN-SOURCE	OPEN-SOURCE	OPEN-SOURCE	OPEN-SOURCE	OPEN-SOURCE	OPEN-SOURCE
Output current flow direction	SOURCE	SOURCE	SOURCE	SOURCE	SOURCE	SOURCE	SOURCE
Nominal output peak current	36 A	36 A	36 A	36 A	36 A	36 A	36 A
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	SMALL OUTLINE	FLANGE MOUNT	FLANGE MOUNT	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	32 V	32 V	32 V	32 V	32 V	32 V	32 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	12 V	12 V	12 V	12 V	12 V	12 V	12 V
surface mount	NO	NO	YES	NO	NO	YES	YES
technology	MOS	MOS	MOS	MOS	MOS	MOS	MOS
Terminal form	THROUGH-HOLE	THROUGH-HOLE	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Disconnect time	60 µs	60 µs	60 µs	60 µs	60 µs	60 µs	60 µs
connection time	260 µs	260 µs	260 µs	260 µs	260 µs	260 µs	260 µs
Base Number Matches	1	1	1	1	1	1	1
ECCN code	EAR99	EAR99	EAR99	EAR99	-	EAR99	-
