TECHNICAL DATA SHEET
F 728 103 500
Series
F728
Packaging Issue
100
31Dec.10
Page
1/1
SC

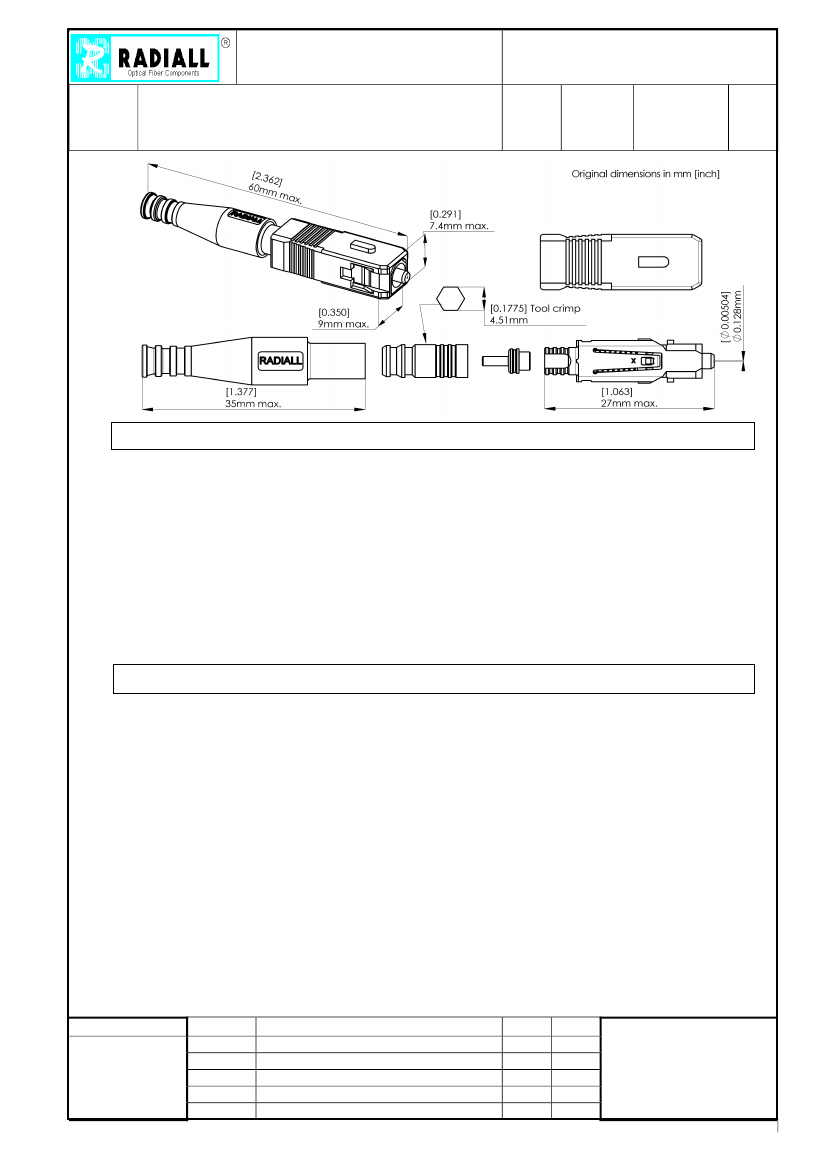

MULTIMODE FIBER OPTIC CONNECTOR
Outer plug body and boot: color beige
GENERAL
Type
: IEC 61754-4 type SC
Multimode, zirconia ceramic ferrule (20 mm pre-radius)
Push-pull latching system, floating ferrule
360° tunable (adjustable to 6 positions for opt imization of random insertion loss)
: 128 µm
: 50/125; 62.5/125µm, multimode
: Ø 2mm, tight or semi loose structure
Ferrule size
Fiber size
Cable
Cabling proc.
: Refer to 503 08 400 (D 6121 oe), assembly instruction manual
CHARACTERISTICS
(
Dependant on fiber or cable construction
)
Optical
: Attenuation at 850 and 1310nmwith led source, at EMD condition
STD
(IEC 61300-2-40)
Mean
Standard deviation
Max
Mean
Repeatability
Return loss
< 0.2 dB
0.08 dB
< 0.75dB, 95%
0.25 dB
0.10 dB
>20 dB
(
Attenuation plug mated with
reference plug IEC 61300-3-4)
(
Attenuation of random mated
connectors IEC 61300-3-34)
(
Maximum loss variation, IEC 61300-2-2)
(
IEC 61300-3-6)
Mechanical
: Mechanical endurance
Cable retention
500 matings
100N
-40 to +85 °
C
Environmental
: Temperature range (storage/operating)
CREATION
N°:
PEN/EP: CAT.
Name: PB
Date: 11 Aug. 99
Appr.:
LV
31 Dec. 10
Mise à jour performances optiques et mécaniques
Issue
Revisions
SP
Name
HD
Appr.
RADIALL
101, rue P. Hoffmann
93116 ROSNY/BOIS
FRANCE
Tel : (33) 0149353535
Fax : (33) 0148546363
4112-9212 This information is given as an indication. In the continual goal to improve our products, we reserve the right to make any modifications judged necessary
