ABSM33A-54.000MHZ-33-B-2-T: DescriptionQUARTZ CRYSTAL RESONATOR, 54MHz, SMD, 4 PIN; CategoryPassive components Crystal/resonator; File Size1MB，2 Pages; ManufacturerAbracon; Websitehttp://www.abracon.com/index.htm; Environmental Compliance

Download Datasheet Parametric View All

ABSM33A-54.000MHZ-33-B-2-T Overview

QUARTZ CRYSTAL RESONATOR, 54MHz, SMD, 4 PIN

ABSM33A-54.000MHZ-33-B-2-T Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1337726079
package instruction	SMD, 4 PIN
Reach Compliance Code	compliant
Country Of Origin	South Korea
YTEOL	6.17
Other features	AT-CUT; TR, 13 INCH
Ageing	5 PPM/YEAR
Crystal/Resonator Type	PARALLEL - 3RD OVERTONE
Drive level	1000 µW
frequency stability	0.01%
frequency tolerance	20 ppm
load capacitance	33 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	54 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-20 °C
physical size	L12.5XB4.95XH3.8 (mm)/L0.492XB0.195XH0.15 (inch)
Series resistance	100 Ω
surface mount	YES

Preview

Download Datasheet

View All

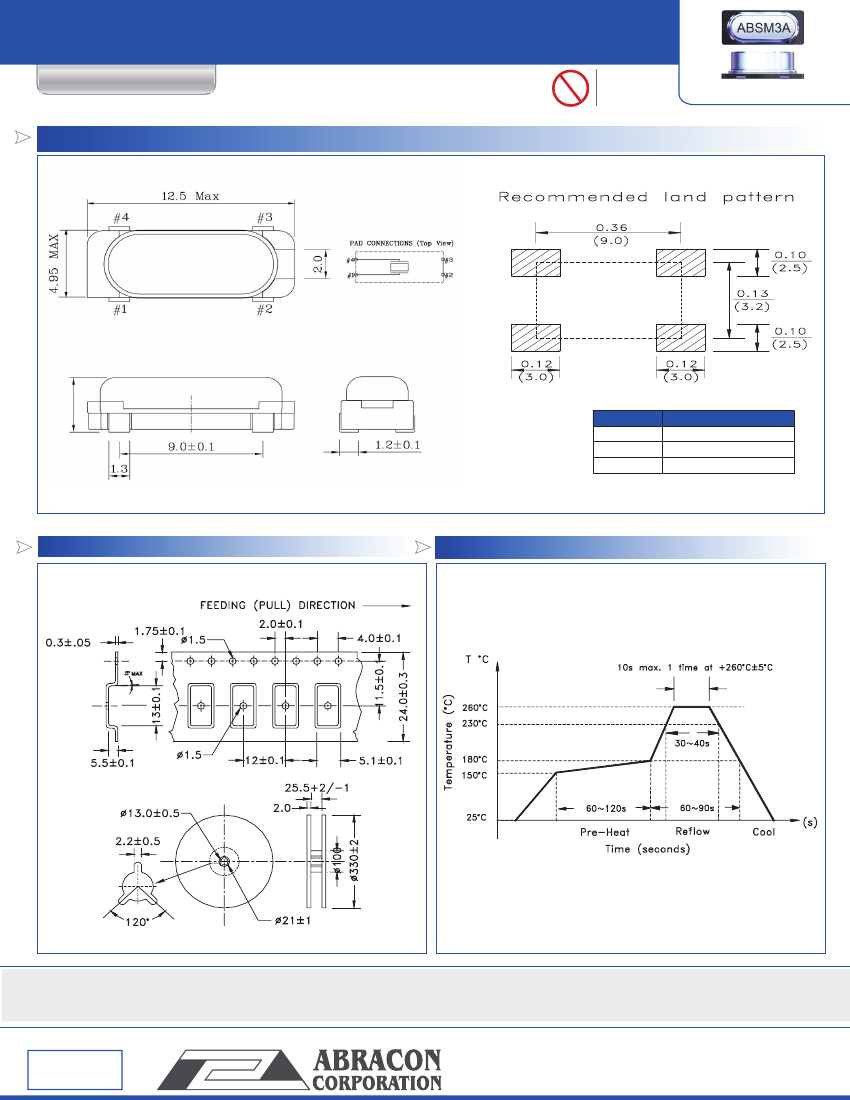

MICROPROCESSOR AT49 4 PADS SMD CRYSTAL

ABSM3A

FEATURES:

• Excellent all-purpose surface-mount crystal.

• Four pad land pattern compatible with common

plastic molded designs.

RoHS

Compliant

12.5 x 4.95 x H

| | | | | | | | | | | | | | |

APPLICATIONS:

• Home electronics

• Computers, modems, and communications

• Clock applications

• Microprocessors

STANDARD SPECIFICATIONS:

ABRACON P/N:

Frequency:

Operation mode:

ABSM3A Series

3.579545 MHz to 54 MHz

AT-strip ( see options)

3.579545 MHz - 30.00 MHz

(Fundamental AT)

40.00 MHz - 54.00 MHz

(3rd OT AT)

30 MHz - 48.00 MHz

(Fundamendal BT)

Operating temperature:

- 10°C to + 60°C (see options)

Storage temperature:

- 40°C to + 85° C

Frequency tolerance:

± 50 ppm max. (see options)

Frequency stability over:

± 100 ppm max. (see options)

Equivalent series resistance (max.): See Table 1

Shunt capacitance C0:

7.0pF max.

Load capacitance CL:

18.0pF (see option)

Drive level:

1mW max., 100µW correlation

Aging (per year) @ 25° C:

± 5 ppm max.

Insulation resistance:

500 MΩmin. at 100 Vdc ± 15 Vdc

PARAMETERS

Table 1 Standard ESR

Frequency (MHz)

3.579545 - 3.999

4.000 - 4.999

5.000 - 6.999

7.000 - 14.999

15.000 - 50.0 (fund)

ESR( ) max.

180

150

100

OPTIONS & PART IDENTIFICATION:

(Left blank if standard)

ABSM3 A - Frequency -

-R

Height max.

Blank

0.20 (5.1)

0.18 (4.5)

0.15 (3.8)

Frequency

XX.XXX MHz

Load Capacitance

Please specify CL in pF or S

for Series (10 to 33pF)

Operating Temp.

0°C to + 70°C

-20°C to +70°C

-30°C to +70°C

-30°C to +85°C

-40°C to +85°C

Freq. Tolerance

± 10 ppm

± 15 ppm

± 20 ppm

± 25 ppm

± 30 ppm

* -10°C to 60°C only

** Temp option E, B, C and N only

Note: Fundamental BT frequency stability

±100ppm max. at -10°C to +60°C only

Packaging

Tape and

Reel

Mode

Fundamental AT

for F>30MHz

Fundamental BT

for F>30MHz

RXXX (Value in

Ω

)

Custom ESR

If it is custom

Freq. Stability

± 10 ppm

G**

± 15 ppm

± 20 ppm

± 25 ppm

± 30 ppm

± 35 ppm

± 50 ppm

ABRACON IS

ISO 9001 / QS 9000

CERTIFIED

Revised:

08.2

30332 Esperanza, Rancho Santa Margarita, California 92688

tel 949-546-8000

fax 949-546-8001

| www.abracon.com
