DE09PT2SL30 datasheet, PDF - EEWORLD Datasheet

DE09PT2SL30: DescriptionD Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Wire Wrap Terminal, #4-40, Receptacle; CategoryThe connector The connector; File Size424KB，3 Pages; ManufacturerAdam Tech

Download Datasheet Parametric View All

DE09PT2SL30 Overview

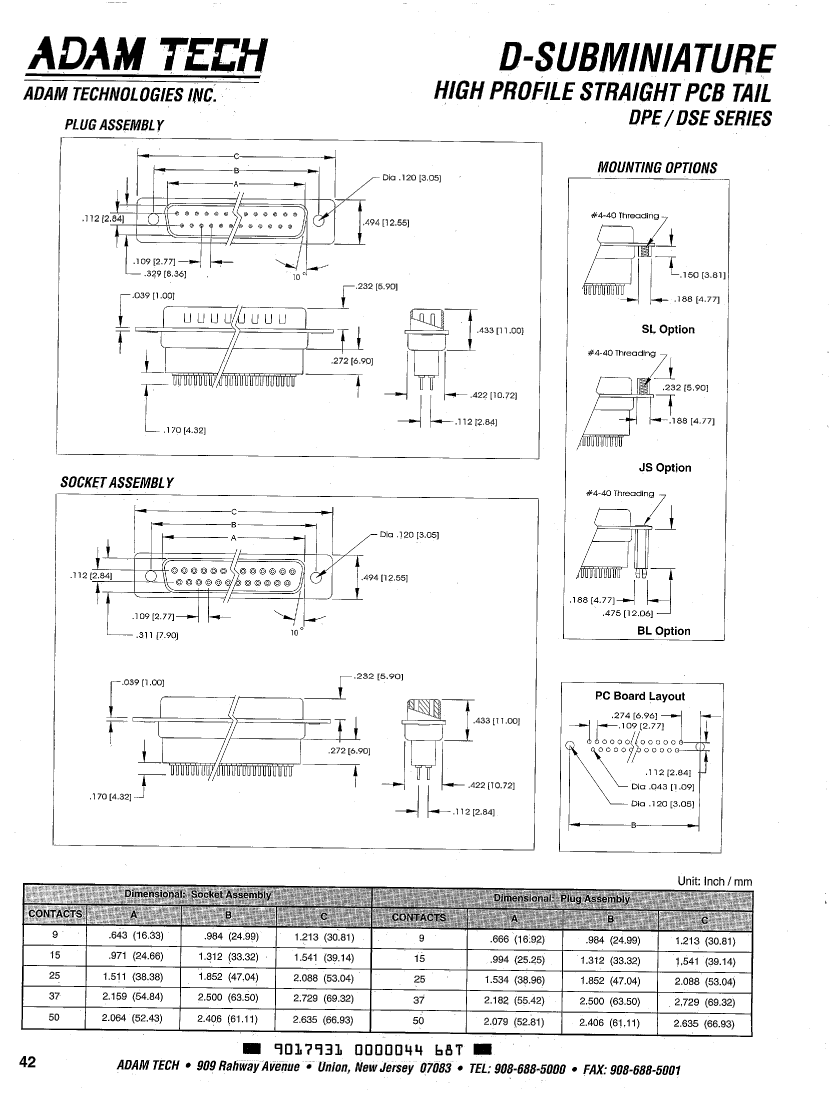

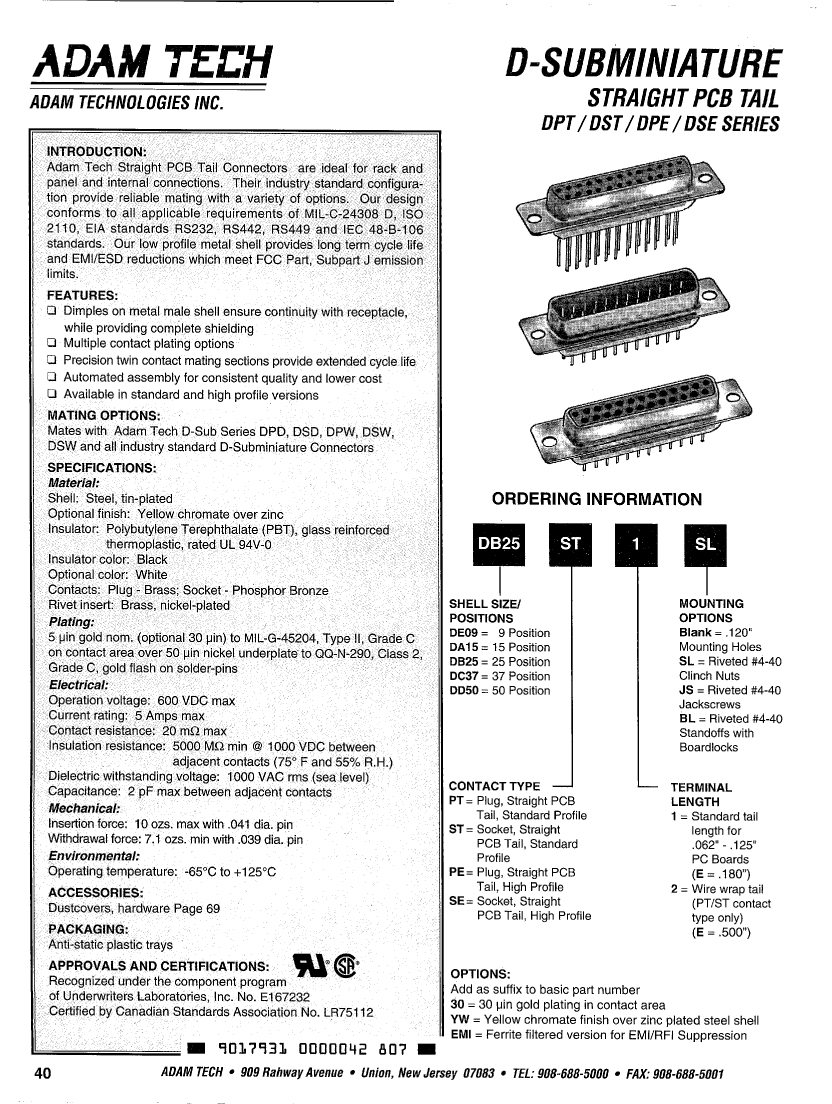

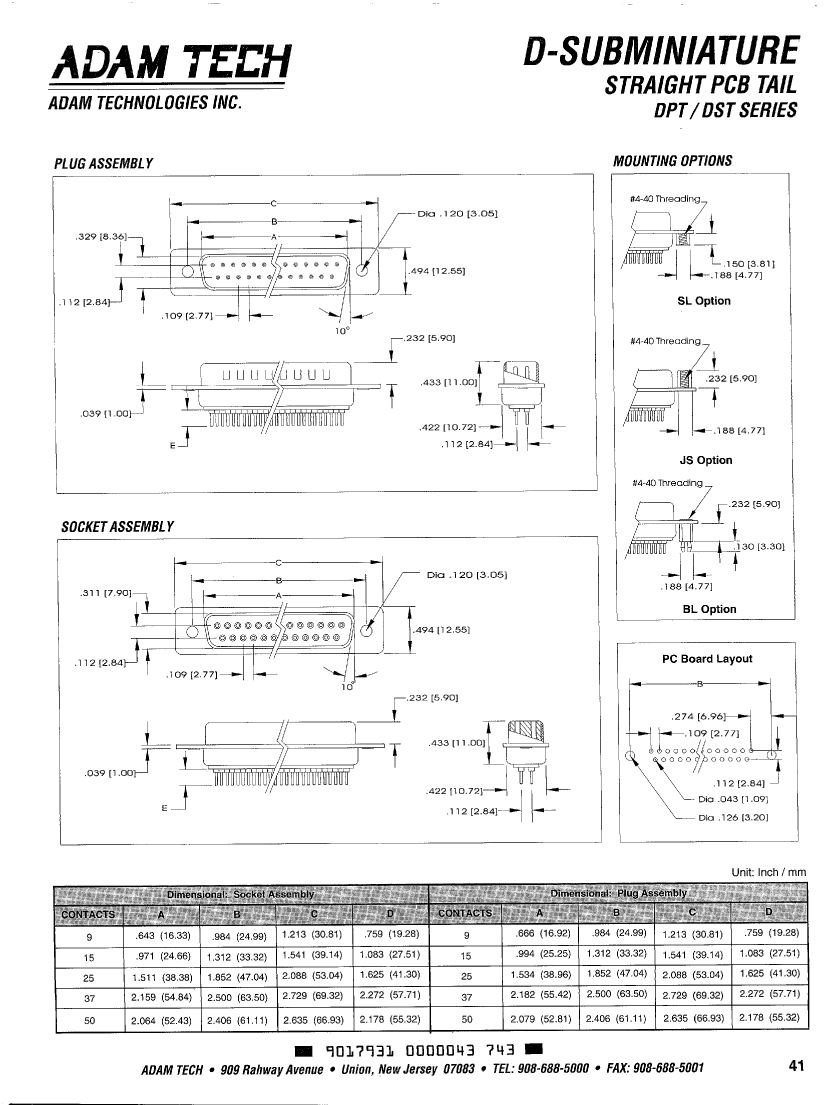

D Type Connector, 9 Contact(s), Male, 0.109 inch Pitch, Wire Wrap Terminal, #4-40, Receptacle

Parameter Name	Attribute value
Objectid	1166235738
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	2
body width	0.494 inch
body length	1.213 inch
Body/casing type	RECEPTACLE
Contact to complete cooperation	AU ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	STAGGERED
Contact resistance	20 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
maximum insertion force	2.78 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
MIL compliance	YES
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Installation option 1	#4-40
Installation option 2	CLINCH NUT
Installation method	STRAIGHT
Installation type	BOARD
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.8448 mm
Plating thickness	30u inch
Rated current (signal)	5 A
Guideline	UL, CSA
reliability	MIL-C-24308
Shell surface	TIN
Shell material	STEEL
Terminal length	0.5 inch
Terminal pitch	2.7686 mm
Termination type	WIRE WRAP
Total number of contacts	9
Evacuation force-minimum value	1.946 N
