M24308/4-3GF: DescriptionD Subminiature Connector; CategoryThe connector The connector; File Size29KB，1 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric View All

M24308/4-3GF Overview

D Subminiature Connector

M24308/4-3GF Parametric

Parameter Name	Attribute value
Objectid	1839592359
Reach Compliance Code	unknown
ECCN code	EAR99
YTEOL	8.5
Other features	STANDARD: MIL-DTL-24308
body width	0.494 inch
subject depth	0.375 inch
body length	2.09 inch
Body/casing type	PLUG
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	MALE
contact mode	STAGGERED
Contact resistance	7.3 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
empty shell	YES
Filter function	NO
maximum insertion force	5 N
Insulation resistance	5000000000 Ω
insulator material	POLYETHYLENE/THERMOSET
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation type	CABLE
Number of connectors	ONE
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
Rated current (power)	7.5 A
Guideline	MIL
Shell surface	CADMIUM
Shell material	BRASS/STEEL
Housing size	3/B
Termination type	CRIMP
Total number of contacts	25
Maximum wire diameter	20 AWG
Minimum wire diameter	28 AWG
Evacuation force-minimum value	5 N

Preview

Download Datasheet

View All

O

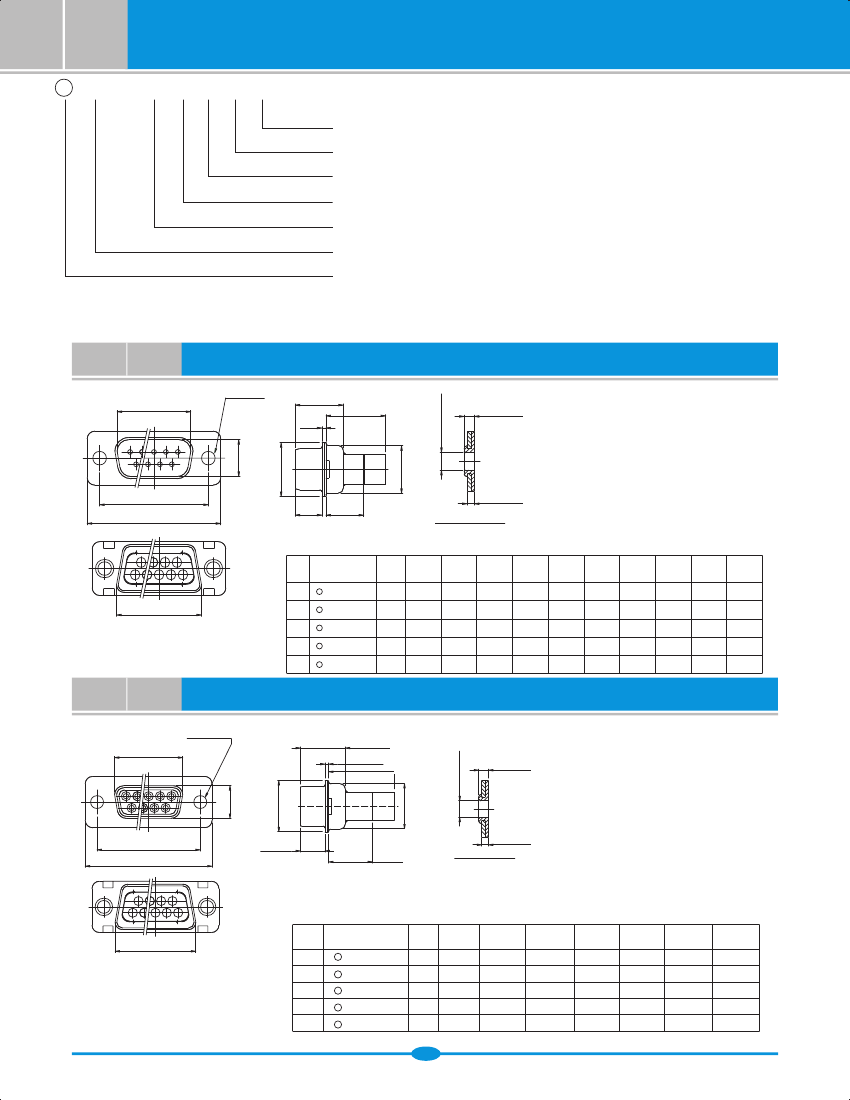

rdering Information For Standard D Sub Grommet Type Connector (Crimp Type Contact)

X X X X

Series: M2000

Connector Type :

4 - Plug Connector with Pin Contact

Special Option (Nil

Crimp Type, Rear Release,

for standard version)

Rear Removable

2 - Socket Connector with Socket

Plating Finish

Contact Crimp Type, Rear

Release, Rear Removable

Grommet Type

Shell Size

Connector Type

Series

Manufacturers

Logo

Grommet Type :

G- Silicon Elastomer Grommet

Shell Size :

1-9 pin

2-15 pin

3-25 pin

4-37 pin

5-50 pin

Finish :

F-Cadmium plate with

yellow passivation

Z - Zinc Plated,

N - Nickel Plated,

T - Tin Plated

A M2000/ X

Special Option :

L- Launch vehicle application

Plug Connector With Pin Contact (with Grommet) - Rear Removable

ø 3.05±0.13

`H'

15.18

MAX.

`K'

ø 3.05±0.13

1.78 MAX.

`A'

(2 HOLES)

`B'

`G'

`F'

`C'

1.24 MAX.

`J'

`D'

9.53

MAX.

STD-THROUGH HOLE.

Sr.

NO.

1

`E'

CONNECTOR

NO.

A M2000/4-1GF

A M2000/4-2GF

A M2000/4-3GF

A M2000/4-4GF

A M2000/4-5GF

SHELL

SIZE

1

2

3

4

5

`A'

± 0.13

16.92

25.25

38.96

55.42

52.81

`B'

± 0.13

8.36

11.20

`C'

± 0.13

24.99

33.32

47.04

63.50

61.11

`D'

± 0.38

30.81

39.14

53.04

69.32

66.93

`E'

± 0.25

19.28

27.51

41.30

57.71

55.32

`F'

± 0.38

12.55

15.37

`G'

± 0.25

10.72

13.56

`H'

± 0.25

10.72

10.82

`J'

± 0.15

5.97

5.84

`K'

± 0.25

0.76

0.99

2

3

4

5

Receptacle Connector With Socket Contact (with Grommet)-Rear Removable

ø 3.05±0.13

(2 HOLES)

10.90±0.25

0.76±0.25

15.18MAX.

ø 3.05±0.13

`A'

1.78 MAX.

`B'

`S`

`F'

`C'

`D'

1.24 MAX.

6.17±0.13

9.53

MAX.

STD-THROUGH HOLE.

`E'

Sr.

NO.

1

2

3

4

5

CONNECTOR

NO.

A M2000/2-1GF

A M2000/2-2GF

A M2000/2-3GF

A M2000/2-4GF

A M2000/2-5GF

SHELL

`A'

SIZE ± 0.13

1

2

3

4

5

16.33

24.66

38.38

54.84

52.43

`B'

± 0.13

7.90

10.74

`C'

± 0.13

24.99

33.32

47.04

63.50

61.11

`D'

± 0.38

30.81

39.14

53.04

69.32

66.93

`E'

± 0.25

19.28

27.51

41.30

57.71

55.32

`F'

± 0.38

12.55

15.37

`G'

± 0.25

10.72

13.56

23
