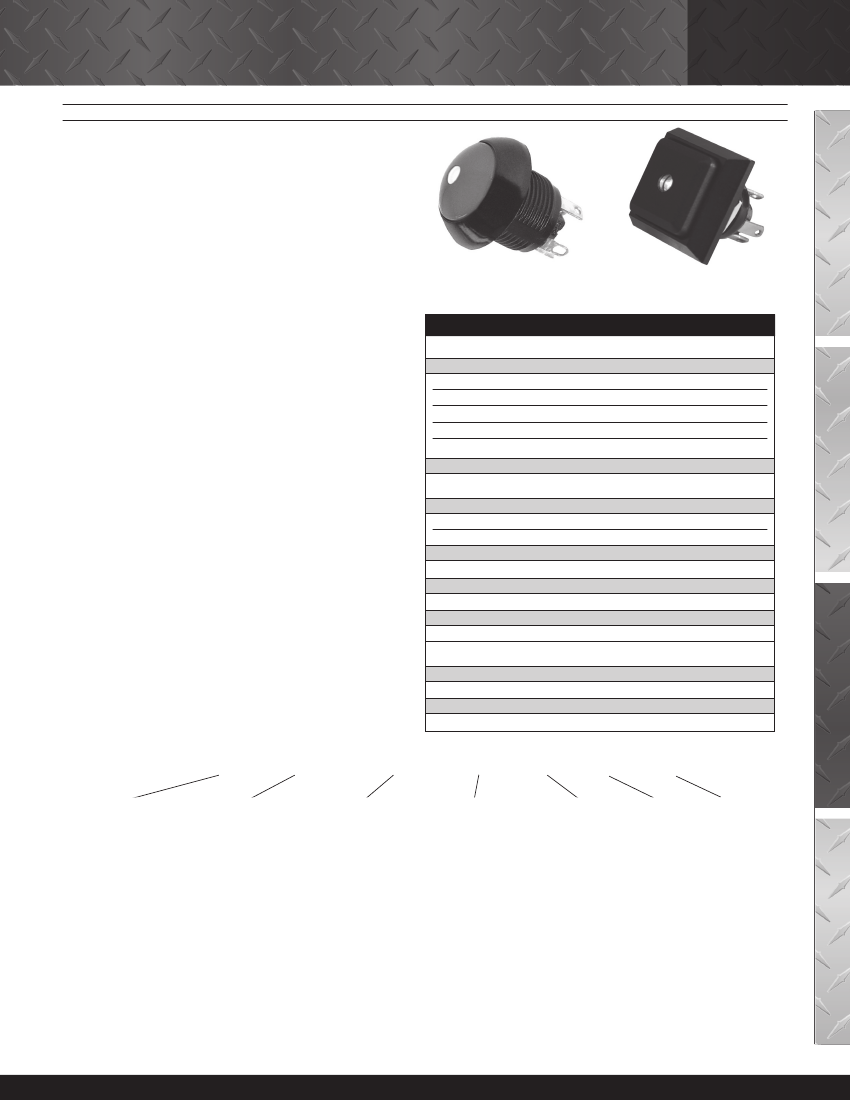

SEALED ILLUMINATED DOME PUSHBUTTONS
The LP7-D series pushbutton switches feature a contoured
round dome style or square pushbutton. While sharing similar
size and characteristics to the P9 series, the LP7-D offers
added durability with its anodized aluminum alloy case.
Button versions include flush or raised round dome in glossy or
matte finish and raised square in matte finish. The switch series
features short behind panel depth. It also offers excellent
mechanical and electrical performance while operating under
severe conditions found in demanding applications.
The LP7-D Dome series offers one million mechanical
operations and an electrical life of 25,000 operations.
The LP7-D series is manufactured to the highest standards
and built to withstand harsh environments, offering anodized
aluminum alloy cases with seal options of dusttight to IP64
or watertight to IP68S. The LP7-D series offers long life LED
lighting in a variety of colors and can accommodate 2 & 12VDC
power.
The LP7-D Dome series is a quality precision switch designed
for use in panels, control grips, computers, instruments, heavy
equipment and other demanding applications where attractive,
highly ruggedized pushbutton switches are required.
ILLUMINATED
PUSHBUTTONS
LP7-D
MOMENTARY ACTION, ATTRACTIVE & HIGHLY RUGGEDIZED FOR WET & DUSTY ENVIRONMENTS

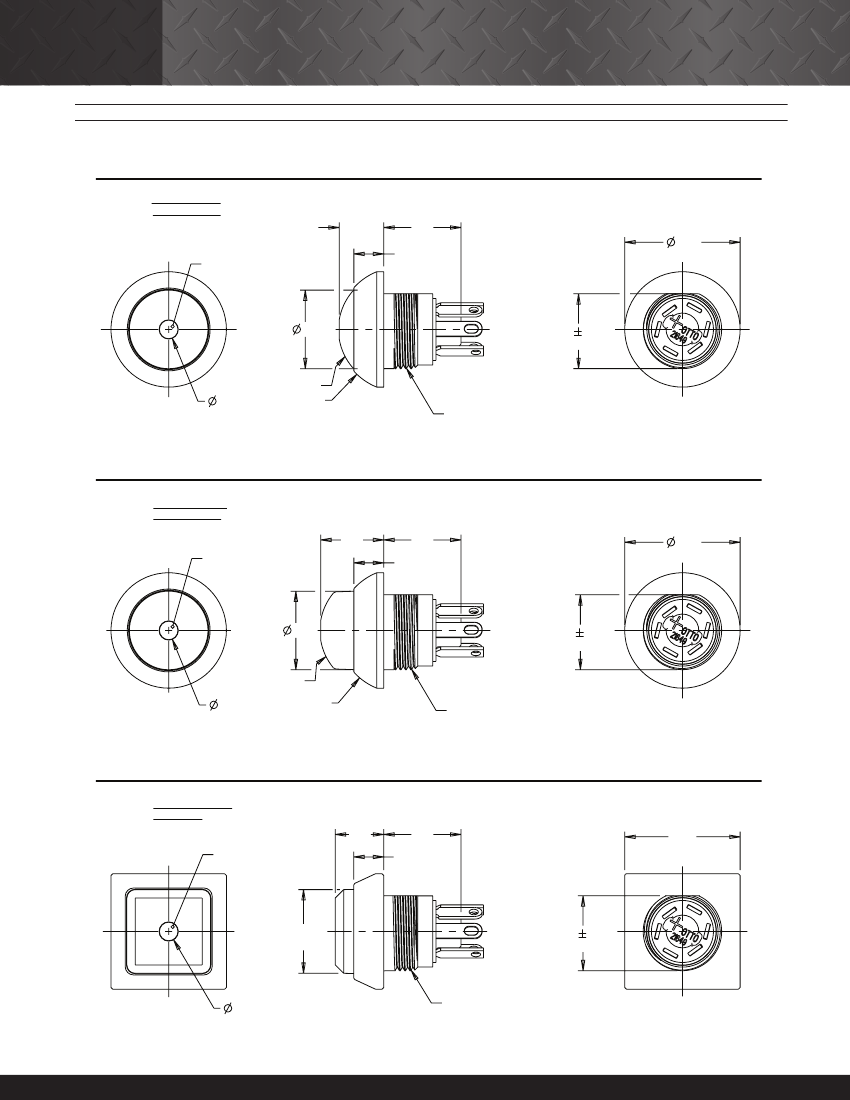

Flush Dome
Also available with
Raised Dome
Square Dome
with Matte Finish
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
Motor
DWV
Logic Level
Electrical Life:
N.O./N.C.
5A
3A
3A
10mA @ 5VDC
25,000 cycles
Sea Level @ 28VDC or 115VAC
S.P.D.T
4A
2A
N/A
1050Vrms through switch contacts only
LIGHTING:
Light Source Voltage (DC)
2
12
Mechanical Life:
Seal:
Operating Force:
Total Travel:
Overtravel:
1,000,000 cycles
IP64 or IP68S
1.7 lbs. ± 0.5 lbs.
0.080 inches max
0.010 inches min
Actual Voltage Nominal (DC)
2
13.5
Voltage Max (DC)
2.6
14.5
Features:
• Flush and raised round buttons with glossy or matte
finish in a variety of colors
• Raised square button option with matte finish in a
variety of colors
• Watertight to IP68S; dusttight to IP64
• LED illuminated with the ability to accommodate 2 &
12VDC power
• 15/32” threaded case style
• RoHS compliant
Operating Temp Range:
-40°C to +85°C
PUSHBUTTON SWITCHES
MATERIALS:
Case:
Button:
Terminals:
Mounting Hardware:
Anodized aluminum alloy
Thermoplastic
Silver with gold plate
Hex nut, lockwasher and panel seal gasket when applicable
LP7-D
Button Style
X
Terminal Style/Seal
X
LP7-D PART NUMBER CODE
X
X
Circuit Form
1.
N.O.
2.
N.C.
3.
2 Circuit
X
Light Source**
A.
2V Red LED
B.
2V Green LED
C.
2V Amber LED
D.
2V Blue LED
E.
2V White LED
F.
12V Red LED
G.
12V Green LED
H.
12V Amber LED
J.
12V Blue LED
K.
12V White LED
X
X
Case Color
1.
Clear Anodized
2.
Black Anodized
Contact Rating
1.
Standard Current
2.
Logic Level Current
Button Color
1.
Red
2.
Black
3.
Orange
4.
Yellow
5.
Green
6.
Blue
7.
Violet
8.
Gray
9.
White
A.
Translucent
White
*
1.
Flush Dome Standard
1.
Standard Solder Terminal
Finish - Lightpipe
Dusttight
2.
Raised Dome Standard
2.
Standard Solder Terminal
Finish - Lightpipe
Watertight
3.
Flush Dome Matte Finish -
3.
P.C. Pin Terminal
Lightpipe
Dusttight
4.
Raised Dome Matte Finish -
4.
P.C. Pin Terminal
Lightpipe
Watertight
5.
Raised Square Matte Finish -
Lightpipe
6.
Flush Dome Standard Finish -
Fully Illuminated
*
7.
Raised Dome Standard Finish -
Fully Illuminated
*
*
Full illumination button styles available with translucent Button Color selection A only.
**
2V LED's are intended for use with an external resistor. See LED voltage chart in appendix for details on the approximate value of the resistor.
Specifications Subject To Change Without Notice
www.otto-controls.com
193
SEALED ILLUMINATED DOME PUSHBUTTONS

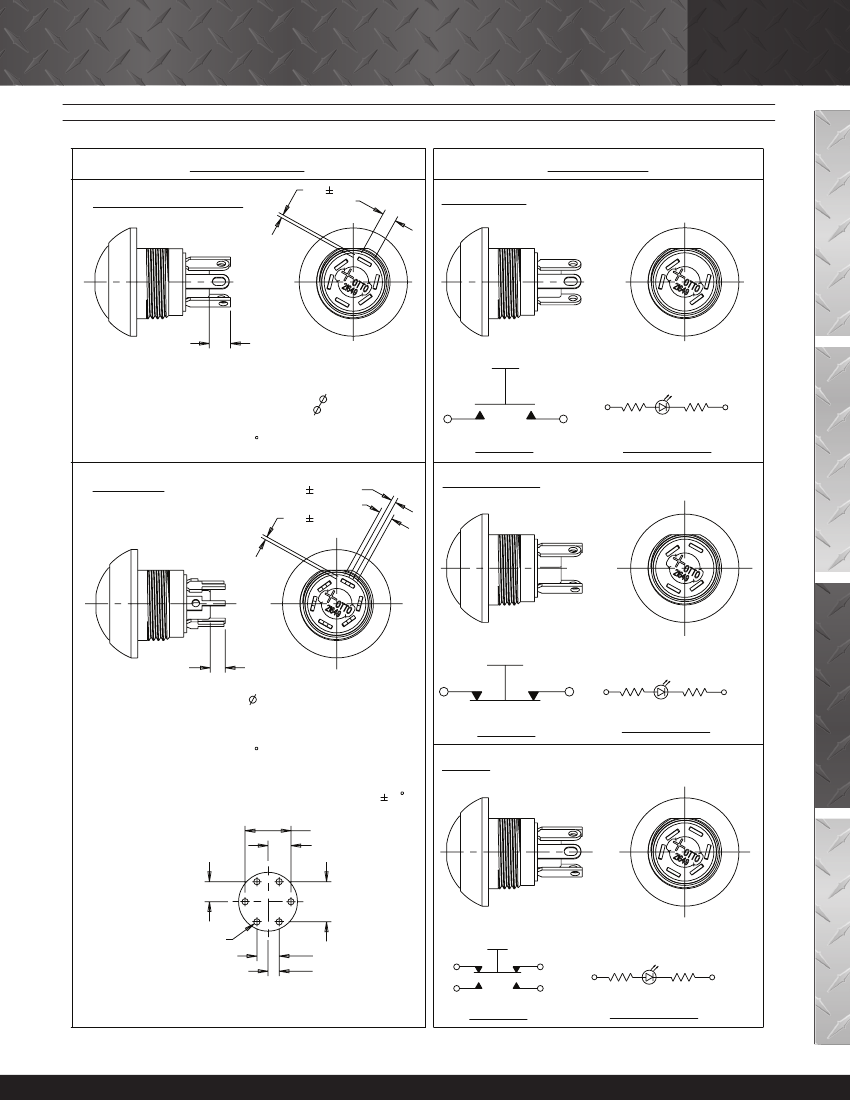

Terminal Options
STANDARD SOLDER TERMINAL
.020 .005 TYP.
.090 TYP.
NORMALLY OPEN
ILLUMINATED
PUSHBUTTONS
LP7-D
MOMENTARY ACTION, ATTRACTIVE & HIGHLY RUGGEDIZED FOR WET & DUSTY ENVIRONMENTS
Circuit Options
.13 TYP.
N.O. TERMINALS: ROUND END, SLOTTED HOLE (.084 X .055)
N.C. TERMINALS: SQUARE END, ROUND HOLE ( .055)
LED TERMINALS: ROUND END, ROUND HOLE ( .055)
(PLUS SYMBOL "+" DENOTES LOCATION OF LED TERMINAL ANODE
AND LED TERMINAL CATHODE IS 180 OPPOSITE OF ANODE TERMINAL)
SPST-NO-DB
SCHEMATIC
NORMALLY CLOSED
ANODE
+
CATHODE
L.E.D. SCHEMATIC
-
P.C. TERMINAL
.030 .005 TYP.
.090 TYP.
.020 .005 TYP.
PUSHBUTTON SWITCHES
.09 TYP.
N.O. TERMINALS: ROUND HOLE ( .048)
N.C. TERMINALS: NO HOLE
LED TERMINALS: ROUND END, ROUND HOLE
(PLUS SYMBOL "+" DENOTES LOCATION OF LED TERMINAL ANODE
AND LED TERMINAL CATHODE IS 180 OPPOSITE OF ANODE TERMINAL)
ANODE
SPST-NC-DB
SCHEMATIC
2 CIRCUIT
L.E.D. SCHEMATIC
+
CATHODE
-
TERMINALS ORIENTED TO CASE FLAT AS SHOWN WITHIN 10
(P.C. TERMINALS ONLY)
.292
.146
.128
.256
R.040 MIN. TYP.
.142
.071
COMPONENT SIDE P.C. MOUNTING
PATTERN, CASE FLAT ON ABOVE
AS DEPICTED IN SWITCH VIEW
SPDT-DB
SCHEMATIC
ANODE
L.E.D. SCHEMATIC
+
CATHODE
-
Specifications Subject To Change Without Notice
www.otto-controls.com
195
