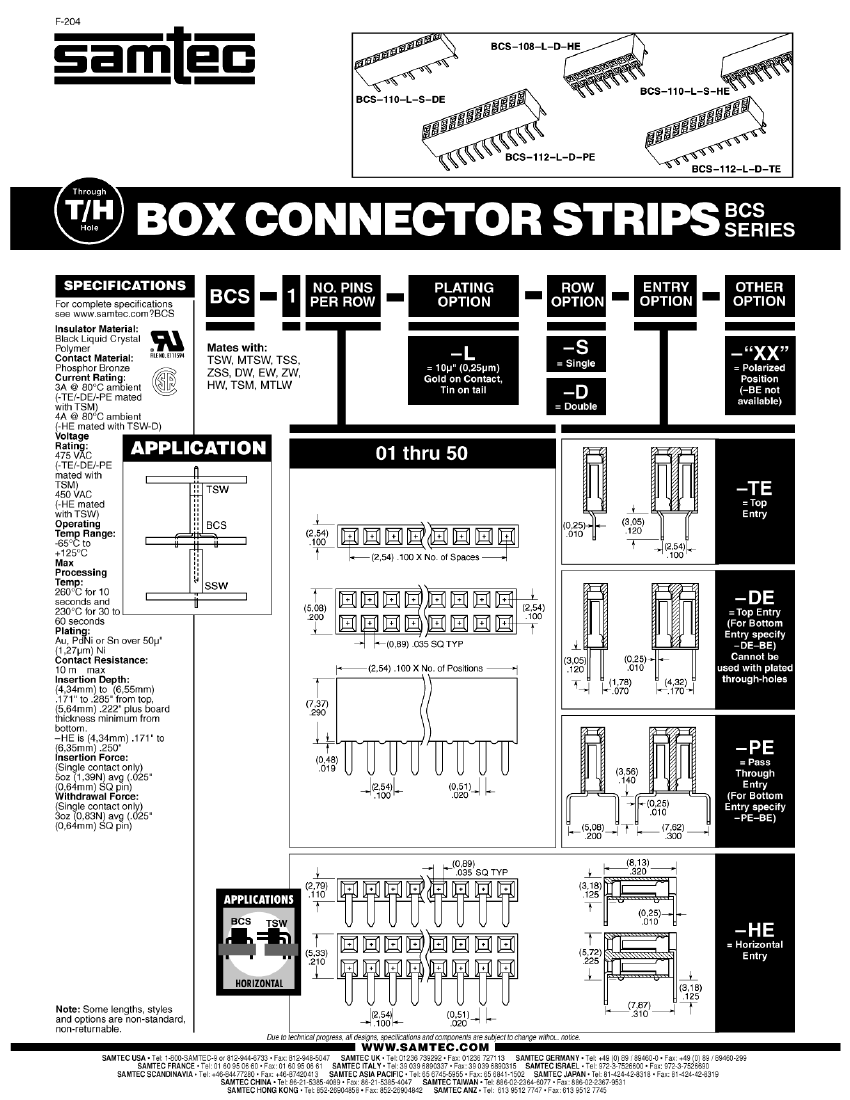

BCS-118-L-D-HE-018 datasheet, PDF

BCS-118-L-D-HE-018: DescriptionBoard Connector, 36 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug; CategoryThe connector The connector; File Size173KB，1 Pages; ManufacturerSAMTEC; Websitehttp://www.samtec.com/; Environmental Compliance

Download Datasheet Parametric View All

BCS-118-L-D-HE-018 Overview

Board Connector, 36 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Black Insulator, Plug

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1155512009
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	9.1
Other features	18TH PIN POLARIZED
body width	0.21 inch
subject depth	0.32 inch
body length	1.8 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (50)
Contact completed and terminated	Matte Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	10 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	375VAC V
Durability	500 Cycles
maximum insertion force	1.39 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	LIQUID CRYSTAL POLYMER
JESD-609 code	e3
Manufacturer's serial number	BCS
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-65 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	7.874 mm
Plating thickness	10u inch
polarization key	POLAR PIN POSITION
Rated current (signal)	4 A
Guideline	UL, CSA
reliability	COMMERCIAL
Terminal length	0.125 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	36
Evacuation force-minimum value	.834 N
