591D157X0010U2T datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> 591D157X0010U2T

591D157X0010U2T: DescriptionCAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 150uF, SURFACE MOUNT, 2813, CHIP; CategoryPassive components capacitor; File Size146KB，10 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

591D157X0010U2T Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 10V, 150uF, SURFACE MOUNT, 2813, CHIP

591D157X0010U2T Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	1922598794
package instruction	, 2813
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	150 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (DRY/SOLID)
JESD-609 code	e3
leakage current	0.015 mA
Manufacturer's serial number	591D
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
method of packing	TR, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
Guideline	IEC286-3
ripple current	1170 mA
size code	2813
surface mount	YES
Delta tangent	0.08
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Terminal shape	WRAPAROUND

Preview

Download Datasheet

View All

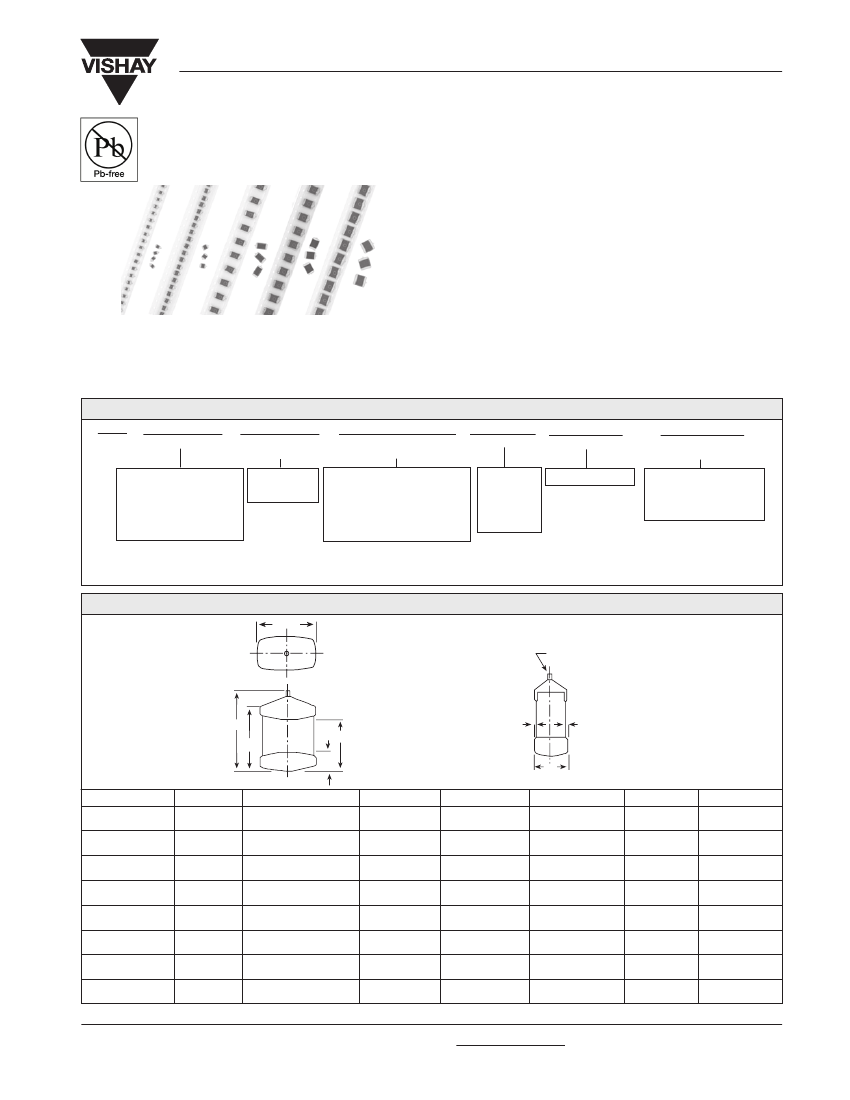

591D

Vishay Sprague

Solid Tantalum Chip Capacitors

ANTAMOUNT

, Low Profile, Low ESR, Conformal Coated,

Maximum CV

FEATURES

•

New case size offerings.

1.2mm to 2mm height

Terminations: Lead (Pb)-free (2) standard.

Very low ESR

8mm, 12mm tape and reel packaging available per EIA-

481-1 and reeling per IEC 286-3. 7” [178mm] standard.

13” [330mm] available.

•

Footprint compatible with EIA 535BAAC and

CECC 30801 molded chips.

PERFORMANCE CHARACTERISTICS

Operating Temperature:

- 55°C to + 85°C. (To + 125°C

with voltage derating.)

Capacitance Range:

1µF to 1000µF

Capacitance Tolerance:

±10%, ±20%

standard.

Voltage Rating:

4WVDC to 10WVDC, (16WVDC,

20WVDC, and 25WVDC under development)

CASE CODE

See

Ratings

and Case

Codes

Table.

TERMINATION

2 = 100% Tin.

REEL SIZE AND

PACKAGING

T = Tape and Reel

7" [178mm] Reel

W = 13” [330mm]

Reel

ORDERING INFORMATION

591D

TYPE

477

CAPACITANCE

TOLERANCE

X0 =

20%

X9 =

10%

6R3

DC VOLTAGE RATING

@ + 85°C

This is expressed in volts.

To complete the three-digit

block, zeros precede the

voltage rating. A decimal

point is indicated by an "R"

(6R3 = 6.3 volts).

This is expressed in

picofarads. The first

two digits are the

significant figures. The

third is the number of

zeros to follow.

Note:

Preferred Tolerance and reel sizes are in bold.

We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size. Voltage

substitutions will be marked with the higher voltage rating

DIMENSIONS

in inches [millimeters]

Note:

U, V and W are similar to C, D and R footprint (592D) with a 2mm height

Tantalum Wire

Nib Identifies

Anode (+)

Terminal

L (MAX.)

0.147

0.072

0.012

0.047

0.012

0.031

0.012

[3.7]

[1.8

0.3]

[1.2

0.3]

[0.80

0.30]

0.159

0.110 + 0.012 - 0.016 0.047

0.012

0.031

0.012

[4.0]

[2.8 + 0.3 - 0.4]

[1.2

0.3]

[0.80

0.30]

0.282

0.126

0.012

0.047

0.012

0.051

0.012

[7.1]

[3.2

0.3]

[1.2

0.3]

[1.3

0.3]

0.298

0.170

0.012

0.047

0.012

0.051

0.012

[7.5]

[4.3

0.3]

[1.2

0.3]

[1.3

0.3]

0.286

0.235

0.012

0.047

0.012

0.051

0.012

[7.2]

[6.0

0.3]

[1.2

0.3]

[1.3

0.3]

0.282

0.126

0.012

0.079

0.051

0.012

[7.1]

[3.2

0.3]

[2.0] Max.

[1.3

0.3]

0.298

0.170

0.012

0.079

0.051

0.012

[7.5]

[4.3

0.3]

[2.0] Max.

[1.3

0.3]

0.286

0.235

0.012

0.079

0.051

0.012

[7.2]

[6.0

0.3]

[2.0] Max.

[1.3

0.3]

Note:

The anode termination (D less B) will be a minimum of .012" [0.3mm].

Document Number 40012

Revision 22-Nov-04

CASE CODE

0.085

0.016

[2.2

0.4]

0.097

0.016

[2.5

0.4]

0.180

0.024

[4.6

0.6]

0.180

0.024

[4.6

0.6]

0.180

0.024

[4.6

0.6]

0.180

0.024

[4.6

0.6]

0.180

0.024

[4.6

0.6]

0.180

0.024

[4.6

0.6]

D (REF.)

0.115

[2.9]

0.127

[3.2]

0.238

[6.0]

0.254

[6.4]

0.246

[6.2]

0.238

[6.0]

0.254

[6.4]

0.246

[6.2]

J (MAX.)

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

0.004

[0.1]

For technical questions, contact tantalum@vishay.com

www.vishay.com
