594D687X0010R7W

Description
CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 680 uF, SURFACE MOUNT, 2824, CHIP
CategoryPassive components    capacitor
File Size384KB,9 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Download Datasheet Parametric View All

594D687X0010R7W Overview

CAPACITOR, TANTALUM, SOLID, POLARIZED, 10 V, 680 uF, SURFACE MOUNT, 2824, CHIP

594D687X0010R7W Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
Objectid1767263857
package instruction, 2824
Reach Compliance Codecompliant
ECCN codeEAR99
YTEOL5.25
capacitance680 µF
Capacitor typeTANTALUM CAPACITOR
dielectric materialsTANTALUM (DRY/SOLID)
JESD-609 codee0
leakage current0.068 mA
Manufacturer's serial number594D
Installation featuresSURFACE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package shapeRECTANGULAR PACKAGE
method of packingTR, EMBOSSED PLASTIC, 13 INCH
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)10 V
ripple current2360 mA
size code2824
surface mountYES
Delta tangent0.14
Terminal surfaceTin/Lead (Sn/Pb)
Terminal shapeWRAPAROUND

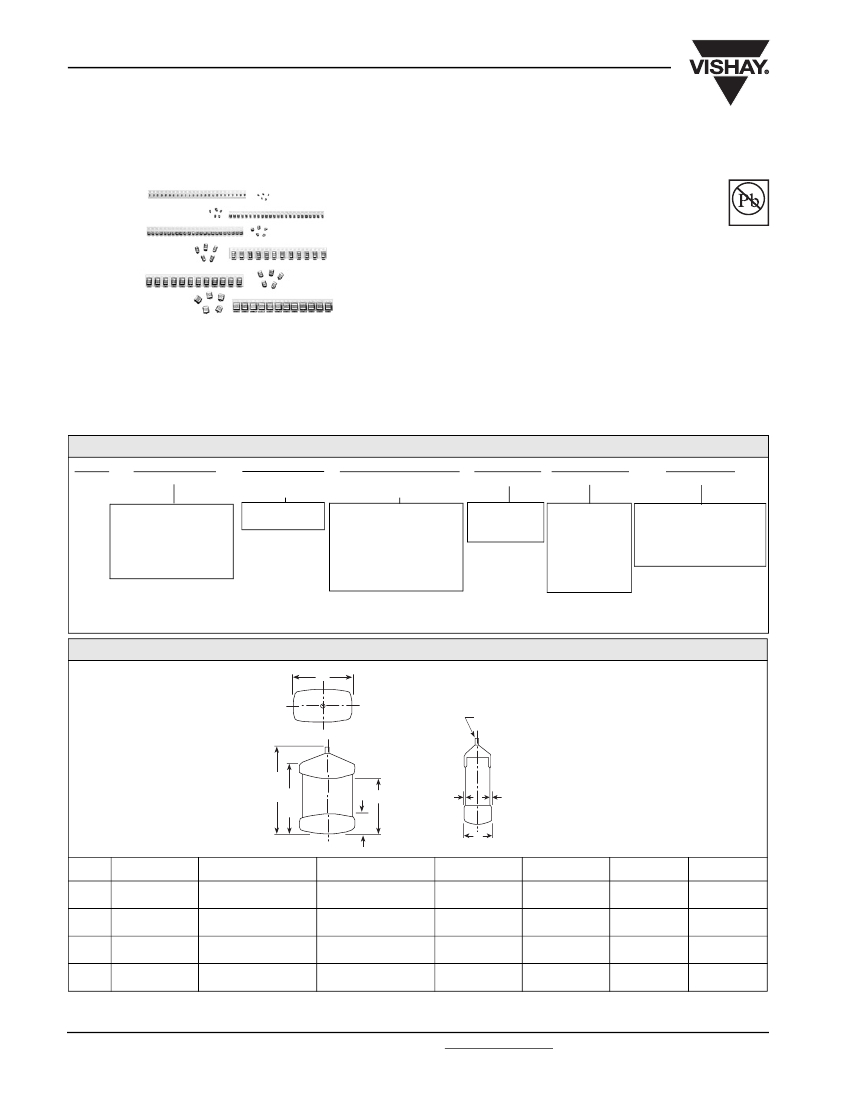

594D
Vishay Sprague
Solid Tantalum Chip Capacitors
T
ANTAMOUNT
®
Conformal Coated, Maximum CV, Low ESR
FEATURES
New extended range offerings.
Large capacitance rating range.
Pb-free
Lowest ESR for a surface mount tantalum chip
Available
capacitor.
100 % surge current conditioning for C, D and
RoHS*
COMPLIANT
R cases.
Terminations: Tin (2) standard
8 mm, 12 mm tape and reel packaging available per EIA
481-1 and reeling per IEC 286-3. 7" [178 mm] standard.
13" [330 mm] available.
Case code compatibility with EIA 535BAAE and
CECC30801 molded chips.
PERFORMANCE/ELECTRICAL CHARACTERISTICS
Operating Temperature:
- 55 °C to + 85 °C.
(To + 125 °C with voltage derating.)
Capacitance Range:
1.0 µF to 1500 µF
Capacitance Tolerance:
± 10 %, ± 20 % standard
Voltage Rating:
4 WVDC to 50 WVDC
Equivalent Series Resistance:
ESR readings measured at
100 kHz, + 25 °C from 3500 milliohm to 30 milliohm.
ORDERING INFORMATION
594D
TYPE
477
CAPACITANCE
This is expressed in
picofarads. The first two
digits are the significant
figures. The third is the
number of zeros to
follow.
X0
CAPACITANCE
TOLERANCE
X0 =
±
20 %
X9 =
±
10 %
004
DC VOLTAGE RATING
AT + 85 °C
R
CASE CODE
2
TERMINATION
2 = 100 % Tin
4 = Gold Plated
7 = Hot Solder
Dipped
8 = Solder
Plated (60/40)
Special Order
T
PACKAGING
T = Tape and Reel
7" [178 mm] Reel
W = 13" [330 mm] Reel
See Tape and Reel
Specifications.
This is expressed in volts. See Ratings
To complete the three-digit and Case
Codes Table.
block, zeros precede the
voltage rating. A decimal
point is indicated by an "R"
(6R3 = 6.3 volts).
Note:
Preferred Tolerance and reel sizes are in bold.
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size.
Voltage substitutions will be marked with the higher voltage rating.
DIMENSIONS
in inches [millimeters]
W
Tantalum Wire
Nib Identifies
Anode (+)
Terminal
L
Max.
Ref.
D
B
A
J
Max.
J
Max.
H
CASE
CODE
B
L (Max.)
W
H
A
B
0.097 ± 0.016
[2.5 ± 0.4]
0.180 ± 0.024
[4.6 ± 0.6]
0.180 ± 0.024
[4.6 ± 0.6]
0.180 ± 0.024
[4.6 ± 0.6]
D (Ref.)
0.138
[3.5]
0.236
[6.0]
0.253
[6.4]
0.243
[6.2]
J (Max.)
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.004
[0.1]
0.158
0.110 + 0.012 - 0.016 0.075 + 0.012 - 0.024
0.031 ± 0.012
[4.0]
[2.8 + 0.3 - 0.4]
[1.9 + 0.3 - 0.6]
[0.80 ± 0.30]
0.281
0.126 ± 0.012
0.098 ± 0.012
0.051 ± 0.012
C
[7.1]
[3.2 ± 0.3]
[2.5 ± 0.3]
[1.3 ± 0.30]
0.293
0.170 ± 0.012
0.110 ± 0.012
0.051 ± 0.012
D
[7.5]
[4.3 ± 0.3]
[2.8 ± 0.3]
[1.3 ± 0.30]
0.283
0.235 ± 0.012
0.136 ± 0.012
0.051 ± 0.012
R
[7.2]
[6.0 ± 0.3]
[3.5 ± 0.3]
[1.3 ± .30]
Note:
The anode termination (D less B) will be a minimum of 0.012“ [0.3 mm].
* Pb containing terminations are not RoHS compliant, exemptions may apply
www.vishay.com
1
For technical questions, contact: tantalum@vishay.com
Document Number: 40006
Revision: 18-Aug-05
