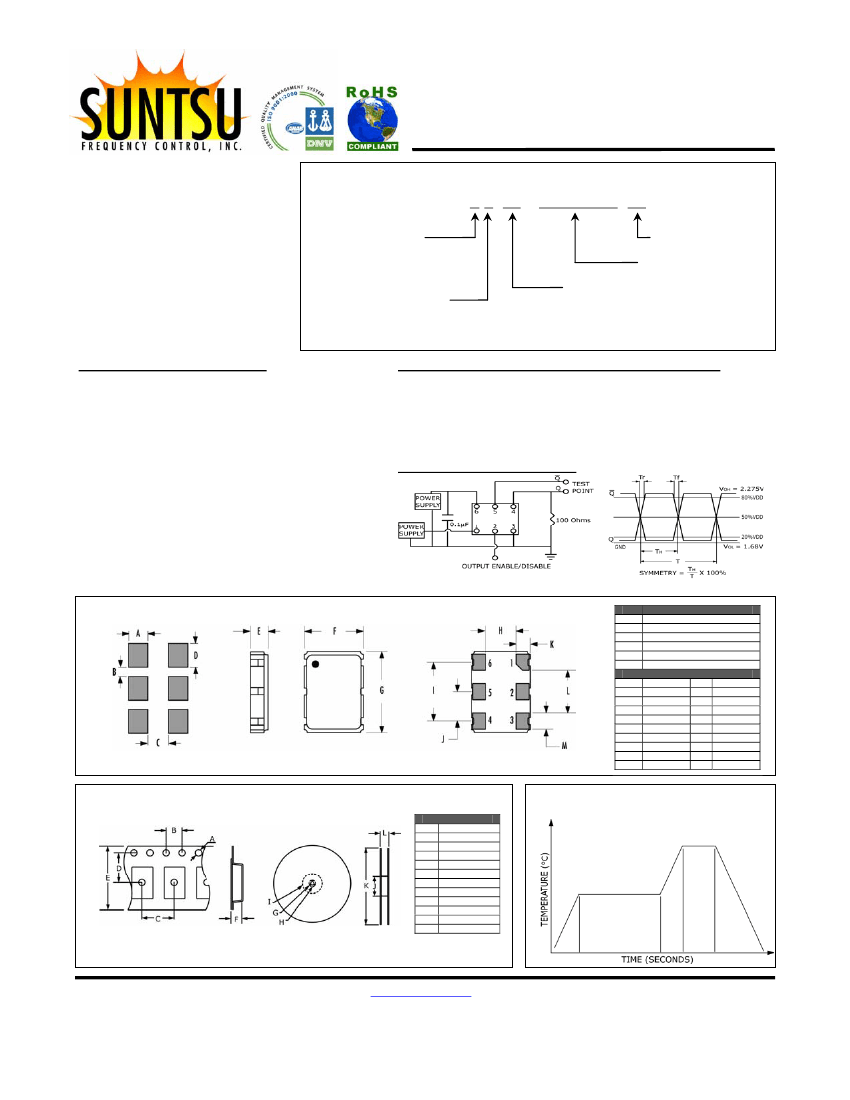

SOT SERIES

5X7 CERAMIC SMT 6 PAD LVDS CRYSTAL OSCILLATOR

RoHS COMPLIANT

SOT SERIES FEATURES

AVAILABLE TO ±20ppm

MINIATURE PACKAGE

LVDS

TRI-STATE FUNCTION

TAPE AND REEL

RoHS COMPLIANT

3.3±0.165V

PART NUMBERING GUIDE

SOT B 3 48 – 77.760MHz TR

FREQUENCY STABILITY

A: ±100ppm

B: ±50ppm

C: ±25ppm

D: ±20ppm

TAPE AND REEL

FREQUENCY

OPERATING TEMPERATURE RANGE

BLANK: 0°C to + 70°C

16: -10°C to + 60°C

27: -20°C to + 70°C

48: -40°C to + 85°C

SUPPLY VOLTAGE

3: 3.3±0.165 V

*FOR CUSTOM PARAMETERS CONTACT YOUR SUNTSU REPRESENTATIVE.

ELECTRICAL SPECIFICATIONS

FREQUENCY RANGE:

STORAGE TEMPERATURE:

DUTY CYCLE:

CURRENT CONSUMPTION:

LOAD:

START-UP TIME:

RISE/FALL TIME:

PHASE JITTER:

TRI-STATE OPERATION:

OFFSET VOLTAGE:

DEVELOPED FREQUENCIES:

10.000MHz-200.000MHz

-55°C TO 125°C

45%/55%

80mA MAX

100Ω

3mS MAX

1nS MAX

1pS MAX RMS 12kHz-20MHz

ENABLE: 2.5V; DISABLE: 0.5V

1.125V TO 1.375V

38.880M, 62.500M, 77.760M,

100.000M, 106.250M,

125.000M, 155.520M,

159.375M, 161.1328M,

164.355469M, 167.3316M,

187.500M

ENVIRONMENTAL & MECHANICAL SPECIFICATIONS

DROP TEST:

MECHANICAL SHOCK:

VIBRATION:

SOLDERABILITY:

RESISTANCE TO

SOLERING HEAT:

75cm ONTO 2mm STEEL PLATE (3 TIMES)

MIL-STD-883D METHOD 2002.3, CONDITION B

MIL-STD-883D METHOD 2007.2, CONDITION A

230°C, 3S (±5ppm/±10Ω)

260°C, 10S (±5ppm/±10Ω)

TEST CIRCUIT & WAVEFORM

PRODUCT SCHEMATIC

NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE

FUNCTION

NO CONNECT

TRI-STATE

GROUND

OUTPUT

COMP OUTPUT

SUPPLY VOLTAGE

DIMENSIONS

2.0

1.3±0.2

0.54

3.68±0.2

1.8

1.4±0.2

2.1

1.8±0.2

5.0±0.2

7.3±0.2

2.4±0.2

5.08±0.2

2.50 TYP

TAPE AND REEL DIMENSIONS

DIMENSIONS

Φ1.50±0.1

4.0±0.1

8.0±0.1

7.5±0.1

16.0±0.2

2.16±0.1

1.5

Φ13.0±0.5

21.0±0.5

60.0

180

16.4±2.0

REFLOW PROFILE

260°C

200°C

NOTE: DIMENSIONS IN MILLIMETERS (mm); DRAWING NOT TO SCALE

180 S

10 S

MAX

9 ORCHARD RD., SUITE 111

LAKE FOREST, CA 92630

WWW.SUNTSUINC.COM

SPECIFICATIONS SUBJECT TO CHANGE

WITHOUT NOTICE

REV. 12/26/07

TELEPHONE • 949.305.0220

FACSIMILE • 949.305.0221

Page 1 of 1
