54LS173/B2AJC datasheet, PDF - EEWORLD Datasheet

54LS173/B2AJC: DescriptionIC,FLIP-FLOP,QUAD,D TYPE,LS-TTL,LLCC,20PIN,CERAMIC; Categorylogic logic; File Size215KB，5 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric View All

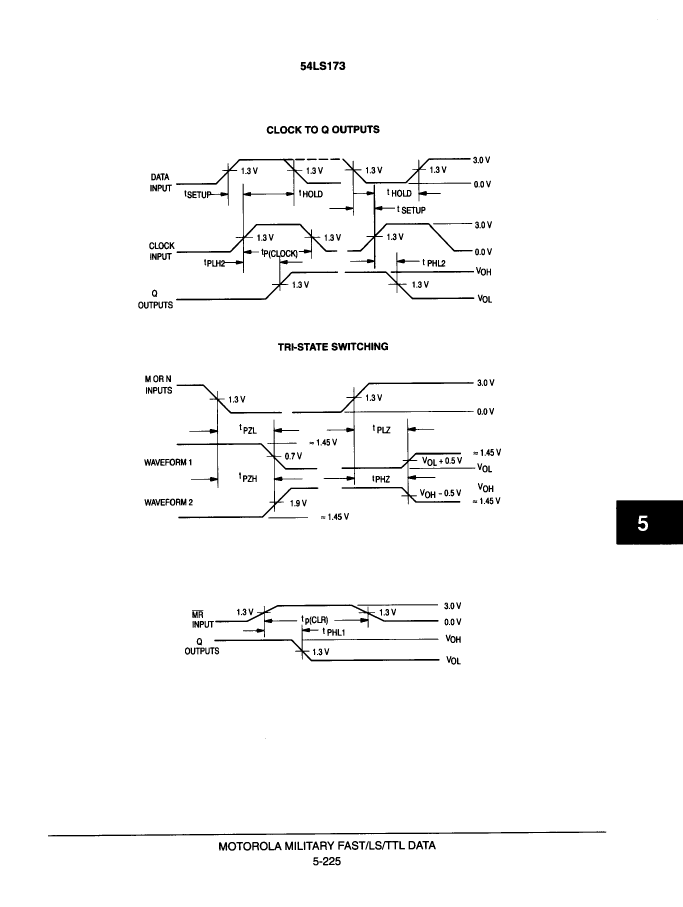

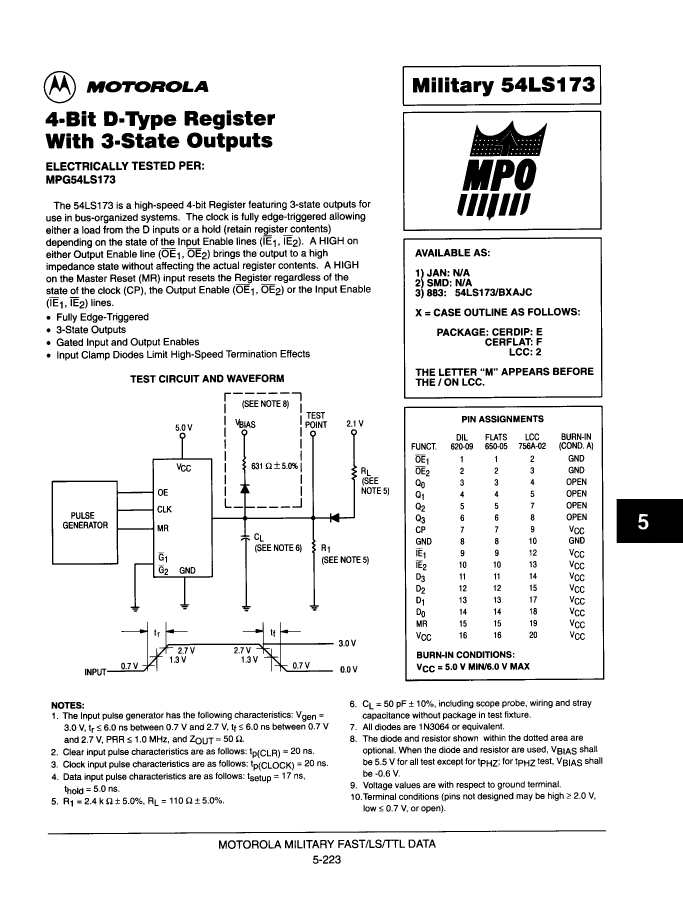

54LS173/B2AJC Overview

IC,FLIP-FLOP,QUAD,D TYPE,LS-TTL,LLCC,20PIN,CERAMIC

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	NXP
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
JESD-30 code	S-XQCC-N20
JESD-609 code	e0

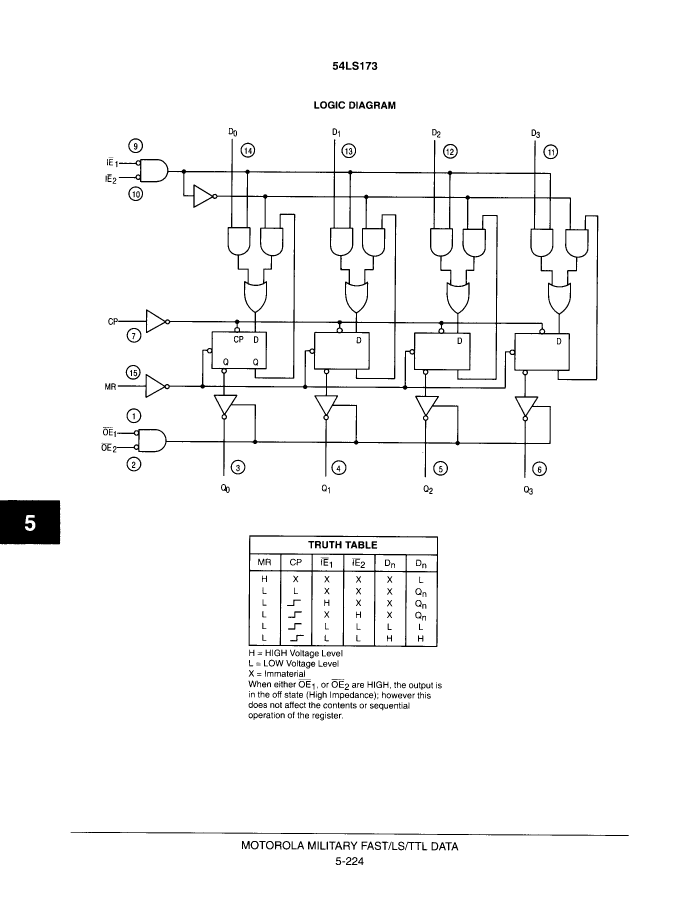

Logic integrated circuit type	D FLIP-FLOP

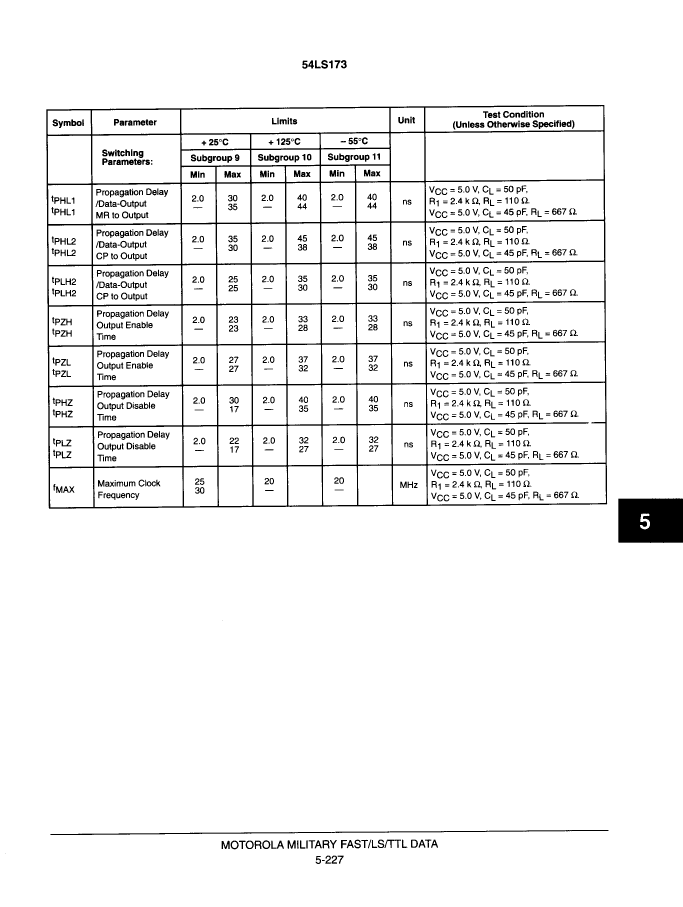

Maximum Frequency@Nom-Sup	30000000 Hz
MaximumI(ol)	0.012 A
Number of functions	4
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER

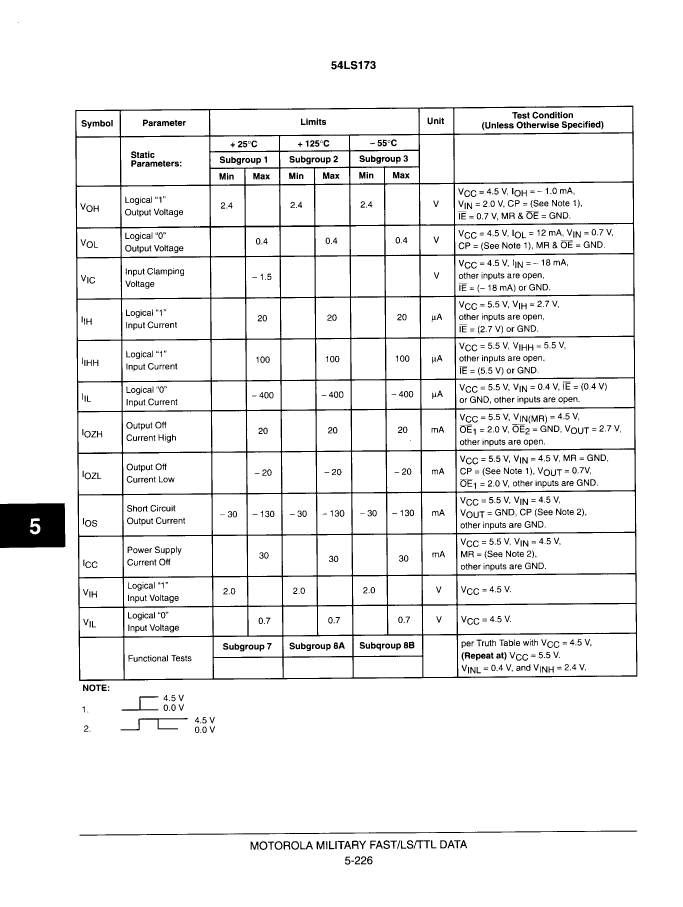

power supply	5 V
Maximum supply current (ICC)	30 mA
Certification status	Not Qualified
Filter level	38535Q/M;38534H;883B
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Trigger type	POSITIVE EDGE
Base Number Matches	1
