54F20FMQB

Description
Gate
Categorylogic    logic
File Size140KB,6 Pages
Manufacturere2v technologies
Download Datasheet Parametric Compare View All

54F20FMQB Overview

Gate

54F20FMQB Parametric

Parameter NameAttribute value
Makere2v technologies
package instructionDFP, FL14,.25
Reach Compliance Codecompliant
Other featuresLG_MAX
seriesF/FAST
JESD-30 codeR-GDFP-F14
length9.779 mm
Load capacitance (CL)50 pF
Logic integrated circuit typeNAND GATE
MaximumI(ol)0.02 A
Number of functions2
Number of entries4
Number of terminals14
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package body materialCERAMIC, GLASS-SEALED
encapsulated codeDFP
Encapsulate equivalent codeFL14,.25
Package shapeRECTANGULAR
Package formFLATPACK
Prop。Delay @ Nom-Sup7 ns
propagation delay (tpd)7 ns
Schmitt triggerNO
Filter levelMIL-STD-883
Maximum seat height2.032 mm
Maximum supply voltage (Vsup)5.5 V
Minimum supply voltage (Vsup)4.5 V
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyTTL
Temperature levelMILITARY
Terminal formFLAT
Terminal pitch1.27 mm
Terminal locationDUAL
width6.2865 mm
Base Number Matches1
54F 74F20 Dual 4-Input NAND Gate
November 1994
54F 74F20
Dual 4-Input NAND Gate
General Description
This device contains two independent gates each of which
performs the logic NAND function
Commercial
74F20PC
Military
Package
Number
N14A

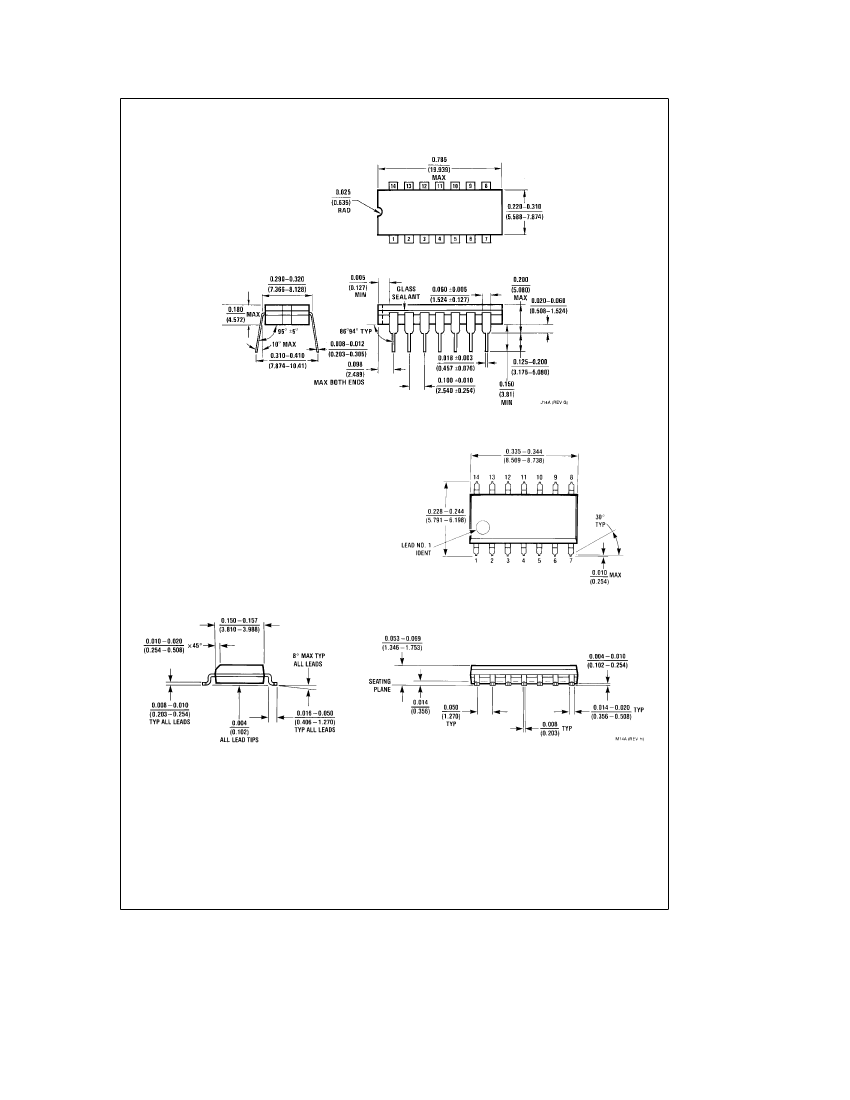

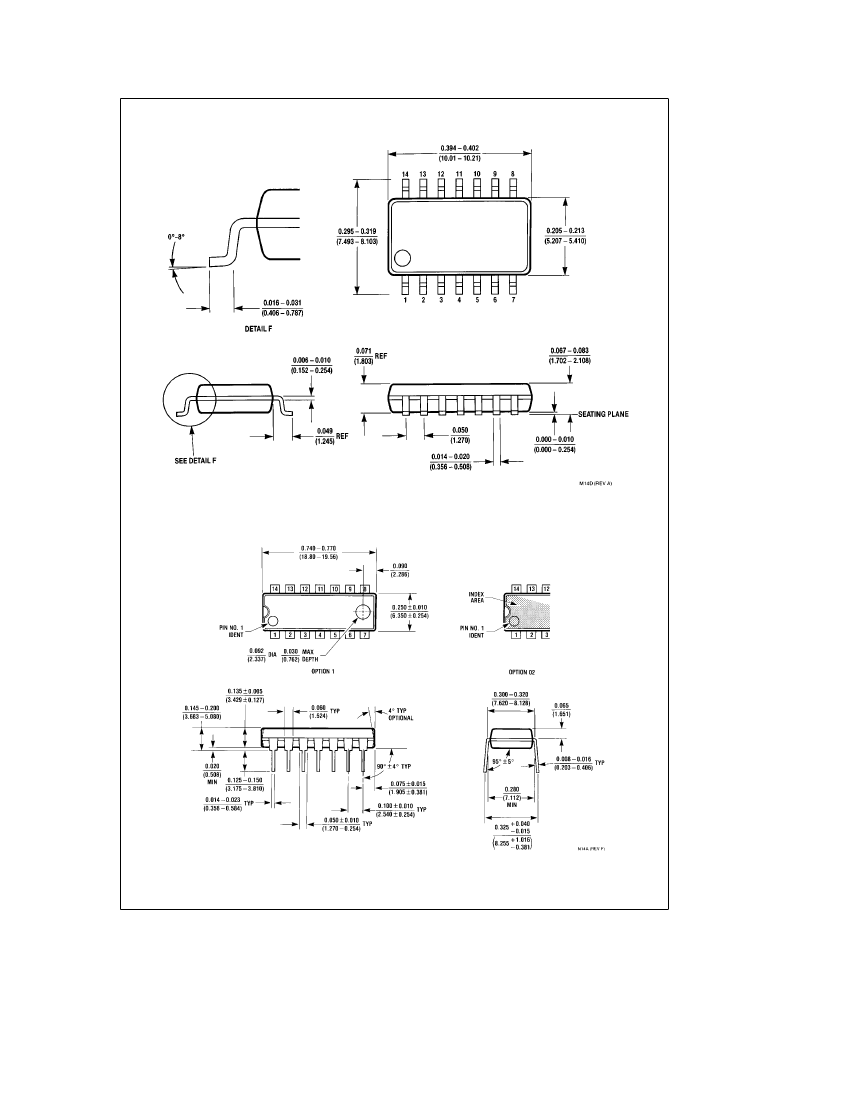

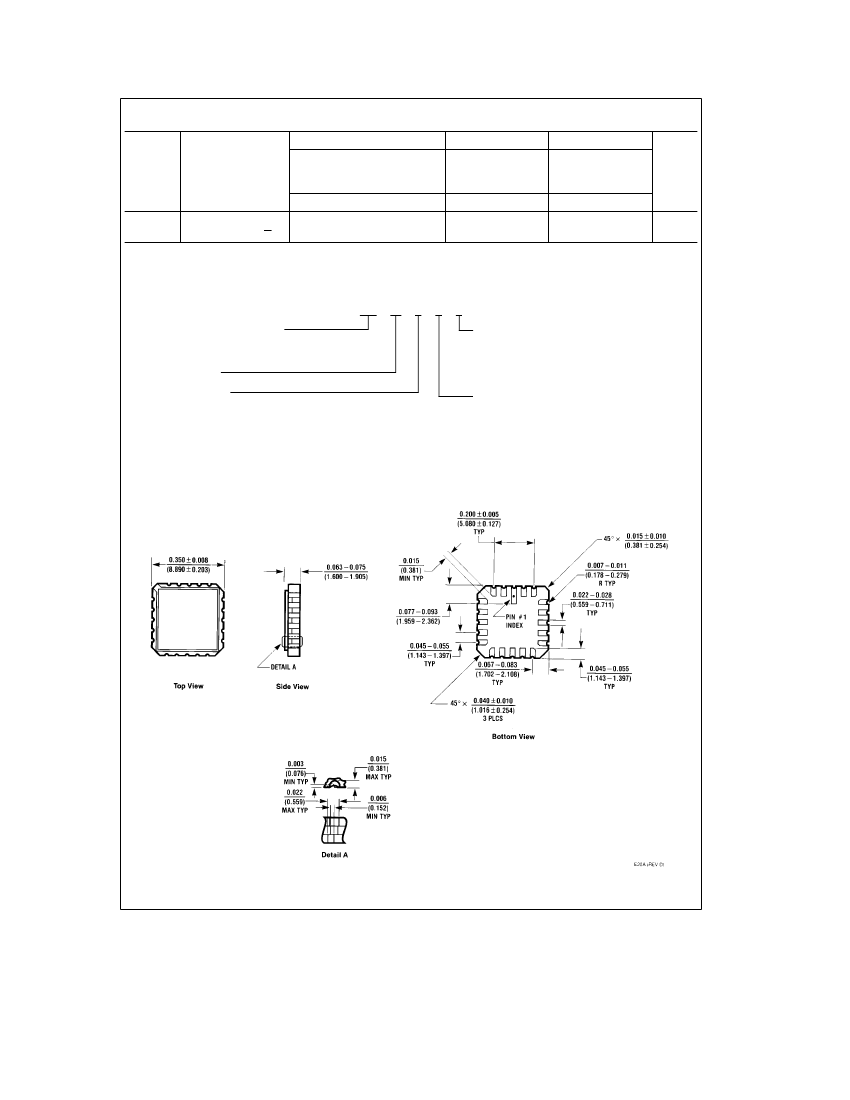

Package Description
14-Lead (0 300 Wide) Molded Dual-In-Line
14-Lead Ceramic Dual-In-Line
14-Lead (0 150 Wide) Molded Small Outline JEDEC
14-Lead (0 300 Wide) Molded Small Outline EIAJ
14-Lead Cerpack
20-Lead Ceramic Leadless Chip Carrier Type C
54F20DM (Note 2)
74F20SC (Note 1)
74F20SJ (Note 1)
54F20FM (Note 2)
54F20LM (Note 2)
J14A
M14A
M14D
W14B
E20A
Note 1
Devices also available in 13 reel Use suffix
e
SCX and SJX
Note 2
Military grade device with environmental and burn-in processing Use suffix
e
DMQB FMQB and LMQB
Logic Symbol
IEEE IEC
Connection Diagrams
Pin Assignment
for DIP SOIC and Flatpak
Pin Assignment
for LCC
TL F 9462 – 2
TL F 9462 – 1
TL F 9462–3
Unit Loading Fan Out
54F 74F
Pin Names
Description
UL
HIGH LOW
10 10
50 33 3
Input I
IH
I
IL
Output I
OH
I
OL
20
mA
b
0 6 mA
b
1 mA 20 mA
A
n
B
n
C
n
D
n
O
n
Inputs
Outputs
TRI-STATE is a registered trademark of National Semiconductor Corporation
C
1995 National Semiconductor Corporation
TL F 9462
RRD-B30M75 Printed in U S A
