39C861D datasheet, PDF - EEWORLD Datasheet

39C861D: DescriptionBus Driver/Transceiver, 1-Func, 10-Bit, True Output, CMOS, CDIP24; Categorylogic logic; File Size285KB，5 Pages; ManufacturerIDT (Integrated Device Technology)

Download Datasheet Parametric View All

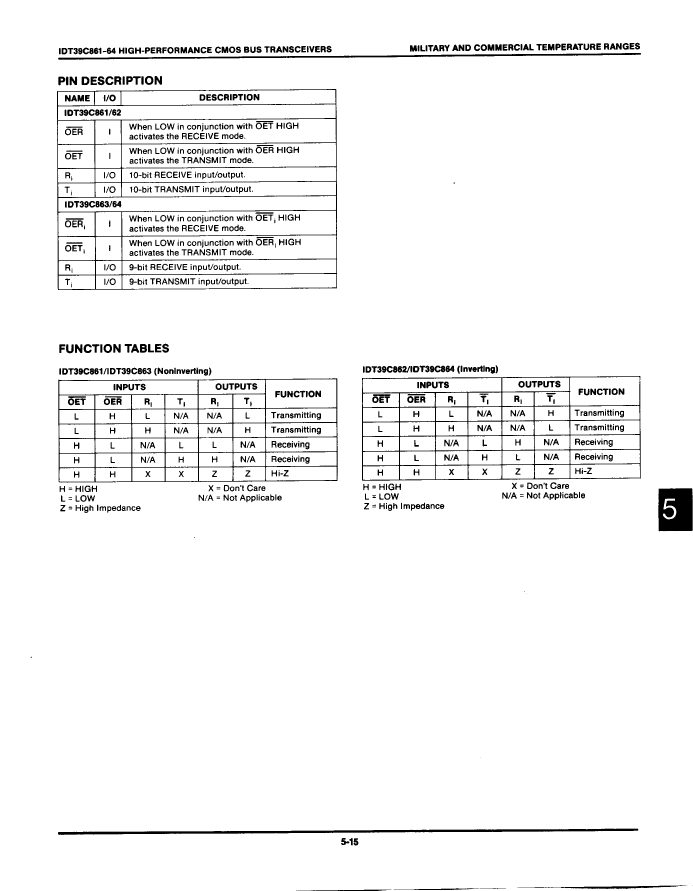

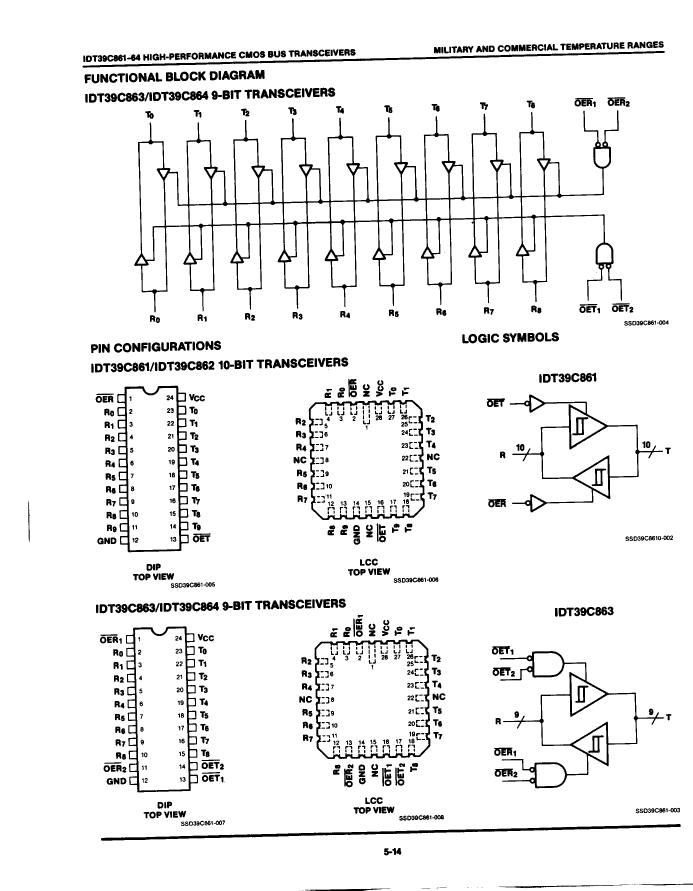

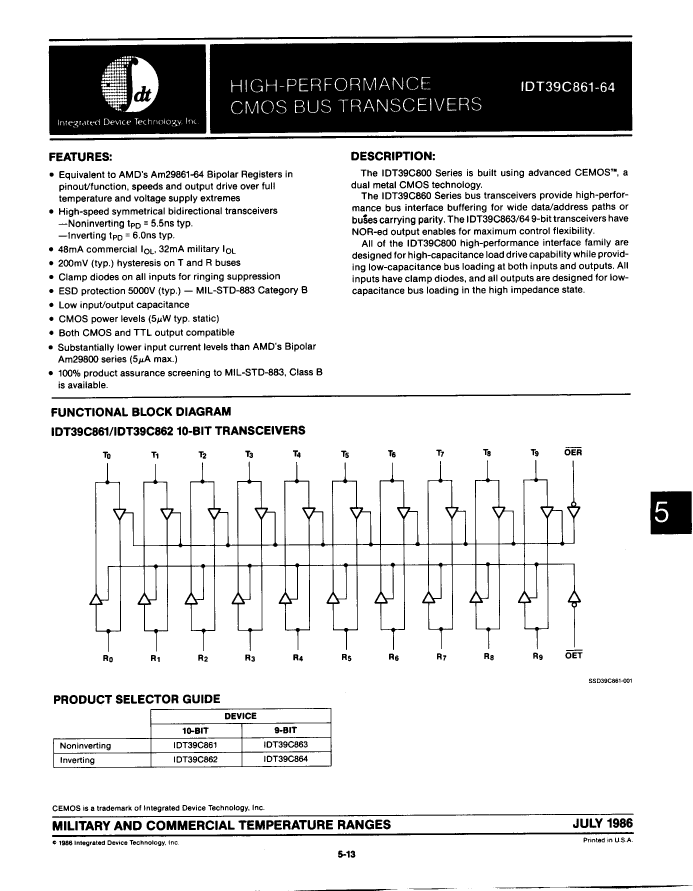

39C861D Overview

Bus Driver/Transceiver, 1-Func, 10-Bit, True Output, CMOS, CDIP24

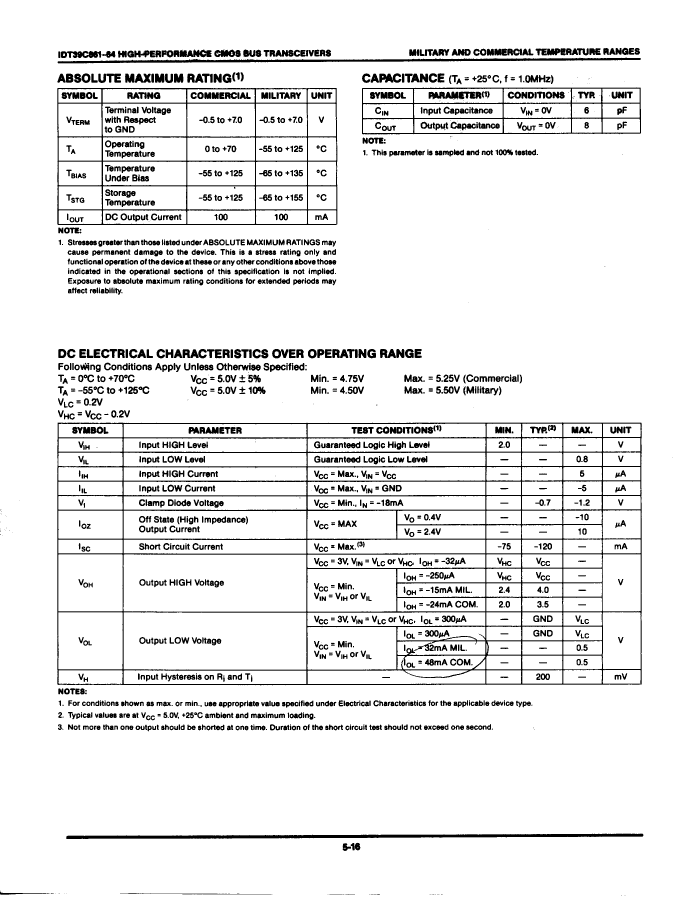

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	109010340
Reach Compliance Code	unknown
Control type	INDEPENDENT CONTROL
Counting direction	BIDIRECTIONAL
JESD-30 code	R-XDIP-T24
JESD-609 code	e0
MaximumI(ol)	0.048 A
Number of digits	10
Number of functions	1
Number of terminals	24
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V

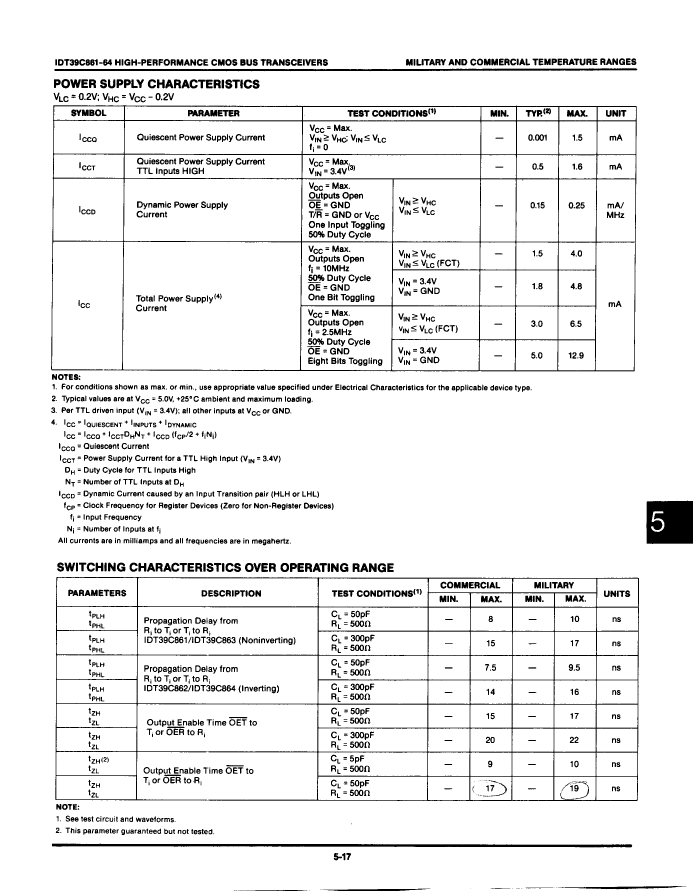

Prop。Delay @ Nom-Sup	17 ns
Certification status	Not Qualified
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
