LT10G-ST11MB datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Wireless rf/communication> Optical fiber> LT10G-ST11MB

LT10G-ST11MB: DescriptionTransceiver,; CategoryWireless rf/communication Optical fiber; File Size662KB，2 Pages; ManufacturerBel Fuse

Download Datasheet Parametric View All

LT10G-ST11MB Overview

Transceiver,

LT10G-ST11MB Parametric

Parameter Name	Attribute value
Objectid	7247248390
Reach Compliance Code	compliant
Fiber optic equipment types	TRANSCEIVER

Preview

Download Datasheet

View All

Lx10G-ST11xx Low Profile

Optical Transceiver

10G Ethernet (10.3125Gbps), 3.3V, 850nm VCSEL,

Multimode, Up to 50 Meters

Applications

The Lx10G-ST11xx multimode optical fiber transceivers provide low profile, cost

effective solutions for rate agile 10G Ethernet multimode optical fiber data links, with

a duplex LC connector interface. These transceivers are intended to work with 10G

Ethernet applications but can be used for any other data communications purpose

within their operating parameters.

Product Overview

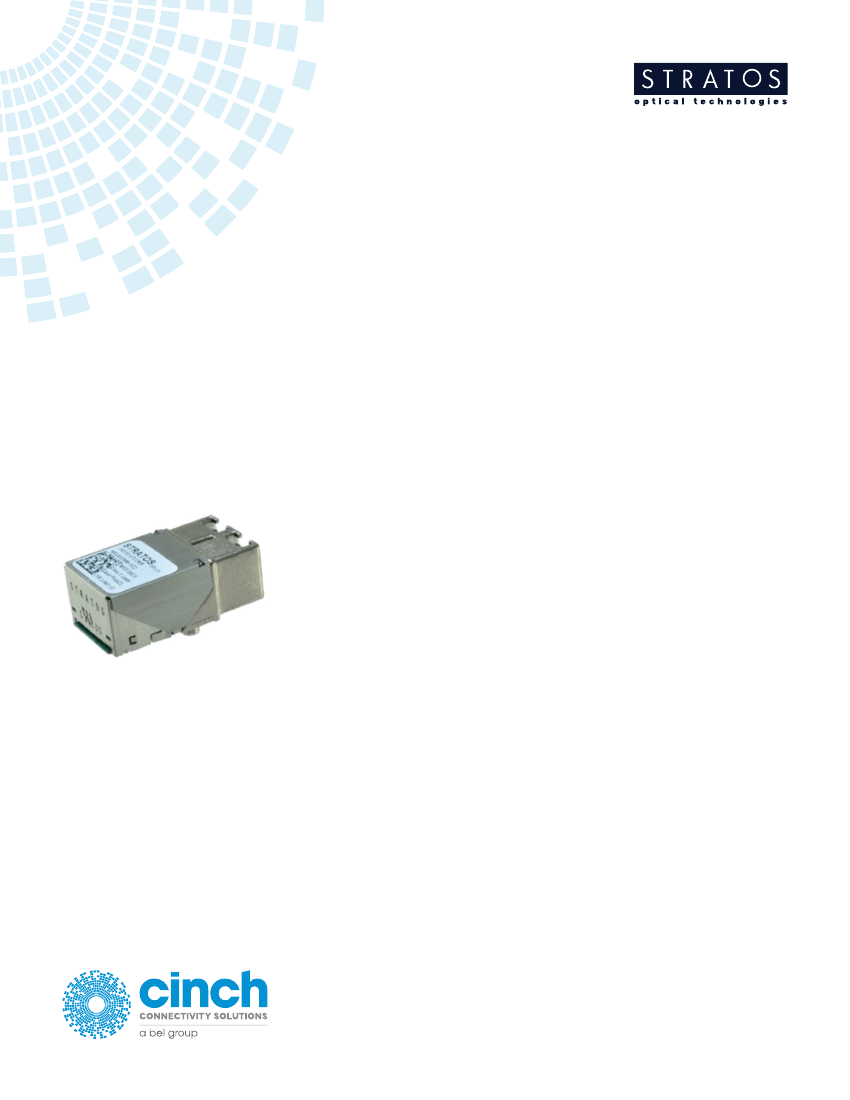

The Cinch Connectivity Solutions Lx10G-ST11xx fiber optic transceivers consist of

transmitter and receiver functions combined in a Low Profile RJ Format module. The

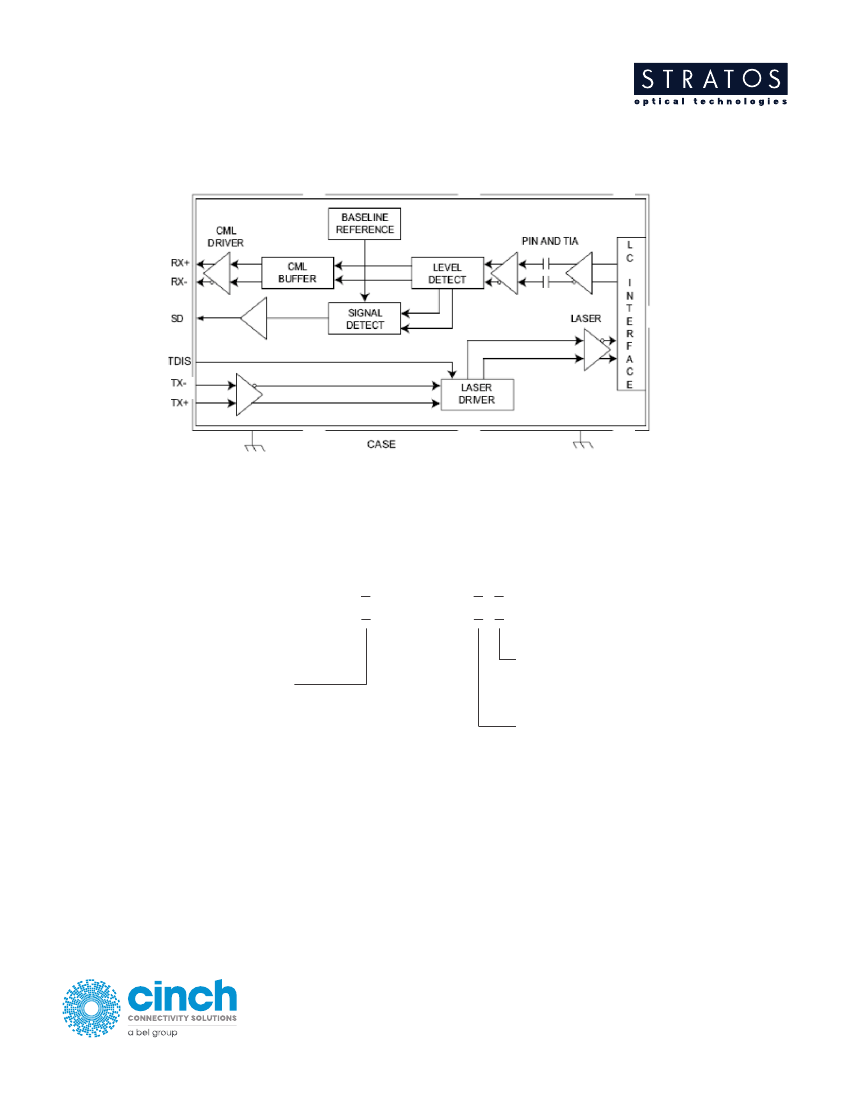

optical transmitter is a high output 850nm VCSEL. The transmitter input lines are

driven with differential LVPECL Signals applied to the Transmit (TX+ and TX-) pins.

These signals are internally converted to a suitable modulation current by a CMOS

integrated circuit. A Transmit Disable (TDIS) function is provided to enable control

of the VCSEL optical output. The optical receivers consist of PIN and Preamplifier

assemblies and CMOS limiting post-amplifier integrated circuits. Outputs from the

receivers consist of differential CML data signals on the Receive (RX+ and RX-)pins

and a single ended LVTTL signal detect function on the Signal Detect (SD) pin. The

RX data is squelched (JAM) upon Signal Detect deassert to prevent garbage data

output when no optical signal is present.

Features

• Low profile design-0.386” max height

• Surface mount I/O pins for high speed signal integrity

• All metal body, solder or screw mount options

• Industrial temp range, vibration tolerant design

• RX data squelch on Signal Detect deassert

• Individual (separate) +3.3 V power supply per port

• Industry standard duplex multimode LC receptacle

• EN-60825/IEC-825/CDRH Class 1 Compliant

• Optional Parylene C Conformal Coating

• Optional addition of fiber pigtail

+1 321.308.4100

ccsorders@us.cinch.com

belfuse.com/cinch
