Visit www.abracon.com for Terms & Conditions of Sale
MHz CYLINDRICAL TYPE MICROPROCESSOR CRYSTAL
AB308R

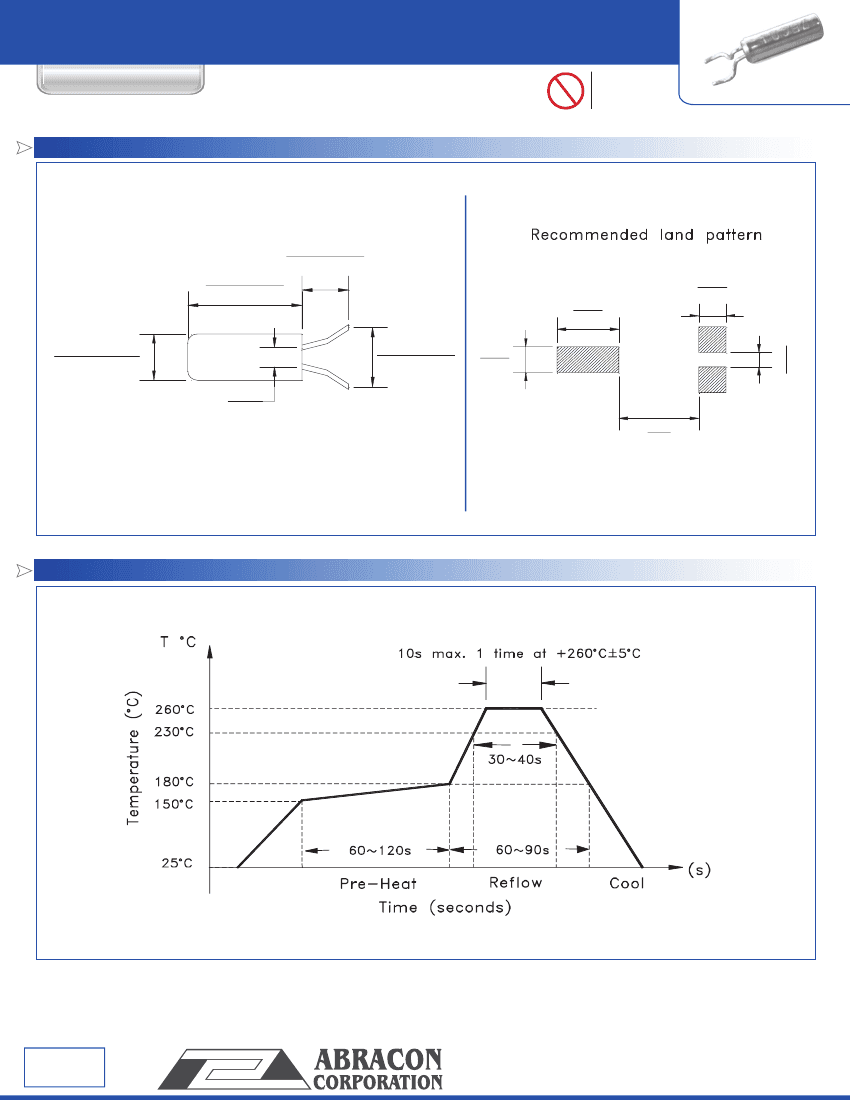

OUTLINE DRAWING:
Dimensions: Inches/(mm)
Pb
RoHS
Compliant
| | | | | | | | | | | | | |
8.8 x Ø3.0mm
|
0.34 6±0.01 2
(8.8±0.3)
0.091±0.00 8
(2.3±0.2)
0.178
(4.5)
0.079
(2.0)
0.120 ± 0.00 4
(Ø3.0 ±0.1)
0.04 3
(1.1)
0.23
(5.81)
REFLOW PROFILE:
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 06.14.12
30332 Esperanza, Rancho Santa Mar
garita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
Visit www.abracon.com for Terms & Conditions of Sale
0.043
(1.1)
Frequency
0.157 ±0.01 2
(4.0±0.3)
0.079
(2.0)
MHz CYLINDRICAL TYPE MICROPROCESSOR CRYSTAL
CYLINDRICAL TYPE MICROPROCESSOR CRYSTAL
AB308R

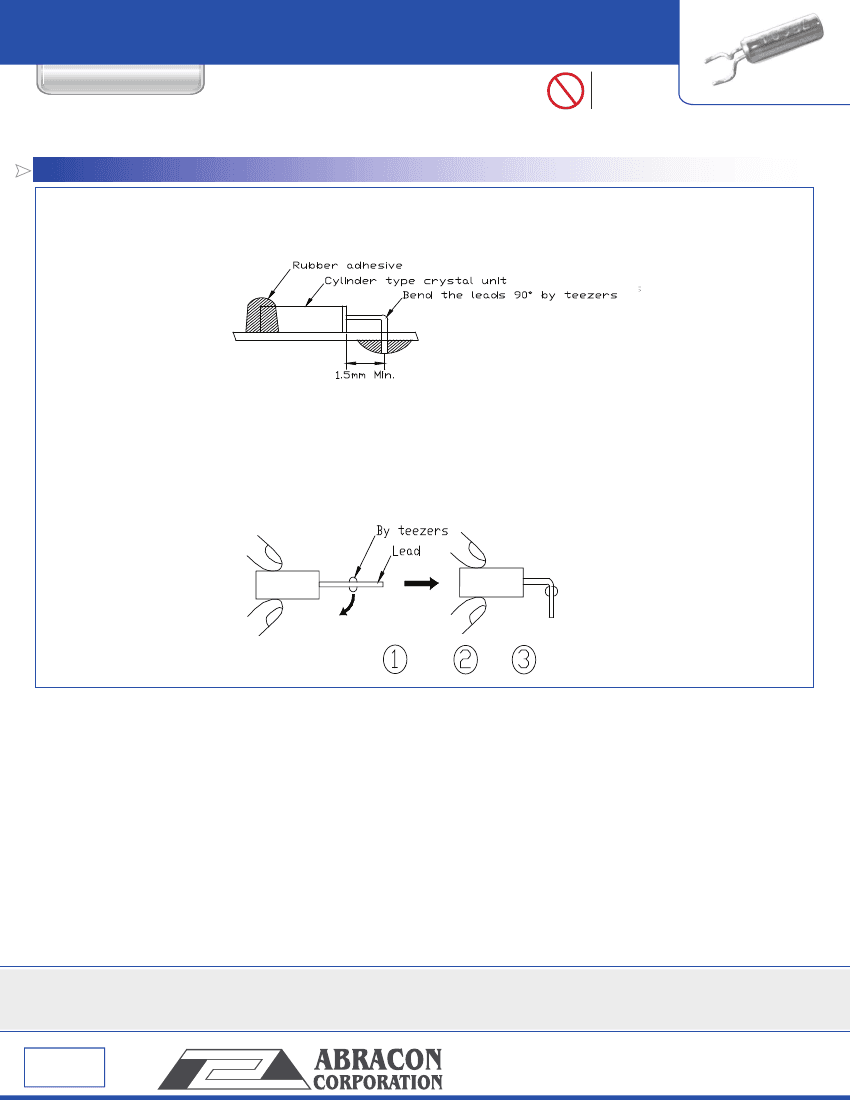

HANDLING INSTRUCTIONS
Mounting:
(1) Soldering on the body of the cylinder type crystal unit must be strictly avoided due to deteriorate the characteristics or damage the
products. Rubber adhesive is recommended.
Pb
RoHS
Compliant
| | | | | | | | | | | | | |
8.8 x Ø3.0mm
|
(2) When the leads need to be bent by hand, follow the instructions below.
- Hold the body of the Cylinder type crystal unit in fingers.
- Pick at the part with tweezers, which you intend to bend. There should be more than 1.5mm (3.0mm is recommendable) from
the body case.
- Bend the lead 90º by tweezers without pulling the lead strongly. Pulling the leads forcefully may cause cracks in the glass hermetic
seal resulting in component failure.
ATTENTION:
Abracon Corporation’s products are COTS – Commercial-Off-The-Shelf products; suitable for Commercial, Industrial and, where designated, Automotive Applica-
tions. Abracon’s products are not specifically designed for Military, Aviation, Aerospace, Life-dependant Medical applications or any application requiring high reliability where
component failure could result in loss of life and/or property. For applications requiring high reliability and/or presenting an extreme operating environment, written consent and
authorization from Abracon Corporation is required. Please contact Abracon Corporation for more information.
ABRACON IS
ISO9001:2008
CE RTIFIED
Revised: 06.14.12
30332 Esperanza, Rancho Santa Mar
garita, California 92688
tel 949-546-8000
|
fax 949-546-8001|
www.abracon.com
