5-6123212-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 5-6123212-1

5-6123212-1: Description0.8FH,R13H.5,040,30/Sn,TU; CategoryThe connector The connector; File Size84KB，2 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

5-6123212-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5-6123212-1	-	-	View	Buy Now

5-6123212-1 Overview

0.8FH,R13H.5,040,30/Sn,TU

5-6123212-1 Parametric

Parameter Name	Attribute value
Brand Name	AMP
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1863297639
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	13 weeks
Samacsys Description	0.8FH,R13H.5,040,30/Sn,TU
Samacsys Manufacturer	TE Connectivity
Samacsys Modified On	2020-10-10 19:58:25
YTEOL	8.7
body width	0.268 inch
subject depth	0.512 inch
body length	0.858 inch
Body/casing type	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	NOT APPLICABLE
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	BELLOWED TYPE
DIN compliance	NO
Dielectric withstand voltage	500VAC V
Durability	100 Cycles
Electromagnetic interference shielding	NO
empty shell	YES
Filter function	NO
IEC compliance	NO
maximum insertion force	.8896 N
Insulation resistance	2000000 Ω
Insulator color	NATURAL
insulator material	LIQUID CRYSTAL POLYMER
MIL compliance	NO
Power Connector Ratings	.5A
Plug contact pitch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of ports	1
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Options	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR
PCB contact row spacing	4.8006 mm
Panel mounting	NO
Plating thickness	30u inch
polarization key	POLARIZED
Rated current (signal)	0.5 A
Guideline	UL
Terminal pitch	0.8 mm
Termination type	SURFACE MOUNT
Total number of contacts	40
UL Flammability Code	94V-0
Evacuation force-minimum value	.0973 N

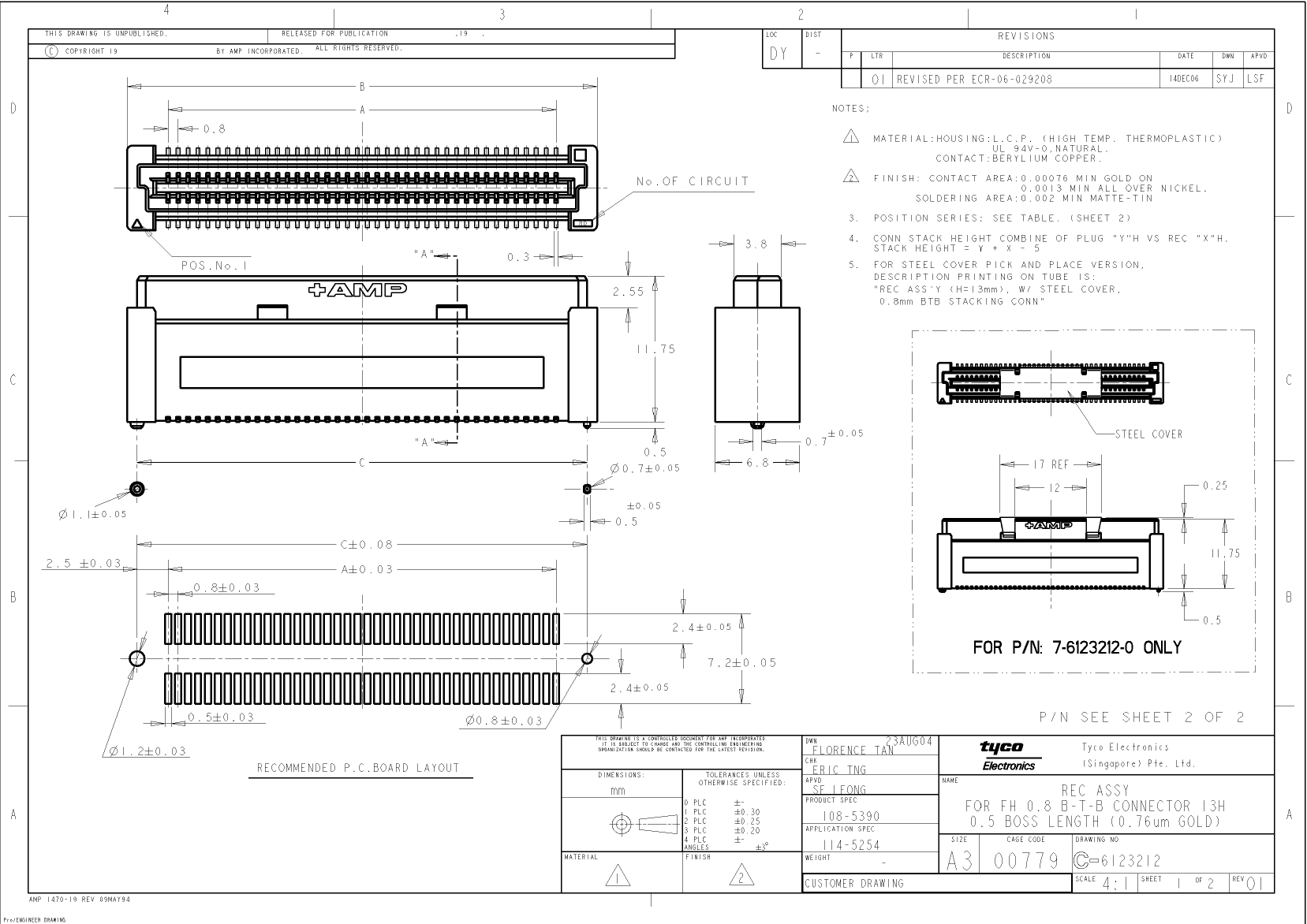

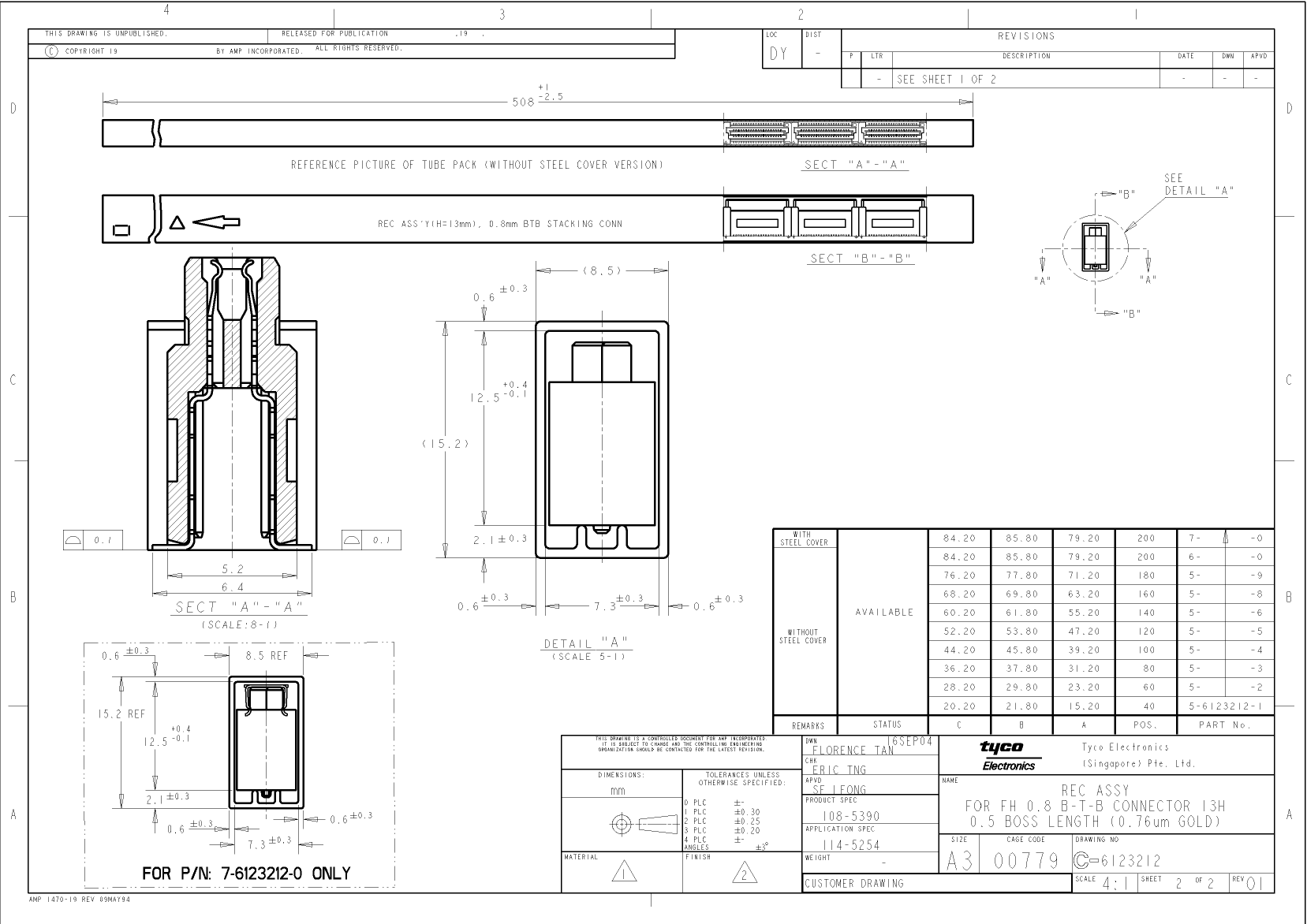

Preview

Download Datasheet

View All

5-6123212-1 Related Products

	5-6123212-1	5-6123212-2	5-6123212-3	5-6123212-5
Description	0.8FH,R13H.5,040,30/Sn,TU	0.8FH,R13H.5,060,30/Sn,TU	0.8FH,R13H.5,080,30/Sn,TU	0.8FH,R13H.5,120,30/Sn,TU
Brand Name	AMP	AMP	AMP	AMP
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Objectid	1863297639	1863297640	1863297641	1863297643
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant
Factory Lead Time	13 weeks	20 weeks	20 weeks 5 days	20 weeks
Samacsys Description	0.8FH,R13H.5,040,30/Sn,TU	0.8FH,R13H.5,060,30/Sn,TU	0.8FH,R13H.5,080,30/Sn,TU	0.8FH,R13H.5,120,30/Sn,TU
Samacsys Manufacturer	TE Connectivity	TE Connectivity	TE Connectivity	TE Connectivity
Samacsys Modified On	2020-10-10 19:58:25	2020-10-10 19:58:25	2020-10-10 19:58:25	2020-10-10 19:58:25
YTEOL	8.7	8.7	8.7	7.5
body width	0.268 inch	0.268 inch	0.268 inch	0.268 inch
subject depth	0.512 inch	0.512 inch	0.512 inch	0.512 inch
body length	0.858 inch	1.173 inch	1.488 inch	2.118 inch
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR	BOARD STACKING CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Contact style	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE	BELLOWED TYPE
DIN compliance	NO	NO	NO	NO
Dielectric withstand voltage	500VAC V	500VAC V	500VAC V	500VAC V
Durability	100 Cycles	100 Cycles	100 Cycles	100 Cycles
Electromagnetic interference shielding	NO	NO	NO	NO
empty shell	YES	YES	YES	YES
Filter function	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO
maximum insertion force	.8896 N	.8896 N	.8896 N	.8896 N
Insulation resistance	2000000 Ω	2000000 Ω	2000000 Ω	2000000 Ω
Insulator color	NATURAL	NATURAL	NATURAL	NATURAL
insulator material	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER	LIQUID CRYSTAL POLYMER
MIL compliance	NO	NO	NO	NO
Power Connector Ratings	.5A	.5A	.5A	.5A
Plug contact pitch	0.031 inch	0.031 inch	0.031 inch	0.031 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO
Installation option 1	LOCKING	LOCKING	LOCKING	LOCKING
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD
Number of connectors	ONE	ONE	ONE	ONE
PCB row number	2	2	2	2
Number of ports	1	1	1	1
Number of rows loaded	2	2	2	2
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
PCB contact row spacing	4.8006 mm	4.8006 mm	4.8006 mm	4.8006 mm
Panel mounting	NO	NO	NO	NO
Plating thickness	30u inch	30u inch	30u inch	30u inch
polarization key	POLARIZED	POLARIZED	POLARIZED	POLARIZED
Rated current (signal)	0.5 A	0.5 A	0.5 A	0.5 A
Guideline	UL	UL	UL	UL
Terminal pitch	0.8 mm	0.8 mm	0.8 mm	0.8 mm
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SOLDER
Total number of contacts	40	60	80	120
UL Flammability Code	94V-0	94V-0	94V-0	94V-0
Evacuation force-minimum value	.0973 N	.0973 N	.0973 N	.0973 N
Contact completed and terminated	NOT APPLICABLE	NOT APPLICABLE	NOT APPLICABLE	-
