POEL
Pan Overseas Electronic
Solid Tantalum Chip Capacitors, Surface Mount
For Switch Mode Power Supplies and Converters

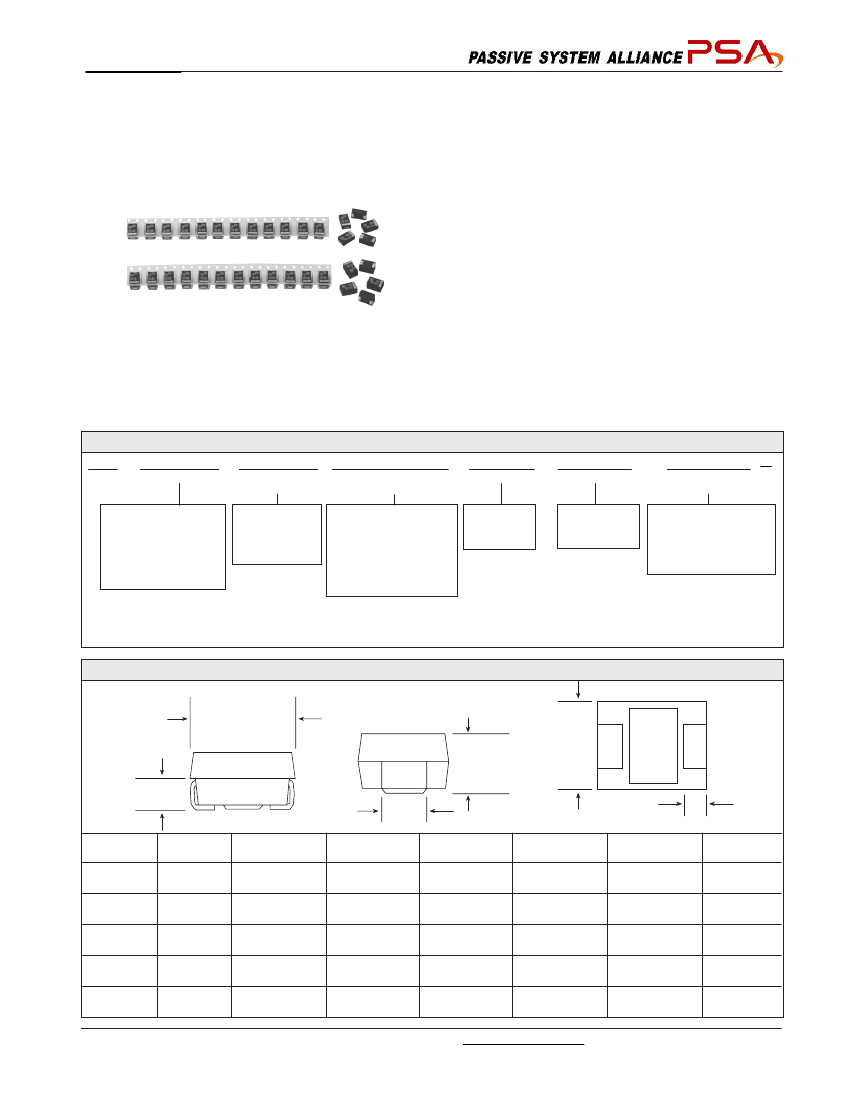

FEATURES
•
Molded case available in five case codes.
•
Compatible with "High Volume" automatic pick and place
equipment.
•
High Ripple Current carrying capability.
•
Low ESR.
•
Meets EIA 535BAAE and IEC Specification QC300801/
US0001.
PERFORMANCE/ELECTRICAL CHARACTERISTICS
Operating Temperature:
- 55°C to + 85°C.
(To +125°C with voltage derating.)
Capacitance Range:
0.47µF to 680µF.
Capacitance Tolerance:
±
20%,
±
10% standard.
Compliant Terminations
100% Surge Current Tested (C, D, & E Case Sizes)
Voltage Rating:
4 WVDC to 50 WVDC.
ORDERING INFORMATION
POEL
TYPE
107
CAPACITANCE
M
CAPACITANCE
TOLERANCE
K
=
M =
±
10%
±
20%
010
DC VOLTAGE RATING
@ + 85°C
This is expressed in
volts. To complete the
three-digit block, zeros
precede the voltage
rating. A decimal point is
indicated by an "R"
(6R3 = 6.3 volts).
D
CASE CODE
See Ratings
and Case
Codes Table.
X
TERMINATION
X = Solderable
coating.
Standard.
P
REEL SIZE AND
PACKAGING
---
This is expressed
in picofarads. The first
two digits are the
significant figures. The
third is the number of
zeros to follow.
P
= Tape and reel*
7" [178mm] reel
L
= 13" [330mm] reel
*Cathode nearest
sprocket hole.
Note:
Preferred Tolerance and reel sizes are in bold.
We reserve the right to supply higher voltage ratings and tighter capacitance tolerance capacitors in the same case size. Voltage
substitutions will be marked with the higher voltage rating.
DIMENSIONS
in inches [millimeters]
L
W
H
T
H
M
IN
.
Tw
CASE
CODE
A
B
C
D
E
EIA
SIZE
3216
3528
6032
7343
7343H
P
L
0.126
±
0.008
[3.2
±
0.20]
0.138
±
0.008
[3.5
±
0.20]
0.236
±
0.012
[6.0
±
0.30]
0.287
±
0.012
[7.3
±
0.30]
0.287
±
0.012
[7.3
±
0.30]
W
0.063
±
0.008
[1.6
±
0.20]
0.110
±
0.008
[2.8
±
0.20]
0.126
±
0.012
[3.2
±
0.30]
0.170
±
0.012
[4.3
±
0.30]
0.170
±
0.012
[4.3
±
0.30]
H
0.063
±
0.008
[1.6
±
0.20]
0.075
±
0.008
[1.9
±
.20]
0.098
±
0.012
[2.5
±
0.30]
0.110
±
0.012
[2.8
±
0.30]
0.158
±
0.012
[4.0
±
.30]
P
0.031
±
0.012
[0.80
±
0.30]
0.031
±
0.012
[0.80
±
0.30]
0.051
±
0.012
[1.3
±
0.30]
0.051
±
0.012
[1.3
±
0.30]
0.051
±
0.012
[1.3
±
0.30]
Tw
0.047
±
0.004
[1.2
±
0.10]
0.087
±
0.004
[2.2
±
0.10]
0.087
±
0.004
[2.2
±
0.10]
0.095
±
0.004
[2.4
±
0.10]
.095
±
0.004
[2.4
±
0.10]
T
H
(MIN)
0.028
[0.70]
0.028
[0.70]
0.039
[1.0]
0.039
[1.0]
0.039
[1.0]
www.pan-overseas.com
10
For technical questions, contact
: poe@pan-overseas.com
Revision June 15, 2004
POEL
Pan Overseas Electronic

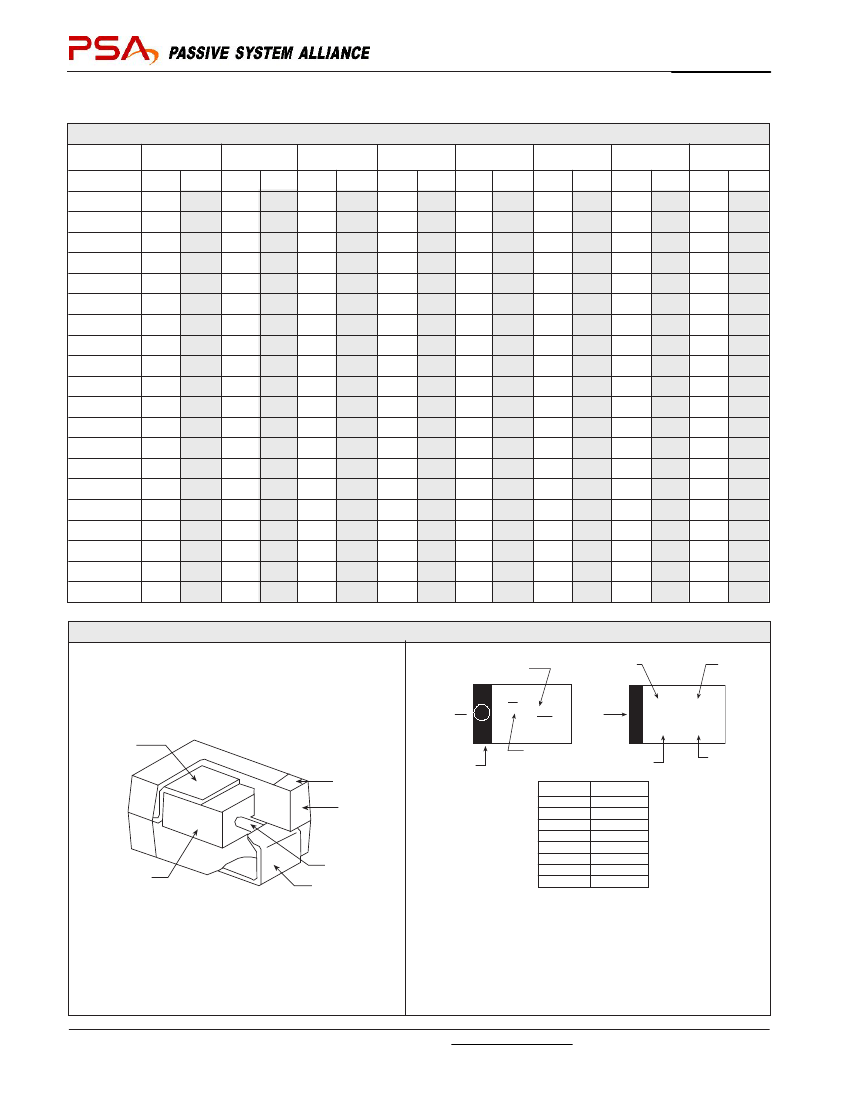

RATINGS AND CASE CODES
µ
F
Std.
0.47
0.68
1.0
1.5
2.2
3.3
4.7
6.8
10
15
22
33
47
68
100
150
220
330
470
680
D
A
A
A/B
A*/B
B/C
B/C
B/C
C/D
D
D/E
D*/E
D
E
A
A
A/B
A*B
B/C
B/C
B/C
C/D
D/E
D/E
D*/E
E*
D
D
C
A
A
A
A/B
A/B
B/C
B/C
B*/C
C*/D
D/E
D/E
D*/E
E*
D
D
C
C
A
B
A
A
A/B
B
B/C
B/C
C
D
D/E
D*/E
D
D
C
B
A
A
A
B
B
B/C
C
C
D/E
D/E
E
D
C
C
C
C
D
D/E
B
A
A
A
A
B
B
D
D
D
D/E
B
C
C
C
C
C
4V
Ext.
Std.
6.3V
Ext.
10V
Std.
Ext.
Std.
16V
Ext.
20V
Std.
Ext.
Std.
25V
Ext.
35V
Std.
Ext.
A
A
A
B
B
B
B
D
D
D
C
C
C
E
D/E
E
Std.
50V
Ext.
*Preliminary values, contact factory for availability.
CONSTRUCTION AND MARKING
CONSTRUCTION
MARKING
Capacitance Code,
pF
Capacitance
Polarity
Band
B, C, D, E
Voltage
P
Cathode
Termination ( - )
Polarity
Stripe (+)
“A” Case
Polarity Band
V 104
22
XX
10
POE
POE
Logo
Voltage Code
Date Code
Volts
4
6.3
10
16
20
25
35
50
Code
G
J
A
C
D
E
V
T
Epoxy Case
Tantalum
Capacitor
Element
Anode Weld
Positive
Termination
Marking:
Capacitor marking will include an anode (+) polarity band, capacitance
in microfarads and the voltage rating of + 85°C. 'A' Case capacitors use
a letter code for the voltage and EIA capacitance code.
The
POE
mark may be included if space permits.
Units rated at 6.3 V shall be marked 6 V.
A manufacturing date code is marked on all case codes.
Call the factory for further explanation.
Revision June 15, 2004
For technical questions, contact
: poe@pan-overseas.com
www.pan-overseas.com
11
