WA06X162_JT_ datasheet, PDF - EEWORLD Datasheet

WA06X162_JT_: DescriptionArray/Network Resistor, Isolated, Metal Glaze/thick Film, 0.1W, 1600ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0612, CHIP; CategoryPassive components The resistor; File Size353KB，7 Pages; ManufacturerWalsin Technology Corporation

Download Datasheet Parametric View All

WA06X162_JT_ Overview

Array/Network Resistor, Isolated, Metal Glaze/thick Film, 0.1W, 1600ohm, 50V, 5% +/-Tol, 100ppm/Cel, Surface Mount, 0612, CHIP

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1885636181
package instruction	CHIP
Reach Compliance Code	compliant
Country Of Origin	Mainland China
ECCN code	EAR99
YTEOL	8.3
Other features	LASER TRIMMABLE, PRECISION

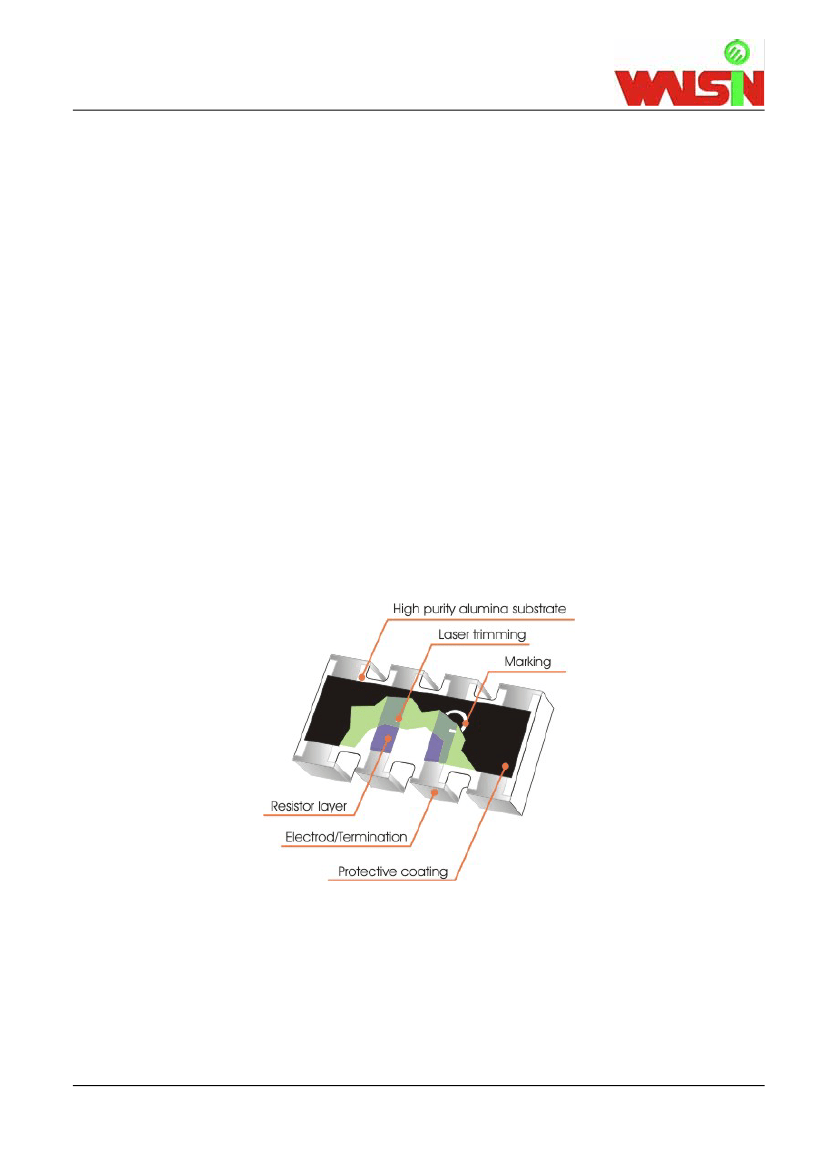

structure	Chip
The first element resistor	1600 Ω
JESD-609 code	e0
Manufacturer's serial number	WA06X
Installation features	SURFACE MOUNT
Network Type	ISOLATED
Number of components	1
Number of functions	4
Number of terminals	8
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C

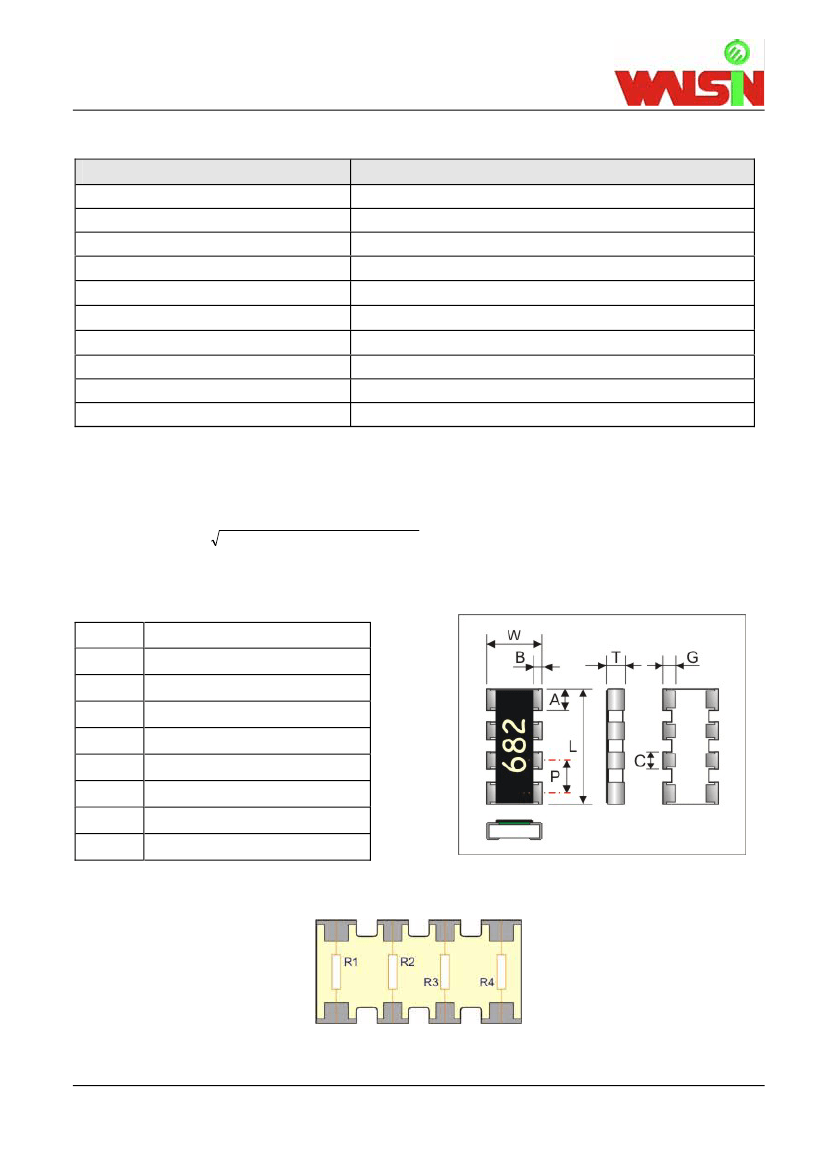

Package height	0.5 mm
Package length	3.2 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	1.6 mm
method of packing	TR, PAPER, 7 INCH

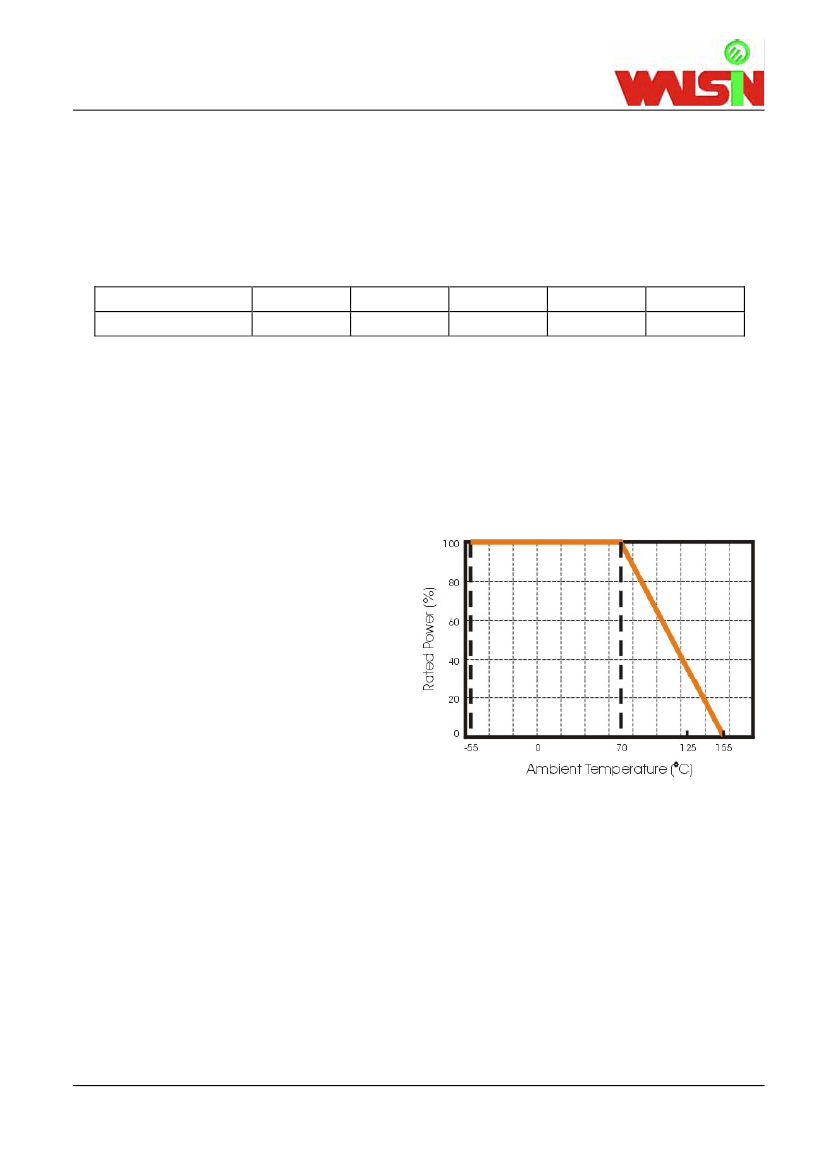

Rated power dissipation(P)	0.1 W
Rated temperature	70 °C
resistance	1600 Ω
Resistor type	ARRAY/NETWORK RESISTOR
series	WA06X SERIES
size code	0612
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
Tolerance	5%
Operating Voltage	50 V

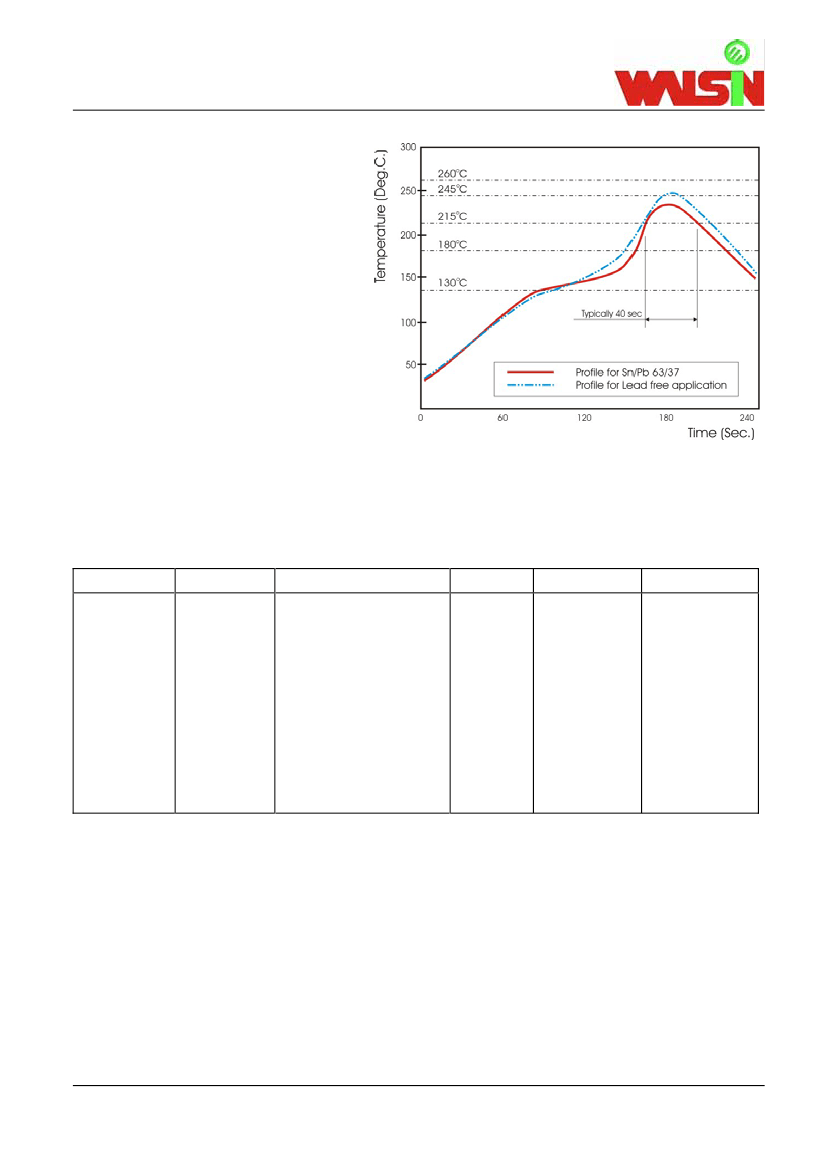

Walsin Technology Corporation

WA06X

±0.5%,

Convex Type

Precision chip resistors array

Size 0603x4

Customer

Approval No :

Issue Date

Customer Approval :

Page 1 of 7

WA06X_D

Version 04

Dec.-2006
